1 |

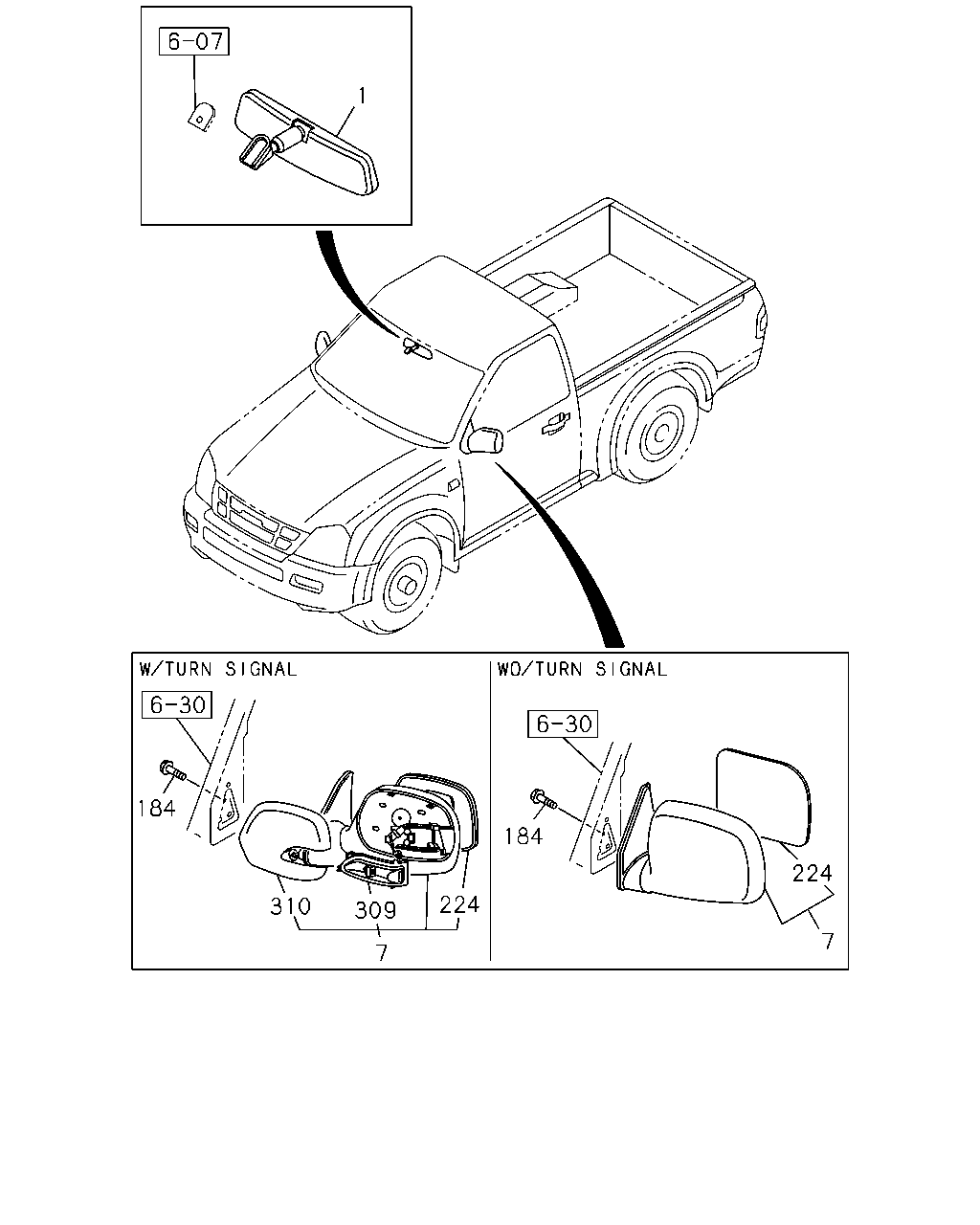

16.068 MIRROR; ROOM
|
8-97237-560-0 |
01 |
1 |
0307-0609 |
● |
● |
● |
● |
| |
1 |
16.068 MIRROR; ROOM
|
8-97237-560-0 |
01 |
1 |
0610-0709 |
● |
|
|
|
| |
1 |
16.068 MIRROR; ROOM
RR VIEW MIRROR DAY & NIGHT<D31>
|
8-97237-560-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
1 |
16.068 MIRROR; ROOM
|
8-97237-560-0 |
01 |
1 |
0710- |
● |
|
● |
|
| |
1 |
16.068 MIRROR; ROOM
RR VIEW MIRROR DAY & NIGHT<D31>
|
8-97237-560-0 |
01 |
1 |
0710- |
|
● |
|
● |
| |
1 |
16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR DAY & NIGHT<D31>
|
8-98053-645-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
1 |
16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR DAY & NIGHT<D31>
|
8-98053-645-0 |
01 |
1 |
0710- |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY>
|
8-97357-868-0 |
01 |
1 |
0307-0709 |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GRAY
|
8-97408-333-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GRAY
|
8-97415-884-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY>
|
8-97357-896-0 |
01 |
1 |
0307-0709 |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
RED
|
8-97408-359-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
RED
|
8-97415-877-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-859-0 |
01 |
1 |
0307-0709 |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
|
8-97357-859-1 |
01 |
1 |
0710- |
● |
|
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-859-1 |
01 |
1 |
0710- |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-892-0 |
01 |
1 |
0307-0709 |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
|
8-97357-892-0 |
01 |
1 |
0710-0809 |
● |
|
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-892-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
|
8-97357-892-1 |
01 |
1 |
0810- |
● |
|
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
GRADE DX(RBA)
DOOR MIRROR<RT9>
|
8-97357-892-1 |
01 |
1 |
0810- |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-870-0 |
01 |
1 |
0610-0709 |
|
● |
|
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GREEN
|
8-97408-335-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GREEN
|
8-97415-885-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98111-727-0 |
01 |
1 |
0810-0912 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98157-130-0 |
01 |
1 |
1001- |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-898-0 |
01 |
1 |
0610-0709 |
|
● |
|
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GREEN
|
8-97408-358-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GREEN
|
8-97415-876-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
GRADE LT(RBD)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98111-728-0 |
01 |
1 |
0810-0912 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
GRADE LT(RBD)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98157-131-0 |
01 |
1 |
1001-1101 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98157-131-0 |
01 |
1 |
1102- |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97399-096-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97399-096-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
WHITE
|
8-97408-328-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
WHITE
|
8-97415-879-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97401-455-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97401-455-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97400-953-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97400-953-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLACK
|
8-97408-329-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLACK
|
8-97415-880-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97401-453-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97401-453-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
WHITE
|
8-97408-353-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
WHITE
|
8-97415-871-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97400-951-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97402-915-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
RED
|
8-97408-336-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
RED
|
8-97415-886-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97401-452-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97402-919-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLACK
|
8-97408-354-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLACK
|
8-97415-872-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97401-454-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97401-454-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
SILVER
|
8-97408-355-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
SILVER
|
8-97415-873-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97401-456-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97401-456-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97401-439-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97401-439-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLUE
|
8-97408-332-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLUE
|
8-97415-883-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97401-450-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97401-450-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
GOLD
|
8-97408-356-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
GOLD
|
8-97415-874-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2>
|
8-97357-864-0 |
01 |
1 |
0307-0508 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97399-091-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97399-091-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
GOLD
|
8-97408-331-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
GOLD
|
8-97415-882-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2>
|
8-97357-894-0 |
01 |
1 |
0307-0508 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GREEN
|
8-97401-438-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
DARK GREEN
|
8-97402-912-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GRAY
|
8-97408-360-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GRAY
|
8-97415-878-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-870-0 |
01 |
1 |
0307-0508 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97400-955-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97400-955-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
SILVER
|
8-97408-330-4 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
SILVER
|
8-97415-881-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-898-0 |
01 |
1 |
0307-0508 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GREEN
|
8-97401-449-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
DARK GREEN
|
8-97402-918-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLUE
|
8-97408-357-5 |
01 |
1 |
0710-0802 |
|
● |
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLUE
|
8-97415-875-0 |
01 |
1 |
0803-0809 |
|
● |
|
● |
| |
184 |
16.069 BOLT; MIRROR
16.585
M6X14 FLANGE
|
8-94327-380-0 |
06 |
1 |
0307-0609 |
● |
● |
● |
● |
| |
184 |
16.069 BOLT; MIRROR
17.455
M6X14 FLANGE
|
8-97247-698-0 |
06 |
1 |
0610- |
● |
● |
● |
● |
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
|
8-98092-588-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98092-588-0 |
01 |
1 |
0810- |
|
● |
|
● |
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
|
8-98092-589-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
224 |
16.068 MIRROR; DOOR
GRADE LT(RBD)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98092-589-0 |
01 |
1 |
0810-1101 |
|
● |
|
● |
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98092-589-0 |
01 |
1 |
1102- |
|
● |
|
● |
| |
224 |
16.068 MIRROR; DOOR
|
8-97349-981-0 |
01 |
1 |
0307-0709 |
● |
● |
● |
● |
| |
224 |
16.068 MIRROR; DOOR
|
8-97349-981-0 |
01 |
1 |
0710- |
● |
|
● |
|
| |
224 |
16.068 MIRROR; DOOR
DOOR MIRROR<RT9>
|
8-97349-981-0 |
01 |
1 |
0710- |
|
● |
|
● |
| |
224 |
16.068 MIRROR; DOOR
|
8-97351-629-0 |
01 |
1 |
0307-0709 |
● |
● |
● |
● |
| |
224 |
16.068 MIRROR; DOOR
|
8-97351-629-0 |
01 |
1 |
0710-0809 |
● |
|
● |
|
| |
224 |
16.068 MIRROR; DOOR
DOOR MIRROR<RT9>
|
8-97351-629-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
224 |
16.068 MIRROR; DOOR
|
8-97351-629-0 |
01 |
1 |
0810- |
● |
|
● |
|
| |
224 |
16.068 MIRROR; DOOR
GRADE DX(RBA)
DOOR MIRROR<RT9>
|
8-97351-629-0 |
01 |
1 |
0810- |
|
● |
|
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
|
8-97387-940-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
|
8-97387-940-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
|
8-98092-088-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98092-088-0 |
01 |
1 |
0810- |
|
● |
|
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
|
8-97387-939-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
|
8-97387-939-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
|
8-98092-087-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
GRADE LT(RBD)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98092-087-0 |
01 |
1 |
0810-1101 |
|
● |
|
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
|
8-98092-087-0 |
01 |
1 |
1102- |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLACK
|
8-97414-410-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
GOLD
|
8-97414-413-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97401-547-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97401-547-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
WHITE
|
8-97414-396-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97401-541-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
WHITE
|
8-97401-541-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
WHITE
|
8-97414-407-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97403-659-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97403-659-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLACK
|
8-97414-399-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97402-780-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLACK
|
8-97402-780-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GRAY
|
8-97414-411-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GREEN
|
8-97403-660-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
DARK GREEN
|
8-97403-667-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GREEN
|
8-97414-398-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
PLATED
|
8-98092-084-0 |
01 |
1 |
0810- |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GREEN
|
8-97402-777-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
DARK GREEN
|
8-97403-671-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GREEN
|
8-97414-409-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
GRADE LT(RBD)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
PLATED
|
8-98092-083-0 |
01 |
1 |
0810-1101 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DNQ>
PLATED
|
8-98092-083-0 |
01 |
1 |
1102- |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97403-658-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97403-670-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
RED
|
8-97414-441-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97402-779-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
RED
|
8-97403-664-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
RED
|
8-97414-412-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97401-542-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97401-542-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
GOLD
|
8-97414-442-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97401-536-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
GOLD
|
8-97401-536-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLUE
|
8-97414-408-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97402-521-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97402-521-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
SILVER
|
8-97414-391-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97402-518-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
SILVER
|
8-97402-518-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
SILVER
|
8-97414-402-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97405-665-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97405-665-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
BLUE
|
8-97414-397-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97402-778-0 |
01 |
1 |
0509-0609 |
|
|
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN S
IGNAL<DF9>
BLUE
|
8-97402-778-0 |
01 |
1 |
0610-0709 |
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN S
IGNAL<DL2>
DARK GRAY
|
8-97414-400-0 |
01 |
1 |
0710-0809 |
|
● |
|
● |
