◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#73493) — 37 parça

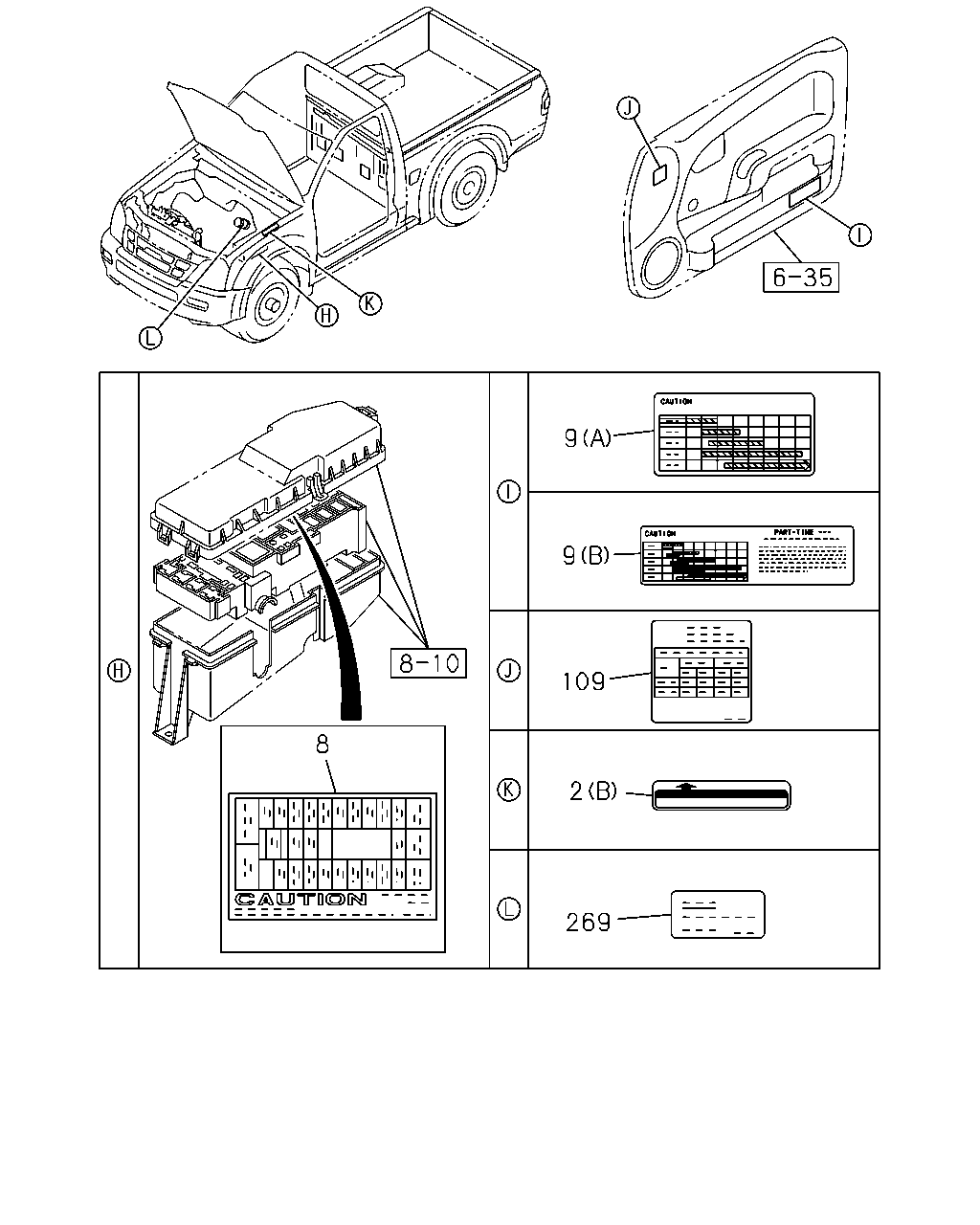

çizim 117384
9 9 109 8 2 269
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.680 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 0610- ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0307- ● ● ● ●
8 03.680 LABEL; FUSE 8-97302-157-3 01 1 0307-0508 ● ● ● ●
8 03.680 LABEL; FUSE 8-98014-689-0 01 1 0509-0609 ● ● ● ●
8 03.680 LABEL; FUSE 8-98042-527-0 01 1 0610- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
(A) 		8-94332-957-0 01 1 0307-0410 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) SPEEDOMETER KILO&MILES<U19> (A) 		8-94332-957-0 01 1 0411-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. SPEEDOMETER KILO&MILES<U19> (A) 		8-94423-384-0 01 1 0411-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) (B) 		8-97021-925-0 01 1 0307-0410 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) SPEEDOMETER KILO&MILES<U19> (B) 		8-97021-925-0 01 1 0411-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. SPEEDOMETER KILO&MILES<U19> (A) 		8-97013-728-0 01 1 0411-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B) 		8-94332-958-0 01 1 0307-0410 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) SPEEDOMETER KILO&MILES<U19> (B) 		8-94332-958-0 01 1 0411-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. SPEEDOMETER KILO&MILES<U19> (B) 		8-94331-888-0 01 1 0411-0609 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-965-0 01 1 0307-0609 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-965-0 01 1 0610-0809 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97332-965-0 01 1 0610-0809 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98107-867-0 01 1 0810- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98107-867-0 01 1 0810- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-646-0 01 1 0307-0609 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC) 		8-97332-646-0 01 1 0610- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-646-0 01 1 0610- ● ●
269 08.808 LABEL; CAUTION,EGR 8-97383-056-0 01 1 0610- ● ● ● ●

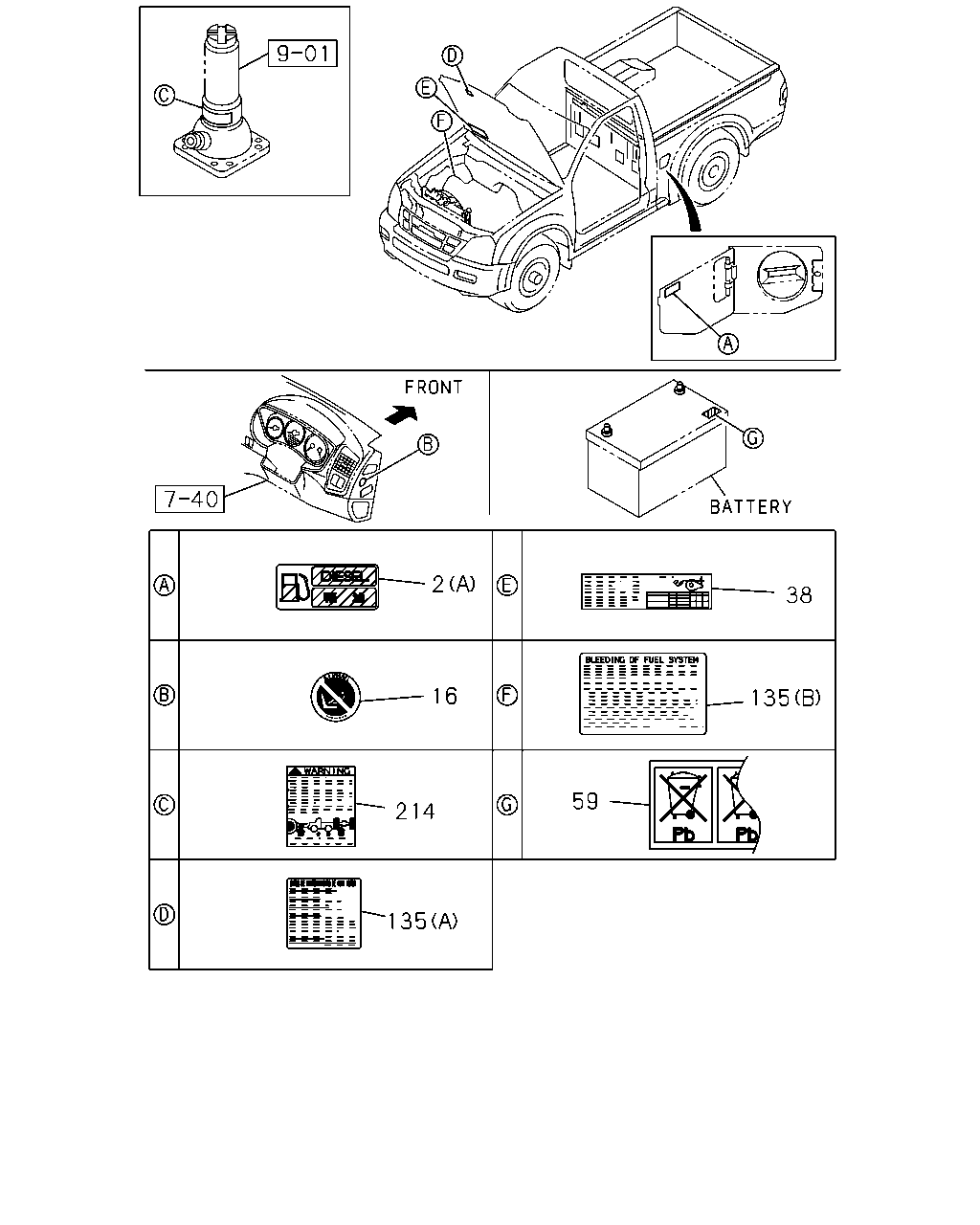

çizim 117391
2 38 16 135 59 214 135
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.680 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 0610- ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0307- ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97357-163-0 01 1 0307-0402 ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97378-569-0 01 1 0403-0508 ● ● ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 0509- ● ● ● ●
38 08.808 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97357-784-0 01 1 0307- ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY 8-97368-917-0 01 1 0307-0905 ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY 8-98140-947-0 01 1 0906- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
(B) 		8-97943-097-0 01 1 0307-0609 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> (A) 		8-98042-938-0 01 1 0610- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-TC ENG(L4Z) (A) 		8-97943-122-0 01 1 0307-0609 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) ISUZU BRAND<7WL> (A) 		8-98042-941-0 01 1 0610- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) (A) 		8-97943-010-0 01 1 0307-0609 ● ●
214 08.808 LABEL; JACK 8-97315-282-1 01 1 0307- ● ● ● ●
