◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#73490) — 26 parça

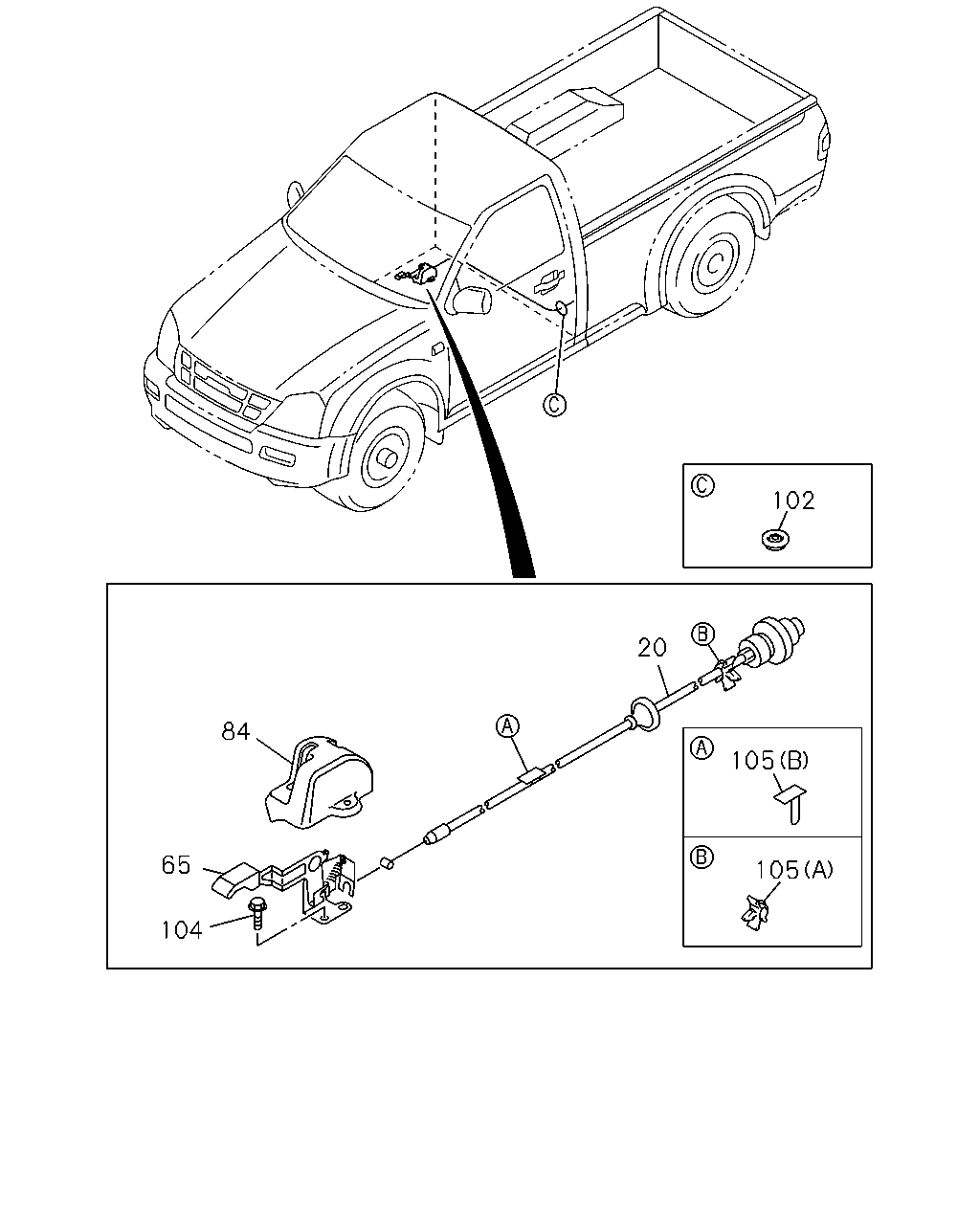

çizim 117367
102 20 84 105 65 105 104
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 		8-97235-476-2 01 1 0307-0308 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 		8-97368-368-0 01 1 0309-0402 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-97368-368-0 01 1 0403-0612 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-98072-755-0 01 1 0701- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 		8-97235-477-4 01 1 0307-0402 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-97235-477-4 01 1 0403-0612 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-98072-759-0 01 1 0701- ● ●
65 17.505 KNOB; FUEL FILLER DOOR
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> DARK GRAY 		8-97298-468-0 01 1 0307-0402 ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97298-468-0 01 1 0403-0510 ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-950-0 01 1 0511-0609 ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-953-0 01 1 0610-1003 ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-953-0 01 1 1004- ● ●
65 17.505 KNOB; FUEL FILLER DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DARK GRAY 		8-97405-953-0 01 1 1004- ● ●
84 17.185 COVER; BRKT
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> DARK GRAY 		8-97294-052-2 01 1 0307-0402 ● ● ● ●
84 17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97294-052-2 01 1 0403-0609 ● ● ● ●
84 17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97403-681-2 01 1 0610-1003 ● ● ● ●
84 17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97403-681-2 01 1 1004- ● ●
84 17.185 COVER; BRKT
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DARK GRAY 		8-97403-681-2 01 1 1004- ● ●
102 17.505 GROMMET
EXC. FUEL LID OPENER<N08> 		8-97321-645-1 01 1 0307- ● ● ● ●
104 17.505 BOLT; KNOB
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0307-0402 ● ● ● ●
104 17.505 BOLT; KNOB
FUEL LID OPENER<N08> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0403- ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 16.065 (B) ID=7 		1-09987-055-0 04 1 0307-0402 ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 16.065 (B) ID=7 		1-09987-055-0 04 1 0403-1110 ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 		8-98158-303-0 04 1 1111- ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 02.559 (A) D=5.8 		5-09709-081-0 02 1 0307-0402 ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 02.559 (A) D=5.8 		5-09709-081-0 02 1 0403- ● ●
