6-76 — FLOOR EQUIPMENT AND SEALING (#73485) — 25 parça

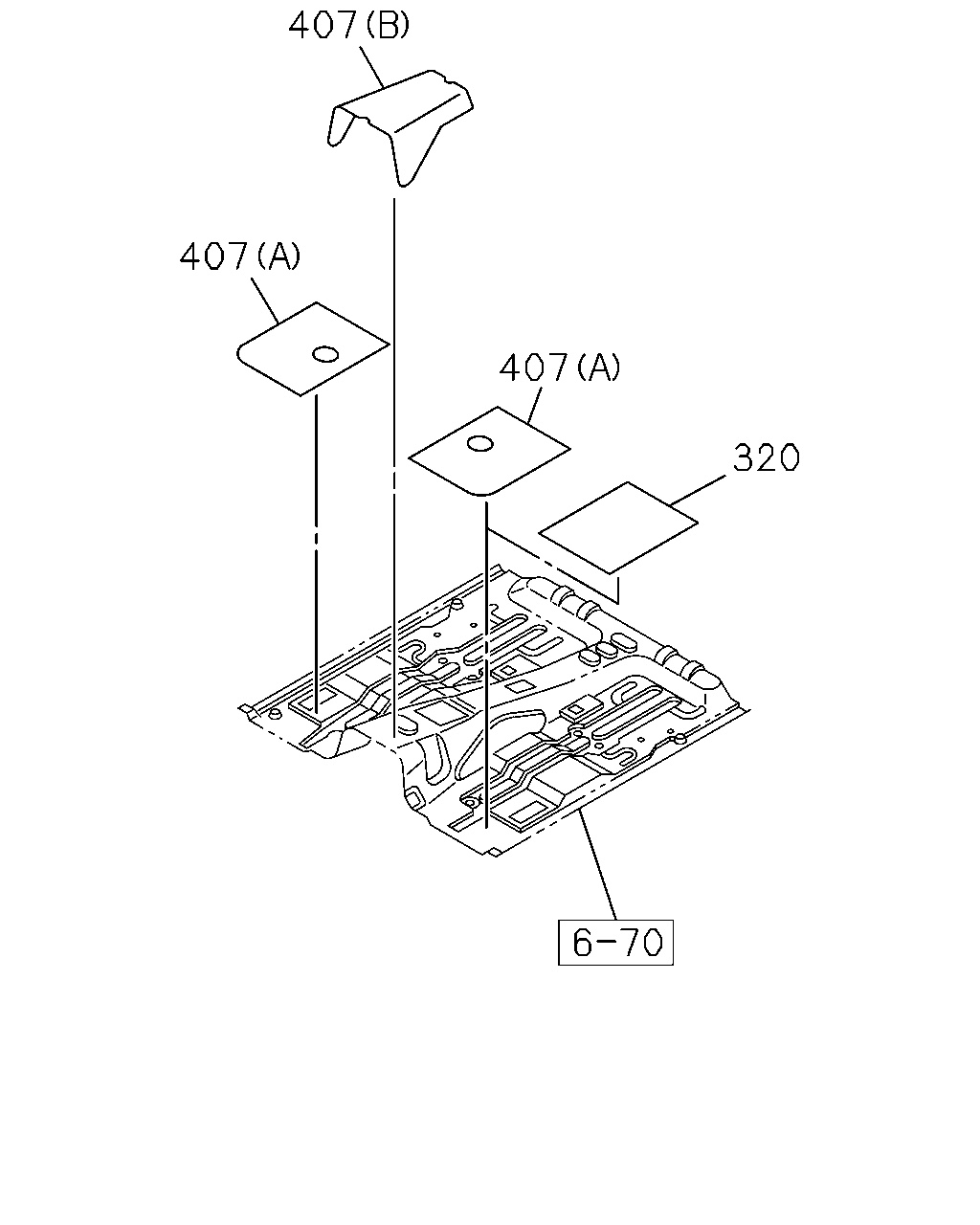

407 407 407 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
320	16.549 INSULATOR; FLOOR,FRT 4JH1-TC ENG(RDM)	8-97329-088-1	01	1	0307-0609	●	●
320	16.549 INSULATOR; FLOOR,FRT 4JJ1-TCX ENG(LS0)	8-97329-088-1	01	1	0610-	●	●
407	16.850 DEADENER; FLOOR PANEL 4JH1-TC ENG(RDM) (A)	8-97349-432-0	02	1	0307-0609	●	●
407	16.850 DEADENER; FLOOR PANEL (A)	8-97349-432-0	02	1	0610-	●	●	●	●
407	16.850 DEADENER; FLOOR PANEL 4JH1-TC ENG(RDM) (B)	8-97349-445-0	01	1	0307-0609	●	●
407	16.850 DEADENER; FLOOR PANEL (B)	8-97349-445-0	01	1	0610-	●	●	●	●

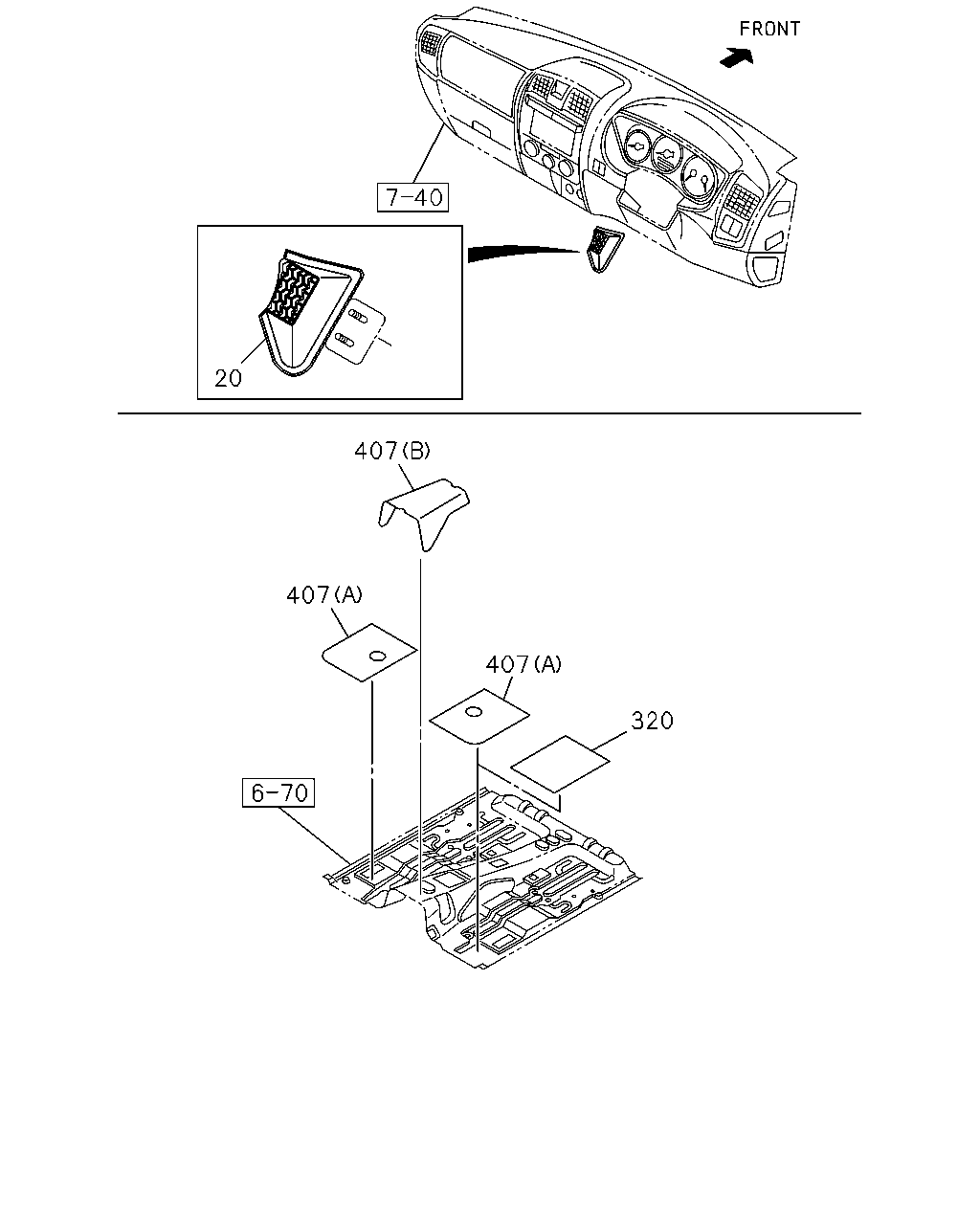

20 407 407 407 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	16.547 REST; FOOT PARKING BRAKE FLOOR<7XW>	8-97236-450-1	01	1	0307-0402		●	●	●
20	16.547 REST; FOOT	8-97236-450-1	01	1	0307-0402	●
20	16.547 REST; FOOT PARKING BRAKE FLOOR<7XW>	8-97236-450-1	01	1	0403-0508	●	●	●	●
20	16.547 REST; FOOT PARKING BRAKE FLOOR<7XW>	8-97236-450-1	01	1	0509-0609		●	●	●
20	16.547 REST; FOOT	8-97236-450-1	01	1	0509-0609	●
20	16.547 REST; FOOT PARKING BRAKE FLOOR<7XW>	8-97236-450-1	01	1	0610-			●
20	16.547 REST; FOOT DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW>	8-97236-450-1	01	1	0610-				●
20	16.547 REST; FOOT	8-97236-450-1	01	1	0610-	●	●
20	16.547 REST; FOOT EXC. PARKING BRAKE FLOOR<7XW>	8-97365-724-0	01	1	0307-0402		●	●	●
20	16.547 REST; FOOT EXC. PARKING BRAKE FLOOR<7XW>	8-97365-724-0	01	1	0403-0508	●	●	●	●
20	16.547 REST; FOOT EXC. PARKING BRAKE FLOOR<7XW>	8-97365-724-0	01	1	0509-0609		●	●	●
20	16.547 REST; FOOT EXC. PARKING BRAKE FLOOR<7XW>	8-97365-724-0	01	1	0610-			●
20	16.547 REST; FOOT DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW>	8-97365-724-0	01	1	0610-				●
320	16.549 INSULATOR; FLOOR,FRT 4JH1-TC ENG(RDM)	8-97329-088-1	01	1	0307-0609	●	●
320	16.549 INSULATOR; FLOOR,FRT 4JJ1-TCX ENG(LS0)	8-97329-088-1	01	1	0610-	●	●
407	16.850 DEADENER; FLOOR PANEL 4JH1-TC ENG(RDM) (A)	8-97349-432-0	02	1	0307-0609	●	●
407	16.850 DEADENER; FLOOR PANEL (A)	8-97349-432-0	02	1	0610-	●	●	●	●
407	16.850 DEADENER; FLOOR PANEL 4JH1-TC ENG(RDM) (B)	8-97349-445-0	01	1	0307-0609	●	●
407	16.850 DEADENER; FLOOR PANEL (B)	8-97349-445-0	01	1	0610-	●	●	●	●
