6-75 — MAT AND CARPET (#73484) — 316 parça

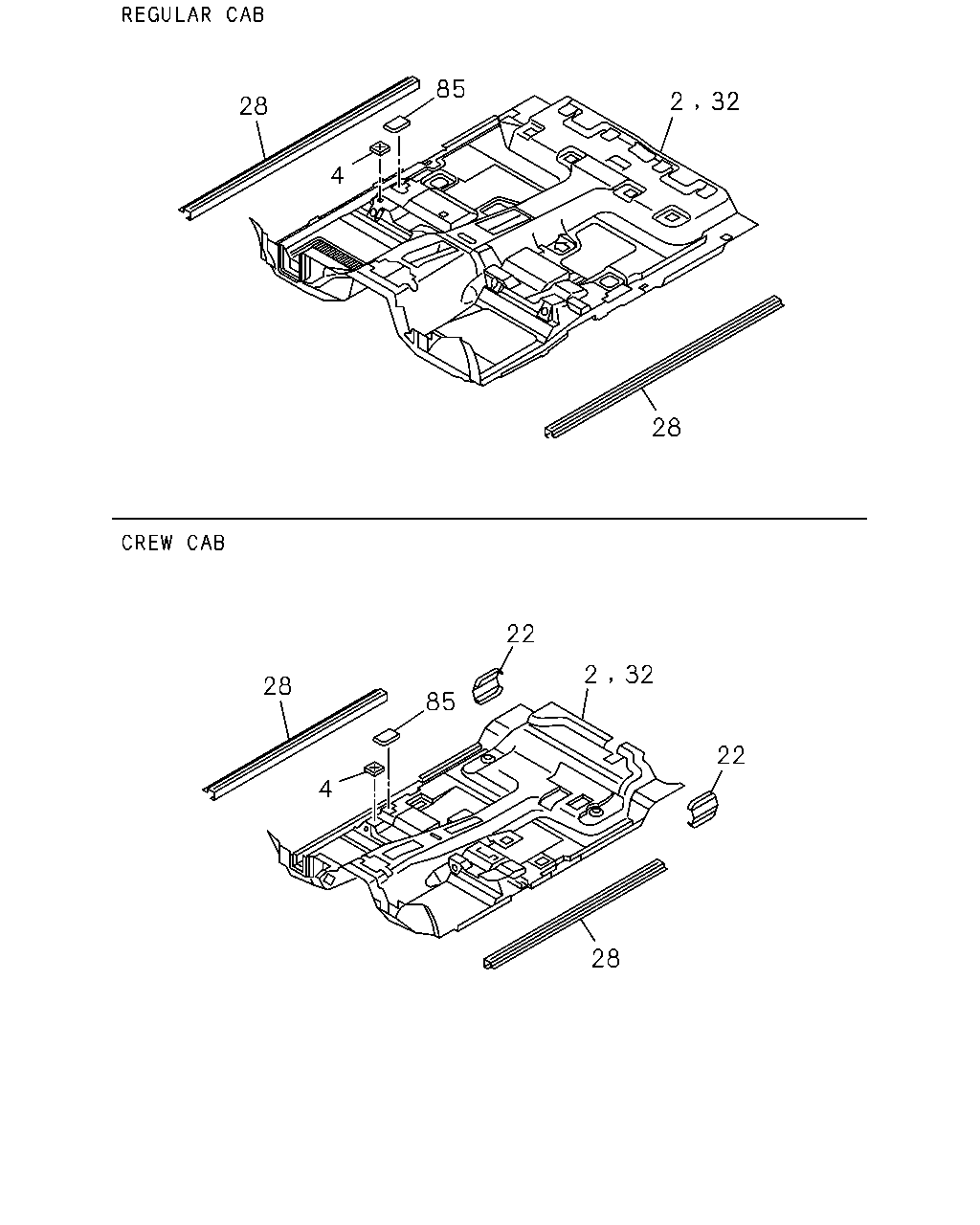

çizim 117356
85 2 32 28 4 28 22 2 32 28 85 22 4 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-358-0 01 1 0307-0402 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-358-0 01 1 0403-0508 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-358-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-816-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-817-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-817-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-799-0 01 1 1008- ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0307-0402 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0307-0402 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0403-0508 ● ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-812-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-812-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-814-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> BLACK 		8-97405-814-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-814-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97419-797-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97413-395-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97419-852-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97405-809-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97405-809-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97405-809-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> BLACK 		8-97419-795-0 01 1 1008- ●
2 16.800 MAT; FLOOR
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-796-0 01 1 1008- ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-796-0 01 1 1008- ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-360-0 01 1 0307-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-820-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-821-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-821-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-821-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-801-0 01 1 1008- ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-849-0 01 1 0307-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-786-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-787-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-787-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-787-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-791-0 01 1 1008- ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-399-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-865-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97413-391-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97419-867-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-361-0 01 1 0307-0508 ● ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-361-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-361-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-822-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-822-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97419-802-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97294-865-0 01 1 0307-0508 ● ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97294-865-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97294-865-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-684-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-684-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97419-792-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-805-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97413-397-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-855-0 01 1 1008- ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0307-0402 ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0403-0508 ● ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0509-0609 ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0610- ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0307-0402 ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0307-0402 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0403-0508 ● ● ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0509-0609 ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0509-0609 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0610- ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0610- ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97298-424-1 02 1 0307-0609 ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97403-457-1 02 1 0610-1003 ● ●
22 16.870 PLATE; SILL,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-457-1 02 1 1004- ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0307-0609 ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 0610- ● ● ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-212-0 01 1 0307-0402 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-212-0 01 1 0403-0508 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-212-0 01 1 0509-0607 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-687-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-688-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-688-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-774-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-228-0 01 1 0307-0402 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97294-228-0 01 1 0307-0402 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-228-0 01 1 0403-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-689-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-690-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-690-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-775-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-733-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-733-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-733-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-784-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRA KE FLOOR<7XW> DARK GRAY 		8-97413-374-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRA KE FLOOR<7XW> DARK GRAY 		8-97413-374-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRA KE FLOOR<7XW> BLACK 		8-97419-846-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-368-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-368-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-848-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-847-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-847-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-801-0 01 1 0307-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-699-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-700-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-700-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-700-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-779-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-260-0 01 1 0307-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-693-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-694-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-694-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-694-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-776-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-735-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-735-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-735-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-785-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-369-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-843-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97413-372-0 01 1 0710-0910 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97413-372-0 01 1 0911-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-845-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97294-276-6 01 1 0307-0508 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97294-276-6 01 1 0509-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-695-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97405-697-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97405-697-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97419-777-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-817-0 01 1 0307-0508 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-817-0 01 1 0509-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-701-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-702-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-702-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-780-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-727-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97413-371-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97413-371-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,PARKING BRAKEFLOOR<7XW> BLACK 		8-97419-849-0 01 1 1008- ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-349-0 01 1 0307-0609 ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97403-454-0 01 1 0610-0802 ● ● ● ●

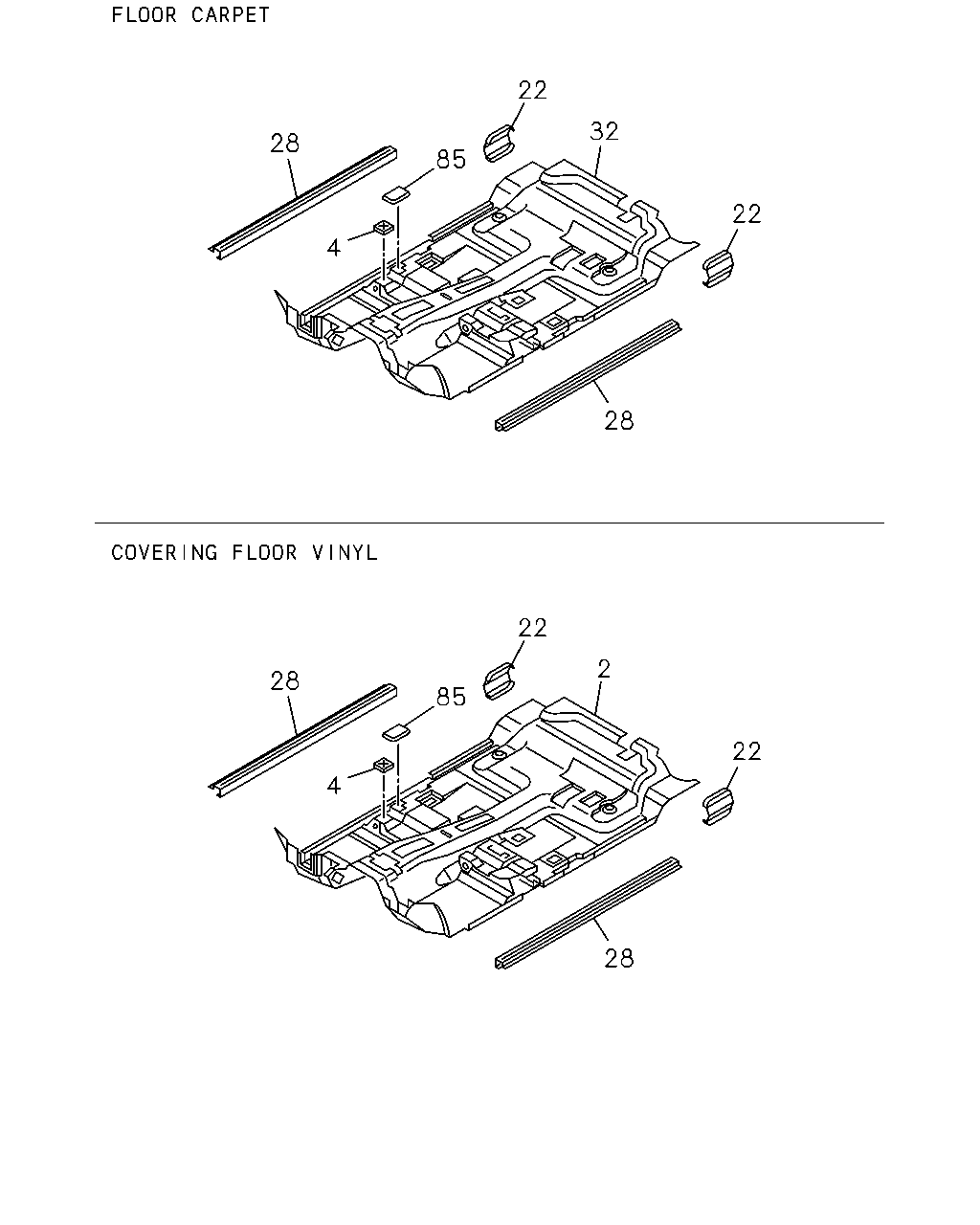

çizim 117474
22 32 28 85 22 4 28 22 2 28 85 22 4 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-358-0 01 1 0307-0402 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-358-0 01 1 0403-0508 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-358-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-816-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-817-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-817-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-799-0 01 1 1008- ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0307-0402 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0307-0402 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0403-0508 ● ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-357-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-812-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-812-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-814-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> BLACK 		8-97405-814-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-814-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97419-797-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97413-395-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97419-852-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97405-809-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97405-809-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97405-809-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKEFLOOR<7XW> BLACK 		8-97419-795-0 01 1 1008- ●
2 16.800 MAT; FLOOR
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-811-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-796-0 01 1 1008- ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-796-0 01 1 1008- ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-360-0 01 1 0307-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-820-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-821-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-821-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-821-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-801-0 01 1 1008- ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-849-0 01 1 0307-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-786-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-787-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-787-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-787-0 01 1 1004-1007 ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-791-0 01 1 1008- ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-399-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-865-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97413-391-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> BLACK 		8-97419-867-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-361-0 01 1 0307-0508 ● ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-361-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-361-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-822-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-822-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97405-823-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> BLACK 		8-97419-802-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97294-865-0 01 1 0307-0508 ● ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97294-865-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97294-865-0 01 1 0509-0607 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-684-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-684-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 0710-1003 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97405-854-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> BLACK 		8-97419-792-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-805-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97413-397-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-855-0 01 1 1008- ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0307-0402 ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0403-0508 ● ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0509-0609 ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0610- ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0307-0402 ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0307-0402 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0403-0508 ● ● ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0509-0609 ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0509-0609 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0610- ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0610- ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97298-424-1 02 1 0307-0609 ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97403-457-1 02 1 0610-1003 ● ●
22 16.870 PLATE; SILL,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-457-1 02 1 1004- ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0307-0609 ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 0610- ● ● ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-212-0 01 1 0307-0402 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-212-0 01 1 0403-0508 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-212-0 01 1 0509-0607 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-687-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-688-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-688-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-774-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-228-0 01 1 0307-0402 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97294-228-0 01 1 0307-0402 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-228-0 01 1 0403-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-689-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-690-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-690-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-775-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-733-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-733-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-733-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-784-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRA KE FLOOR<7XW> DARK GRAY 		8-97413-374-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRA KE FLOOR<7XW> DARK GRAY 		8-97413-374-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRA KE FLOOR<7XW> BLACK 		8-97419-846-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-368-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-368-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-848-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-375-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-847-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-847-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-801-0 01 1 0307-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-699-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-700-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-700-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-700-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-779-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-260-0 01 1 0307-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-693-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-694-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-694-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-694-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-776-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-735-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-735-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97405-735-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-785-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97413-369-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATER DUCT<S8C> BLACK 		8-97419-843-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97413-372-0 01 1 0710-0910 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97413-372-0 01 1 0911-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-845-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97294-276-6 01 1 0307-0508 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97294-276-6 01 1 0509-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-695-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97405-697-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97405-697-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97419-777-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-817-0 01 1 0307-0508 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97294-817-0 01 1 0509-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-701-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-702-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> BLACK 		8-97405-702-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-780-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-727-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97413-371-0 01 1 0710-1003 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,PARKING BRAKEFLOOR<7XW> DARK GRAY 		8-97413-371-0 01 1 1004-1007 ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> DRIVER SIDE FOOT REST<7NU> EXC. FUEL LID OPENER<N08>,PARKING BRAKEFLOOR<7XW> BLACK 		8-97419-849-0 01 1 1008- ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-349-0 01 1 0307-0609 ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97403-454-0 01 1 0610-0802 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
