6-70 — FLOOR PANEL (#73483) — 78 parça

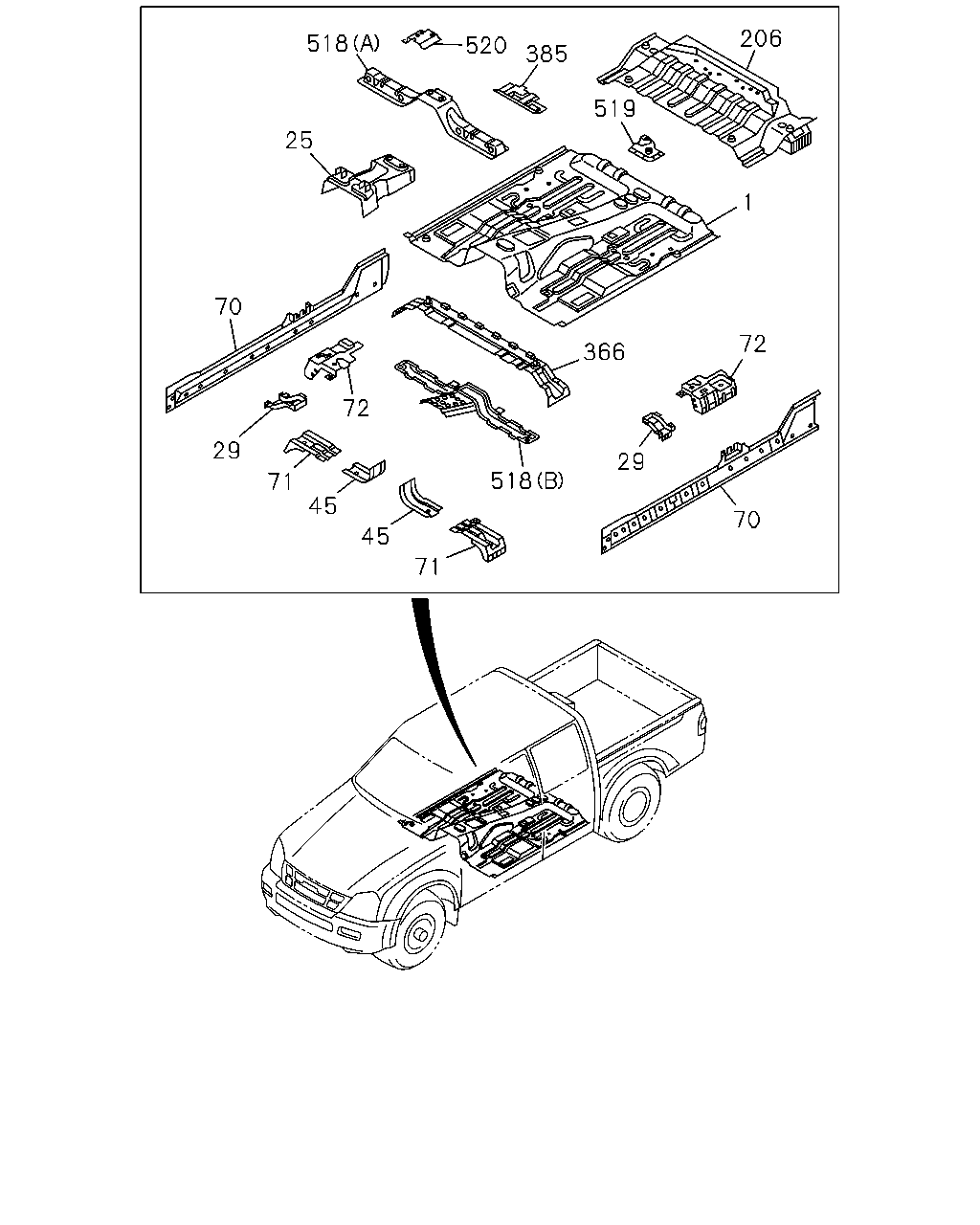

206 518 520 385 519 25 1 70 72 366 72 29 29 518 71 45 70 45 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0307-	●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0307-			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-4	01	1	0307-0404	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0405-0609	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0610-	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0610-		●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0307-	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0307-	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0307-	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0307-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0307-	●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0307-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0307-			●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0307-	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0307-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0307-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0307-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0307-			●	●
206	16.545 PANEL; FLOOR BOARD RR	8-97324-176-5	01	1	0307-0706			●	●
206	16.545 PANEL; FLOOR BOARD RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5>	8-97324-176-5	01	1	0707-0709			●	●
206	16.545 PANEL; FLOOR BOARD RR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>	8-98090-608-0	01	1	0707-0709			●	●
206	16.545 PANEL; FLOOR BOARD RR	8-98090-608-0	01	1	0710-			●	●
366	16.674 BAR ASM; FRT SEAT MTG	8-93333-631-3	01	1	0307-			●	●
385	16.545 BRACKET	8-97326-676-2	01	1	0307-0709	●	●	●	●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709	●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710	●		●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-	●	●	●	●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709		●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET TYPE<A50> FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0710-0710			●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0710-0710				●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709	●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709		●		●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0307-	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0307-0609	●	●	●	●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709	●		●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0307-0609	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	0307-	●	●	●	●

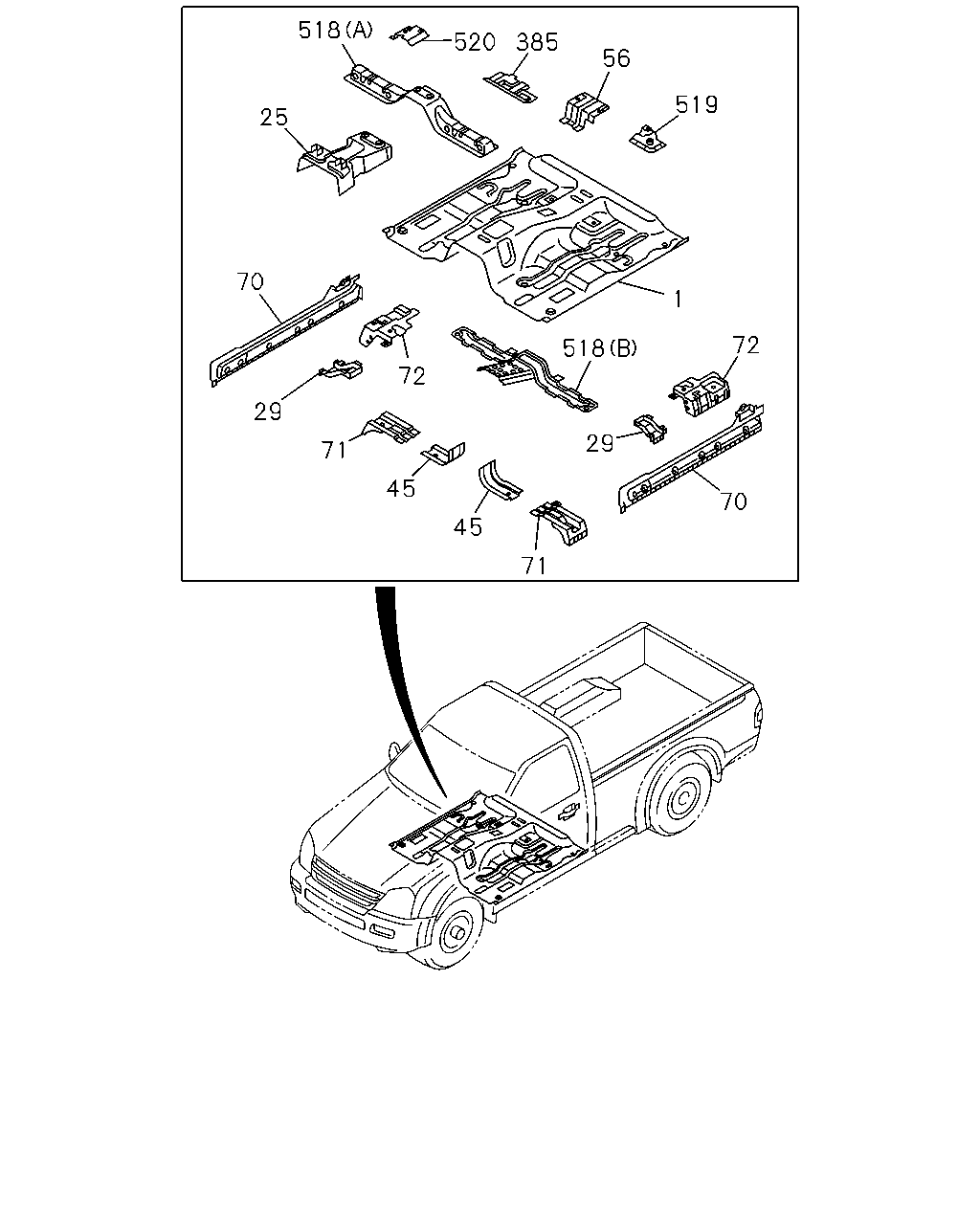

518 520 385 56 519 25 70 1 72 518 72 29 29 71 45 70 45 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0307-	●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0307-			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-4	01	1	0307-0404	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0405-0609	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0610-	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0610-		●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0307-	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0307-	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0307-	●	●	●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0307-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0307-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0307-	●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0307-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0307-			●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0307-	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0307-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0307-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0307-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0307-			●	●
385	16.545 BRACKET	8-97326-676-2	01	1	0307-0709	●	●	●	●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709	●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710	●		●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-	●	●	●	●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709		●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET TYPE<A50> FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0710-0710			●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0710-0710				●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709	●		●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709		●		●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0710-0710			●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0307-	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0307-0609	●	●	●	●
518	16.576 SILL; FLOOR 4JK1-TCX ENG(LR0) BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709	●		●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0307-0609	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	0307-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
