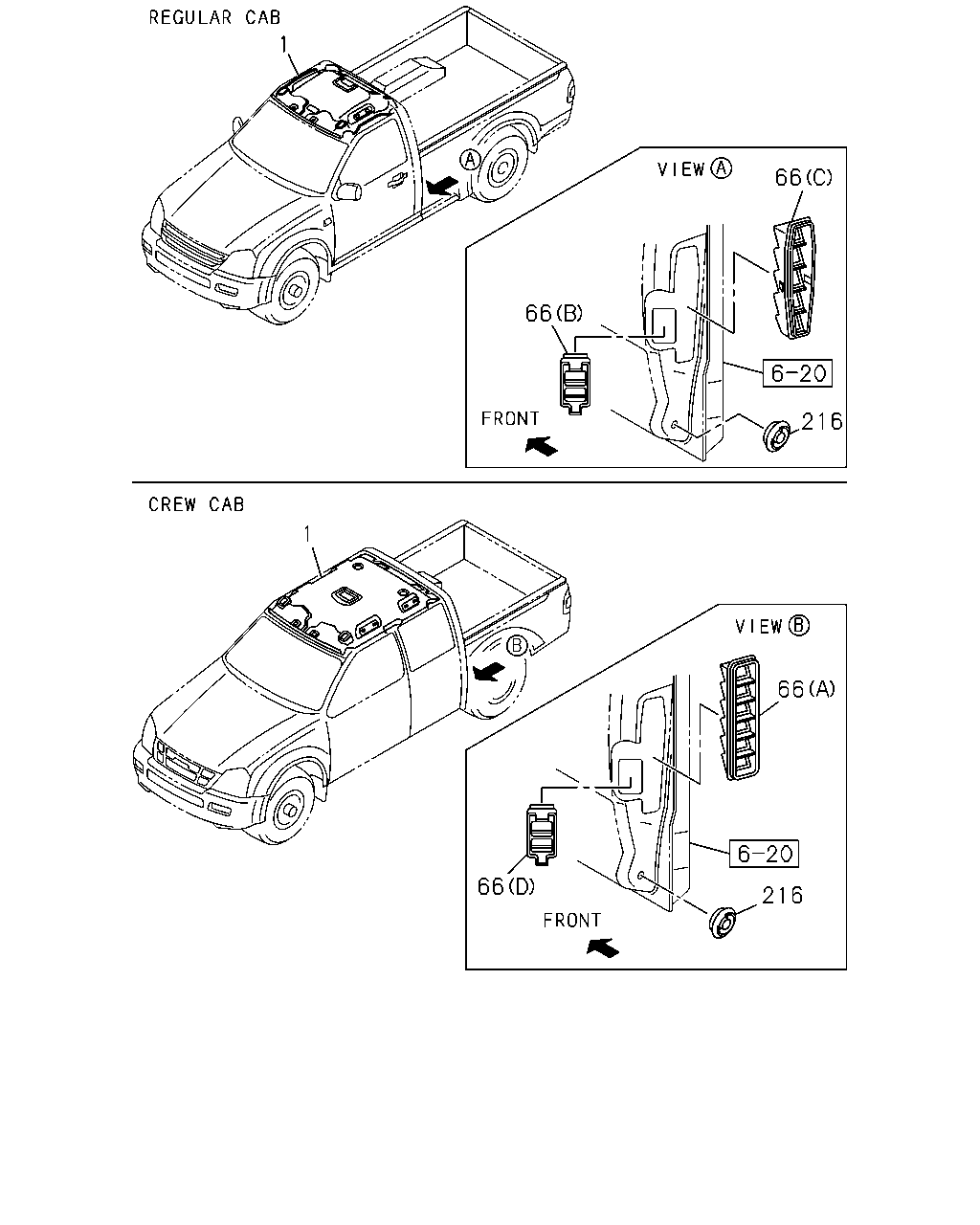

6-66 — HEAD LINING AND TRIM (#73482) — 109 parça

1 66 66 216 1 66 66 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> BLACK	8-97418-566-0	01	1	1004-	●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> BLACK	8-97418-745-0	01	1	1004-	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97391-516-3	01	1	0307-0501			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0502-0508			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0509-0603			●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-118-0	01	1	0509-0603				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-894-0	01	1	0604-0609			●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-894-0	01	1	0604-0609				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-895-0	01	1	0610-0709			●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	0610-0709				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-895-0	01	1	0710-			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-439-3	01	1	0307-0501			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0502-0508			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0509-0603			●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-117-0	01	1	0509-0603				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-891-0	01	1	0604-0609			●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-891-0	01	1	0604-0609				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-892-0	01	1	0610-0709			●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	0610-0709				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-892-0	01	1	0710-			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-441-5	01	1	0307-0502	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0503-0508	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0509-0603	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-120-0	01	1	0509-0603		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-904-0	01	1	0604-0609	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-904-0	01	1	0604-0609		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	1004-	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-440-5	01	1	0307-0502	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0503-0508	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0509-0603	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-119-0	01	1	0509-0603		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-901-0	01	1	0604-0609	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-901-0	01	1	0604-0609		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	1004-	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-122-0	01	1	0509-0603				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-889-0	01	1	0604-0609				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0610-0709				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-123-0	01	1	0509-0603		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-898-0	01	1	0604-0609		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	1004-	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97251-682-1	02	1	0307-			●	●
66	16.576 GRILLE; AIR OUTLET (C)	8-97311-440-2	02	1	0307-			●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-477-0	02	1	0307-	●	●
66	16.576 GRILLE; AIR OUTLET (D)	8-97365-208-0	02	1	0307-	●	●
216	16.576 GROMMET; HOLE 16.575 OD=19	8-97365-823-0	02	1	0307-	●	●	●	●

1 7 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> BLACK	8-97418-566-0	01	1	1004-	●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> BLACK	8-97418-745-0	01	1	1004-	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97391-516-3	01	1	0307-0501			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0502-0508			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0509-0603			●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-118-0	01	1	0509-0603				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-894-0	01	1	0604-0609			●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-894-0	01	1	0604-0609				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-895-0	01	1	0610-0709			●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	0610-0709				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-895-0	01	1	0710-			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-439-3	01	1	0307-0501			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0502-0508			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0509-0603			●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-117-0	01	1	0509-0603				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-891-0	01	1	0604-0609			●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-891-0	01	1	0604-0609				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-892-0	01	1	0610-0709			●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	0610-0709				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-892-0	01	1	0710-			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-441-5	01	1	0307-0502	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0503-0508	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0509-0603	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-120-0	01	1	0509-0603		●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97405-904-0	01	1	0604-0609	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-904-0	01	1	0604-0609		●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	1004-	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-440-5	01	1	0307-0502	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0503-0508	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0509-0603	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-119-0	01	1	0509-0603		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-901-0	01	1	0604-0609	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-901-0	01	1	0604-0609		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	1004-	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-122-0	01	1	0509-0603				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-889-0	01	1	0604-0609				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0610-0709				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-123-0	01	1	0509-0603		●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-898-0	01	1	0604-0609		●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	1004-	●	●
7	16.742 RETAINER; HEADLINING RAIL	8-97301-381-1	02	1	0307-0508	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL	8-97301-381-1	02	1	0509-0609	●		●
7	16.742 RETAINER; HEADLINING RAIL HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>	8-97301-381-1	02	1	0509-0609		●		●
7	16.742 RETAINER; HEADLINING RAIL EXC. HEADER CONSOLE<DK6>	8-97301-381-1	02	1	0509-0609		●		●
7	16.742 RETAINER; HEADLINING RAIL	8-97301-381-1	02	1	0610-0709			●
7	16.742 RETAINER; HEADLINING RAIL MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>	8-97301-381-1	02	1	0610-0709	●	●		●
7	16.742 RETAINER; HEADLINING RAIL EXC. MAP LAMP<C74>	8-97301-381-1	02	1	0610-0709	●	●		●
7	16.742 RETAINER; HEADLINING RAIL	8-97301-381-1	02	1	0710-1003			●	●
7	16.742 RETAINER; HEADLINING RAIL MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>	8-97301-381-1	02	1	0710-1003	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. MAP LAMP<C74>	8-97301-381-1	02	1	0710-1003	●	●
7	16.742 RETAINER; HEADLINING RAIL	8-97301-381-1	02	1	1004-			●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>	8-97301-381-1	02	1	1004-	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR IN VERY DARK GRAY(116) EXC. MAP LAMP<C74>	8-97301-381-1	02	1	1004-	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>	8-97301-381-1	02	1	1004-	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> LIGHT GRAY	8-97403-535-0	02	1	0610-0709	●	●		●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> LIGHT GRAY	8-97403-535-0	02	1	0710-1003	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR IN VERY DARK GRAY(116) EXC. ASSIST HANDLE<E28> LIGHT GRAY	8-97403-535-0	02	1	1004-	●	●

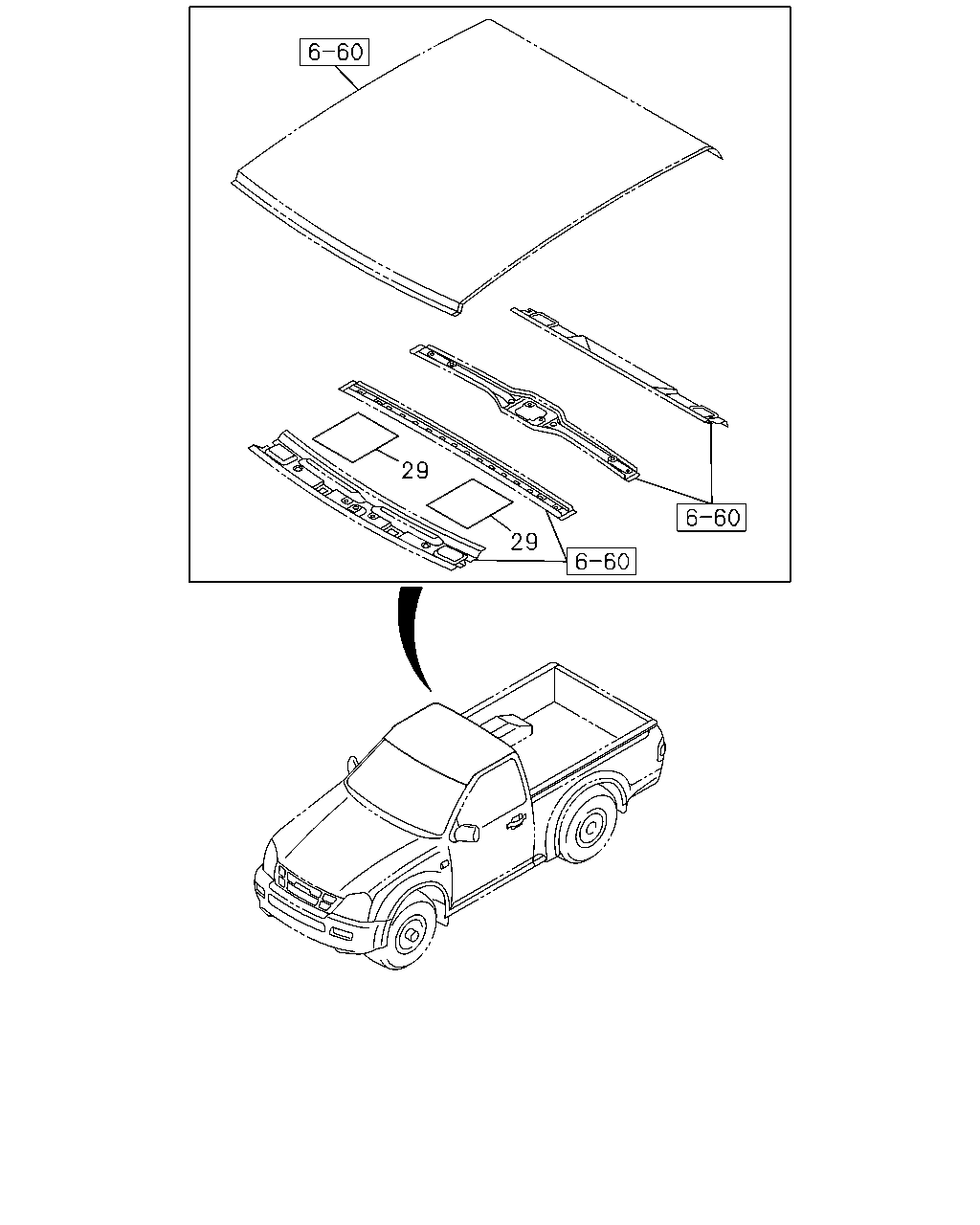

29 29

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	29	16.742 DEADENER; ROOF PANEL 4JJ1-TCX ENG(LS0)	8-97369-873-1	02	1	0610-		●
