Isuzu WW
▶
PICKUP
▶
TFR
▶
50967 - TFR/TFS(EUROPE)-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#73481) — 27 parça
Tümü
A - TFB5SF
B - TFS5SF
C - TFB5WF
D - TFS5WF
◀

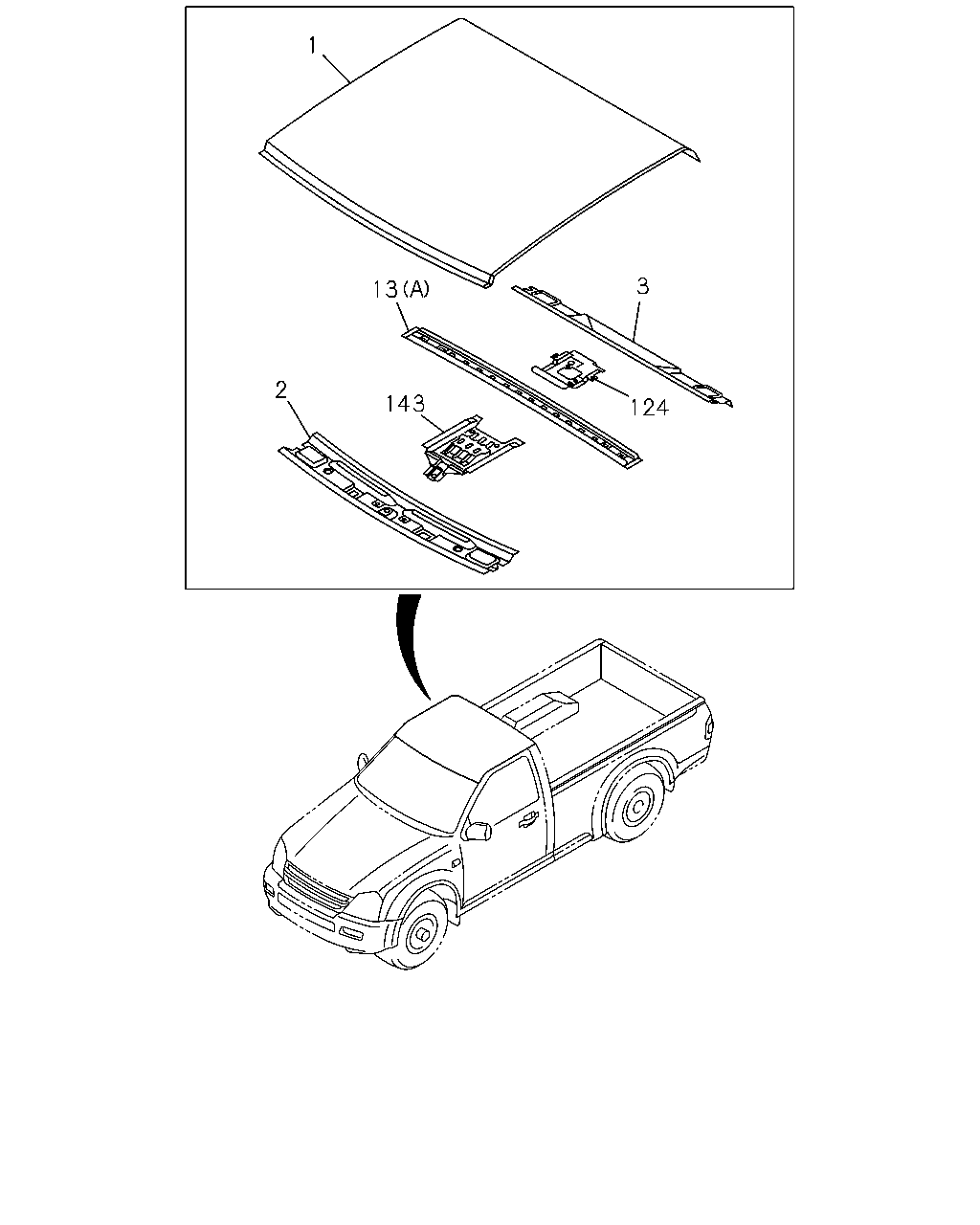

[660A] REGULAR CAB (14 parça)

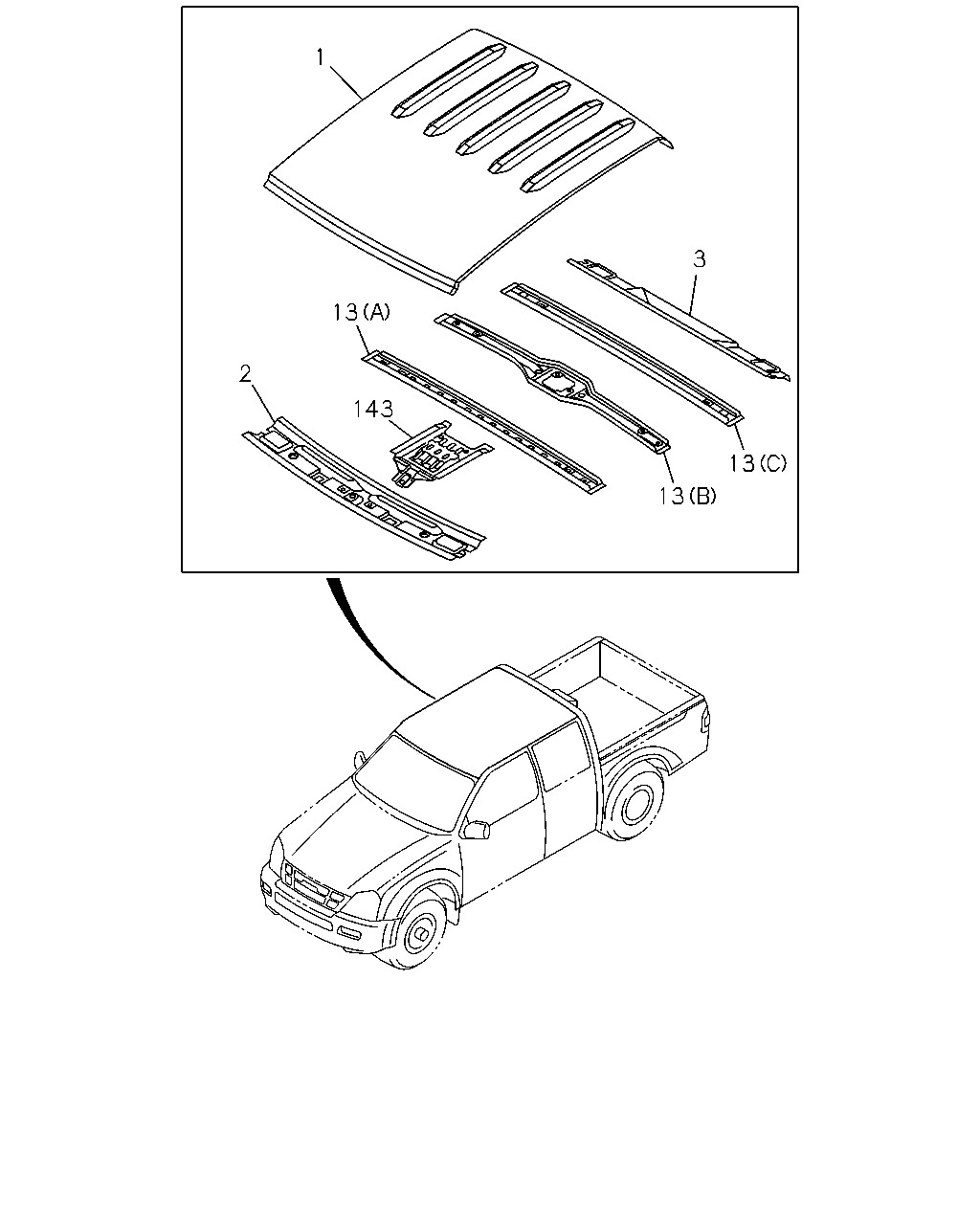

[660A] CREW CAB (13 parça)
▶
1
3
13
2
143
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.585 PANEL; ROOF
8-97235-330-3
01
1
0307-
●
●
1
16.585 PANEL; ROOF
8-93290-859-1
01
1
0307-0709
●
●
1
16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71>
8-93290-859-1
01
1
0710-
●
●
1
16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71>
8-98051-828-0
01
1
0710-
●
●
2
16.585 PANEL; ROOF,CENTER
8-97235-276-4
01
1
0307-0709
●
●
●
●
2
16.585 PANEL; ROOF,CENTER
8-98050-942-0
01
1
0710-
●
●
●
●
3
16.585 PANEL; ROOF,RR
8-97235-282-3
01
1
0307-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(A)
8-97235-279-3
01
1
0307-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(C)
8-93291-041-1
01
1
0307-
●
●
13
16.585 PANEL; ROOF SUPPORT
(B)
8-97235-281-3
01
1
0307-
●
●
124
16.585 BRACKET; ROOM LAMP
8-97235-999-1
01
1
0307-
●
●
143
16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6>
8-98011-826-0
01
1
0509-0609
●
●
143
16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6>
8-98011-826-0
01
1
0610-0709
●
●
●
143
16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6>
8-98050-943-0
01
1
0710-
●
●
1
3
13
2
143
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.585 PANEL; ROOF
8-97235-330-3
01
1
0307-
●
●
1
16.585 PANEL; ROOF
8-93290-859-1
01
1
0307-0709
●
●
1
16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71>
8-93290-859-1
01
1
0710-
●
●
1
16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71>
8-98051-828-0
01
1
0710-
●
●
2
16.585 PANEL; ROOF,CENTER
8-97235-276-4
01
1
0307-0709
●
●
●
●
2
16.585 PANEL; ROOF,CENTER
8-98050-942-0
01
1
0710-
●
●
●
●
3
16.585 PANEL; ROOF,RR
8-97235-282-3
01
1
0307-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(A)
8-97235-279-3
01
1
0307-
●
●
●
●
13
16.585 PANEL; ROOF SUPPORT
(C)
8-93291-041-1
01
1
0307-
●
●
13
16.585 PANEL; ROOF SUPPORT
(B)
8-97235-281-3
01
1
0307-
●
●
143
16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6>
8-98011-826-0
01
1
0509-0609
●
●
143
16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6>
8-98011-826-0
01
1
0610-0709
●
●
●
143
16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6>
8-98050-943-0
01
1
0710-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
