1-01 — ACCELERATOR PEDAL AND CONTROL (#7348) — 394 parça

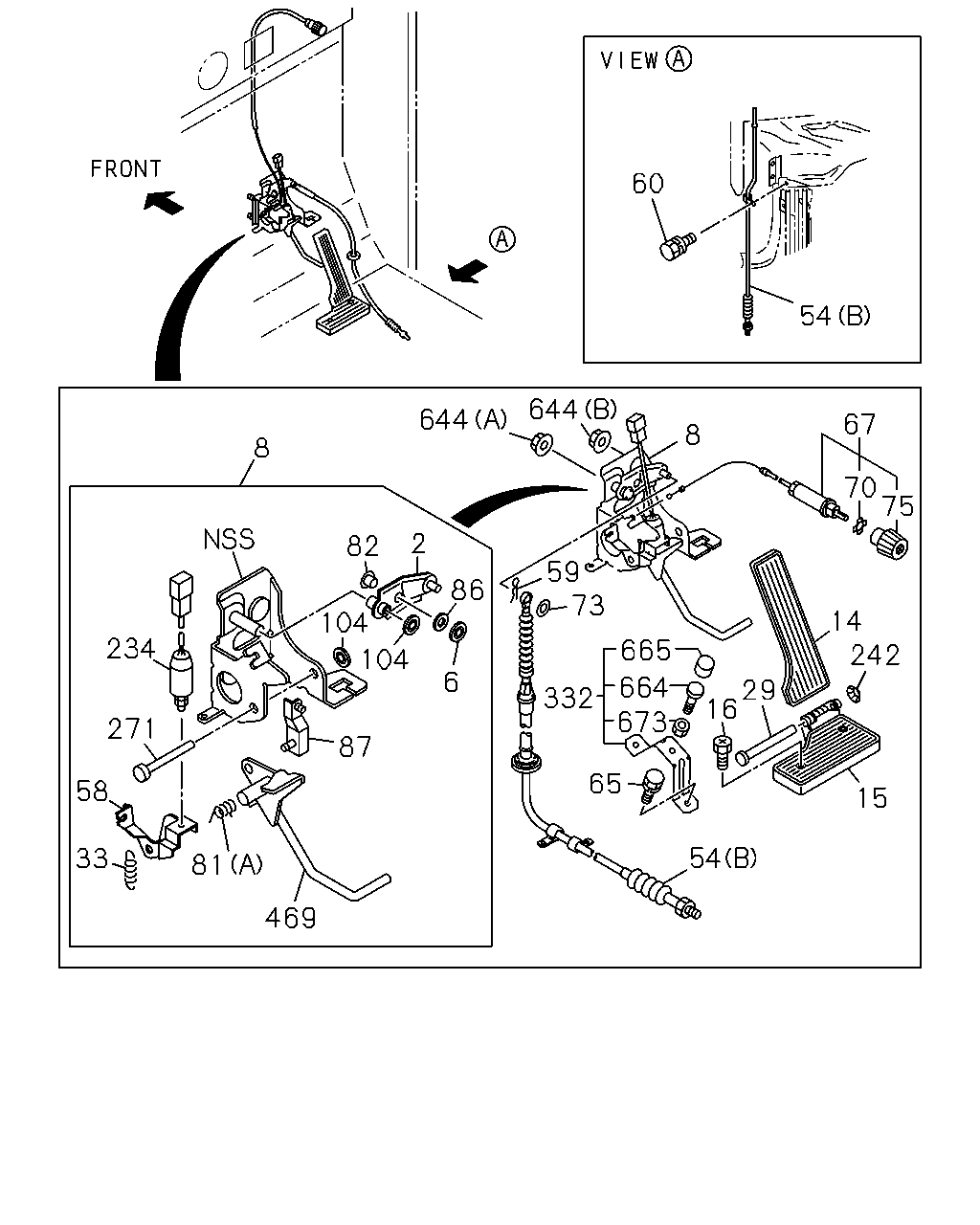

60 54 644 644 67 8 8 70 75 2 82 59 73 86 14 242 104 234 665 104 6 664 673 29 16 332 271 87 65 58 15 54 33 81 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-550-1	01	1	9812-9901	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	9902-	●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9902-			●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9902-			●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9902-				●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	9902-			●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	9902-				●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	9812-9901	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	9902-	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	9902-			●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9902-			●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9902-				●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9812-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9812-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9812-9902	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9812-	●	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	9902-			●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9902-				●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9812-9901	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9902-	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9902-			●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	9902-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9902-9904			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9905-9906			●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9905-9906				●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9907-			●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (B) L=2050	1-73907-476-4	01	1	9902-			●	●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	9902-			●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9902-				●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9902-			●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9902-				●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9902-			●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9902-				●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-	●	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	9902-			●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9902-				●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	9902-			●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9902-				●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9902-			●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9902-				●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	9902-			●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9902-				●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9812-9901	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9902-	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9902-			●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9812-	●	●	●	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9812-9901	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9902-	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9902-			●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9902-			●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9902-				●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	9902-			●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9902-				●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	9902-			●
87	LINK; ENG CONT	1-71907-211-1	01	1	9902-				●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9812-9901	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9902-	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9902-			●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9902-			●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9902-				●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9812-9901	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9902-	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9902-			●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9902-			●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9902-				●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9812-	●	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9812-9901	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9902-	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9902-			●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9902-			●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9902-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9812-	●	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	9902-			●
469	LEVER ASM	1-71907-209-5	01	1	9902-				●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9812-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9812-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9812-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9812-	●	●	●	●

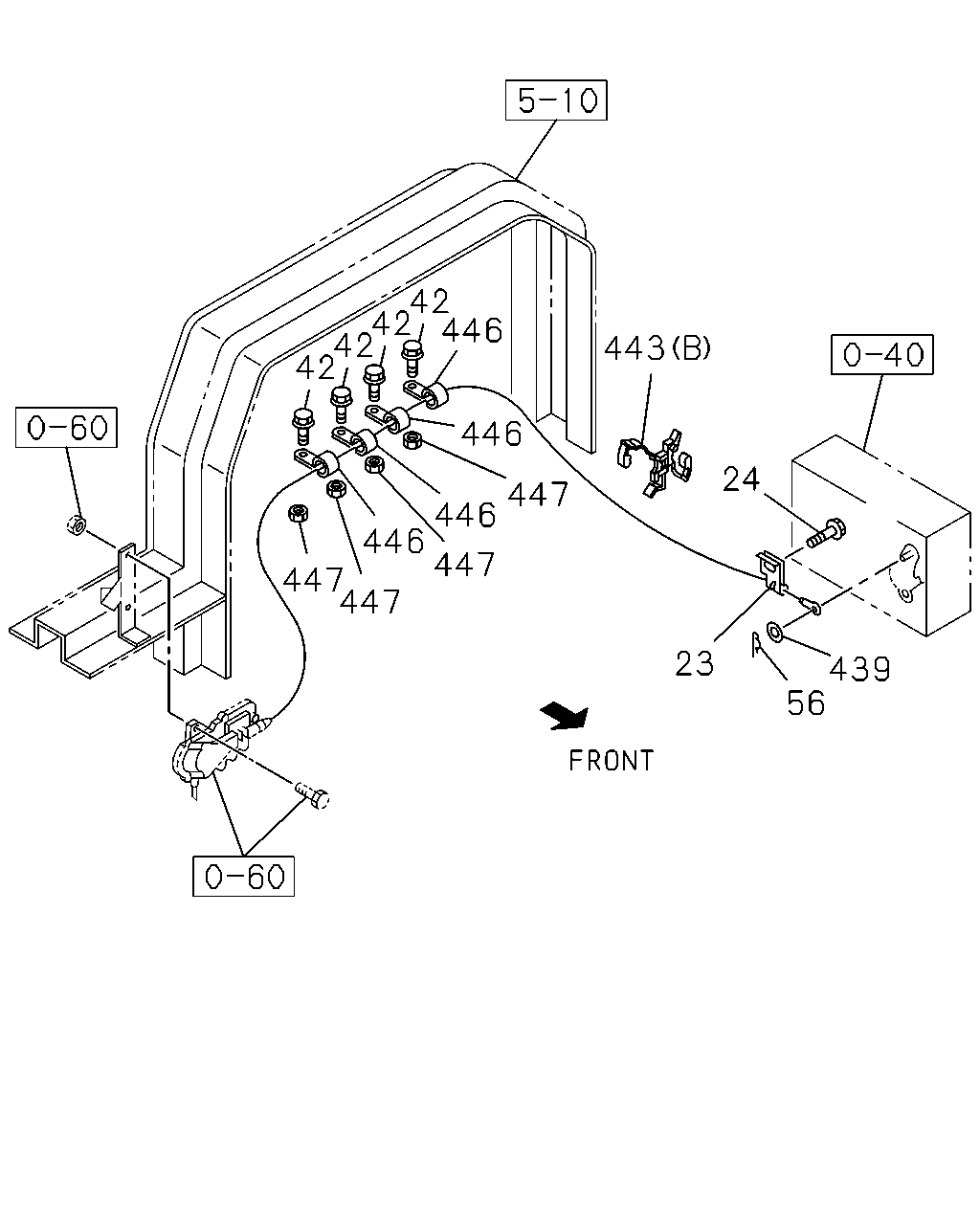

42 42 446 42 42 443 446 24 447 446 446 447 447 447 23 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9812-9901	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9902-	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9902-			●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9902-			●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9902-				●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	9902-			●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9902-				●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28680-820-0	01	1	9812-9901	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	9902-			●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9902-			●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9902-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9812-	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9812-	●	●	●	●
443	CLIP; CABLE (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9812-9901	●
443	CLIP; CABLE (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9902-0007	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9902-0007			●
443	CLIP; CABLE (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0008-	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0008-			●
443	CLIP; CABLE (A) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-			●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6-10 & 6-10	1-09709-192-1	01	1	9902-			●
443	CLIP; CABLE (B) ID=6-10 & 6-10	1-09709-192-1	01	1	9902-				●
446	CLIP; ENG CONT ID=11 L=20	9-09525-035-0	01	1	9812-9901	●
446	CLIP; ENG CONT ID=11 L=20	9-09525-035-0	01	1	9902-	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	9902-			●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	9-09524-655-0	04	1	9902-			●
446	CLIP; ENG CONT ID=7 L=28	9-09524-655-0	04	1	9902-				●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9902-	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-			●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9902-			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9902-				●

123 122 406 404 63 84 405 63 62 63 646 603 158 396 646 363 393 658 54 658 407 405 404 393 657 54 404 64 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9812-9901	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9902-	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9902-			●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	9902-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9902-9904			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9905-9906			●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9905-9906				●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9907-			●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (B) L=2050	1-73907-476-4	01	1	9902-			●	●
62	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) L=30	1-09700-326-0	01	1	9902-9904			●
62	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) L=30	1-09700-326-0	01	1	9905-9906			●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9905-9906				●
62	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) L=30	1-09700-326-0	01	1	9907-			●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9902-			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9902-				●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	02	1	9902-9904			●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	02	1	9905-9906			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9905-9906				●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	02	1	9907-			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9812-9901	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9902-	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9902-			●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9902-9904			●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9905-9906			●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9905-9906				●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9907-			●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-			●
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	9902-				●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9812-9901	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9902-	●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9902-			●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9902-9904			●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9905-9906			●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9905-9906				●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9907-			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9812-9901	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9902-	●	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9902-			●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9902-9904			●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9905-9906			●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9905-9906				●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9907-			●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-9906	●	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9907-	●	●	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	9902-			●
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-3	01	1	9902-				●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-			●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-			●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	9902-				●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	9902-				●
396	BRACKET; CLIP	1-47478-055-0	01	1	9812-9901	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9902-9904	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9905-9906	●	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9907-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9812-9901	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9902-	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9812-9901	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9902-9904	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	9902-9904			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9905-9906	●	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	9905-9906			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9905-9906				●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-9909	●	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-9909			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9910-	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	9910-			●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9902-9904			●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	9902-9904			●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9905-9906			●	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	9905-9906			●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9907-			●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	9907-			●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	9902-			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9812-9901	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9902-9904	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9905-9906	●	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9907-	●	●	●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9902-9904			●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9905-9906			●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9905-9906				●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9907-			●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	9902-			●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9906	●	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9907-	●	●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	9902-			●	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	9902-			●
603	BRACKET; ENG CONT SHAFT	1-14319-140-0	01	1	9902-				●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9902-			●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	9902-				●
657	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	9902-			●
657	CLIP; ENG CONT CABLE ID=11 L=20	9-09525-035-0	01	1	9902-				●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	9902-			●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9902-			●	●

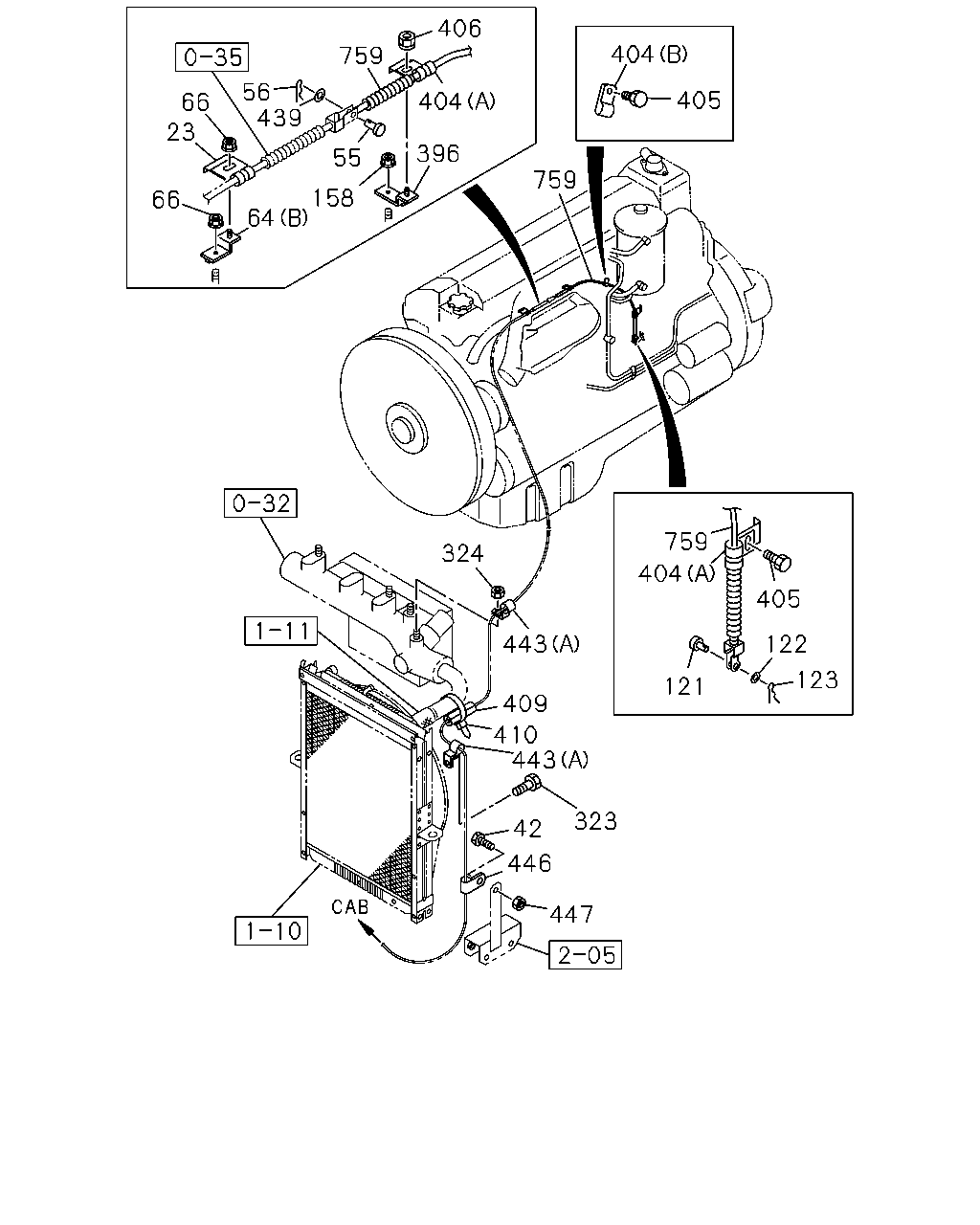

406 404 759 56 439 405 404 66 23 396 55 759 158 64 66 759 324 404 405 443 122 123 121 409 410 443 323 42 446 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9812-9901	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9902-	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9902-			●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9902-			●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9902-				●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28680-820-0	01	1	9812-9901	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	9902-			●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9902-			●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9902-				●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9812-9901	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9902-	●	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9902-			●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9812-	●	●	●	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9812-9901	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9902-	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9902-			●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9902-9904			●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9905-9906			●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9905-9906				●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9907-			●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9812-9901	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9902-			●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9812-9901	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9902-	●	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9902-			●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9812-9901	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9902-	●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9902-			●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9902-9904			●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9905-9906			●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9905-9906				●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9907-			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9812-9901	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9902-	●	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9902-			●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9902-9904			●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9905-9906			●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9905-9906				●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9907-			●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-9906	●	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9907-	●	●	●
323	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	9812-9901	●
323	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	9902-	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	9902-			●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9902-	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-			●
396	BRACKET; CLIP	1-47478-055-0	01	1	9812-9901	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9902-9904	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9905-9906	●	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9907-	●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9812-9901	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	9902-	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9812-9901	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9902-9904	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	9902-9904			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9905-9906	●	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	9905-9906			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9905-9906				●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-9909	●	●	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9907-9909			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9910-	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	9910-			●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9902-9904			●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	9902-9904			●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9905-9906			●	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	9905-9906			●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	9907-			●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	9907-			●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	9902-			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9812-9901	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9902-9904	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9905-9906	●	●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9907-	●	●	●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9902-9904			●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9905-9906			●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9905-9906				●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9907-			●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	9902-			●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9906	●	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9907-	●	●	●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	9812-9901	●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	9902-9910	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	9902-9910			●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-			●
410	CLIP; BAND L=300	1-09707-001-1	01	1	9812-9901	●
410	CLIP; BAND L=300	1-09707-001-1	01	1	9902-	●	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=300	1-09707-001-1	01	1	9902-			●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9812-	●	●	●	●
443	CLIP; CABLE (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9812-9901	●
443	CLIP; CABLE (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9902-0007	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	9-09527-010-0	02	1	9902-0007			●
443	CLIP; CABLE (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0008-	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0008-			●
443	CLIP; CABLE (A) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-			●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6-10 & 6-10	1-09709-192-1	01	1	9902-			●
443	CLIP; CABLE (B) ID=6-10 & 6-10	1-09709-192-1	01	1	9902-				●
446	CLIP; ENG CONT ID=11 L=20	9-09525-035-0	01	1	9812-9901	●
446	CLIP; ENG CONT ID=11 L=20	9-09525-035-0	01	1	9902-	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	9902-			●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=28	9-09524-655-0	04	1	9902-			●
446	CLIP; ENG CONT ID=7 L=28	9-09524-655-0	04	1	9902-				●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9812-9901	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9902-	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9902-			●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9902-			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9902-				●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9812-9901	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9902-	●	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9902-			●

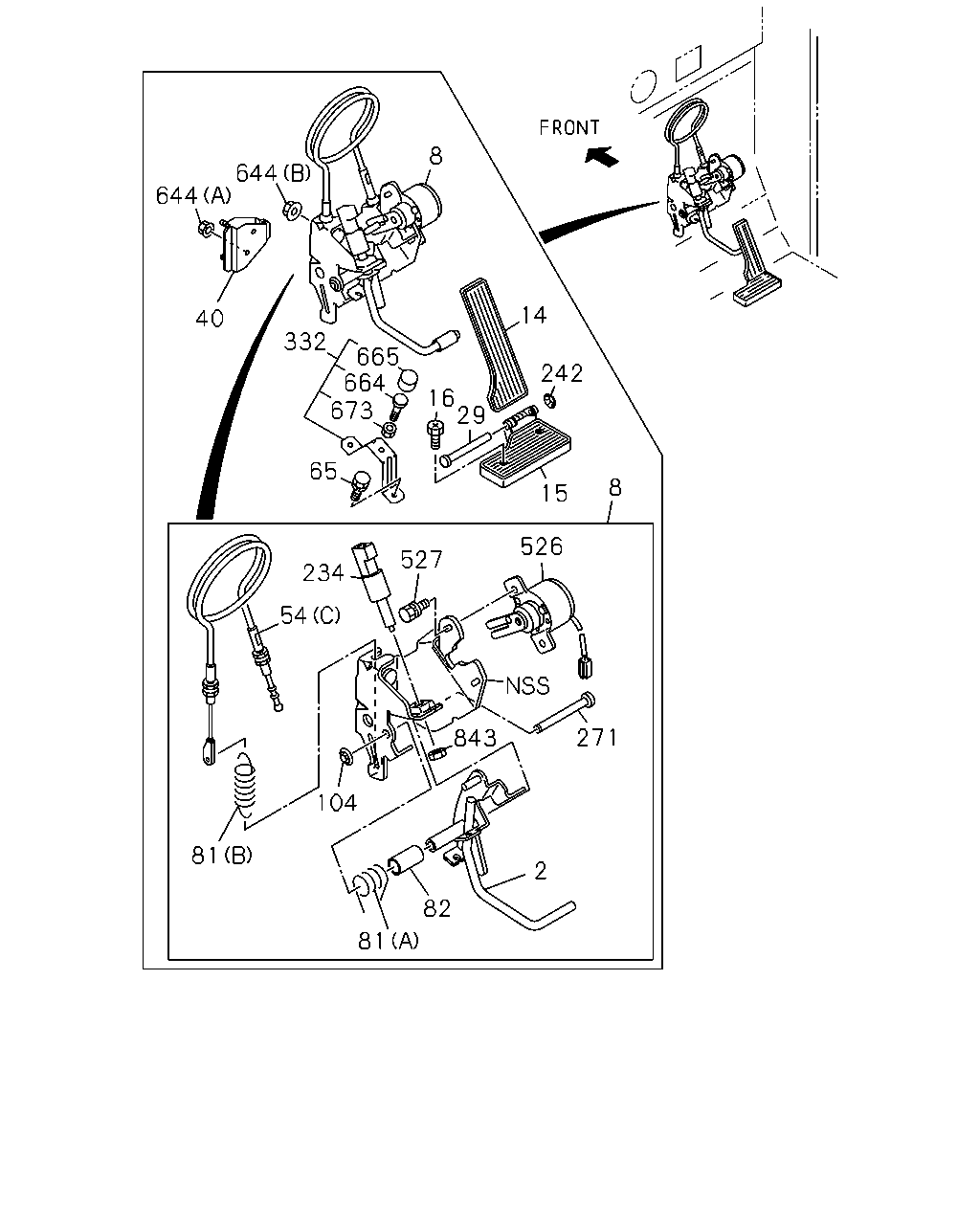

8 644 644 14 40 332 665 664 673 242 16 29 65 8 15 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-550-1	01	1	9812-9901	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	9902-	●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9902-			●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9902-			●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9902-				●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	9812-9901	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	9902-	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	9902-			●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9902-			●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9902-				●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9812-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9812-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9812-9902	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9812-	●	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	9812-	●	●	●	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9812-9901	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9902-	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9902-			●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	9902-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9902-9904			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9905-9906			●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9905-9906				●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9907-			●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (B) L=2050	1-73907-476-4	01	1	9902-			●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9812-9901	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9902-	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9902-			●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9812-	●	●	●	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9812-9901	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9902-	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9902-			●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9902-			●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9902-				●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9812-9901	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9902-	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9902-			●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9902-			●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9902-				●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9812-9901	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9902-	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9902-			●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9902-			●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9902-				●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9812-	●	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9812-9901	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9902-	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9902-			●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9902-			●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9902-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9812-	●	●	●	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	9812-9901	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	9902-	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	9902-			●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-9901	●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-			●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9812-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9812-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9812-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9812-	●	●	●	●
843	NUT M12	9-99111-412-0	01	1	9812-9901	●
843	NUT M12	9-99111-412-0	01	1	9902-	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	9902-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
