Sayfa 6-43 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50967 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶

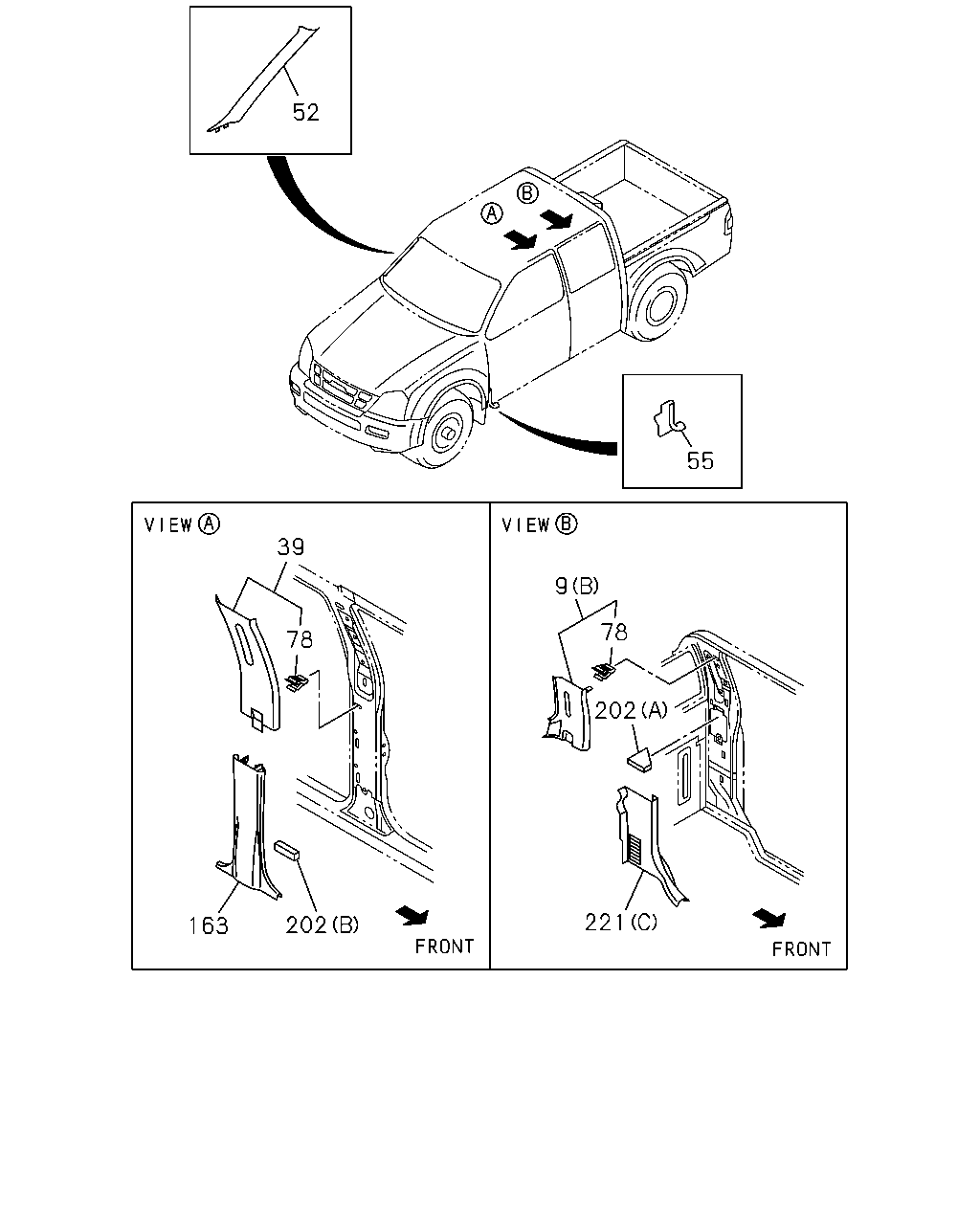

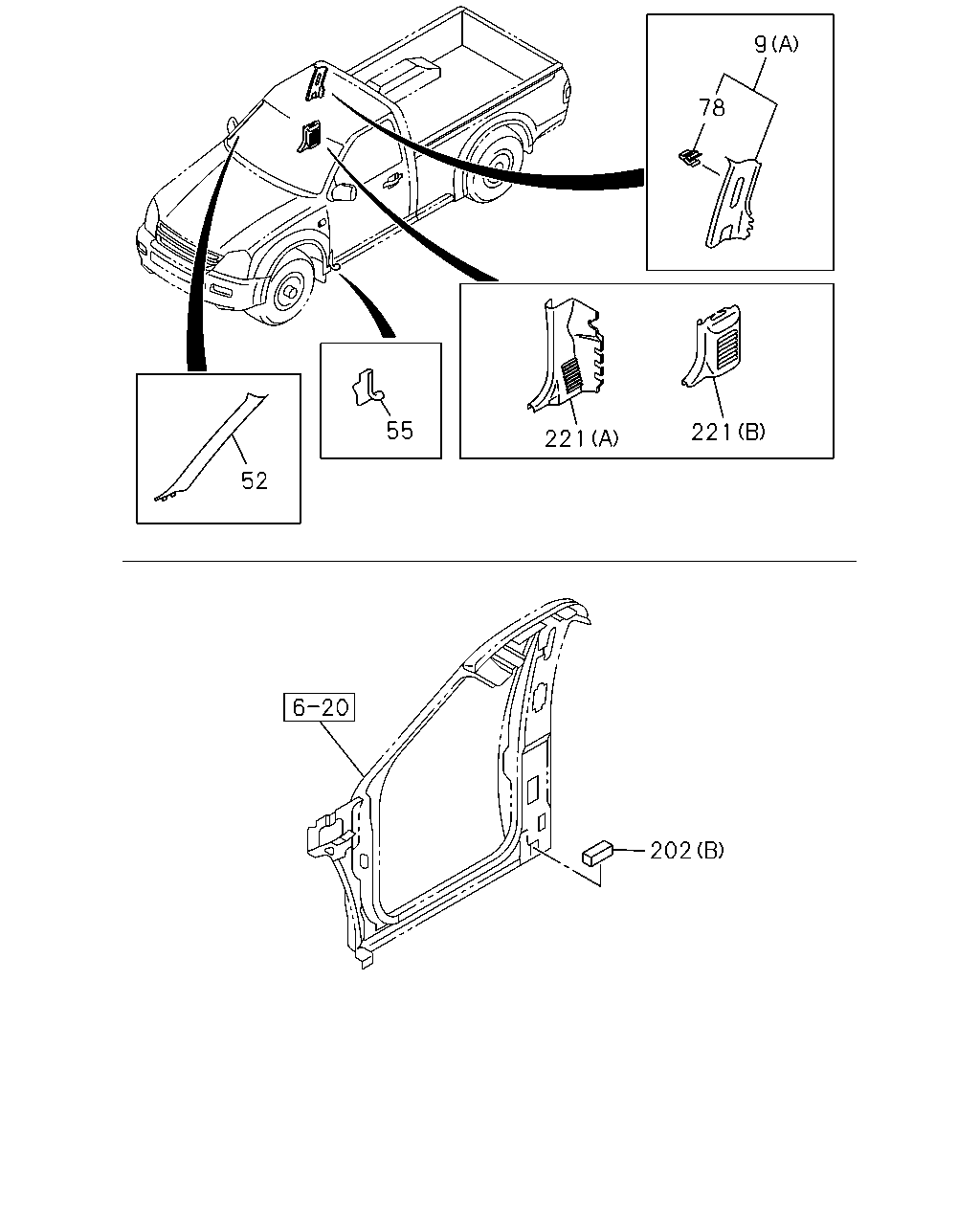

6-43 — SIDE TRIM (#73474) — 120 parça

52 55 39 9 78 78 202 221 202 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	16.575 TRIM; SIDE PANEL,UPR (A) DARK GRAY	8-97298-449-5	01	1	0307-0609	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) LIGHT GRAY	8-97408-894-0	01	1	0610-	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) DARK GRAY	8-97298-450-5	01	1	0307-0609	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) LIGHT GRAY	8-97408-896-0	01	1	0610-	●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR BLACK(101) (B) BLACK	8-97418-448-0	01	1	1004-			●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR BLACK(101) (B) BLACK	8-97418-447-0	01	1	1004-			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) DARK GRAY	8-97293-973-2	01	1	0307-0609			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) LIGHT GRAY	8-97408-886-0	01	1	0610-1003			●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY	8-97408-886-0	01	1	1004-			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) DARK GRAY	8-97293-974-2	01	1	0307-0609			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) LIGHT GRAY	8-97408-888-0	01	1	0610-1003			●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY	8-97408-888-0	01	1	1004-			●	●
39	16.575 COVER; TRIM,CENTER PILLAR INTERIOR COLOR BLACK(101) BLACK	8-97418-445-0	01	1	1004-			●	●
39	16.575 COVER; TRIM,CENTER PILLAR INTERIOR COLOR BLACK(101) BLACK	8-97418-446-0	01	1	1004-			●	●
39	16.575 COVER; TRIM,CENTER PILLAR DARK GRAY	8-97298-447-1	01	1	0307-0609			●	●
39	16.575 COVER; TRIM,CENTER PILLAR LIGHT GRAY	8-97408-878-0	01	1	0610-1003			●	●
39	16.575 COVER; TRIM,CENTER PILLAR INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY	8-97408-878-0	01	1	1004-			●	●
39	16.575 COVER; TRIM,CENTER PILLAR DARK GRAY	8-97298-448-1	01	1	0307-0609			●	●
39	16.575 COVER; TRIM,CENTER PILLAR LIGHT GRAY	8-97408-880-0	01	1	0610-1003			●	●
39	16.575 COVER; TRIM,CENTER PILLAR INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY	8-97408-880-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR BLACK(101) BLACK	8-97418-431-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR BLACK(101) BLACK	8-97418-432-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97298-426-5	01	1	0307-0609	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-871-0	01	1	0610-1003	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-871-0	01	1	1004-	●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY	8-97408-871-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97298-427-5	01	1	0307-0609	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-873-0	01	1	0610-1003	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-873-0	01	1	1004-	●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY	8-97408-873-0	01	1	1004-			●	●
55	16.166 PAD; TRIM,DASH SIDE 16.550 DARK GRAY	8-97396-086-0	01	1	0307-0609	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE DARK GRAY	8-97403-459-0	01	1	0610-	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE 16.550 DARK GRAY	8-97396-087-0	01	1	0307-0609	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE DARK GRAY	8-97403-461-0	01	1	0610-	●	●	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97319-704-0	06	1	0307-0609	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-98057-469-0	06	1	0610-	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97319-704-0	12	1	0307-0609			●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-98057-469-0	12	1	0610-1003			●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-98057-469-0	12	1	1004-			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR DARK GRAY	8-97298-445-3	01	1	0307-0609			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR DARK GRAY	8-97403-544-3	01	1	0610-1003			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY	8-97403-544-3	01	1	1004-			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR DARK GRAY	8-97298-446-3	01	1	0307-0609			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR DARK GRAY	8-97403-546-3	01	1	0610-1003			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY	8-97403-546-3	01	1	1004-			●	●
202	16.575 SEAL; CENTER PILLAR (A)	8-97362-561-0	02	1	0307-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (B)	8-97362-563-0	04	1	0307-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97293-987-1	01	1	0307-0609	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-882-0	01	1	0610-0709	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-882-0	01	1	0710-0809	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-882-0	01	1	0710-0809		●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-882-0	01	1	0810-	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97293-988-1	01	1	0307-0609	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-884-0	01	1	0610-0709	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-884-0	01	1	0710-0809	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-884-0	01	1	0710-0809		●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-884-0	01	1	0810-	●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97293-979-1	01	1	0307-0609			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97403-548-1	01	1	0610-1003			●	●
221	16.592 TRIM; SIDE PANEL,LOWER INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY	8-97403-548-1	01	1	1004-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97293-980-1	01	1	0307-0609			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97403-550-1	01	1	0610-1003			●	●
221	16.592 TRIM; SIDE PANEL,LOWER INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY	8-97403-550-1	01	1	1004-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97293-985-1	01	1	0307-0609		●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97408-876-0	01	1	0610-0709		●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97293-986-1	01	1	0307-0609		●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97408-877-0	01	1	0610-0709		●

9 78 55 221 221 52 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	16.575 TRIM; SIDE PANEL,UPR (A) DARK GRAY	8-97298-449-5	01	1	0307-0609	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) LIGHT GRAY	8-97408-894-0	01	1	0610-	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) DARK GRAY	8-97298-450-5	01	1	0307-0609	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) LIGHT GRAY	8-97408-896-0	01	1	0610-	●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR BLACK(101) (B) BLACK	8-97418-448-0	01	1	1004-			●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR BLACK(101) (B) BLACK	8-97418-447-0	01	1	1004-			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) DARK GRAY	8-97293-973-2	01	1	0307-0609			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) LIGHT GRAY	8-97408-886-0	01	1	0610-1003			●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY	8-97408-886-0	01	1	1004-			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) DARK GRAY	8-97293-974-2	01	1	0307-0609			●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) LIGHT GRAY	8-97408-888-0	01	1	0610-1003			●	●
9	16.575 TRIM; SIDE PANEL,UPR INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY	8-97408-888-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR BLACK(101) BLACK	8-97418-431-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR BLACK(101) BLACK	8-97418-432-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97298-426-5	01	1	0307-0609	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-871-0	01	1	0610-1003	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-871-0	01	1	1004-	●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY	8-97408-871-0	01	1	1004-			●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97298-427-5	01	1	0307-0609	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-873-0	01	1	0610-1003	●	●	●	●
52	16.165 COVER; TRIM,FRT PILLAR LIGHT GRAY	8-97408-873-0	01	1	1004-	●	●
52	16.165 COVER; TRIM,FRT PILLAR INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY	8-97408-873-0	01	1	1004-			●	●
55	16.166 PAD; TRIM,DASH SIDE 16.550 DARK GRAY	8-97396-086-0	01	1	0307-0609	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE DARK GRAY	8-97403-459-0	01	1	0610-	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE 16.550 DARK GRAY	8-97396-087-0	01	1	0307-0609	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE DARK GRAY	8-97403-461-0	01	1	0610-	●	●	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97319-704-0	06	1	0307-0609	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-98057-469-0	06	1	0610-	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97319-704-0	12	1	0307-0609			●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-98057-469-0	12	1	0610-1003			●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-98057-469-0	12	1	1004-			●	●
202	16.575 SEAL; CENTER PILLAR (A)	8-97362-561-0	02	1	0307-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (B)	8-97362-563-0	04	1	0307-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97293-987-1	01	1	0307-0609	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-882-0	01	1	0610-0709	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-882-0	01	1	0710-0809	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-882-0	01	1	0710-0809		●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-882-0	01	1	0810-	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97293-988-1	01	1	0307-0609	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-884-0	01	1	0610-0709	●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE DX(RBA) (B) DARK GRAY	8-97408-884-0	01	1	0710-0809	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-884-0	01	1	0710-0809		●
221	16.592 TRIM; SIDE PANEL,LOWER (B) DARK GRAY	8-97408-884-0	01	1	0810-	●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97293-979-1	01	1	0307-0609			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97403-548-1	01	1	0610-1003			●	●
221	16.592 TRIM; SIDE PANEL,LOWER INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY	8-97403-548-1	01	1	1004-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97293-980-1	01	1	0307-0609			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (C) DARK GRAY	8-97403-550-1	01	1	0610-1003			●	●
221	16.592 TRIM; SIDE PANEL,LOWER INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY	8-97403-550-1	01	1	1004-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97293-985-1	01	1	0307-0609		●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97408-876-0	01	1	0610-0709		●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97293-986-1	01	1	0307-0609		●
221	16.592 TRIM; SIDE PANEL,LOWER GRADE LT(RBD) (A) DARK GRAY	8-97408-877-0	01	1	0610-0709		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
