◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#7347) — 46 parça

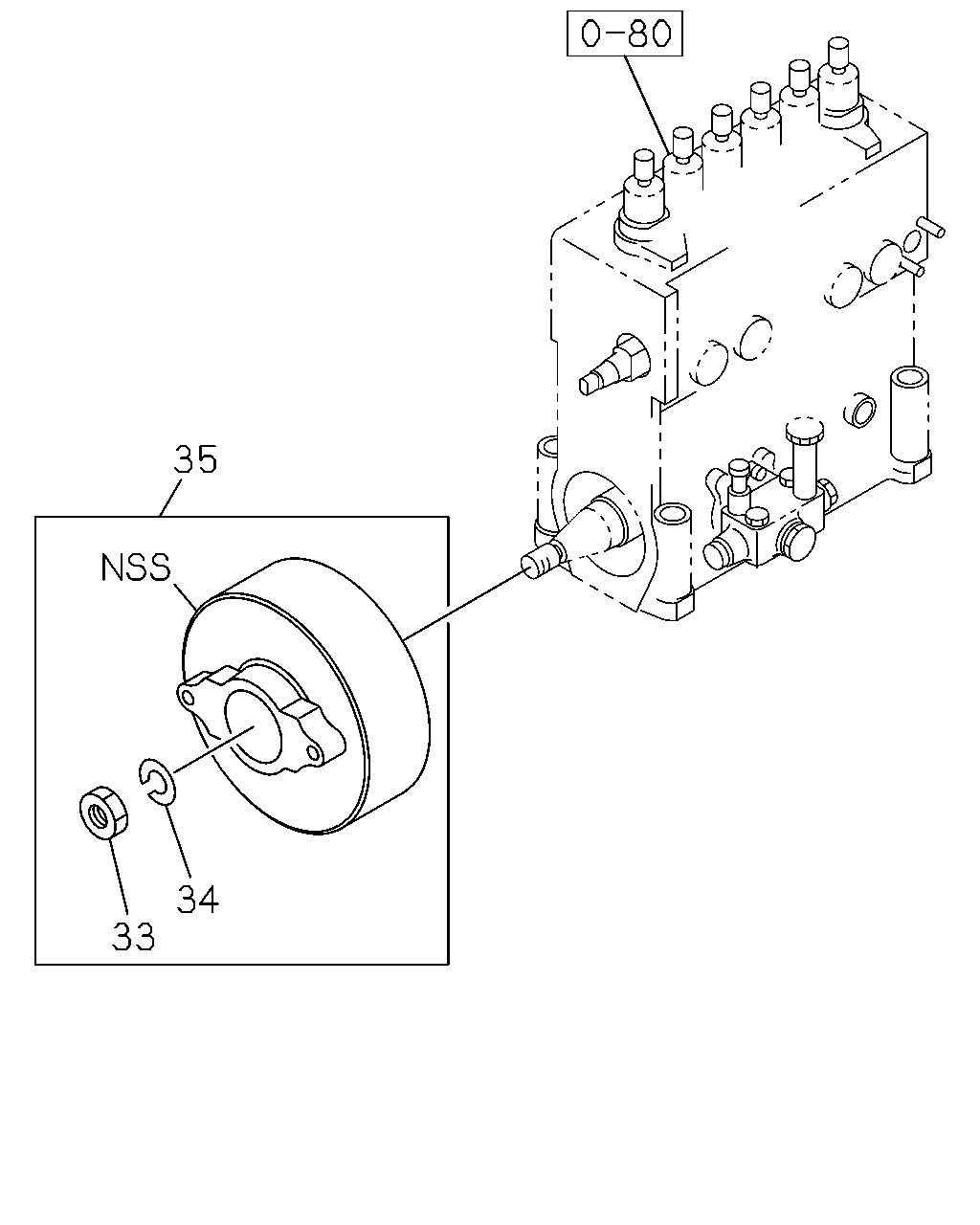

çizim 6927
35 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 NUT; DAMPER 1-19179-020-0 01 1 9812-9901 ●
33 NUT; DAMPER 1-19179-020-0 01 1 9902- ● ● ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9812-9901 ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9902- ● ● ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9812-9901 ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9902- ● ● ●

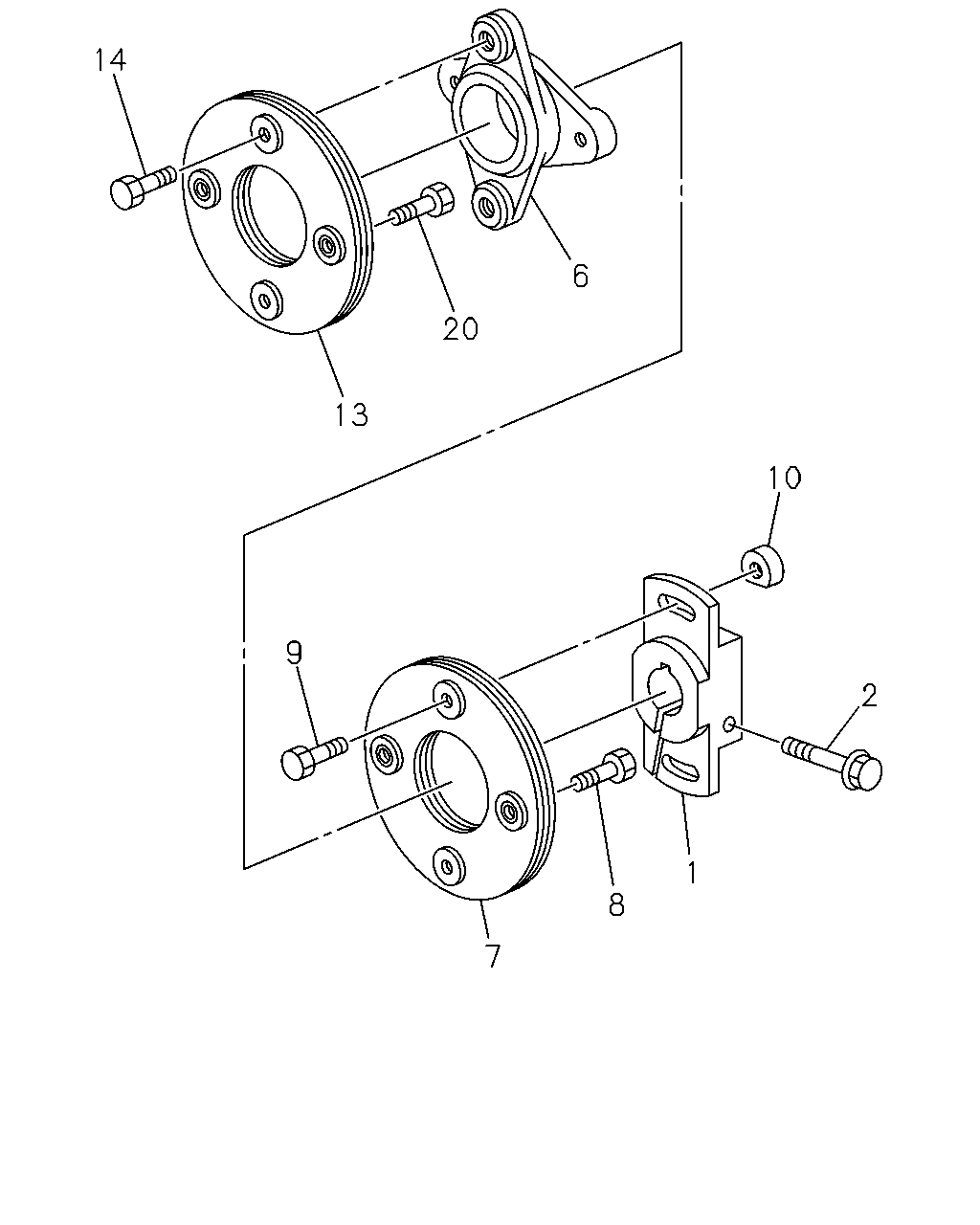

çizim 7482
14 6 20 13 10 9 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9812-9901 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9902-9904 ● ● ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9905-9906 ● ● ● ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9907- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9812-9901 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9902-9904 ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9905-9906 ● ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9907- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9812-9901 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9902-9904 ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9905-9906 ● ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9907- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9812-9901 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9902-9904 ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9905-9906 ● ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9907- ● ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9812-9901 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9902-9904 ● ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9905-9906 ● ● ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9907- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9812-9901 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9902-9904 ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9905-9906 ● ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9907- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9812-9901 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9902-9904 ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9905-9906 ● ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9907- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9812-9901 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9902-9904 ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9905-9906 ● ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9907- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9812-9901 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9902-9904 ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9905-9906 ● ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9907- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9812-9901 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9902-9904 ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9905-9906 ● ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9907- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
