Sayfa 6-03 - Isuzu EPC

6-03 — RADIATOR GRILLE (#73464) — 222 parça

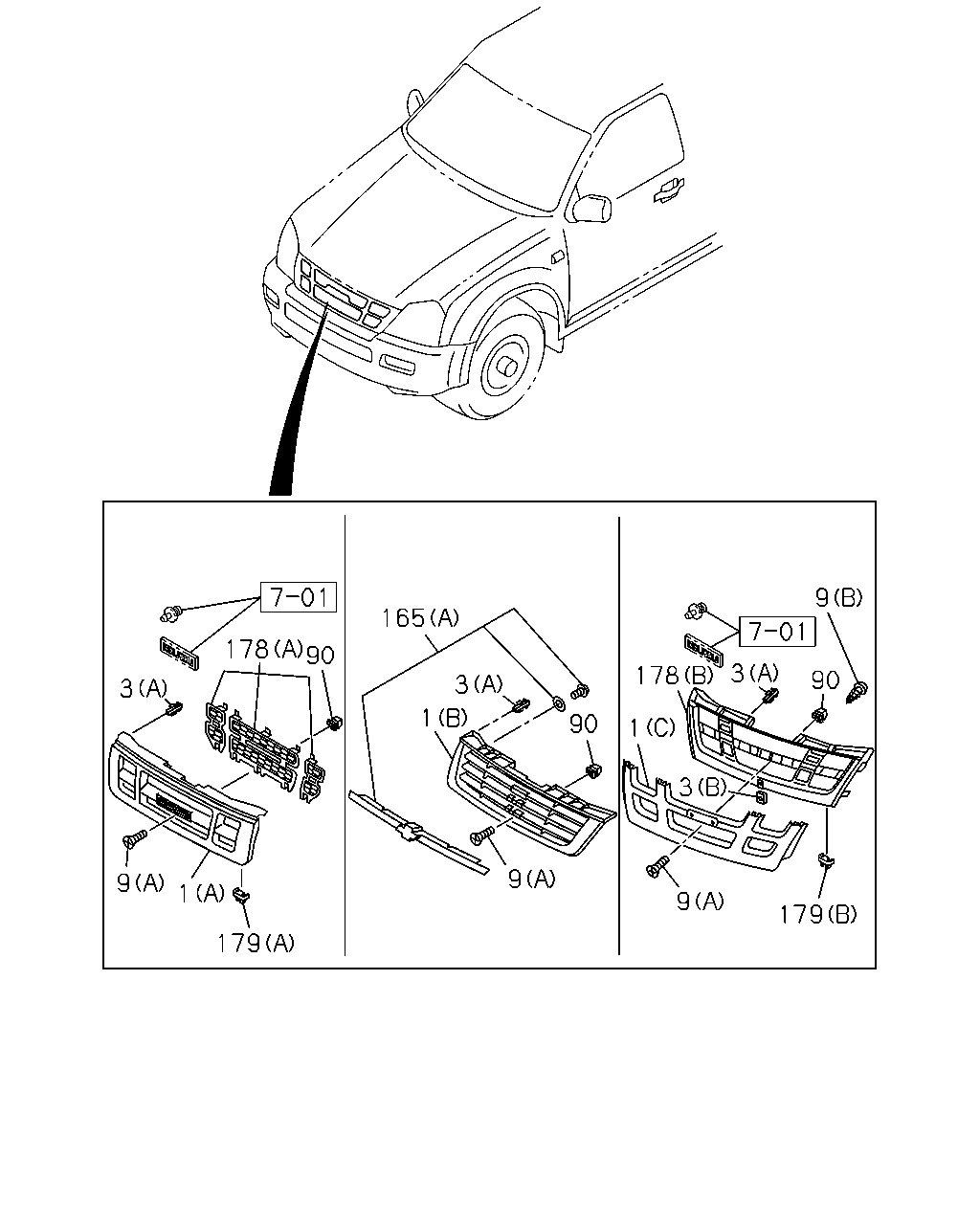

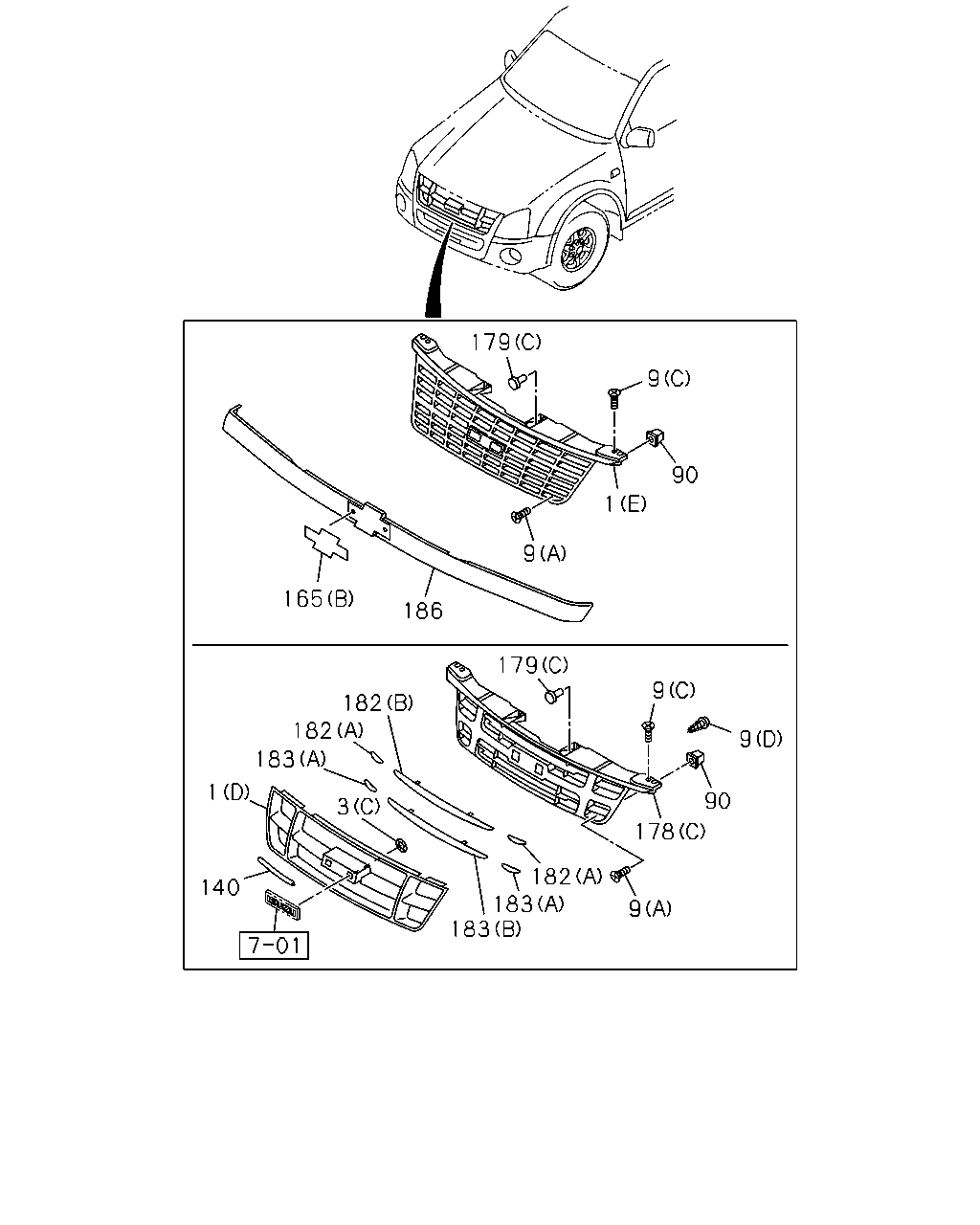

179 9 90 1 9 165 186 179 9 182 182 9 183 1 90 3 178 182 183 183 140 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.266 GRILLE; RAD (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0307-0309	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0310-0508	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (D) EXC.BRIGHT RAD GRILLE	8-98012-479-1	01	1	0610-0709	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98012-479-1	01	1	0710-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98012-479-1	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0310-0508	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (E)	8-98012-516-2	01	1	0610-	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-97331-613-0	01	1	0307-0309			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-97331-613-0	01	1	0310-0402			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-97331-613-0	01	1	0310-0402				●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-97331-613-0	01	1	0403-0508			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A) PLATED	8-97331-613-0	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-97367-361-2	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	0610-0709		●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	0710-0912		●		●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	1001-1003		●		●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98159-148-0	01	1	1004-1007		●		●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98159-148-0	01	1	1008-		●		●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (C) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609			●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0307-0609	●	●	●	●
3	01.269 CLIP; GRILLE ISUZU BRAND<7WL> (C)	8-97182-223-0	02	1	0701-	●	●	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	1004-1007		●		●
9	01.269 SCREW; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	1008-		●		●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0307-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> (D)	8-98070-852-0	17	1	0701-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0307-0609	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●
140	01.266 SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98130-916-0	04	1	1004-1007		●		●
140	01.266 SEAL; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98130-916-0	04	1	1008-		●		●
140	01.266 SEAL; RAD GRILLE ISUZU BRAND<7WL>	8-98070-854-0	01	1	0701-1003	●	●	●	●
140	01.266 SEAL; RAD GRILLE ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX>	8-98070-854-0	01	1	1004-1007	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX>	8-98070-854-0	01	1	1008-	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97333-542-2	01	1	0310-0508	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A)	8-97333-542-2	01	1	0509-0609	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (B)	8-98012-652-0	01	1	0610-0806	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	1004-1007		●		●
178	01.269 GRILLE; INNER,RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	1008-		●		●
178	01.269 GRILLE; INNER,RAD (A)	8-97331-458-0	01	1	0307-0309	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0310-0508	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-1003	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609			●	●
179	01.269 RETAINER; GRILLE,RAD (A)	8-97350-904-0	02	1	0307-0309	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> (A)	8-97350-904-0	02	1	0310-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97367-166-0	02	1	0310-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B)	8-97367-166-0	02	1	0509-0609	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE	8-98012-484-0	01	1	0610-0709	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (B) EXC.BRIGHT RAD GRILLE	8-98012-484-0	01	1	0710-1007	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (B) EXC.BRIGHT RAD GRILLE	8-98012-484-0	01	1	1008-	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR ISUZU BRAND<7WL> (A) EXC.BRIGHT RAD GRILLE	8-98012-486-0	01	1	0610-0709	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-486-0	01	1	0710-1007	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-486-0	01	1	1008-	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR ISUZU BRAND<7WL> (A) EXC.BRIGHT RAD GRILLE	8-98012-485-0	01	1	0610-0709	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-485-0	01	1	0710-1007	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-485-0	01	1	1008-	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	0610-0709		●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	0710-0912		●		●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	1001-1003		●		●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	0610-0709		●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	0710-0912		●		●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	1001-1003		●		●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	0610-0709		●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	0710-0912		●		●
182	01.266 MOLDING; RAD GRILLE,UPR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	1001-1003		●		●
183	01.266 MOLDING; RAD GRILLE,LWR ISUZU BRAND<7WL> (B) EXC.BRIGHT RAD GRILLE	8-98012-487-0	01	1	0610-0709	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (B) EXC.BRIGHT RAD GRILLE	8-98012-487-0	01	1	0710-1007	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (B) EXC.BRIGHT RAD GRILLE	8-98012-487-0	01	1	1008-	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR ISUZU BRAND<7WL> (A) EXC.BRIGHT RAD GRILLE	8-98012-489-0	01	1	0610-0709	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-489-0	01	1	0710-1007	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-489-0	01	1	1008-	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR ISUZU BRAND<7WL> (A) EXC.BRIGHT RAD GRILLE	8-98012-488-0	01	1	0610-0709	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-488-0	01	1	0710-1007	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (A) EXC.BRIGHT RAD GRILLE	8-98012-488-0	01	1	1008-	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	0610-0709		●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	0710-0912		●		●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	1001-1003		●		●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	0610-0709		●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	0710-0912		●		●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	1001-1003		●		●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	0610-0709		●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	0710-0912		●		●
183	01.266 MOLDING; RAD GRILLE,LWR GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	1001-1003		●		●
186	01.266 BAR; RAD GRILLE CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>	8-98012-651-0	01	1	0610-	●	●	●	●

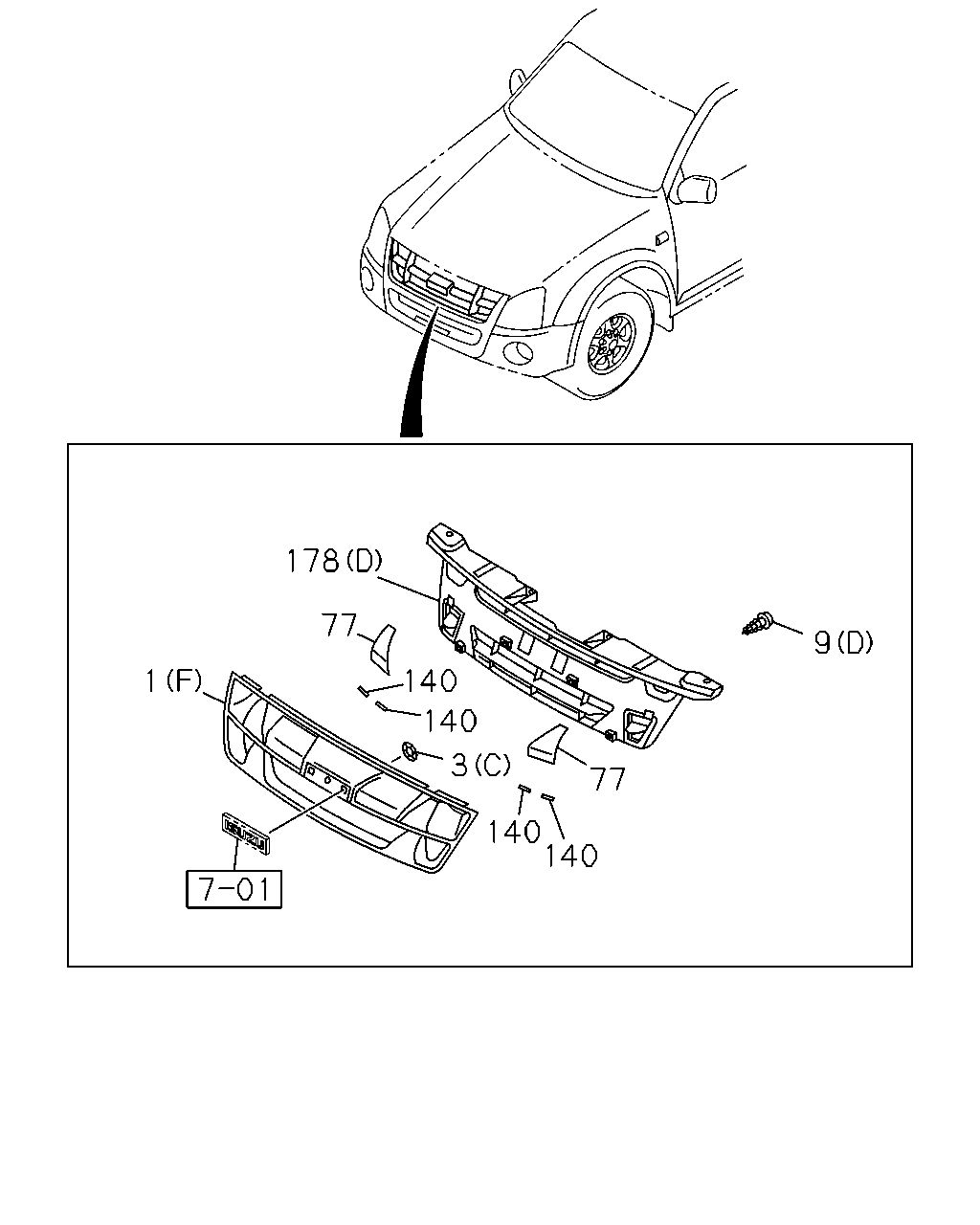

9 165 178 178 90 3 90 3 3 1 90 1 3 9 9 1 9 179 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.266 GRILLE; RAD (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0307-0309	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0310-0508	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (D) EXC.BRIGHT RAD GRILLE	8-98012-479-1	01	1	0610-0709	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98012-479-1	01	1	0710-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98012-479-1	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0310-0508	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (E)	8-98012-516-2	01	1	0610-	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-97331-613-0	01	1	0307-0309			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-97331-613-0	01	1	0310-0402			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-97331-613-0	01	1	0310-0402				●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-97331-613-0	01	1	0403-0508			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A) PLATED	8-97331-613-0	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-97367-361-2	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	0610-0709		●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	0710-0912		●		●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	1001-1003		●		●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98159-148-0	01	1	1004-1007		●		●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98159-148-0	01	1	1008-		●		●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (C) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609			●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0307-0609	●	●	●	●
3	01.269 CLIP; GRILLE ISUZU BRAND<7WL> (C)	8-97182-223-0	02	1	0701-	●	●	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	1004-1007		●		●
9	01.269 SCREW; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	1008-		●		●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0307-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> (D)	8-98070-852-0	17	1	0701-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	01	1	0307-0609	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0610-	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (A)	8-97333-542-2	01	1	0310-0508	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (A)	8-97333-542-2	01	1	0509-0609	●	●	●	●
165	01.269 PLATE; RAD GRILLE CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (B)	8-98012-652-0	01	1	0610-0806	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	1004-1007		●		●
178	01.269 GRILLE; INNER,RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	1008-		●		●
178	01.269 GRILLE; INNER,RAD (A)	8-97331-458-0	01	1	0307-0309	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0310-0508	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-1003	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609			●	●
179	01.269 RETAINER; GRILLE,RAD (A)	8-97350-904-0	02	1	0307-0309	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD ISUZU BRAND<7WL> (A)	8-97350-904-0	02	1	0310-0609	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832 (C)	8-97301-188-0	02	1	0610-	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (B)	8-97367-166-0	02	1	0310-0508	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B)	8-97367-166-0	02	1	0509-0609	●	●	●	●

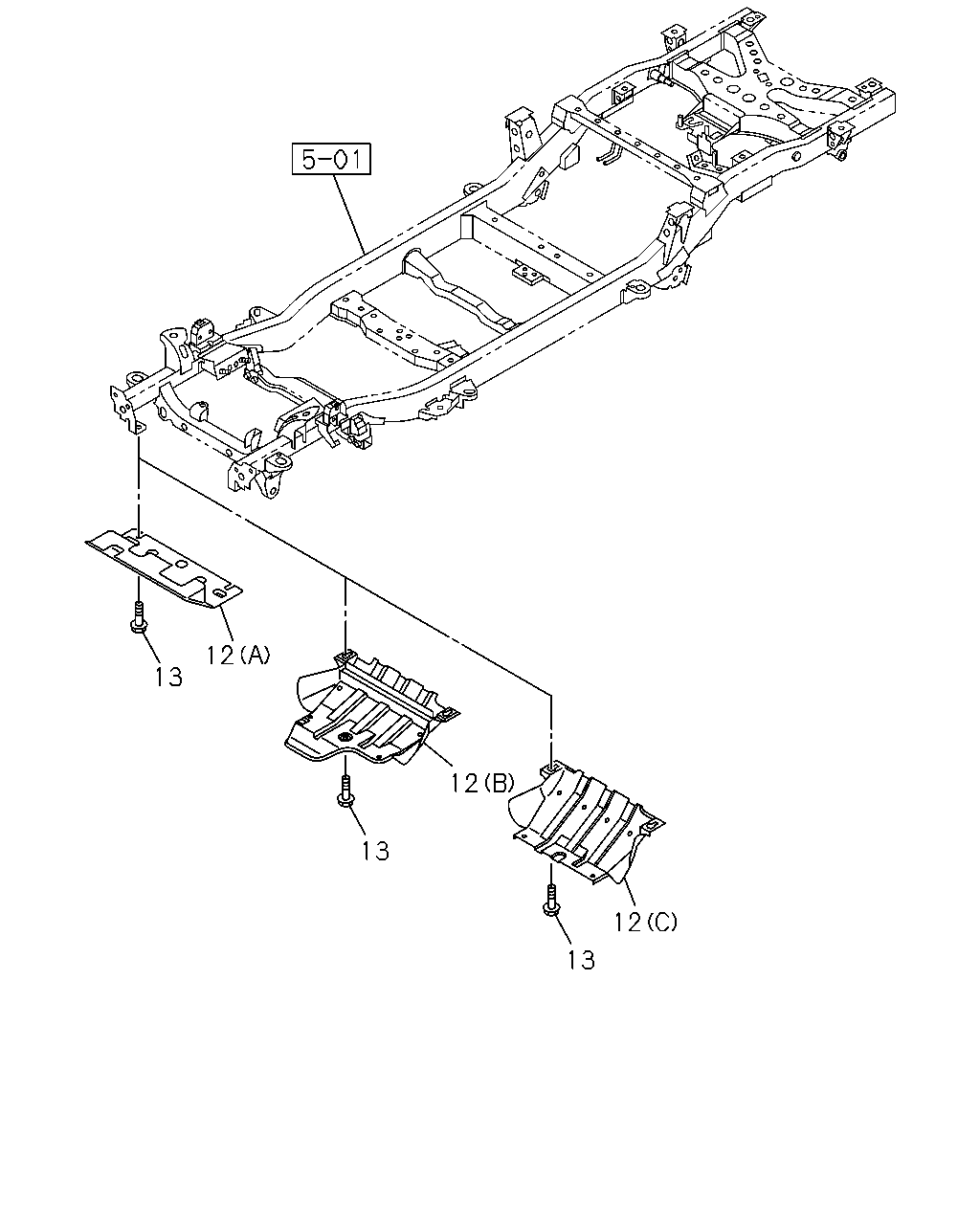

12 13 12 13 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	01.274 PLATE; SKID,RAD (A)	8-97942-919-0	01	1	0307-0609	●
12	01.274 PLATE; SKID,RAD SKID PLATE<7WE> (A)	8-97942-919-0	01	1	0307-0609		●
12	01.274 PLATE; SKID,RAD (C)	8-97944-848-1	01	1	0610-	●
12	01.274 PLATE; SKID,RAD EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-848-1	01	1	0610-		●
12	01.274 PLATE; SKID,RAD (B)	8-97942-947-1	01	1	0307-0402			●	●
12	01.274 PLATE; SKID,RAD (B)	8-97943-918-0	01	1	0403-0609			●	●
12	01.274 PLATE; SKID,RAD HIGH RIDE SUSPENSION(7YC) (B)	8-97945-192-0	01	1	0610-		●
12	01.274 PLATE; SKID,RAD (B)	8-97945-192-0	01	1	0610-			●	●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97943-077-0	02	1	0307-0609	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> M10X28 W/LK&PL WASHER	8-97943-077-0	02	1	0307-0609		●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0610-		●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97943-077-0	04	1	0307-0609			●	●
13	01.267 BOLT; RAD SKID PLATE 4JK1-TCX ENG(LR0) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-	●
13	01.267 BOLT; RAD SKID PLATE 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-		●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-		●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0610-			●	●

178 77 9 1 140 140 3 77 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.266 GRILLE; RAD (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0307-0309	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0310-0508	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97331-457-0	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> (D) EXC.BRIGHT RAD GRILLE	8-98012-479-1	01	1	0610-0709	●	●	●	●
1	01.266 GRILLE; RAD ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98012-479-1	01	1	0710-1007	●	●	●	●
1	01.266 GRILLE; RAD GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98012-479-1	01	1	1008-	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0310-0508	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BODY COLOR KEYED RAD GRILLE<TL1>, RADIATOR GRILLE IRON GRAY MET<7LA> EXC. FACE LIFT MODEL<TX7> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97333-541-2	01	1	0509-0609	●	●	●	●
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (E)	8-98012-516-2	01	1	0610-	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-97331-613-0	01	1	0307-0309			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-97331-613-0	01	1	0310-0402			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-97331-613-0	01	1	0310-0402				●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-97331-613-0	01	1	0403-0508			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A) PLATED	8-97331-613-0	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-97367-361-2	01	1	0509-0609			●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	0610-0709		●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	0710-0912		●		●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D) PLATED	8-98012-482-1	01	1	1001-1003		●		●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98159-148-0	01	1	1004-1007		●		●
1	01.266 GRILLE; RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (F) PLATED	8-98159-148-0	01	1	1008-		●		●
1	01.266 GRILLE; RAD FACE LIFT MODEL<TX7> RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (C) EXC.BRIGHT RAD GRILLE PLEASE PAINT TO MATCH BODY COLOR	8-97386-222-0	01	1	0509-0609			●	●
3	01.269 CLIP; GRILLE (A)	8-97350-903-0	04	1	0307-0609	●	●	●	●
3	01.269 CLIP; GRILLE ISUZU BRAND<7WL> (C)	8-97182-223-0	02	1	0701-	●	●	●	●
3	01.269 CLIP; GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97317-633-0	01	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	1004-1007		●		●
9	01.269 SCREW; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98070-852-0	13	1	1008-		●		●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	01	1	0307-0609	●	●	●	●
9	01.269 SCREW; RAD GRILLE 08.900 (A) M5X16	8-94380-268-0	03	1	0610-0703	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0704-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> (D)	8-98070-852-0	17	1	0701-1003	●	●	●	●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1004-1007	●	●	●	●
9	01.269 SCREW; RAD GRILLE GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (D)	8-98070-852-0	17	1	1008-	●	●	●	●
9	01.269 SCREW; RAD GRILLE FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97370-062-0	09	1	0509-0609			●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98018-511-0	02	1	0610-0610	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98049-358-0	02	1	0611-	●	●	●	●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-020-0	01	1	1004-1007		●		●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-020-0	01	1	1008-		●		●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-116-0	01	1	1004-1007		●		●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-116-0	01	1	1008-		●		●
140	01.266 SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98130-916-0	04	1	1004-1007		●		●
140	01.266 SEAL; RAD GRILLE GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98130-916-0	04	1	1008-		●		●
140	01.266 SEAL; RAD GRILLE ISUZU BRAND<7WL>	8-98070-854-0	01	1	0701-1003	●	●	●	●
140	01.266 SEAL; RAD GRILLE ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX>	8-98070-854-0	01	1	1004-1007	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX>	8-98070-854-0	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	1004-1007		●		●
178	01.269 GRILLE; INNER,RAD GRADE LT(RBD) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (D)	8-98109-370-1	01	1	1008-		●		●
178	01.269 GRILLE; INNER,RAD (A)	8-97331-458-0	01	1	0307-0309	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-97331-458-0	01	1	0310-0508	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> EXC. FACE LIFT MODEL<TX7> (A)	8-97331-458-0	01	1	0509-0609	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (C)	8-98012-483-2	01	1	0610-1003	●	●	●	●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1004-1007	●	●	●	●
178	01.269 GRILLE; INNER,RAD GRADE DX(RBA) ISUZU BRAND<7WL> BASE VEHICLE GRILLE<VWX> (C)	8-98012-483-2	01	1	1008-	●	●	●	●
178	01.269 GRILLE; INNER,RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA> ISUZU BRAND<7WL> (B)	8-97367-363-3	01	1	0509-0609			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
