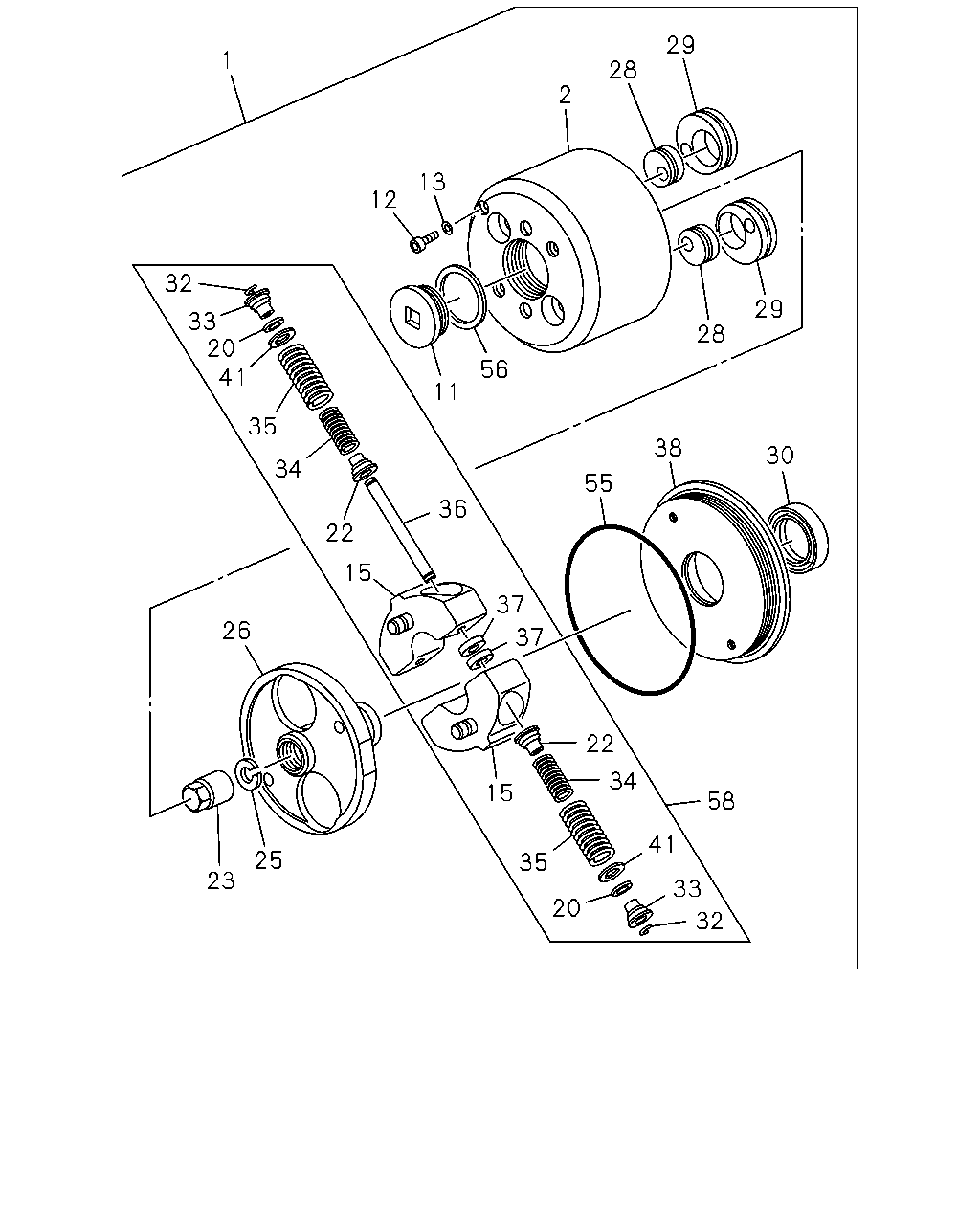

0-85 — AUTO TIMER; INJECTION PUMP (#7346) — 30 parça

29 1 28 2 13 12 32 29 33 20 41 28 56 11 35 38 30 34 55 36 22 15 37 26 37 22 34 15 58 41 25 35 23 33 20 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-114-3	1-15740-506-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15741-053-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15743-156-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP ID=15.2 T=0.5 ASM PART: A = 1-15603-114-3	1-15749-725-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP ID=15.2 T=1.0 ASM PART: A = 1-15603-114-3	1-15749-726-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-714-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-734-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-733-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15742-157-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-713-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-712-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-729-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-718-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-715-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-895-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP L=64 ASM PART: A = 1-15603-114-3	1-15749-908-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-719-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-727-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-728-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.1 ASM PART: A = 1-15603-114-3	1-15749-720-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.3 ASM PART: A = 1-15603-114-3	1-15749-721-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.5 ASM PART: A = 1-15603-114-3	1-15749-722-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.7 ASM PART: A = 1-15603-114-3	1-15749-723-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=1.0 ASM PART: A = 1-15603-114-3	1-15749-724-0	AR	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-114-3	1-15749-730-0	01	1	-
56	GASKET; CAP ASM PART: A = 1-15603-114-3	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-114-3	1-15743-160-0	01	1	-
