Sayfa 5-01 - Isuzu EPC

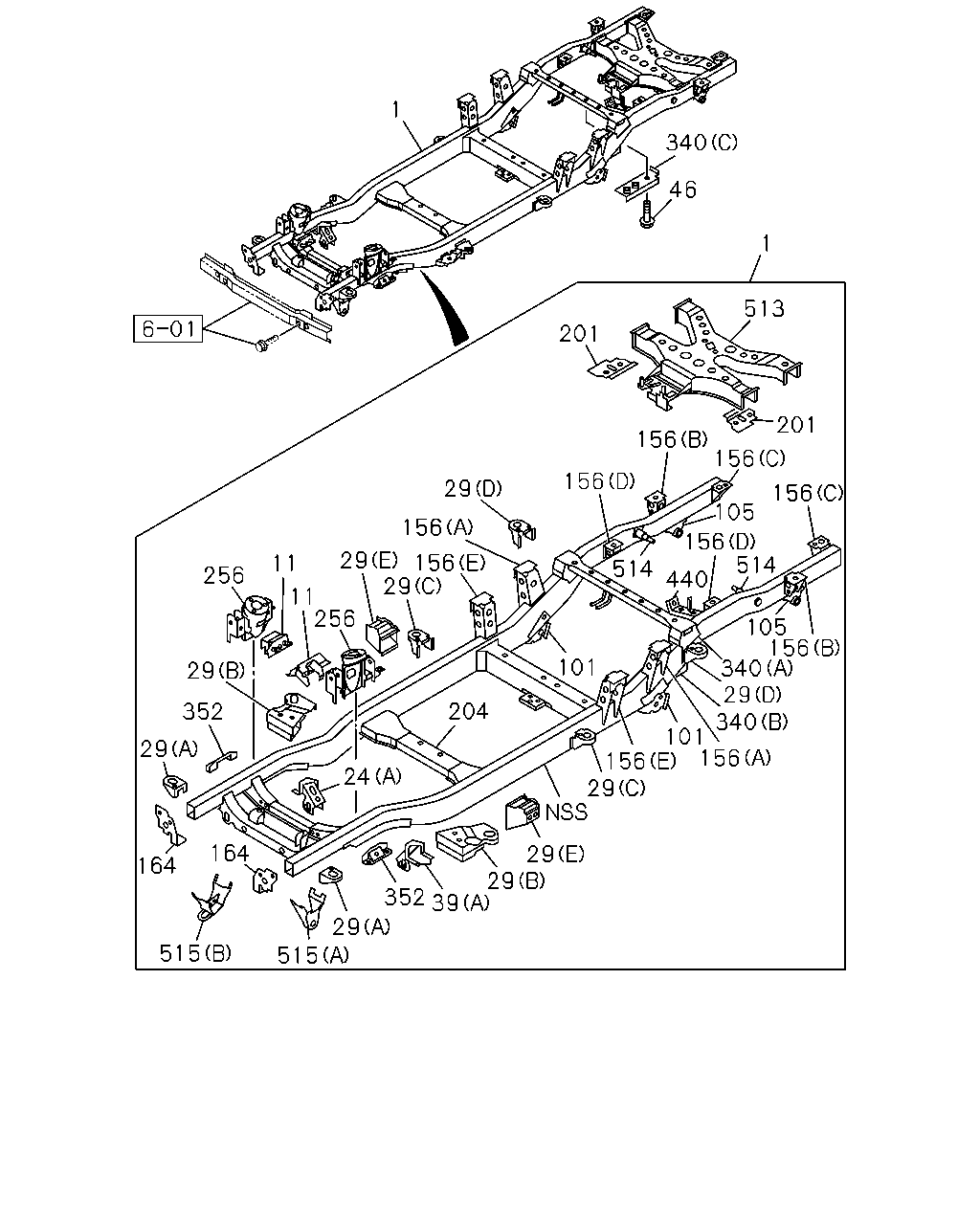

5-01 — FRAME AND OTHER PARTS (#73458) — 304 parça

1 340 46 1 513 201 201 156 156 156 156 29 156 29 156 29 256 11 11 256 29 352 29 164 164 24 204 101 514 440 105 156 514 105 156 340 29 340 156 101 156 29 29 29 39 352 29 515 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM	8-98116-487-0	01	1	0807-0808	●
1	07.003 FRAME ASM	8-98123-669-0	01	1	0809-	●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ)	8-98116-493-0	01	1	0807-0808		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98116-493-0	01	1	0807-0808		●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ)	8-98123-671-0	01	1	0809-		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98123-671-0	01	1	0809-		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-98116-484-0	01	1	0807-0808		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-98123-672-0	01	1	0809-		●
1	07.003 FRAME ASM	8-97943-710-0	01	1	0307-0408			●
1	07.003 FRAME ASM	8-97944-300-1	01	1	0409-0508			●
1	07.003 FRAME ASM	8-97944-995-0	01	1	0509-0609			●
1	07.003 FRAME ASM	8-97945-374-0	01	1	0610-0808			●
1	07.003 FRAME ASM	8-98123-657-0	01	1	0809-			●
1	07.003 FRAME ASM	8-97943-385-0	01	1	0307-0408				●
1	07.003 FRAME ASM	8-97944-302-1	01	1	0409-0508				●
1	07.003 FRAME ASM	8-97944-997-0	01	1	0509-0609				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97945-659-0	01	1	0610-0705				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97946-291-0	01	1	0706-0806				●
1	07.003 FRAME ASM HIGH RIDE SUSPENSION(7YC)	8-97946-291-0	01	1	0807-0808				●
1	07.003 FRAME ASM HIGH RIDE SUSPENSION(7YC)	8-98123-665-0	01	1	0809-				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-97945-376-0	01	1	0610-0808				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98123-659-0	01	1	0809-				●
1	07.003 FRAME ASM	8-97943-669-0	01	1	0307-0408	●
1	07.003 FRAME ASM	8-97944-286-1	01	1	0409-0508	●
1	07.003 FRAME ASM	8-97944-333-0	01	1	0509-0609	●
1	07.003 FRAME ASM	8-97945-645-0	01	1	0610-0806	●
1	07.003 FRAME ASM A/T 4 SPEED-JATCO(RMK)	8-97943-655-0	01	1	0307-0408		●
1	07.003 FRAME ASM A/T 4 SPEED-JATCO(RMK)	8-97944-307-1	01	1	0409-0508		●
1	07.003 FRAME ASM A/T 4 SPEED-JATCO(RMK)	8-97944-382-0	01	1	0509-0609		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-97944-533-0	01	1	0610-0806		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5G(RSP)	8-97943-654-0	01	1	0307-0408		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5G(RSP)	8-97944-306-1	01	1	0409-0508		●
1	07.003 FRAME ASM 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97944-381-0	01	1	0509-0609		●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ)	8-97945-662-0	01	1	0610-0806		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97945-662-0	01	1	0610-0806		●
11	00.029 BRACKET; ENG MTG	8-97942-715-2	01	1	0307-0609			●	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-715-2	01	1	0610-			●	●
11	00.029 BRACKET; ENG MTG	8-97942-714-2	01	1	0307-0609			●	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-714-2	01	1	0610-			●	●
11	00.029 BRACKET; ENG MTG	8-97942-716-0	01	1	0307-0401	●	●
11	00.029 BRACKET; ENG MTG	8-97943-947-0	01	1	0402-0609	●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-97943-947-0	01	1	0610-				●
11	00.029 BRACKET; ENG MTG	8-97943-947-0	01	1	0610-	●	●
11	00.029 BRACKET; ENG MTG	8-97942-345-4	01	1	0307-0609	●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-97942-345-4	01	1	0610-				●
11	00.029 BRACKET; ENG MTG	8-97942-345-4	01	1	0610-	●	●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-97942-354-4	01	1	0307-0609			●	●
24	07.105 BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-354-4	01	1	0610-			●	●
24	07.105 BRACKET; FRT SPR,FRT 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-328-0	01	1	0706-0806				●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC) (B)	8-97946-328-0	01	1	0807-				●
24	07.105 BRACKET; FRT SPR,FRT (B)	8-97942-352-2	01	1	0307-0609	●	●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC) (B)	8-97942-352-2	01	1	0610-0705				●
24	07.105 BRACKET; FRT SPR,FRT (B)	8-97942-352-2	01	1	0610-0705	●	●
24	07.105 BRACKET; FRT SPR,FRT (B)	8-97942-352-2	01	1	0706-	●	●
24	07.105 BRACKET; FRT SPR,FRT (C)	8-97942-356-3	01	1	0307-0609	●	●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC) (C)	8-97942-356-3	01	1	0610-				●
24	07.105 BRACKET; FRT SPR,FRT (C)	8-97942-356-3	01	1	0610-	●	●
29	07.330 BRACKET; CAB MTG (E)	8-97941-859-2	02	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (A)	8-97942-341-3	02	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (C)	8-97942-372-3	02	1	0307-0507	●	●	●	●
29	07.330 BRACKET; CAB MTG (C)	8-97944-956-0	02	1	0508-	●	●	●	●
29	07.330 BRACKET; CAB MTG (B)	8-97941-773-2	01	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (B)	8-97941-772-2	01	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (D)	8-97942-383-3	01	1	0307-		●		●
29	07.330 BRACKET; CAB MTG (D)	8-97942-382-4	01	1	0307-		●		●
39	07.112 BRACKET; FRT SPR,RR (A)	8-97942-355-4	01	1	0307-0609			●	●
39	07.112 BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-355-4	01	1	0610-			●	●
39	07.112 BRACKET; FRT SPR,RR 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-329-0	01	1	0706-0806				●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-329-0	01	1	0807-				●
39	07.112 BRACKET; FRT SPR,RR (B)	8-97942-353-2	01	1	0307-0609	●	●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC) (B)	8-97942-353-2	01	1	0610-0705				●
39	07.112 BRACKET; FRT SPR,RR (B)	8-97942-353-2	01	1	0610-0705	●	●
39	07.112 BRACKET; FRT SPR,RR (B)	8-97942-353-2	01	1	0706-	●	●
39	07.112 BRACKET; FRT SPR,RR (C)	8-97942-357-3	01	1	0307-0609	●	●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC) (C)	8-97942-357-3	01	1	0610-				●
39	07.112 BRACKET; FRT SPR,RR (C)	8-97942-357-3	01	1	0610-	●	●
46	07.428 BOLT; BRKT FIX 09.008 M14X30 FLANGE	0-28691-430-0	01	1	0307-0601		●		●
46	07.428 BOLT; BRKT FIX M14X30 FLANGE	0-28661-430-0	01	1	0602-		●		●
101	07.112 BRACKET; RR SPR,FRT	8-97942-394-5	01	1	0307-0609			●	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-394-5	01	1	0610-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-97942-393-5	01	1	0307-0609			●	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-393-5	01	1	0610-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-97942-392-6	01	1	0307-0609	●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-97942-392-6	01	1	0610-				●
101	07.112 BRACKET; RR SPR,FRT	8-97942-392-6	01	1	0610-	●	●
101	07.112 BRACKET; RR SPR,FRT	8-97942-391-6	01	1	0307-0609	●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-97942-391-6	01	1	0610-				●
101	07.112 BRACKET; RR SPR,FRT	8-97942-391-6	01	1	0610-	●	●
105	07.112 BRACKET; RR SPR,RR	8-97942-294-0	02	1	0307-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (B)	8-97942-388-5	02	1	0307-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (D)	8-97942-390-6	02	1	0307-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (C)	8-97942-389-5	02	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-97942-375-4	01	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-97942-385-4	01	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-97942-374-3	01	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-97942-384-4	01	1	0307-	●		●
164	07.112 PLATE; FRT	8-97942-827-1	01	1	0307-0808	●	●	●	●
164	07.112 PLATE; FRT	8-98123-935-0	01	1	0809-	●	●	●	●
164	07.112 PLATE; FRT	8-97942-826-1	01	1	0307-0808	●	●	●	●
164	07.112 PLATE; FRT	8-98123-934-0	01	1	0809-	●	●	●	●
201	07.039 GUSSET; C/MBR	8-97942-406-1	01	1	0307-	●	●	●	●
201	07.039 GUSSET; C/MBR	8-97942-405-1	01	1	0307-	●	●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG	8-97942-368-6	01	1	0403-0408			●	●
204	07.010 MEMBER; CROSS,TRANS MTG	8-97943-829-0	01	1	0409-0609			●	●
204	07.010 MEMBER; CROSS,TRANS MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-829-0	01	1	0610-			●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97943-832-0	01	1	0610-0806				●
204	07.010 MEMBER; CROSS,TRANS MTG HIGH RIDE SUSPENSION(7YC)	8-97943-832-0	01	1	0807-				●
204	07.010 MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5G(RSP)	8-97942-370-4	01	1	0403-0408	●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97943-831-1	01	1	0409-0609	●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ)	8-97943-831-1	01	1	0610-	●	●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 4 SPEED-JATCO(RMK)	8-97942-369-5	01	1	0403-0408		●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 4 SPEED-JATCO(RMK)	8-97943-830-0	01	1	0409-0609		●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-97943-830-0	01	1	0610-		●
256	07.395 BRACKET; S/ABS	8-97942-351-3	01	1	0307-0609			●	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-351-3	01	1	0610-			●	●
256	07.395 BRACKET; S/ABS	8-97942-350-2	01	1	0307-0609			●	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-350-2	01	1	0610-			●	●
256	07.395 BRACKET; S/ABS	8-97942-349-1	01	1	0307-0504	●	●
256	07.395 BRACKET; S/ABS	8-97944-314-0	01	1	0505-0609	●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-97944-314-0	01	1	0610-				●
256	07.395 BRACKET; S/ABS	8-97944-314-0	01	1	0610-	●	●
256	07.395 BRACKET; S/ABS	8-97942-348-1	01	1	0307-0504	●	●
256	07.395 BRACKET; S/ABS	8-97944-313-0	01	1	0505-0609	●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-97944-313-0	01	1	0610-				●
256	07.395 BRACKET; S/ABS	8-97944-313-0	01	1	0610-	●	●
340	07.039 BRACKET; FUEL TANK (A)	8-97942-278-3	01	1	0307-	●	●	●	●
340	07.039 BRACKET; FUEL TANK (B)	8-97942-397-3	01	1	0307-	●	●	●	●
340	07.039 BRACKET; FUEL TANK (C)	8-97327-266-0	01	1	0307-		●		●
352	07.039 BRACKET; BUMPER RUBBER	8-97942-362-2	02	1	0307-0609			●	●
352	07.039 BRACKET; BUMPER RUBBER EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-362-2	02	1	0610-			●	●
352	07.039 BRACKET; BUMPER RUBBER	8-97942-398-3	02	1	0307-0609	●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC)	8-97942-398-3	02	1	0610-				●
352	07.039 BRACKET; BUMPER RUBBER	8-97942-398-3	02	1	0610-	●	●
440	07.039 BRACKET; HOSE	8-97942-401-3	01	1	0307-0609			●	●
440	07.039 BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-401-3	01	1	0610-			●	●
440	07.039 BRACKET; HOSE	8-97942-400-3	01	1	0307-0609	●	●
440	07.039 BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-97942-400-3	01	1	0610-				●
440	07.039 BRACKET; HOSE	8-97942-400-3	01	1	0610-	●	●
513	07.012 MEMBER; CROSS,SPEAR TIRE	8-97942-404-9	01	1	0307-	●	●	●	●
514	07.388 PIN; S/ABS	8-97942-395-1	02	1	0307-	●	●	●	●
515	07.039 HOOK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97945-308-0	01	1	0610-			●	●
515	07.039 HOOK (A)	8-97942-363-1	01	1	0307-0609	●	●	●	●
515	07.039 HOOK HIGH RIDE SUSPENSION(7YC) (A)	8-97942-363-1	01	1	0610-				●
515	07.039 HOOK (A)	8-97942-363-1	01	1	0610-	●	●

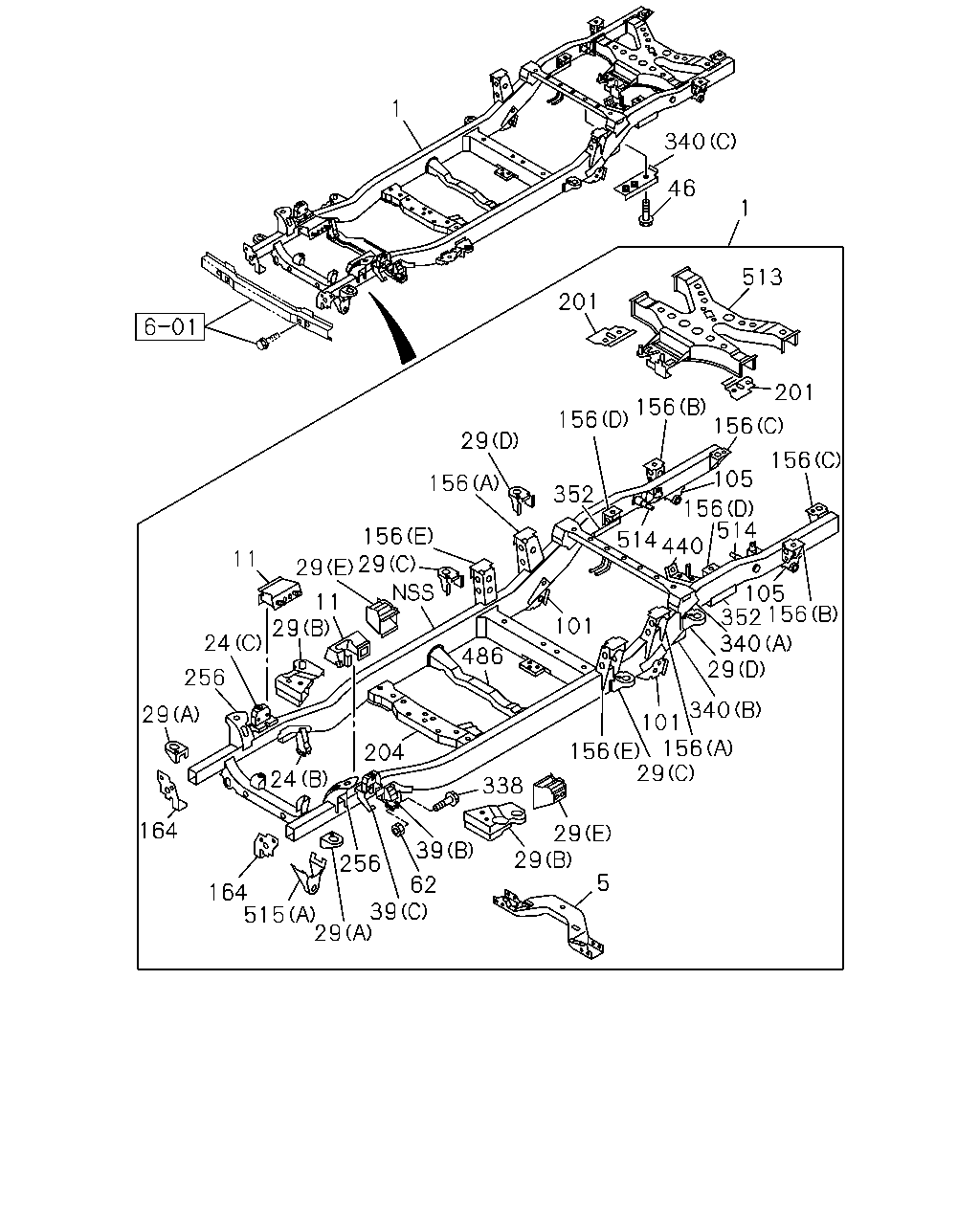

1 340 46 1 513 201 201 156 156 156 156 352 29 156 156 29 11 29 29 11 24 256 29 164 24 204 486 101 440 514 156 514 105 105 352 156 340 29 340 156 101 29 156 5 29 29 338 39 62 39 256 29 515 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM	8-98116-487-0	01	1	0807-0808	●
1	07.003 FRAME ASM	8-98123-669-0	01	1	0809-	●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ)	8-98116-493-0	01	1	0807-0808		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98116-493-0	01	1	0807-0808		●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ)	8-98123-671-0	01	1	0809-		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98123-671-0	01	1	0809-		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-98116-484-0	01	1	0807-0808		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-98123-672-0	01	1	0809-		●
1	07.003 FRAME ASM	8-97943-710-0	01	1	0307-0408			●
1	07.003 FRAME ASM	8-97944-300-1	01	1	0409-0508			●
1	07.003 FRAME ASM	8-97944-995-0	01	1	0509-0609			●
1	07.003 FRAME ASM	8-97945-374-0	01	1	0610-0808			●
1	07.003 FRAME ASM	8-98123-657-0	01	1	0809-			●
1	07.003 FRAME ASM	8-97943-385-0	01	1	0307-0408				●
1	07.003 FRAME ASM	8-97944-302-1	01	1	0409-0508				●
1	07.003 FRAME ASM	8-97944-997-0	01	1	0509-0609				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97945-659-0	01	1	0610-0705				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97946-291-0	01	1	0706-0806				●
1	07.003 FRAME ASM HIGH RIDE SUSPENSION(7YC)	8-97946-291-0	01	1	0807-0808				●
1	07.003 FRAME ASM HIGH RIDE SUSPENSION(7YC)	8-98123-665-0	01	1	0809-				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-97945-376-0	01	1	0610-0808				●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98123-659-0	01	1	0809-				●
1	07.003 FRAME ASM	8-97943-669-0	01	1	0307-0408	●
1	07.003 FRAME ASM	8-97944-286-1	01	1	0409-0508	●
1	07.003 FRAME ASM	8-97944-333-0	01	1	0509-0609	●
1	07.003 FRAME ASM	8-97945-645-0	01	1	0610-0806	●
1	07.003 FRAME ASM A/T 4 SPEED-JATCO(RMK)	8-97943-655-0	01	1	0307-0408		●
1	07.003 FRAME ASM A/T 4 SPEED-JATCO(RMK)	8-97944-307-1	01	1	0409-0508		●
1	07.003 FRAME ASM A/T 4 SPEED-JATCO(RMK)	8-97944-382-0	01	1	0509-0609		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-97944-533-0	01	1	0610-0806		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5G(RSP)	8-97943-654-0	01	1	0307-0408		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5G(RSP)	8-97944-306-1	01	1	0409-0508		●
1	07.003 FRAME ASM 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97944-381-0	01	1	0509-0609		●
1	07.003 FRAME ASM 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ)	8-97945-662-0	01	1	0610-0806		●
1	07.003 FRAME ASM 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-97945-662-0	01	1	0610-0806		●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98116-196-0	01	1	0807-	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-97942-423-3	01	1	0307-0609	●	●
5	07.010 MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-97942-423-3	01	1	0610-0806				●
5	07.010 MEMBER; CROSS,SUSPENSION	8-97942-423-3	01	1	0610-0806	●	●
5	07.010 MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-97942-423-3	01	1	0807-				●
11	00.029 BRACKET; ENG MTG	8-97942-715-2	01	1	0307-0609			●	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-715-2	01	1	0610-			●	●
11	00.029 BRACKET; ENG MTG	8-97942-714-2	01	1	0307-0609			●	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-714-2	01	1	0610-			●	●
11	00.029 BRACKET; ENG MTG	8-97942-716-0	01	1	0307-0401	●	●
11	00.029 BRACKET; ENG MTG	8-97943-947-0	01	1	0402-0609	●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-97943-947-0	01	1	0610-				●
11	00.029 BRACKET; ENG MTG	8-97943-947-0	01	1	0610-	●	●
11	00.029 BRACKET; ENG MTG	8-97942-345-4	01	1	0307-0609	●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-97942-345-4	01	1	0610-				●
11	00.029 BRACKET; ENG MTG	8-97942-345-4	01	1	0610-	●	●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-97942-354-4	01	1	0307-0609			●	●
24	07.105 BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-354-4	01	1	0610-			●	●
24	07.105 BRACKET; FRT SPR,FRT 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-328-0	01	1	0706-0806				●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC) (B)	8-97946-328-0	01	1	0807-				●
24	07.105 BRACKET; FRT SPR,FRT (B)	8-97942-352-2	01	1	0307-0609	●	●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC) (B)	8-97942-352-2	01	1	0610-0705				●
24	07.105 BRACKET; FRT SPR,FRT (B)	8-97942-352-2	01	1	0610-0705	●	●
24	07.105 BRACKET; FRT SPR,FRT (B)	8-97942-352-2	01	1	0706-	●	●
24	07.105 BRACKET; FRT SPR,FRT (C)	8-97942-356-3	01	1	0307-0609	●	●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC) (C)	8-97942-356-3	01	1	0610-				●
24	07.105 BRACKET; FRT SPR,FRT (C)	8-97942-356-3	01	1	0610-	●	●
29	07.330 BRACKET; CAB MTG (E)	8-97941-859-2	02	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (A)	8-97942-341-3	02	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (C)	8-97942-372-3	02	1	0307-0507	●	●	●	●
29	07.330 BRACKET; CAB MTG (C)	8-97944-956-0	02	1	0508-	●	●	●	●
29	07.330 BRACKET; CAB MTG (B)	8-97941-773-2	01	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (B)	8-97941-772-2	01	1	0307-	●	●	●	●
29	07.330 BRACKET; CAB MTG (D)	8-97942-383-3	01	1	0307-		●		●
29	07.330 BRACKET; CAB MTG (D)	8-97942-382-4	01	1	0307-		●		●
39	07.112 BRACKET; FRT SPR,RR (A)	8-97942-355-4	01	1	0307-0609			●	●
39	07.112 BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-355-4	01	1	0610-			●	●
39	07.112 BRACKET; FRT SPR,RR 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-329-0	01	1	0706-0806				●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-329-0	01	1	0807-				●
39	07.112 BRACKET; FRT SPR,RR (B)	8-97942-353-2	01	1	0307-0609	●	●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC) (B)	8-97942-353-2	01	1	0610-0705				●
39	07.112 BRACKET; FRT SPR,RR (B)	8-97942-353-2	01	1	0610-0705	●	●
39	07.112 BRACKET; FRT SPR,RR (B)	8-97942-353-2	01	1	0706-	●	●
39	07.112 BRACKET; FRT SPR,RR (C)	8-97942-357-3	01	1	0307-0609	●	●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC) (C)	8-97942-357-3	01	1	0610-				●
39	07.112 BRACKET; FRT SPR,RR (C)	8-97942-357-3	01	1	0610-	●	●
46	07.428 BOLT; BRKT FIX 09.008 M14X30 FLANGE	0-28691-430-0	01	1	0307-0601		●		●
46	07.428 BOLT; BRKT FIX M14X30 FLANGE	0-28661-430-0	01	1	0602-		●		●
62	05.601 NUT; MBR	8-97943-021-0	04	1	0307-0310	●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0311-0609	●	●
62	05.601 NUT; MBR HIGH RIDE SUSPENSION(7YC) 04.085 M10 FLANGE	0-91180-210-0	04	1	0610-				●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0610-	●	●
101	07.112 BRACKET; RR SPR,FRT	8-97942-394-5	01	1	0307-0609			●	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-394-5	01	1	0610-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-97942-393-5	01	1	0307-0609			●	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-393-5	01	1	0610-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-97942-392-6	01	1	0307-0609	●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-97942-392-6	01	1	0610-				●
101	07.112 BRACKET; RR SPR,FRT	8-97942-392-6	01	1	0610-	●	●
101	07.112 BRACKET; RR SPR,FRT	8-97942-391-6	01	1	0307-0609	●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-97942-391-6	01	1	0610-				●
101	07.112 BRACKET; RR SPR,FRT	8-97942-391-6	01	1	0610-	●	●
105	07.112 BRACKET; RR SPR,RR	8-97942-294-0	02	1	0307-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (B)	8-97942-388-5	02	1	0307-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (D)	8-97942-390-6	02	1	0307-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (C)	8-97942-389-5	02	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-97942-375-4	01	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-97942-385-4	01	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-97942-374-3	01	1	0307-	●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-97942-384-4	01	1	0307-	●		●
164	07.112 PLATE; FRT	8-97942-827-1	01	1	0307-0808	●	●	●	●
164	07.112 PLATE; FRT	8-98123-935-0	01	1	0809-	●	●	●	●
164	07.112 PLATE; FRT	8-97942-826-1	01	1	0307-0808	●	●	●	●
164	07.112 PLATE; FRT	8-98123-934-0	01	1	0809-	●	●	●	●
201	07.039 GUSSET; C/MBR	8-97942-406-1	01	1	0307-	●	●	●	●
201	07.039 GUSSET; C/MBR	8-97942-405-1	01	1	0307-	●	●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG	8-97942-368-6	01	1	0403-0408			●	●
204	07.010 MEMBER; CROSS,TRANS MTG	8-97943-829-0	01	1	0409-0609			●	●
204	07.010 MEMBER; CROSS,TRANS MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-829-0	01	1	0610-			●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-97943-832-0	01	1	0610-0806				●
204	07.010 MEMBER; CROSS,TRANS MTG HIGH RIDE SUSPENSION(7YC)	8-97943-832-0	01	1	0807-				●
204	07.010 MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5G(RSP)	8-97942-370-4	01	1	0403-0408	●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97943-831-1	01	1	0409-0609	●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ)	8-97943-831-1	01	1	0610-	●	●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 4 SPEED-JATCO(RMK)	8-97942-369-5	01	1	0403-0408		●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 4 SPEED-JATCO(RMK)	8-97943-830-0	01	1	0409-0609		●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCX ENG(LS0) A/T AISIN(RMD)	8-97943-830-0	01	1	0610-		●
256	07.395 BRACKET; S/ABS	8-97942-351-3	01	1	0307-0609			●	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-351-3	01	1	0610-			●	●
256	07.395 BRACKET; S/ABS	8-97942-350-2	01	1	0307-0609			●	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-350-2	01	1	0610-			●	●
256	07.395 BRACKET; S/ABS	8-97942-349-1	01	1	0307-0504	●	●
256	07.395 BRACKET; S/ABS	8-97944-314-0	01	1	0505-0609	●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-97944-314-0	01	1	0610-				●
256	07.395 BRACKET; S/ABS	8-97944-314-0	01	1	0610-	●	●
256	07.395 BRACKET; S/ABS	8-97942-348-1	01	1	0307-0504	●	●
256	07.395 BRACKET; S/ABS	8-97944-313-0	01	1	0505-0609	●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-97944-313-0	01	1	0610-				●
256	07.395 BRACKET; S/ABS	8-97944-313-0	01	1	0610-	●	●
338	04.085 BOLT; C/MBR,SUSPENSION M10X80 FLANGE	0-28061-080-0	04	1	0307-0310	●	●
338	04.085 BOLT; C/MBR,SUSPENSION M10X80 FLANGE	8-97943-909-0	04	1	0311-0609	●	●
338	04.085 BOLT; C/MBR,SUSPENSION HIGH RIDE SUSPENSION(7YC) M10X80 FLANGE	8-97943-909-0	04	1	0610-				●
338	04.085 BOLT; C/MBR,SUSPENSION M10X80 FLANGE	8-97943-909-0	04	1	0610-	●	●
340	07.039 BRACKET; FUEL TANK (A)	8-97942-278-3	01	1	0307-	●	●	●	●
340	07.039 BRACKET; FUEL TANK (B)	8-97942-397-3	01	1	0307-	●	●	●	●
340	07.039 BRACKET; FUEL TANK (C)	8-97327-266-0	01	1	0307-		●		●
352	07.039 BRACKET; BUMPER RUBBER	8-97942-362-2	02	1	0307-0609			●	●
352	07.039 BRACKET; BUMPER RUBBER EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-362-2	02	1	0610-			●	●
352	07.039 BRACKET; BUMPER RUBBER	8-97942-398-3	02	1	0307-0609	●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC)	8-97942-398-3	02	1	0610-				●
352	07.039 BRACKET; BUMPER RUBBER	8-97942-398-3	02	1	0610-	●	●
440	07.039 BRACKET; HOSE	8-97942-401-3	01	1	0307-0609			●	●
440	07.039 BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-401-3	01	1	0610-			●	●
440	07.039 BRACKET; HOSE	8-97942-400-3	01	1	0307-0609	●	●
440	07.039 BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-97942-400-3	01	1	0610-				●
440	07.039 BRACKET; HOSE	8-97942-400-3	01	1	0610-	●	●
486	07.012 MEMBER; CROSS,HIGHT CONT BRKT	8-97942-371-6	01	1	0307-0609	●	●
486	07.012 MEMBER; CROSS,HIGHT CONT BRKT HIGH RIDE SUSPENSION(7YC)	8-97942-371-6	01	1	0610-				●
486	07.012 MEMBER; CROSS,HIGHT CONT BRKT	8-97942-371-6	01	1	0610-	●	●
513	07.012 MEMBER; CROSS,SPEAR TIRE	8-97942-404-9	01	1	0307-	●	●	●	●
514	07.388 PIN; S/ABS	8-97942-395-1	02	1	0307-	●	●	●	●
515	07.039 HOOK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97945-308-0	01	1	0610-			●	●
515	07.039 HOOK (A)	8-97942-363-1	01	1	0307-0609	●	●	●	●
515	07.039 HOOK HIGH RIDE SUSPENSION(7YC) (A)	8-97942-363-1	01	1	0610-				●
515	07.039 HOOK (A)	8-97942-363-1	01	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
