0-84 — FEED PUMP; INJECTION PUMP (#7345) — 54 parça

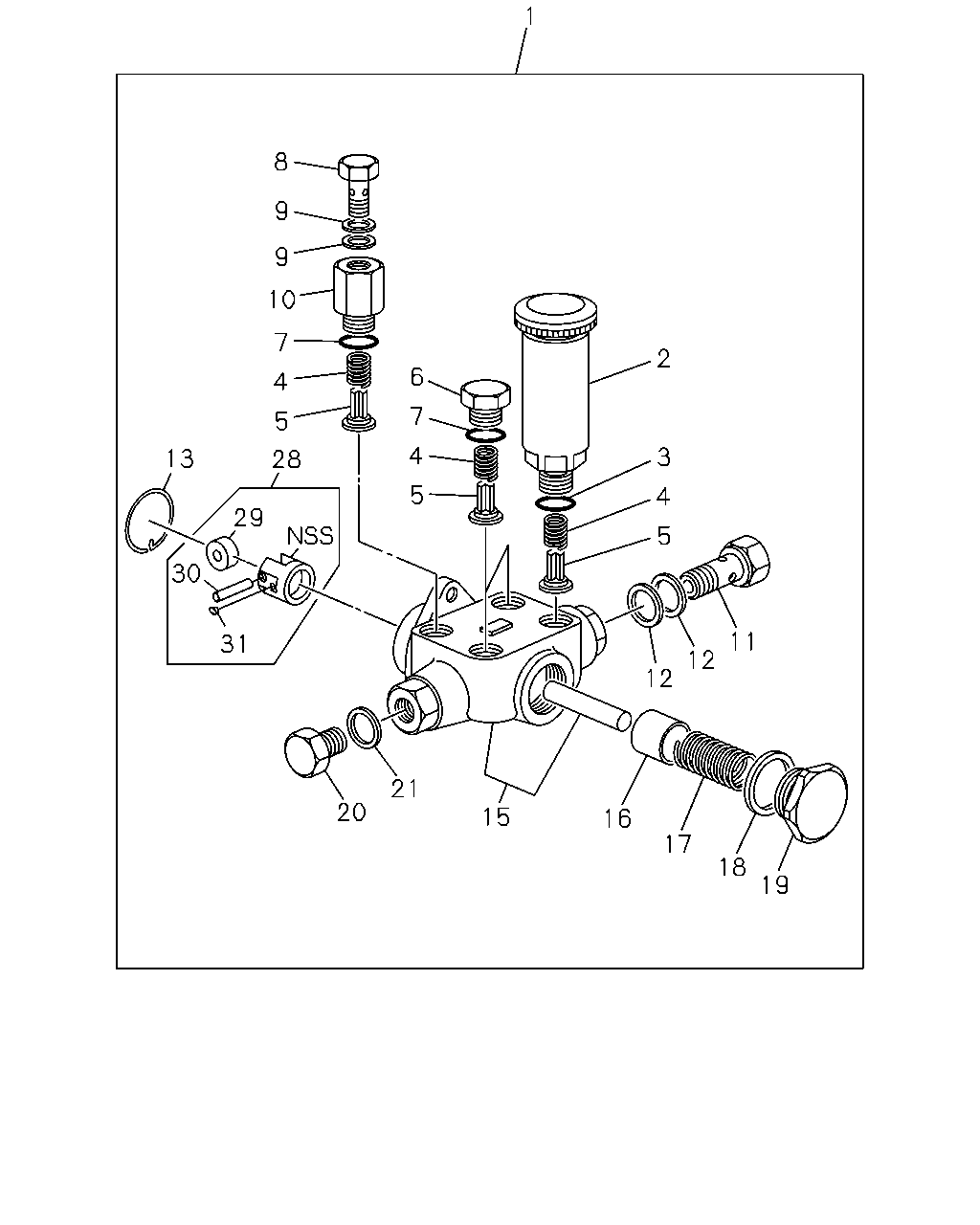

çizim 43169
1 8 9 9 10 7 2 6 4 7 5 4 3 13 28 5 4 29 5 30 11 31 12 12 21 20 15 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15750-152-0 01 1 -0002
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: E = 1-15603-295-4 		1-15750-152-0 01 1 -9904
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 1-15603-114-3 		1-15750-167-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15750-190-0 01 1 0003-
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: E = 1-15603-295-4 		1-15750-190-0 01 1 9905-
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15603-065-7 		1-15750-190-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15755-002-0 04 1 9905-
5 VALVE; FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15755-002-0 04 1 0003-
5 VALVE; FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		9-81351-602-0 04 1 -0002
5 VALVE; FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		9-81351-602-0 04 1 -9904
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-15759-009-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-15759-011-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-09630-085-0 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-15759-052-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: D = 1-15603-290-5 		1-15759-029-0 01 1 -0002
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 1-15603-114-3, C = 1-15603-265-3 		1-15759-029-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15759-029-0 01 1 -9904
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: A = 1-15603-065-7 		8-97203-957-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: E = 1-15603-295-4 		8-97203-957-0 01 1 9905-
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: D = 1-15603-290-5 		8-97203-957-0 01 1 0003-
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-09630-085-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15751-031-0 01 1 -9904
15 HOUSING; FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15751-031-0 01 1 -0002
15 HOUSING; FUEL FEED PUMP
ASM PART: B = 1-15603-114-3 		1-15751-038-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15751-046-0 01 1 0003-
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15603-065-7 		1-15751-046-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15751-046-0 01 1 9905-
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, B = 1-15603-114-3, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: B = 1-15603-114-3 		1-15759-004-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15759-004-0 01 1 -9904
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15759-004-0 01 1 -0002
21 GASKET; PLUG,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: E = 1-15603-295-4 		1-09630-085-0 01 1 -9904
21 GASKET; PLUG,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: B = 1-15603-114-3 		1-09630-085-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-09630-085-0 01 1 -0002
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15603-065-7, C = 1-15603-265-3, D = 1-15603-290-5, E = 1-15603-295-4 		1-15754-006-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: B = 1-15603-114-3 		1-15754-007-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15759-055-0 01 1 0003-
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7 		1-15759-055-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15759-055-0 01 1 9905-
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15759-056-0 01 1 9905-
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7 		1-15759-056-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15759-056-0 01 1 0003-
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: C = 1-15603-265-3, D = 1-15603-290-5 		1-15759-057-0 02 1 0003-
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: E = 1-15603-295-4 		1-15759-057-0 02 1 9905-
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-065-7 		1-15759-057-0 02 1 -
