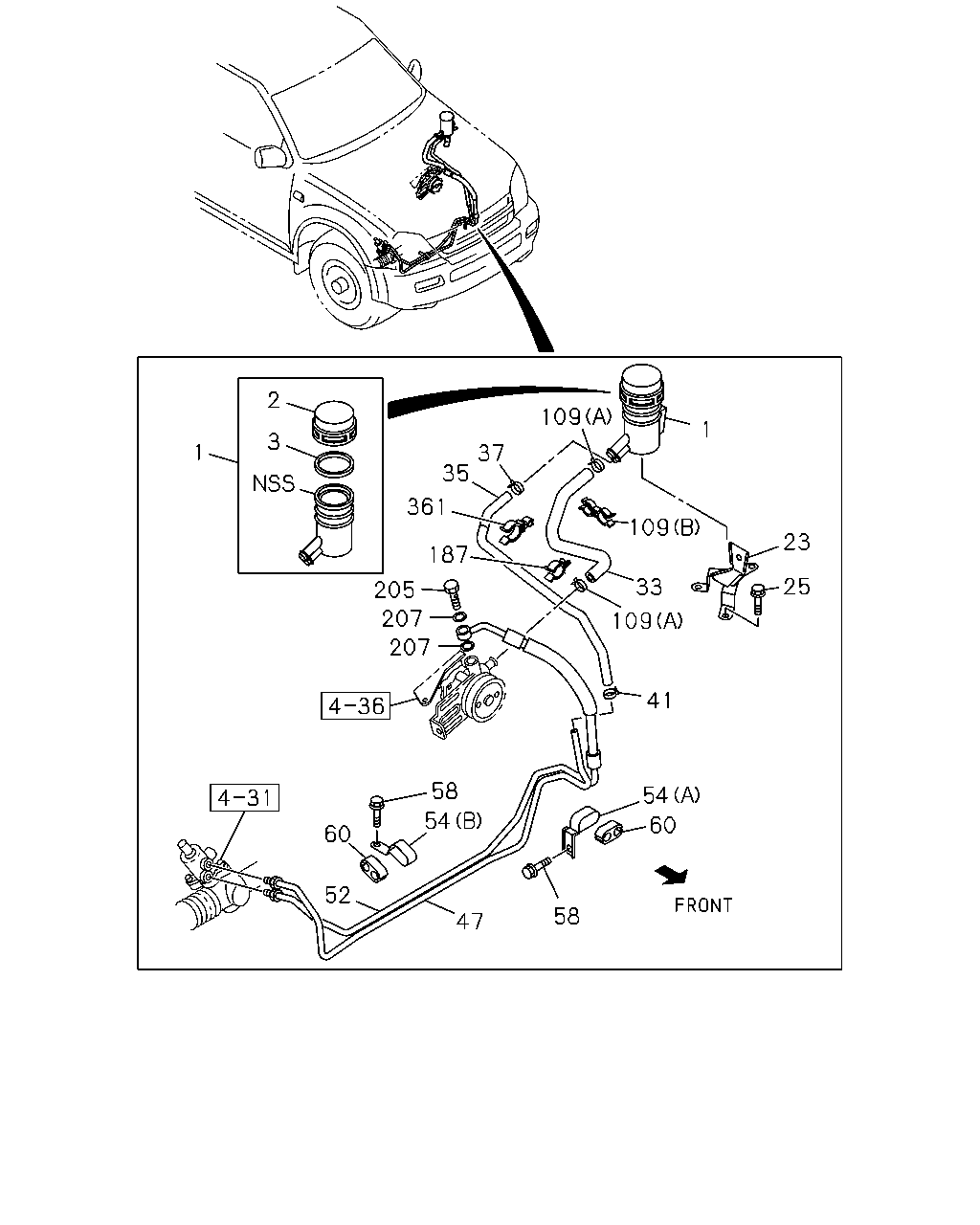

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#73449) — 158 parça

2 109 1 3 1 37 35 361 109 23 187 25 33 205 207 109 207 41 58 54 54 60 60 52 58 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0307-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0307-	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0307-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97234-380-1	01	1	0307-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0307-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97943-682-0	01	1	0307-0609	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97943-485-1	01	1	0610-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97234-899-2	01	1	0307-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 01.240 ID=16	8-94392-924-0	01	1	0307-0604	●	●	●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0605-	●	●	●	●
41	06.672 CLIP; HOSE,P/S 01.240 ID=16	8-94392-924-0	01	1	0307-0604	●	●	●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0605-	●	●	●	●
47	06.671 PIPE; RETURN	8-97234-422-3	01	1	0307-0609	●	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0)	8-97944-596-0	01	1	0610-	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0610-		●
47	06.671 PIPE; RETURN	8-97234-426-3	01	1	0307-0508			●	●
47	06.671 PIPE; RETURN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97234-426-3	01	1	0509-0609			●	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0610-		●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0610-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-492-0	01	1	0307-0311	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-802-0	01	1	0312-0504	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97944-896-0	01	1	0505-0609	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0)	8-97944-576-0	01	1	0610-	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0610-		●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-493-0	01	1	0307-0311			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-803-0	01	1	0312-0504			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97944-897-0	01	1	0505-0508			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97944-897-0	01	1	0509-0609			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0610-		●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0610-			●	●
54	06.672 CLIP; OIL PIPE (A)	8-97026-703-0	01	1	0307-0609	●	●	●	●
54	06.672 CLIP; OIL PIPE (C) ID=11 L=16	0-95235-022-0	01	1	0610-	●	●	●	●
54	06.672 CLIP; OIL PIPE (B)	8-97164-013-2	01	1	0307-0609	●	●	●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0307-	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0307-0508	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0307-0508	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0509-0609	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z) ID=10X2 H=22	8-94252-455-2	01	1	0509-0609	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) ID=10X2 H=22	8-94252-455-2	01	1	0509-0609			●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0610-0806	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0807-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0307-0609	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	01	1	0307-0609	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	02	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=24 L=32	8-98006-816-0	01	1	0610-	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 06.672 ID=17	8-94382-792-1	01	1	0307-	●	●	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S M16X28	8-97245-666-0	01	1	0307-0311	●	●	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0307-0311	●	●	●	●
361	06.672 RETAINER; P/S BRK WHL LK CONT LSPV<JR9>	8-97943-488-0	01	1	0307-	●	●	●	●

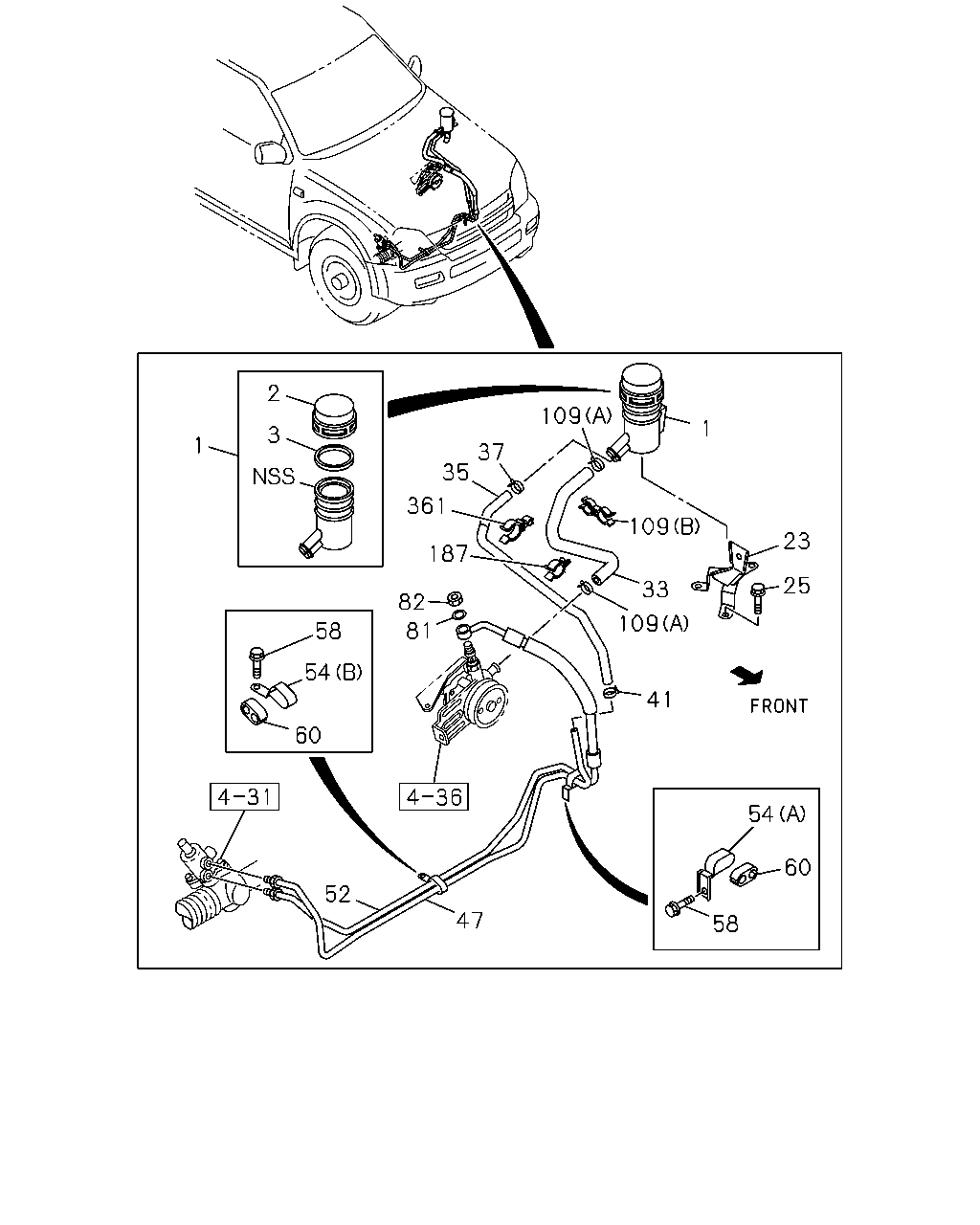

2 109 1 3 1 37 35 361 109 23 187 25 33 82 109 81 58 54 41 60 54 60 52 47 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0307-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0307-	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0307-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97234-380-1	01	1	0307-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0307-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97943-682-0	01	1	0307-0609	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97943-485-1	01	1	0610-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97234-899-2	01	1	0307-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 01.240 ID=16	8-94392-924-0	01	1	0307-0604	●	●	●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0605-	●	●	●	●
41	06.672 CLIP; HOSE,P/S 01.240 ID=16	8-94392-924-0	01	1	0307-0604	●	●	●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0605-	●	●	●	●
47	06.671 PIPE; RETURN	8-97234-422-3	01	1	0307-0609	●	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0)	8-97944-596-0	01	1	0610-	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0610-		●
47	06.671 PIPE; RETURN	8-97234-426-3	01	1	0307-0508			●	●
47	06.671 PIPE; RETURN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97234-426-3	01	1	0509-0609			●	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0610-		●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0610-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-492-0	01	1	0307-0311	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-802-0	01	1	0312-0504	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97944-896-0	01	1	0505-0609	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0)	8-97944-576-0	01	1	0610-	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0610-		●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-493-0	01	1	0307-0311			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-803-0	01	1	0312-0504			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97944-897-0	01	1	0505-0508			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97944-897-0	01	1	0509-0609			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0610-		●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0610-			●	●
54	06.672 CLIP; OIL PIPE (A)	8-97026-703-0	01	1	0307-0609	●	●	●	●
54	06.672 CLIP; OIL PIPE (C) ID=11 L=16	0-95235-022-0	01	1	0610-	●	●	●	●
54	06.672 CLIP; OIL PIPE (B)	8-97164-013-2	01	1	0307-0609	●	●	●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0307-	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0307-0508	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0307-0508	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0509-0609	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z) ID=10X2 H=22	8-94252-455-2	01	1	0509-0609	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) ID=10X2 H=22	8-94252-455-2	01	1	0509-0609			●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0610-0806	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0807-	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 04.634 ID=12.2	9-09150-512-0	01	1	0312-0604	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 03.634 ID=12.2	0-91510-512-0	01	1	0605-0609	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 07.347 M12	9-99111-412-0	01	1	0312-0601	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 04.439 M12	0-91111-512-0	01	1	0602-0609	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0307-0609	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	01	1	0307-0609	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	02	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=24 L=32	8-98006-816-0	01	1	0610-	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 06.672 ID=17	8-94382-792-1	01	1	0307-	●	●	●	●
361	06.672 RETAINER; P/S BRK WHL LK CONT LSPV<JR9>	8-97943-488-0	01	1	0307-	●	●	●	●

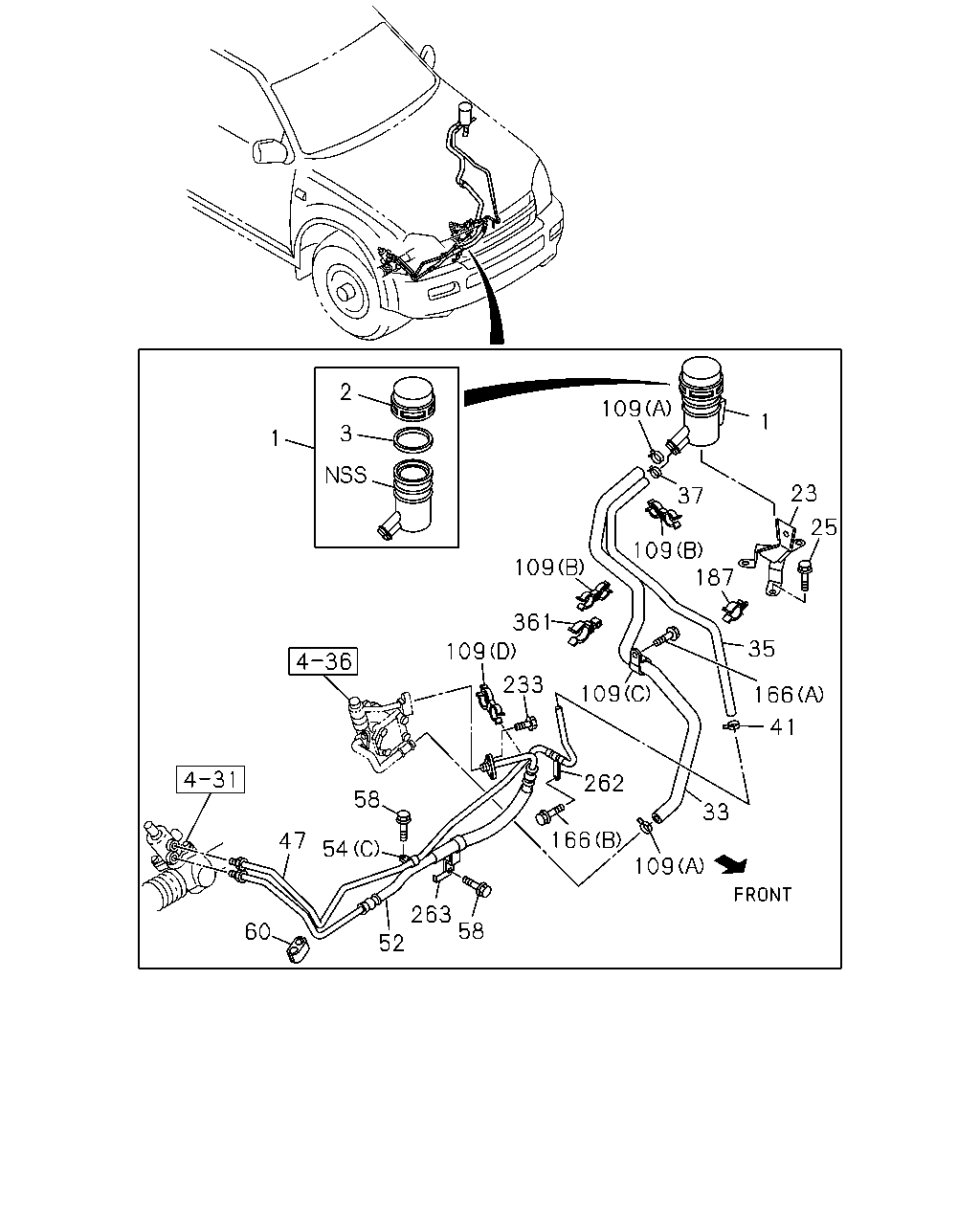

2 109 1 3 1 23 37 25 109 187 109 361 35 109 233 109 166 41 262 58 33 166 47 54 109 263 58 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0307-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0307-	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0307-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97234-380-1	01	1	0307-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0307-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97943-682-0	01	1	0307-0609	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97943-485-1	01	1	0610-	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97234-899-2	01	1	0307-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 01.240 ID=16	8-94392-924-0	01	1	0307-0604	●	●	●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0605-	●	●	●	●
41	06.672 CLIP; HOSE,P/S 01.240 ID=16	8-94392-924-0	01	1	0307-0604	●	●	●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0605-	●	●	●	●
47	06.671 PIPE; RETURN	8-97234-422-3	01	1	0307-0609	●	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0)	8-97944-596-0	01	1	0610-	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0610-		●
47	06.671 PIPE; RETURN	8-97234-426-3	01	1	0307-0508			●	●
47	06.671 PIPE; RETURN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97234-426-3	01	1	0509-0609			●	●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0610-		●
47	06.671 PIPE; RETURN 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0610-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-492-0	01	1	0307-0311	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-802-0	01	1	0312-0504	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97944-896-0	01	1	0505-0609	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0)	8-97944-576-0	01	1	0610-	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0610-		●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-493-0	01	1	0307-0311			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97943-803-0	01	1	0312-0504			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97944-897-0	01	1	0505-0508			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM)	8-97944-897-0	01	1	0509-0609			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0610-		●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0610-			●	●
54	06.672 CLIP; OIL PIPE (A)	8-97026-703-0	01	1	0307-0609	●	●	●	●
54	06.672 CLIP; OIL PIPE (C) ID=11 L=16	0-95235-022-0	01	1	0610-	●	●	●	●
54	06.672 CLIP; OIL PIPE (B)	8-97164-013-2	01	1	0307-0609	●	●	●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0307-	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0307-0508	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0307-0508	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0509-0609	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z) ID=10X2 H=22	8-94252-455-2	01	1	0509-0609	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) ID=10X2 H=22	8-94252-455-2	01	1	0509-0609			●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0610-0806	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0807-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0307-0609	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	01	1	0307-0609	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (B) ID=17.5 & 21	8-97177-580-0	02	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0610-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=24 L=32	8-98006-816-0	01	1	0610-	●	●	●	●
166	06.672 BOLT; CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0610-	●	●	●	●
166	06.672 BOLT; CLIP 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0610-	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 06.672 ID=17	8-94382-792-1	01	1	0307-	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0610-	●	●	●	●
262	06.672 CLIP; P/S PIPE ID=11 L=50	0-95235-082-0	01	1	0610-	●	●	●	●
263	06.672 BRACKET; P/S PIPE	8-97944-610-0	01	1	0610-	●	●	●	●
361	06.672 RETAINER; P/S BRK WHL LK CONT LSPV<JR9>	8-97943-488-0	01	1	0307-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
