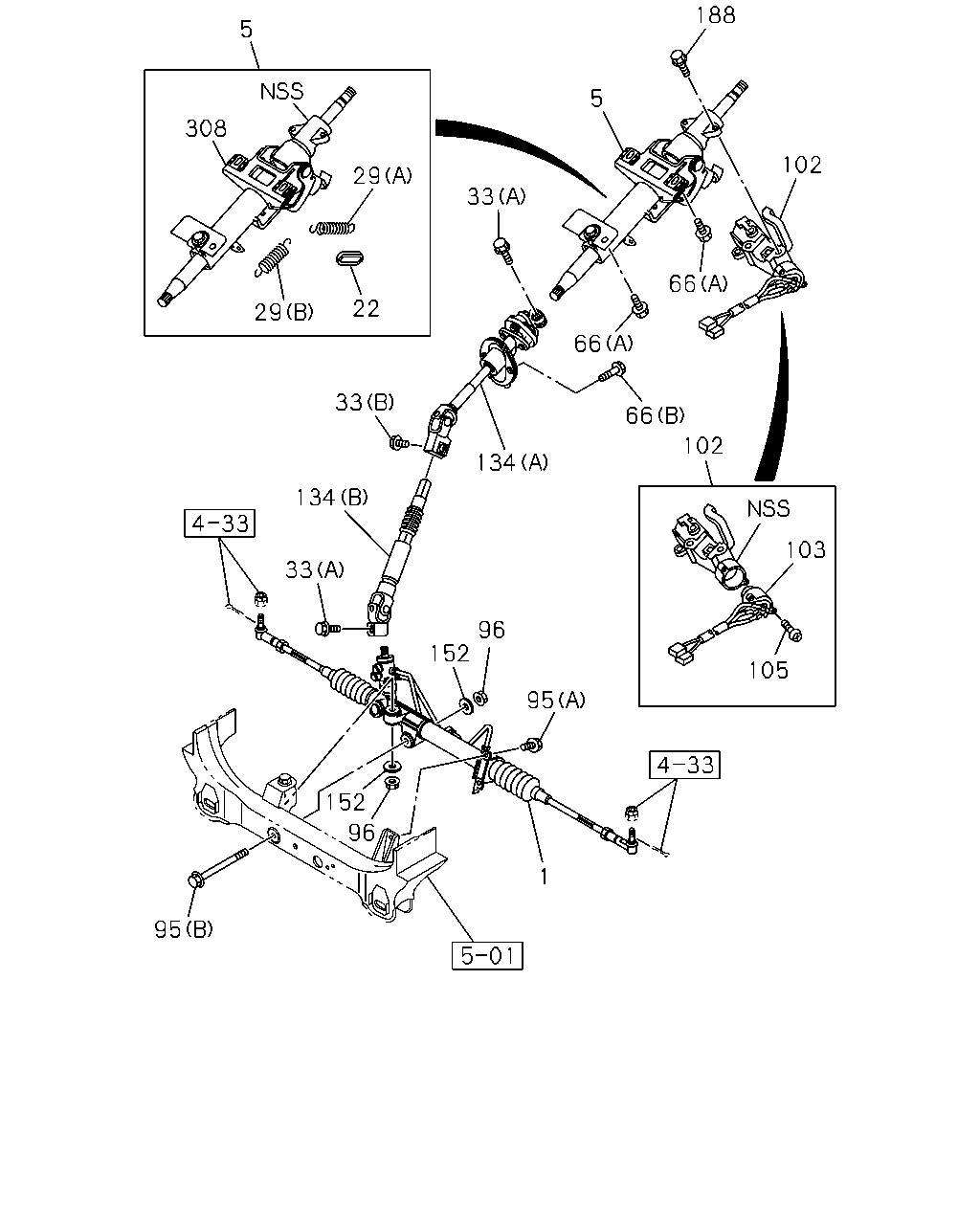

4-31 — STEERING COLUMN AND SHAFT (#73447) — 140 parça

188 5 5 308 102 29 33 66 22 29 66 66 102 134 134 103 33 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-520-1	01	1	0307-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97944-516-0	01	1	0610-	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	0610-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-521-1	01	1	0307-0609			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-97944-518-1	01	1	0610-0709		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97944-518-1	01	1	0610-0709			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	0710-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-779-0	01	1	0710-			●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97370-600-0	01	1	0307-0609	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-773-0	01	1	0610-	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97370-601-0	01	1	0307-0609	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-771-0	01	1	0610-	●	●	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0307-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0307-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0307-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97322-411-0	01	1	0307-0609	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97944-830-0	01	1	0610-1009	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-830-0	01	1	0610-1009		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-98140-802-0	01	1	1010-	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98140-802-0	01	1	1010-		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0307-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0307-0609			●	●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION(7YC) (A) M8X35 FLANGE	8-97249-320-0	01	1	0610-		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0610-			●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0307-	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0307-	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0307-	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0307-	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0307-	●	●	●	●
102	06.500 LOCK ASM; STRG 4JA1-TC ENG(L4Z)	8-97349-940-0	01	1	0307-0402	●	●
102	06.500 LOCK ASM; STRG	8-97349-940-0	01	1	0307-0402			●	●
102	06.500 LOCK ASM; STRG	8-97349-940-0	01	1	0403-0609	●	●	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ)	8-97349-940-0	01	1	0610-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ)	8-97349-940-0	01	1	0610-			●	●
102	06.500 LOCK ASM; STRG A/T AISIN(RMD)	8-97945-767-0	01	1	0610-				●
103	02.188 SWITCH; IGNITION 4JA1-TC ENG(L4Z)	8-97350-071-0	01	1	0307-0402	●	●
103	02.188 SWITCH; IGNITION	8-97350-071-0	01	1	0307-0402			●	●
103	02.188 SWITCH; IGNITION	8-97350-071-0	01	1	0403-0609	●	●	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD)	8-97350-071-0	01	1	0610-	●	●	●	●
105	06.500 SCREW; IGN SW 4JA1-TC ENG(L4Z)	8-97349-945-0	02	1	0307-0402	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0307-0402			●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0403-0609	●	●	●	●
105	06.500 SCREW; IGN SW M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD)	8-97349-945-0	02	1	0610-	●	●	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-807-0	01	1	0807-	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	0807-		●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-98108-809-0	01	1	0807-		●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-809-0	01	1	0807-			●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97256-547-0	01	1	0307-0609	●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97256-547-0	01	1	0610-	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0610-		●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-687-0	01	1	0307-0502	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-431-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-590-0	01	1	0610-0806	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-590-0	01	1	0610-0806		●
134	06.524 SHAFT; STRG,2ND (B)	8-97358-237-0	01	1	0307-0609			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (B)	8-97358-237-0	01	1	0610-		●
134	06.524 SHAFT; STRG,2ND (B)	8-97358-237-0	01	1	0610-			●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-692-0	01	1	0307-0502			●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-436-0	01	1	0503-0609			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-592-0	01	1	0610-0806		●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-592-0	01	1	0610-0806			●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0307-0609	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0610-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0812-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING 4JA1-TC ENG(L4Z)	8-97349-941-0	02	1	0307-0402	●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0307-0402			●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0403-0609	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0610-0811	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0812-	●	●	●	●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0307-	●	●	●	●

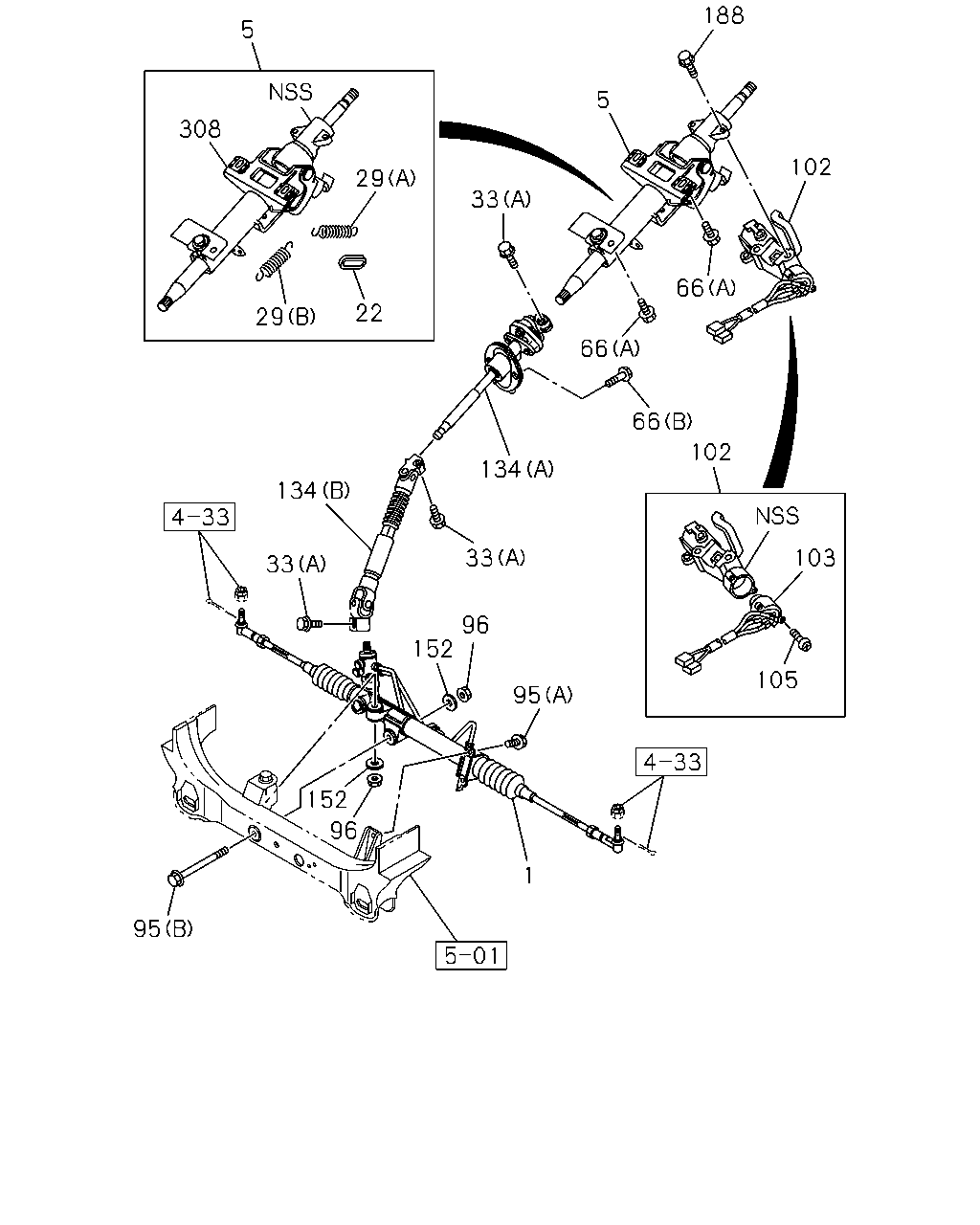

188 5 5 308 102 29 33 66 22 29 66 33 66 102 134 134 103 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-520-1	01	1	0307-0609	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97944-516-0	01	1	0610-	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-516-0	01	1	0610-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-521-1	01	1	0307-0609			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-97944-518-1	01	1	0610-0709		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97944-518-1	01	1	0610-0709			●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC)	8-98101-779-0	01	1	0710-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98101-779-0	01	1	0710-			●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97370-600-0	01	1	0307-0609	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97945-773-0	01	1	0610-	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97370-601-0	01	1	0307-0609	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97945-771-0	01	1	0610-	●	●	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0307-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0307-	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0307-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97322-411-0	01	1	0307-0609	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-97944-830-0	01	1	0610-1009	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97944-830-0	01	1	0610-1009		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B)	8-98140-802-0	01	1	1010-	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98140-802-0	01	1	1010-		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0307-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0307-0609			●	●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION(7YC) (A) M8X35 FLANGE	8-97249-320-0	01	1	0610-		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0610-			●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0307-	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0307-	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0307-	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0307-	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0307-	●	●	●	●
102	06.500 LOCK ASM; STRG 4JA1-TC ENG(L4Z)	8-97349-940-0	01	1	0307-0402	●	●
102	06.500 LOCK ASM; STRG	8-97349-940-0	01	1	0307-0402			●	●
102	06.500 LOCK ASM; STRG	8-97349-940-0	01	1	0403-0609	●	●	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ)	8-97349-940-0	01	1	0610-	●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ)	8-97349-940-0	01	1	0610-			●	●
102	06.500 LOCK ASM; STRG A/T AISIN(RMD)	8-97945-767-0	01	1	0610-				●
103	02.188 SWITCH; IGNITION 4JA1-TC ENG(L4Z)	8-97350-071-0	01	1	0307-0402	●	●
103	02.188 SWITCH; IGNITION	8-97350-071-0	01	1	0307-0402			●	●
103	02.188 SWITCH; IGNITION	8-97350-071-0	01	1	0403-0609	●	●	●	●
103	02.188 SWITCH; IGNITION M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD)	8-97350-071-0	01	1	0610-	●	●	●	●
105	06.500 SCREW; IGN SW 4JA1-TC ENG(L4Z)	8-97349-945-0	02	1	0307-0402	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0307-0402			●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0403-0609	●	●	●	●
105	06.500 SCREW; IGN SW M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD)	8-97349-945-0	02	1	0610-	●	●	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-807-0	01	1	0807-	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98108-807-0	01	1	0807-		●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-98108-809-0	01	1	0807-		●
134	06.524 SHAFT; STRG,2ND (A)	8-98108-809-0	01	1	0807-			●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97256-547-0	01	1	0307-0609	●	●
134	06.524 SHAFT; STRG,2ND (B)	8-97256-547-0	01	1	0610-	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0610-		●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-687-0	01	1	0307-0502	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-431-0	01	1	0503-0609	●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-590-0	01	1	0610-0806	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97944-590-0	01	1	0610-0806		●
134	06.524 SHAFT; STRG,2ND (B)	8-97358-237-0	01	1	0307-0609			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (B)	8-97358-237-0	01	1	0610-		●
134	06.524 SHAFT; STRG,2ND (B)	8-97358-237-0	01	1	0610-			●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97943-692-0	01	1	0307-0502			●	●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-436-0	01	1	0503-0609			●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (A)	8-97944-592-0	01	1	0610-0806		●
134	06.524 SHAFT; STRG,2ND (A)	8-97944-592-0	01	1	0610-0806			●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0307-0609	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0610-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33>	8-98133-262-0	02	1	0812-	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING 4JA1-TC ENG(L4Z)	8-97349-941-0	02	1	0307-0402	●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0307-0402			●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0403-0609	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED5S(MZJ),A/T AISIN(RMD) M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0610-0811	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF	8-97945-749-0	02	1	0812-	●	●	●	●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33>	8-98047-095-0	01	1	0307-	●	●	●	●
