◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

1-41 — FUEL PIPING; CHASSIS (#73440) — 137 parça

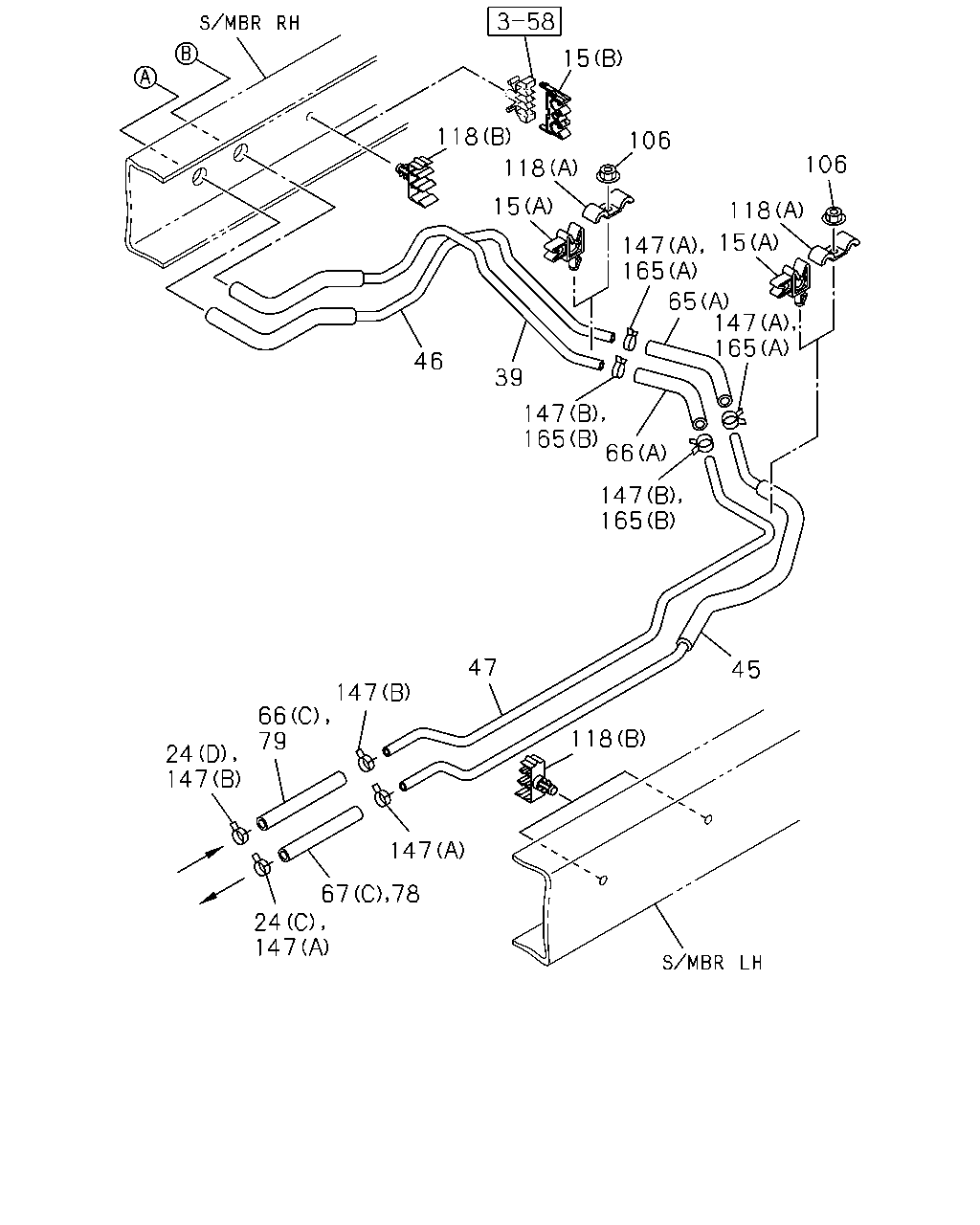

15 118 106 106 118 15 118 15 147 165 65 147 165 46 39 147 165 66 147 165 47 45 147 66 79 118 24 147 147 24 147 67 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	03	1	0308-	●	●
15	CLIP; FUEL PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0308-	●	●
24	CLIP; FUEL HOSE (A) L=250	5-09707-030-1	01	1	9704-0307	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-94238-568-0	02	1	0308-0911	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0307	●	●
24	CLIP; FUEL HOSE (D) ID=13	8-94238-571-0	02	1	0308-0911	●	●
24	CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-0307	●	●
39	PIPE; FUEL	8-97065-309-2	01	1	9704-0307	●	●
39	PIPE; FUEL	8-97325-839-1	01	1	0308-	●	●
45	PIPE; FUEL,DELIVERY	8-97092-301-1	01	1	9704-0307	●	●
45	PIPE; FUEL,DELIVERY	8-97365-727-0	01	1	0308-	●	●
46	PIPE; FUEL,TANK SIDE	8-97065-306-2	01	1	9704-0307	●	●
46	PIPE; FUEL,TANK SIDE	8-97325-835-2	01	1	0308-	●	●
47	PIPE; FUEL,RETURN	8-97092-304-0	01	1	9704-0307	●	●
47	PIPE; FUEL,RETURN	8-97365-730-0	01	1	0308-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
66	HOSE; FUEL,RETURN PIPE (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0308-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
67	HOSE; FUEL,DELIVERY (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
78	HOSE; FUEL,PUMP TO PIPE L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=270 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0307	●	●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	9704-0307	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0307	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0307	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	08	1	9704-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	01	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	01	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	03	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	03	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	9704-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-98008-098-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE (C) L=250	5-09707-030-1	01	1	0308-	●	●
165	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	0308-0911	●	●
165	CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	0308-0911	●	●
165	CLIP; FUEL HOSE (B) ID=13	8-98150-357-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0308-	●	●

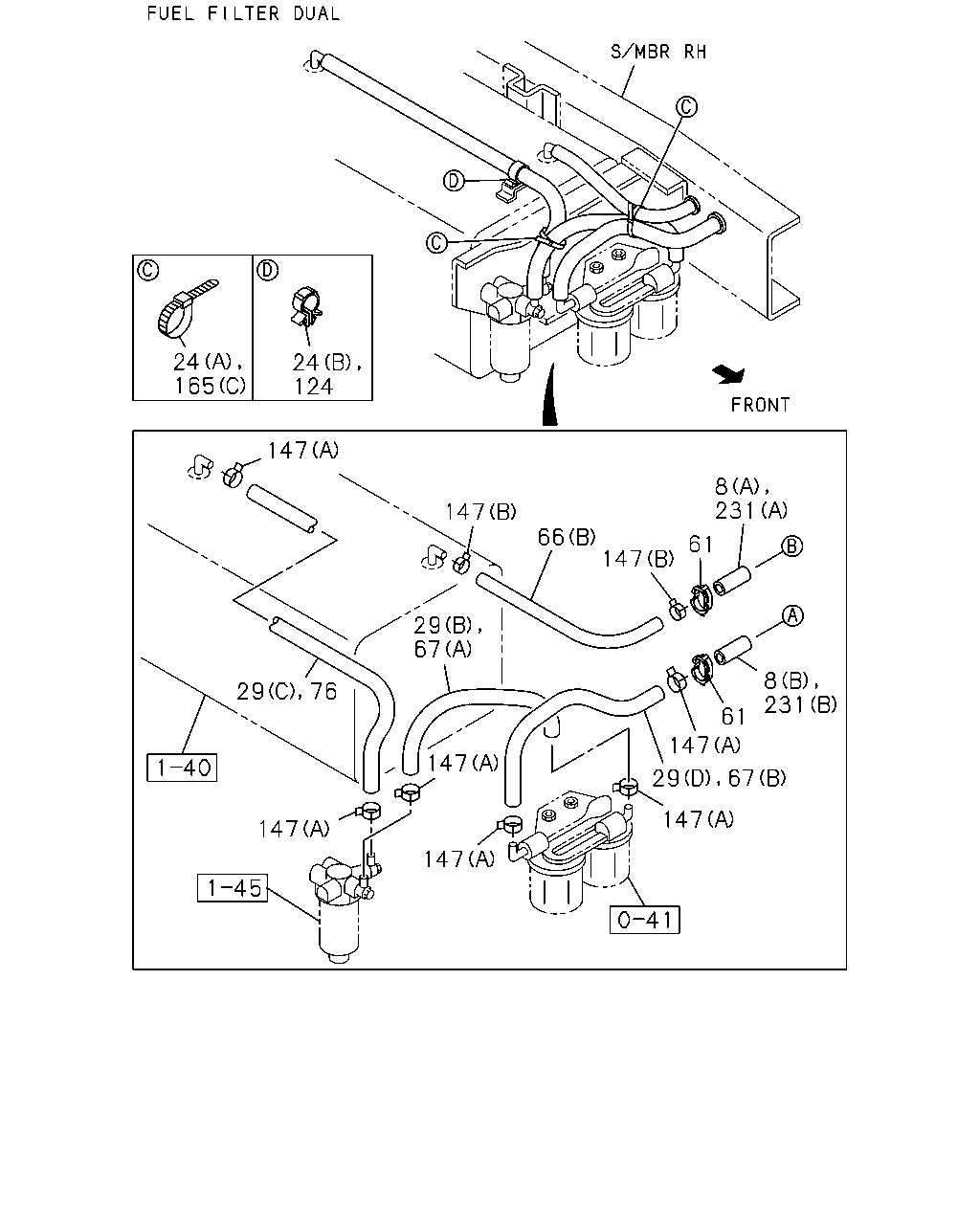

24 165 24 124 147 8 231 147 66 147 61 29 67 8 231 61 147 147 147 147 147 29 76 29 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0308-	●	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0308-	●	●
24	CLIP; FUEL HOSE (A) L=250	5-09707-030-1	01	1	9704-0307	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-94238-568-0	02	1	0308-0911	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0307	●	●
24	CLIP; FUEL HOSE (D) ID=13	8-94238-571-0	02	1	0308-0911	●	●
24	CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-0307	●	●
29	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL<S6B> (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●	●
29	HOSE; FUEL (C) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0308-1111	●	●
29	HOSE; FUEL 4HG1-T ENG(RDP) EXC. FUEL FILTER DUAL<S6B> (C) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●	●
29	HOSE; FUEL 4HF1 ENG(RLS) (C) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●	●
29	HOSE; FUEL EXC. FUEL FILTER DUAL<S6B> (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
29	HOSE; FUEL FUEL FILTER DUAL<S6B> (D) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
29	HOSE; FUEL FUEL FILTER DUAL<S6B> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9704-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
66	HOSE; FUEL,RETURN PIPE (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0308-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
67	HOSE; FUEL,DELIVERY (C) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
76	HOSE; FUEL,TANK L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
124	CLIP; HOSE	8-97089-536-0	01	1	0308-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	08	1	9704-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	01	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	01	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	03	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	03	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	9704-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-98008-098-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE (C) L=250	5-09707-030-1	01	1	0308-	●	●
165	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	0308-0911	●	●
165	CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	0308-0911	●	●
165	CLIP; FUEL HOSE (B) ID=13	8-98150-357-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0308-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9704-0307	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9704-0307	●	●

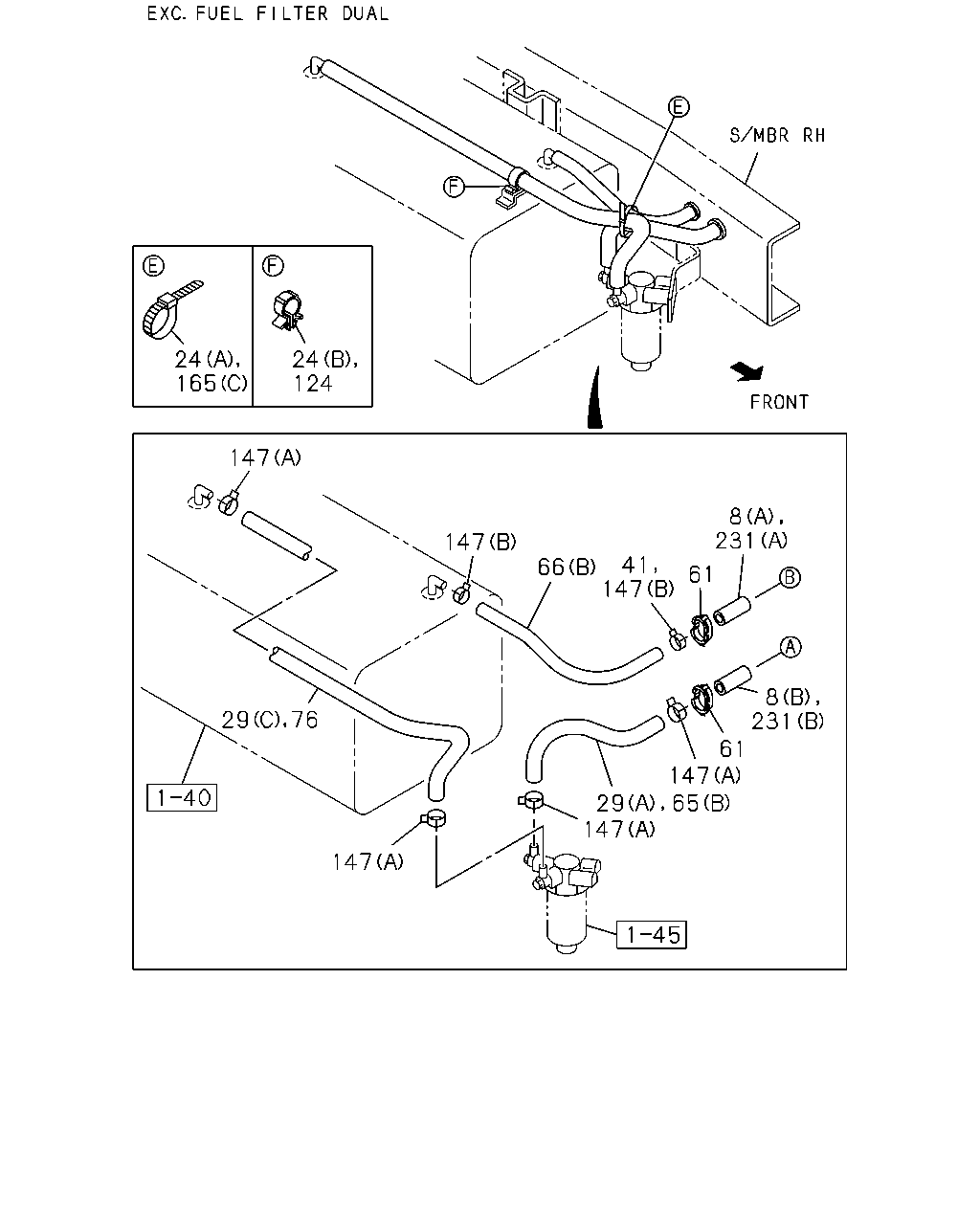

24 124 24 165 147 8 231 147 66 41 147 61 8 231 61 147 65 29 147 147 29 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0308-	●	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0308-	●	●
24	CLIP; FUEL HOSE (A) L=250	5-09707-030-1	01	1	9704-0307	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-94238-568-0	02	1	0308-0911	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0307	●	●
24	CLIP; FUEL HOSE (D) ID=13	8-94238-571-0	02	1	0308-0911	●	●
24	CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	0912-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-0307	●	●
29	HOSE; FUEL 4HG1-T ENG(RDP) FUEL FILTER DUAL<S6B> (C) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●	●
29	HOSE; FUEL (C) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0308-1111	●	●
29	HOSE; FUEL 4HG1-T ENG(RDP) EXC. FUEL FILTER DUAL<S6B> (C) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●	●
29	HOSE; FUEL 4HF1 ENG(RLS) (C) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●	●
29	HOSE; FUEL EXC. FUEL FILTER DUAL<S6B> (A) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
29	HOSE; FUEL FUEL FILTER DUAL<S6B> (D) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
29	HOSE; FUEL FUEL FILTER DUAL<S6B> (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=13	8-94238-571-0	01	1	0308-0911	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=13	8-98150-357-0	01	1	0912-	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9704-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
66	HOSE; FUEL,RETURN PIPE (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0308-	●	●
66	HOSE; FUEL,RETURN PIPE FUEL FILTER DUAL<S6B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●	●
76	HOSE; FUEL,TANK L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0307	●	●
124	CLIP; HOSE	8-97089-536-0	01	1	0308-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	08	1	9704-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	01	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	01	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	01	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	03	1	0308-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	03	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	02	1	9704-0911	●	●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-98008-098-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE (C) L=250	5-09707-030-1	01	1	0308-	●	●
165	CLIP; FUEL HOSE (A) ID=16	8-94238-568-0	02	1	0308-0911	●	●
165	CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	0308-0911	●	●
165	CLIP; FUEL HOSE (B) ID=13	8-98150-357-0	02	1	0912-	●	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (C) L=140	5-09707-031-1	01	1	0308-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9704-0307	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9704-0307	●	●
