1-31 — AIR DUCT (#73438) — 134 parça

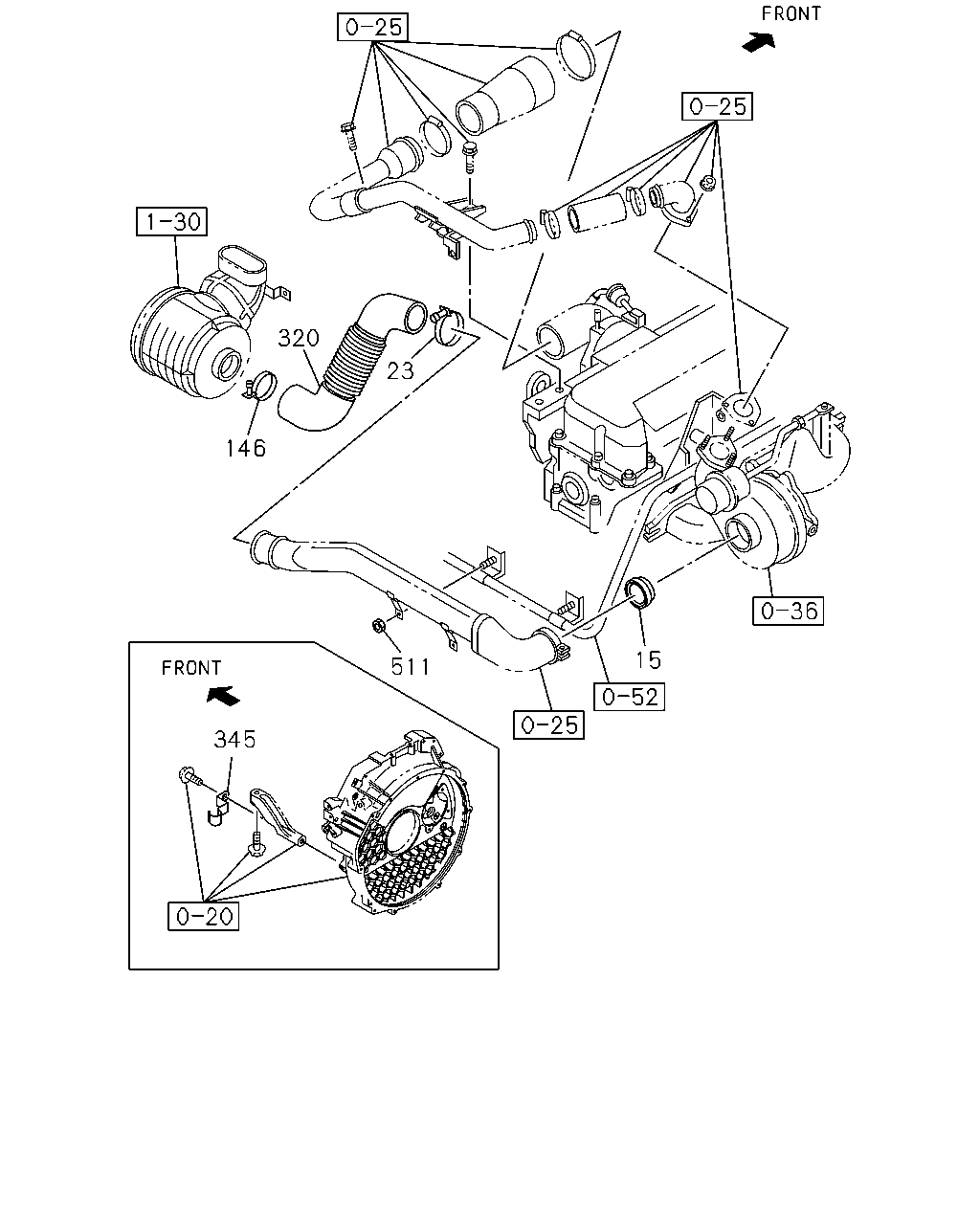

320 23 146 15 511 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	INSULATOR 4HG1-T ENG(RDP)	8-94454-802-0	01	1	1112-	●	●
23	CLIP; HOSE 4HG1-T ENG(RDP) ID=87	8-97087-432-0	01	1	1112-	●	●
146	CLIP; HOSE,ACL 4HG1-T ENG(RDP) ID=117	9-09915-075-1	01	1	1112-	●	●
146	CLIP; HOSE,ACL ID=95	9-09915-733-1	01	1	9704-1111	●	●
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95	9-09915-733-1	01	1	1112-	●	●
320	HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	1112-	●	●
320	HOSE; CONN,ACL	8-97103-346-3	01	1	9704-1111	●	●
320	HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97103-346-3	01	1	1112-	●	●
345	CLIP; PCV HOSE 4HG1-T ENG(RDP)	8-98020-040-0	01	1	1112-	●	●
511	NUT; PIPE 4HG1-T ENG(RDP) M8 FLANGE	0-91180-108-0	02	1	1112-	●	●

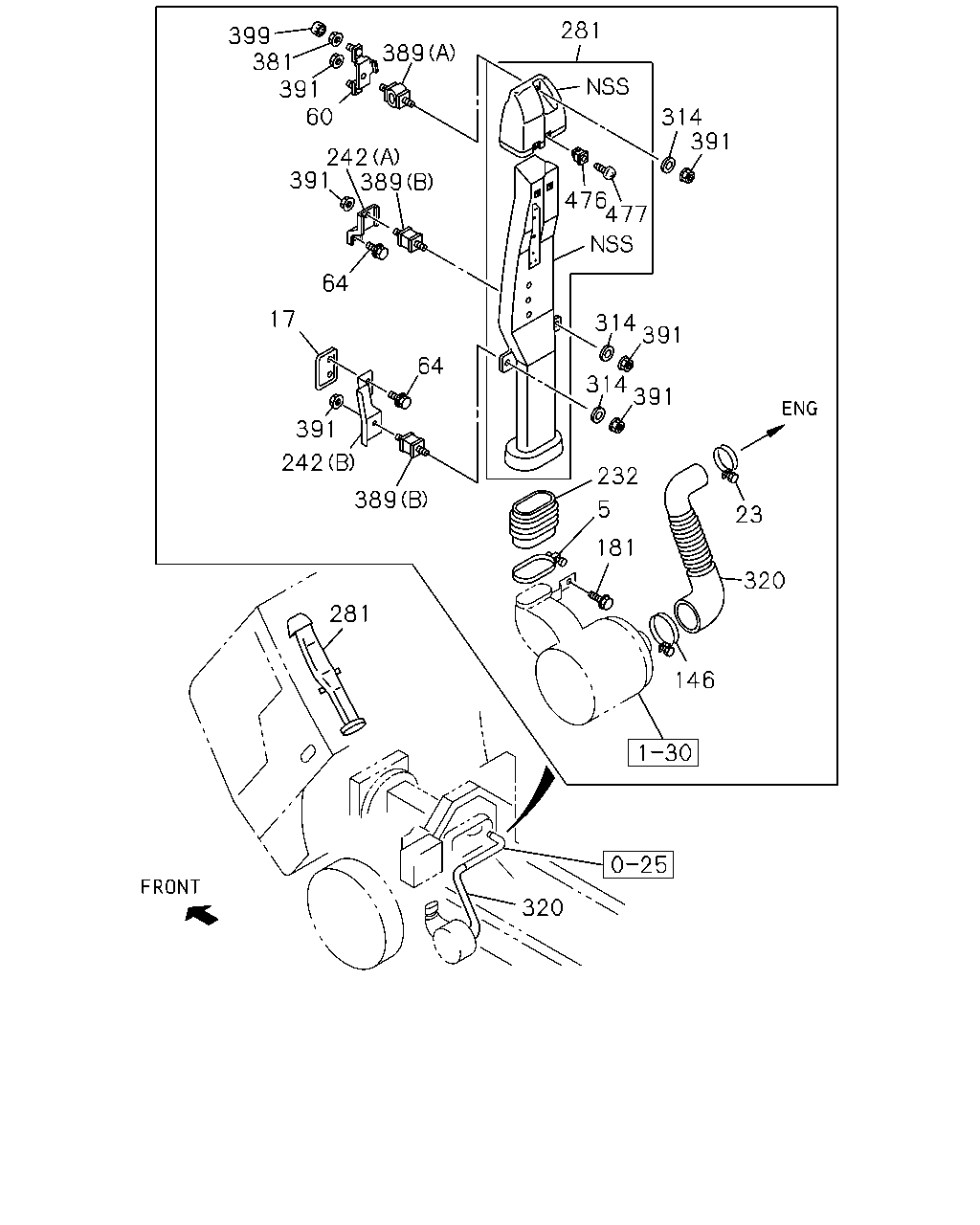

281 399 381 391 60 389 314 391 242 391 389 476 477 64 17 314 391 64 314 391 391 242 232 389 5 23 181 320 281 146 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT D=101.6	9-09915-502-1	01	1	9704-	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9704-	●	●
23	CLIP; HOSE 4HG1-T ENG(RDP) ID=87	8-97087-432-0	01	1	1112-	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-957-1	01	1	9704-	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-	●	●
146	CLIP; HOSE,ACL 4HG1-T ENG(RDP) ID=117	9-09915-075-1	01	1	1112-	●	●
146	CLIP; HOSE,ACL ID=95	9-09915-733-1	01	1	9704-1111	●	●
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95	9-09915-733-1	01	1	1112-	●	●
181	BOLT; AIR DUCT TO RAD M8X25 FLANGE	0-28680-825-0	01	1	9704-0512	●	●
181	BOLT; AIR DUCT TO RAD M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
232	HOSE; CONN	8-97109-423-0	01	1	9704-0802	●	●
232	HOSE; CONN	8-98115-594-0	01	1	0803-	●	●
242	BRACKET; AIR DUCT (A)	8-97853-633-2	01	1	9704-	●	●
242	BRACKET; AIR DUCT (B)	8-97857-844-1	01	1	9704-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP)	8-97125-174-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	9704-1111	●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	9704-1111	●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	1112-	●	●
314	WASHER; PL,AIR INT DUCT ID=10.2 T=3.2	8-94279-642-0	03	1	9704-1204	●	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●
320	HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	1112-	●	●
320	HOSE; CONN,ACL	8-97103-346-3	01	1	9704-1111	●	●
320	HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97103-346-3	01	1	1112-	●	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9704-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	9704-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	9704-	●	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9704-0910	●	●
391	NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9704-	●	●
476	GROMMET; SCREW,COVER 4HG1-T ENG(RDP)	1-09983-081-0	04	1	1112-	●	●
477	SCREW; COVER EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9711-0604	●	●
477	SCREW; COVER EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-1111	●	●
477	SCREW; COVER 4HG1-T ENG(RDP) M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	1112-	●	●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	1112-	●	●

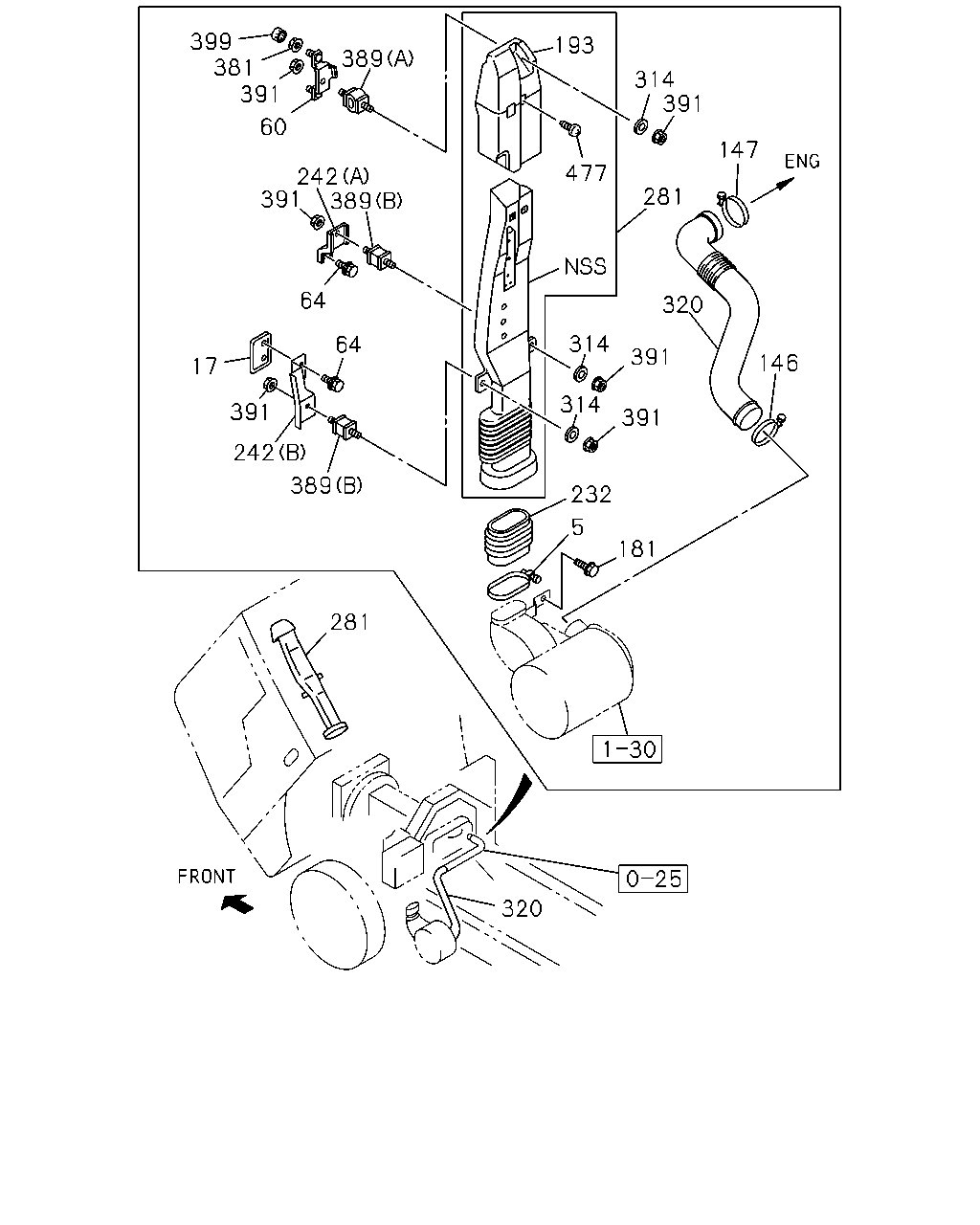

399 381 391 193 389 314 391 60 147 477 242 391 389 281 64 320 314 64 391 146 17 314 391 391 242 389 232 5 181 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT D=101.6	9-09915-502-1	01	1	9704-	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9704-	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-957-1	01	1	9704-	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-	●	●
146	CLIP; HOSE,ACL 4HG1-T ENG(RDP) ID=117	9-09915-075-1	01	1	1112-	●	●
146	CLIP; HOSE,ACL ID=95	9-09915-733-1	01	1	9704-1111	●	●
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95	9-09915-733-1	01	1	1112-	●	●
147	CLIP; HOSE TO ENG ID=95	9-09915-733-1	01	1	9704-1111	●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95	9-09915-733-1	01	1	1112-	●	●
181	BOLT; AIR DUCT TO RAD M8X25 FLANGE	0-28680-825-0	01	1	9704-0512	●	●
181	BOLT; AIR DUCT TO RAD M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
193	COVER; DUCT,AIR INT HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	9704-1111	●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	1112-	●	●
193	COVER; DUCT,AIR INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	9711-1111	●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	1112-	●	●
232	HOSE; CONN	8-97109-423-0	01	1	9704-0802	●	●
232	HOSE; CONN	8-98115-594-0	01	1	0803-	●	●
242	BRACKET; AIR DUCT (A)	8-97853-633-2	01	1	9704-	●	●
242	BRACKET; AIR DUCT (B)	8-97857-844-1	01	1	9704-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP)	8-97125-174-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	9704-1111	●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	9704-1111	●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	1112-	●	●
314	WASHER; PL,AIR INT DUCT ID=10.2 T=3.2	8-94279-642-0	03	1	9704-1204	●	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●
320	HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	1112-	●	●
320	HOSE; CONN,ACL	8-97103-346-3	01	1	9704-1111	●	●
320	HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97103-346-3	01	1	1112-	●	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9704-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	9704-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	9704-	●	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9704-0910	●	●
391	NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9704-	●	●
477	SCREW; COVER EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9711-0604	●	●
477	SCREW; COVER EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-1111	●	●
477	SCREW; COVER 4HG1-T ENG(RDP) M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	1112-	●	●
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	1112-	●	●

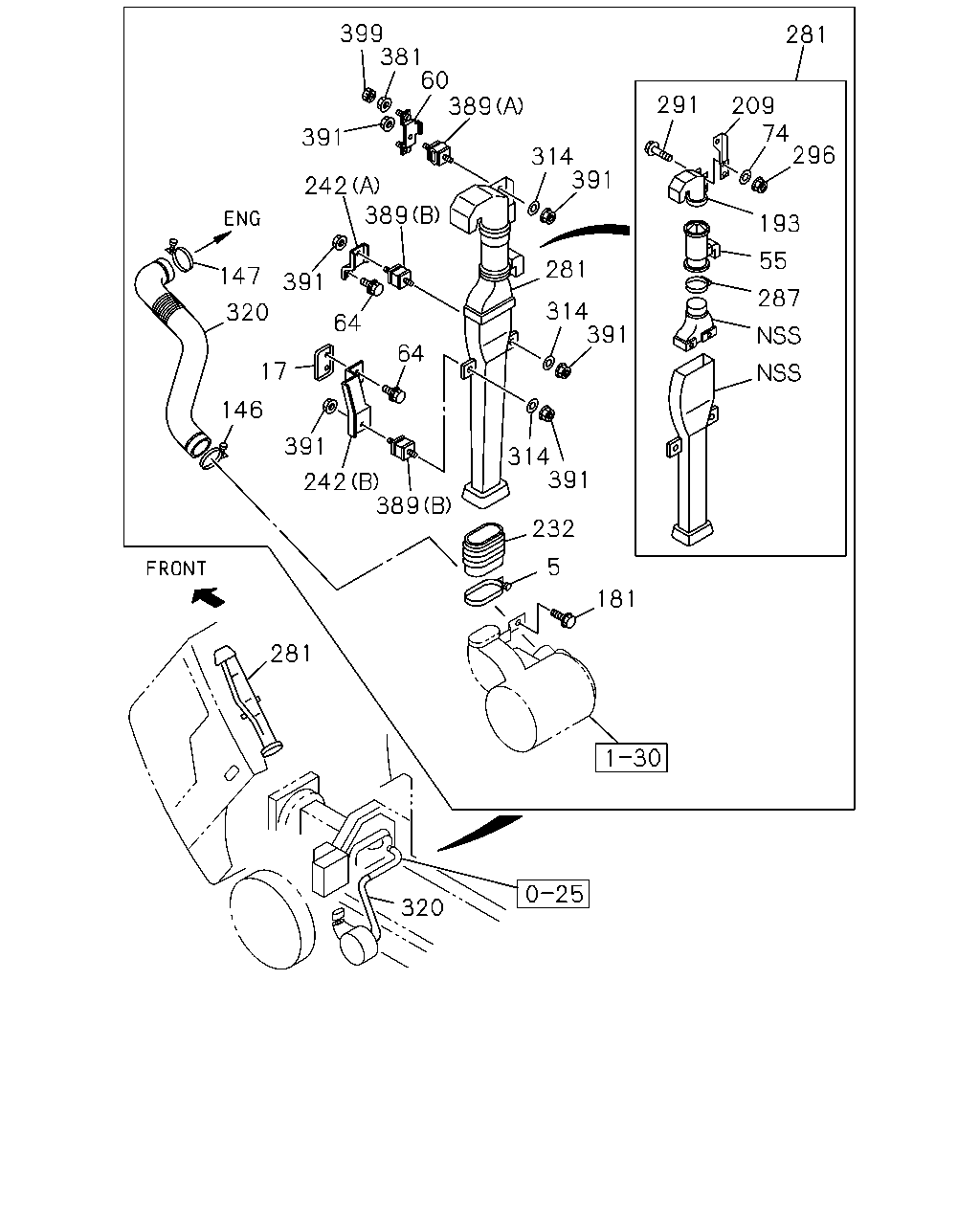

399 381 60 389 281 291 209 74 296 391 314 391 242 389 193 55 281 147 391 287 314 391 320 64 64 17 146 391 314 391 242 389 232 5 181 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT D=101.6	9-09915-502-1	01	1	9704-	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9704-	●	●
55	CLEANER ASM; AIR,PRE HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	9704-1111	●	●
55	CLEANER ASM; AIR,PRE 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	1112-	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-957-1	01	1	9704-	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-	●	●
74	WASHER; PL,ACL HEAVY DUTY AIR CLEANER<K46> ID=8.4 OD=22	9-09160-708-0	02	1	9704-0605	●	●
74	WASHER; PL,ACL HEAVY DUTY AIR CLEANER<K46> ID=8.4 OD=22	0-91610-708-0	02	1	0606-1111	●	●
74	WASHER; PL,ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=8.4 OD=22	0-91610-708-0	02	1	1112-	●	●
146	CLIP; HOSE,ACL 4HG1-T ENG(RDP) ID=117	9-09915-075-1	01	1	1112-	●	●
146	CLIP; HOSE,ACL ID=95	9-09915-733-1	01	1	9704-1111	●	●
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95	9-09915-733-1	01	1	1112-	●	●
147	CLIP; HOSE TO ENG ID=95	9-09915-733-1	01	1	9704-1111	●	●
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95	9-09915-733-1	01	1	1112-	●	●
181	BOLT; AIR DUCT TO RAD M8X25 FLANGE	0-28680-825-0	01	1	9704-0512	●	●
181	BOLT; AIR DUCT TO RAD M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
193	COVER; DUCT,AIR INT HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	9704-1111	●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	1112-	●	●
193	COVER; DUCT,AIR INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	9711-1111	●	●
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	1112-	●	●
209	BRACKET; ACL HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	9704-1111	●	●
209	BRACKET; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	1112-	●	●
232	HOSE; CONN	8-97109-423-0	01	1	9704-0802	●	●
232	HOSE; CONN	8-98115-594-0	01	1	0803-	●	●
242	BRACKET; AIR DUCT (A)	8-97853-633-2	01	1	9704-	●	●
242	BRACKET; AIR DUCT (B)	8-97857-844-1	01	1	9704-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP)	8-97125-174-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	9704-1111	●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-084-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	9704-1111	●	●
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97161-847-2	01	1	1112-	●	●
287	CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> ID=87	9-09915-071-1	01	1	9704-1111	●	●
287	CLIP; AIR DUCT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=87	9-09915-071-1	01	1	1112-	●	●
291	BOLT; ACL HEAVY DUTY AIR CLEANER<K46> M8X30 FLANGE	0-28680-830-0	02	1	9704-0512	●	●
291	BOLT; ACL HEAVY DUTY AIR CLEANER<K46> M8X30 FLANGE	0-28650-830-0	02	1	0601-1111	●	●
291	BOLT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8X30 FLANGE	0-28650-830-0	02	1	1112-	●	●
296	NUT; ACL HEAVY DUTY AIR CLEANER<K46> M8 FLANGE	0-91150-108-0	02	1	9704-0602	●	●
296	NUT; ACL HEAVY DUTY AIR CLEANER<K46> M8 FLANGE	0-91180-108-0	02	1	0603-1111	●	●
296	NUT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
314	WASHER; PL,AIR INT DUCT ID=10.2 T=3.2	8-94279-642-0	03	1	9704-1204	●	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●
320	HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	1112-	●	●
320	HOSE; CONN,ACL	8-97103-346-3	01	1	9704-1111	●	●
320	HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97103-346-3	01	1	1112-	●	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9704-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	9704-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	9704-	●	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9704-0910	●	●
391	NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9704-	●	●
