◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#73437) — 74 parça

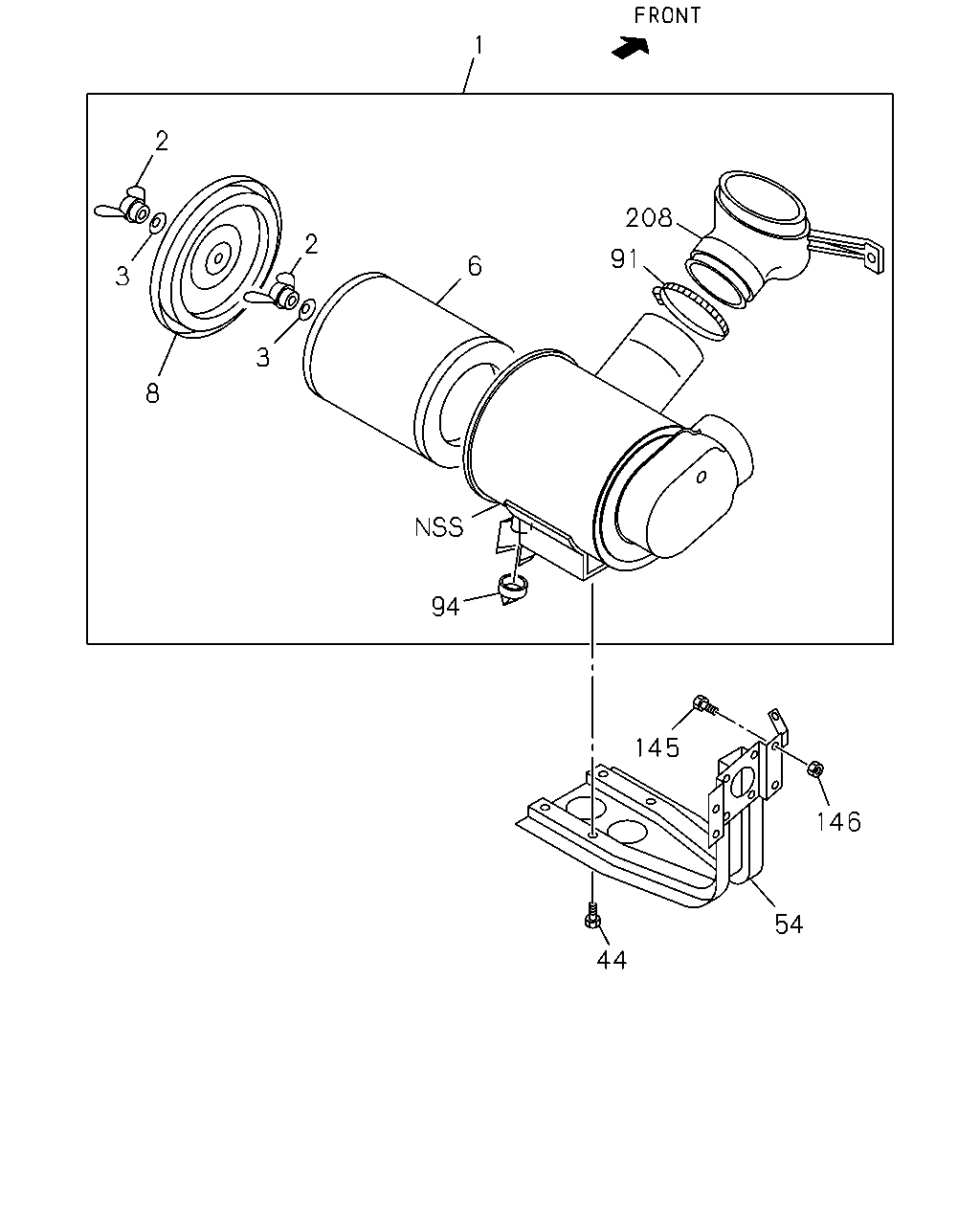

çizim 90803
1 2 208 2 91 6 3 3 8 94 145 146 54 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
4HG1-T ENG(RDP) 		8-97228-084-2 01 1 1112- ● ●
1 CLEANER ASM; AIR 8-97162-700-2 01 1 9704-1111 ● ●
1 CLEANER ASM; AIR
4HF1 ENG(RLS) 		8-97162-700-2 01 1 1112- ● ●
2 NUT; WING,ELEMENT 1-14217-068-0 02 1 9704-1111 ● ●
2 NUT; WING,ELEMENT
4HF1 ENG(RLS) 		1-14217-068-0 02 1 1112- ● ●
3 WASHER; SEAL,WING NUT 1-14219-225-0 02 1 9704-1111 ● ●
3 WASHER; SEAL,WING NUT
4HF1 ENG(RLS) 		1-14219-225-0 02 1 1112- ● ●
6 FILTER; ACL 8-94156-052-0 01 1 9704-1111 ● ●
6 FILTER; ACL
4HF1 ENG(RLS) 		8-94156-052-0 01 1 1112- ● ●
6 FILTER; ACL
4HG1-T ENG(RDP) 		8-97062-294-0 01 1 1112- ● ●
6 FILTER; ACL
BEST VALUE PARTS 		5-87610-029-3 01 1 9704-1111 ● ●
6 FILTER; ACL
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-029-3 01 1 1112- ● ●
6 FILTER; ACL
4HG1-T ENG(RDP) BEST VALUE PARTS 		5-87610-020-0 01 1 1112- ● ●
8 COVER ASM; ACL
4HG1-T ENG(RDP) 		8-97228-090-0 01 1 1112- ● ●
8 COVER ASM; ACL 8-97093-023-0 01 1 9704-1111 ● ●
8 COVER ASM; ACL
4HF1 ENG(RLS) 		8-97093-023-0 01 1 1112- ● ●
44 BOLT; ACL
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9704-0512 ● ●
44 BOLT; ACL
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
54 BRACKET; ACL
4HG1-T ENG(RDP) 		8-97042-040-2 01 1 1112- ● ●
54 BRACKET; ACL 8-97106-928-0 01 1 9704-1111 ● ●
54 BRACKET; ACL
4HF1 ENG(RLS) 		8-97106-928-0 01 1 1112- ● ●
91 CLAMP
4HG1-T ENG(RDP) 		8-97093-695-1 01 1 1112- ● ●
91 CLAMP 8-97093-696-2 01 1 9704-1111 ● ●
91 CLAMP
4HF1 ENG(RLS) 		8-97093-696-2 01 1 1112- ● ●
94 VALVE; VACUATOR
4HG1-T ENG(RDP) 		8-97093-694-0 01 1 1112- ● ●
94 VALVE; VACUATOR 8-94447-157-0 01 1 9704-1111 ● ●
94 VALVE; VACUATOR
4HF1 ENG(RLS) 		8-94447-157-0 01 1 1112- ● ●
145 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP) M10X35 FLANGE 		0-28651-035-0 03 1 1112- ● ●
145 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 9704-0512 ● ●
145 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 0601-1111 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28651-035-0 04 1 1112- ● ●
146 NUT; BRKT TO FRAME
4HG1-T ENG(RDP) M10 FLANGE 		0-91180-110-0 03 1 1112- ● ●
146 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 02 1 9704-0602 ● ●
146 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 02 1 0603-1111 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
208 DUCT; ACL
4HG1-T ENG(RDP) 		8-97230-869-0 01 1 1112- ● ●
208 DUCT; ACL 8-97103-478-1 01 1 9704-1111 ● ●
208 DUCT; ACL
4HF1 ENG(RLS) 		8-97103-478-1 01 1 1112- ● ●

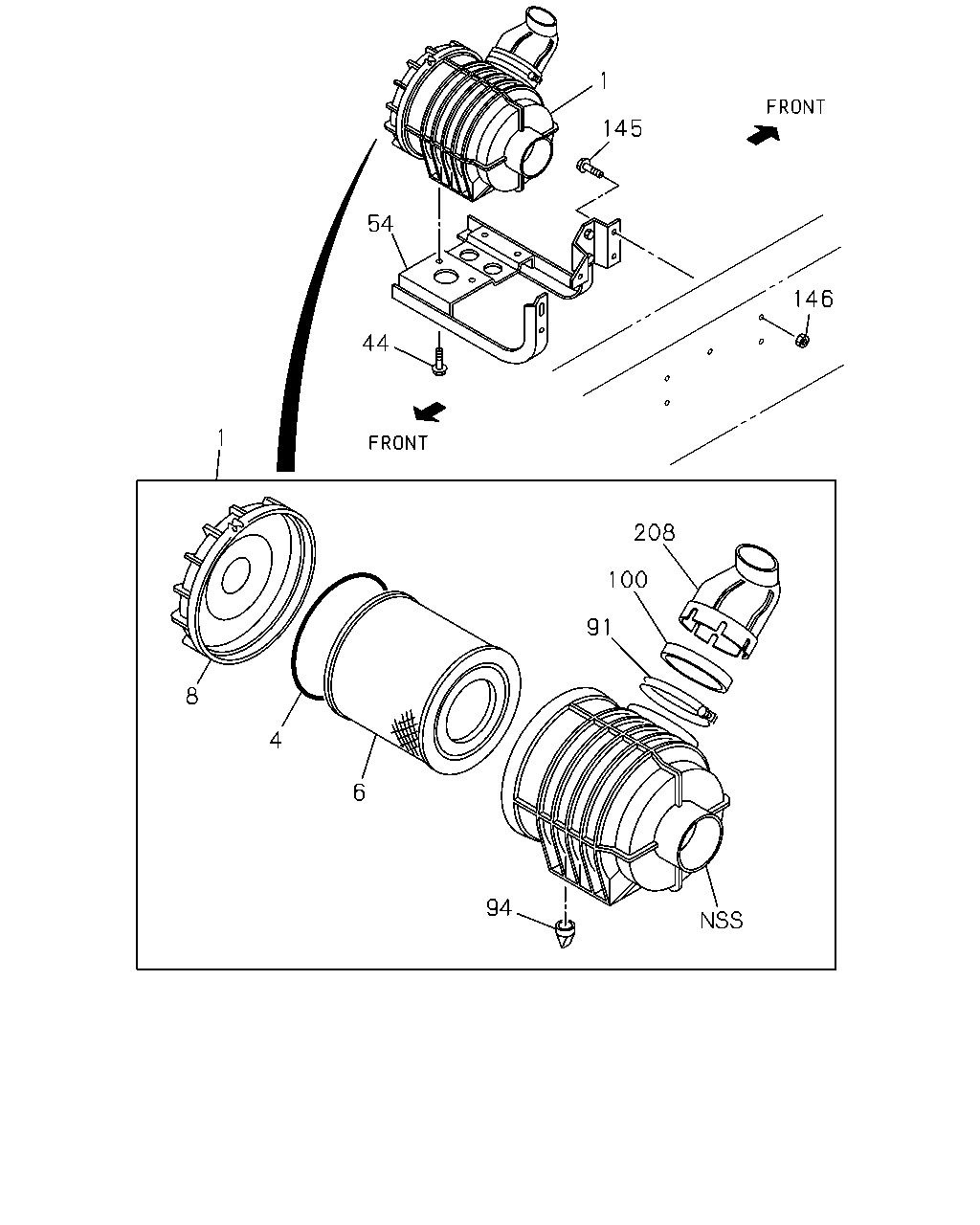

çizim 91356
1 145 54 146 44 1 208 100 91 8 4 6 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
4HG1-T ENG(RDP) 		8-97228-084-2 01 1 1112- ● ●
1 CLEANER ASM; AIR 8-97162-700-2 01 1 9704-1111 ● ●
1 CLEANER ASM; AIR
4HF1 ENG(RLS) 		8-97162-700-2 01 1 1112- ● ●
4 GASKET; COVER TO BODY
4HG1-T ENG(RDP) 		8-97228-092-0 01 1 1112- ● ●
6 FILTER; ACL 8-94156-052-0 01 1 9704-1111 ● ●
6 FILTER; ACL
4HF1 ENG(RLS) 		8-94156-052-0 01 1 1112- ● ●
6 FILTER; ACL
4HG1-T ENG(RDP) 		8-97062-294-0 01 1 1112- ● ●
6 FILTER; ACL
BEST VALUE PARTS 		5-87610-029-3 01 1 9704-1111 ● ●
6 FILTER; ACL
4HF1 ENG(RLS) BEST VALUE PARTS 		5-87610-029-3 01 1 1112- ● ●
6 FILTER; ACL
4HG1-T ENG(RDP) BEST VALUE PARTS 		5-87610-020-0 01 1 1112- ● ●
8 COVER ASM; ACL
4HG1-T ENG(RDP) 		8-97228-090-0 01 1 1112- ● ●
8 COVER ASM; ACL 8-97093-023-0 01 1 9704-1111 ● ●
8 COVER ASM; ACL
4HF1 ENG(RLS) 		8-97093-023-0 01 1 1112- ● ●
44 BOLT; ACL
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9704-0512 ● ●
44 BOLT; ACL
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
54 BRACKET; ACL
4HG1-T ENG(RDP) 		8-97042-040-2 01 1 1112- ● ●
54 BRACKET; ACL 8-97106-928-0 01 1 9704-1111 ● ●
54 BRACKET; ACL
4HF1 ENG(RLS) 		8-97106-928-0 01 1 1112- ● ●
91 CLAMP
4HG1-T ENG(RDP) 		8-97093-695-1 01 1 1112- ● ●
91 CLAMP 8-97093-696-2 01 1 9704-1111 ● ●
91 CLAMP
4HF1 ENG(RLS) 		8-97093-696-2 01 1 1112- ● ●
94 VALVE; VACUATOR
4HG1-T ENG(RDP) 		8-97093-694-0 01 1 1112- ● ●
94 VALVE; VACUATOR 8-94447-157-0 01 1 9704-1111 ● ●
94 VALVE; VACUATOR
4HF1 ENG(RLS) 		8-94447-157-0 01 1 1112- ● ●
100 ADAPTER; ELBOW
4HG1-T ENG(RDP) 		8-97093-075-0 01 1 1112- ● ●
145 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP) M10X35 FLANGE 		0-28651-035-0 03 1 1112- ● ●
145 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 9704-0512 ● ●
145 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 0601-1111 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28651-035-0 04 1 1112- ● ●
146 NUT; BRKT TO FRAME
4HG1-T ENG(RDP) M10 FLANGE 		0-91180-110-0 03 1 1112- ● ●
146 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 02 1 9704-0602 ● ●
146 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 02 1 0603-1111 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE 		0-91180-110-0 02 1 1112- ● ●
208 DUCT; ACL
4HG1-T ENG(RDP) 		8-97230-869-0 01 1 1112- ● ●
208 DUCT; ACL 8-97103-478-1 01 1 9704-1111 ● ●
208 DUCT; ACL
4HF1 ENG(RLS) 		8-97103-478-1 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
