Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#73436) — 28 parça
Tümü
A - NPC5SF
B - NPC5SK
◀

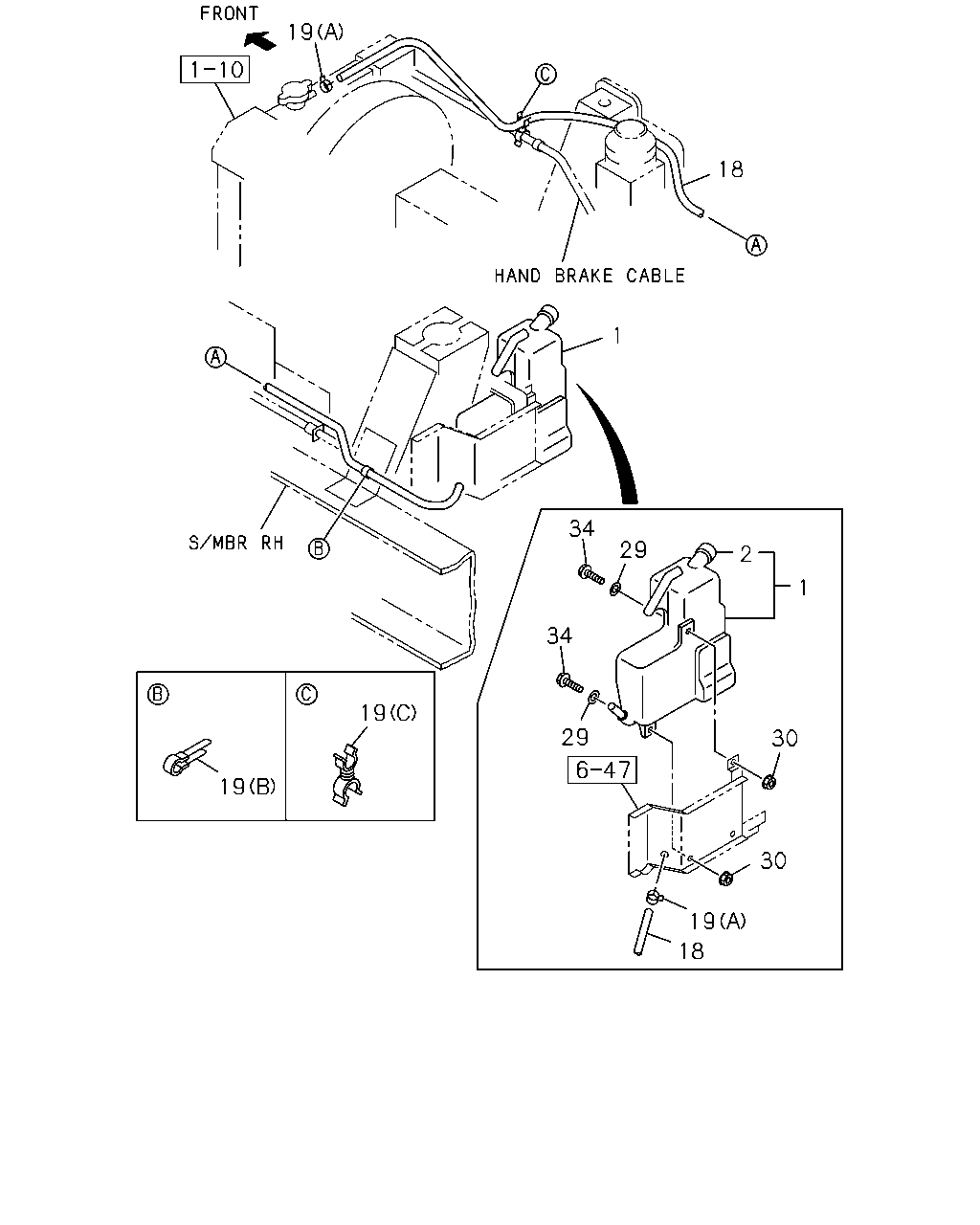

[111A] NO.1 (20 parça)
[111A] NO.2 (8 parça)
▶
19
18
1
34
29
2
1
34
19
29
30
19
30
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-97131-202-0
01
1
9704-9811
●
●
1
TANK; SURGE,RAD
8-97210-844-0
01
1
9812-1010
●
●
1
TANK; SURGE,RAD
8-98178-177-0
01
1
1011-
●
●
2
CAP; SURGE TANK
8-97126-876-0
01
1
9704-9811
●
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
9812-1010
●
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1011-
●
●
18
HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP) L=1455
8-97148-535-2
01
1
1112-
●
●
18
HOSE; RAD TO SURGE TANK
L=1595
8-97148-533-2
01
1
9704-1111
●
●
18
HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595
8-97148-533-2
01
1
1112-
●
●
19
CLIP; HOSE,SURGE TANK
(B) ID=14 L=47
5-09700-319-0
01
1
9704-
●
●
19
CLIP; HOSE,SURGE TANK
(A) ID=12
8-94238-610-0
02
1
9704-0911
●
●
19
CLIP; HOSE,SURGE TANK
(A) ID=12
8-98150-358-0
02
1
0912-
●
●
19
CLIP; HOSE,SURGE TANK
(C) ID=10 & 11
8-94438-996-0
01
1
9704-
●
●
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
9-09160-706-0
03
1
9704-0605
●
●
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
0-91610-706-0
03
1
0606-
●
●
30
NUT
M6 FLANGE
0-91150-106-0
03
1
9704-0602
●
●
30
NUT
M6 FLANGE
0-91180-106-0
03
1
0603-
●
●
34
BOLT; RESERVE TANK
M6X20 W/LK WASHER
0-50040-620-0
03
1
9704-0307
●
●
34
BOLT; RESERVE TANK
M6X20 FLANGE
0-28680-620-0
03
1
0308-0512
●
●
34
BOLT; RESERVE TANK
M6X20 FLANGE
0-28650-620-0
03
1
0601-
●
●
128
56
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
55
HOSE; WATER,RAD OUTLET
4HG1-T ENG(RDP)
8-97177-372-0
01
1
1112-
●
●
55
HOSE; WATER,RAD OUTLET
8-97124-743-0
01
1
9704-1111
●
●
55
HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS)
8-97124-743-0
01
1
1112-
●
●
56
CLIP; WATER HOSE,RAD
ID=48
5-09704-049-0
02
1
9704-0001
●
●
56
CLIP; WATER HOSE,RAD
ID=40
8-97245-216-0
02
1
0002-
●
●
128
HOSE; WATER,RAD INL
4HG1-T ENG(RDP)
8-97210-676-0
01
1
1112-
●
●
128
HOSE; WATER,RAD INL
8-97147-472-0
01
1
9704-1111
●
●
128
HOSE; WATER,RAD INL
4HF1 ENG(RLS)
8-97147-472-0
01
1
1112-
●
●
