1-10 — RADIATOR (#73435) — 102 parça

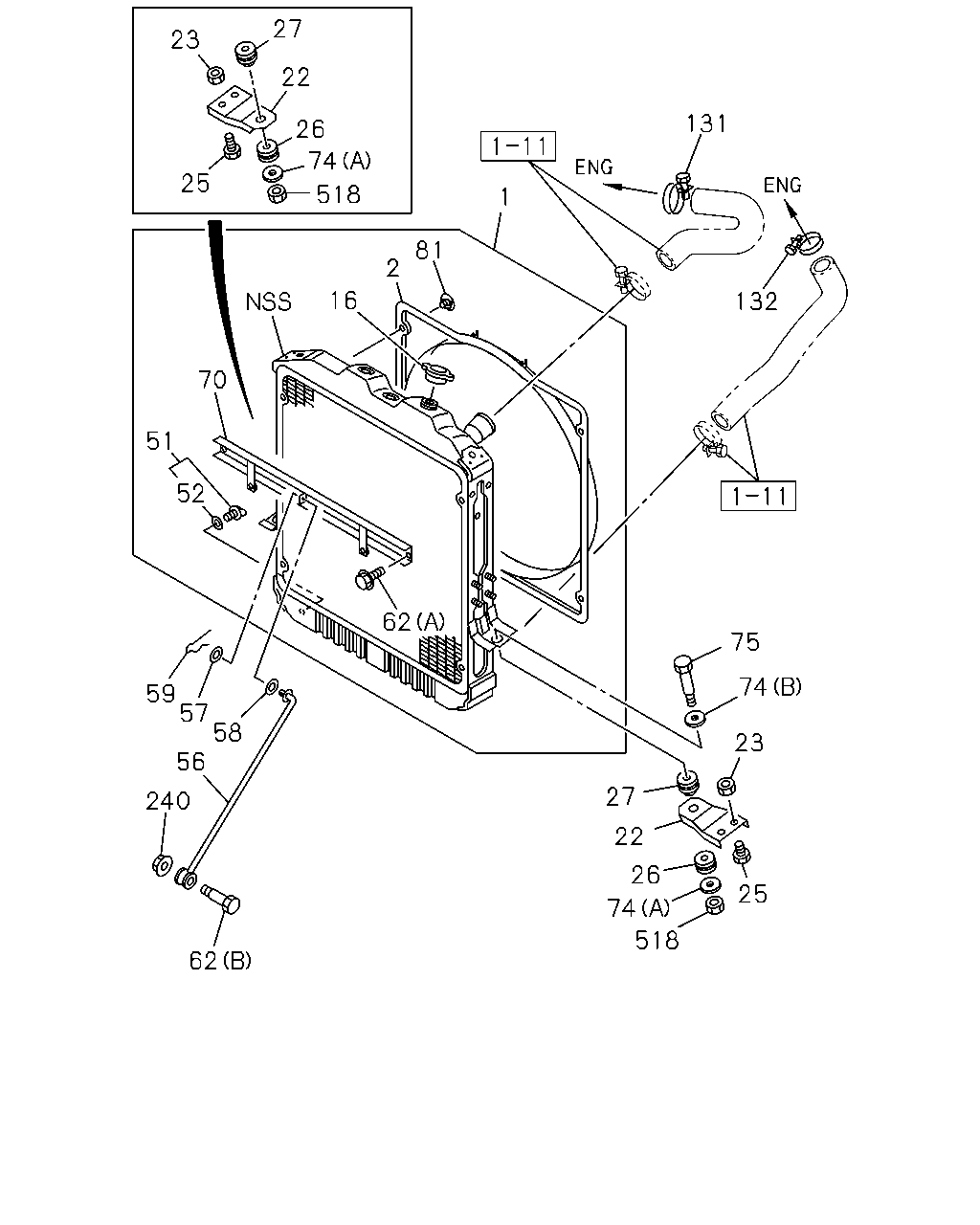

çizim 85508
27 23 22 131 26 74 25 518 1 81 2 16 132 70 51 52 62 75 74 59 57 58 56 23 27 240 22 26 25 74 518 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 1112- ● ●
1 RADIATOR ASM
M/T MXA5R(RMT) 		8-97146-211-1 01 1 9704-0307 ● ●
1 RADIATOR ASM
M/T MYY5T(RSM) 		8-97146-211-1 01 1 0308-1111 ● ●
1 RADIATOR ASM
4HF1 ENG(RLS) 		8-97146-211-1 01 1 1112- ● ●
2 GUIDE; FAN
M/T MXA5R(RMT) 		8-97066-016-0 01 1 9704-0307 ● ●
2 GUIDE; FAN
M/T MYY5T(RSM) 		8-97066-016-0 01 1 0308- ● ●
16 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 1112- ● ●
16 CAP; RAD
M/T MXA5R(RMT) 		8-97177-872-0 01 1 9704-0307 ● ●
16 CAP; RAD
M/T MYY5T(RSM) 		8-97177-872-0 01 1 0308-1111 ● ●
16 CAP; RAD
4HF1 ENG(RLS) 		8-97177-872-0 01 1 1112- ● ●
22 BRACKET; RAD MTG
4HG1-T ENG(RDP) 		8-94175-416-0 02 1 1112- ● ●
22 BRACKET; RAD MTG 8-94101-621-1 02 1 9704-1111 ● ●
22 BRACKET; RAD MTG
4HF1 ENG(RLS) 		8-94101-621-1 02 1 1112- ● ●
23 NUT; RAD MTG
M10 FLANGE 		5-09440-006-0 04 1 9704- ● ●
25 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9704-0512 ● ●
25 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 04 1 0601- ● ●
26 BUFFER; RAD,LWR 8-94249-347-0 02 1 9704- ● ●
27 BUFFER; RAD,UPR 8-94249-346-0 02 1 9704- ● ●
51 PLUG; DRAIN
M/T MXA5R(RMT) W/GASKET 		8-94321-236-0 01 1 9704-0307 ● ●
51 PLUG; DRAIN
M/T MYY5T(RSM) W/GASKET 		8-94321-236-0 01 1 0308- ● ●
52 GASKET; DRAIN PLUG
M/T MXA5R(RMT) ID=10 		9-09720-557-0 01 1 9704-0307 ● ●
52 GASKET; DRAIN PLUG
M/T MYY5T(RSM) ID=10 		9-09720-557-0 01 1 0308- ● ●
56 STAY; RAD
4HG1-T ENG(RDP) 		8-97330-456-0 01 1 1112- ● ●
56 STAY; RAD 8-97032-798-2 01 1 9704-0307 ● ●
56 STAY; RAD 8-97350-324-0 01 1 0308-1111 ● ●
56 STAY; RAD
4HF1 ENG(RLS) 		8-97350-324-0 01 1 1112- ● ●
57 WASHER; PL,STAY
ID=10.5 OD=18 		9-09160-510-0 01 1 9704-0605 ● ●
57 WASHER; PL,STAY
ID=10.5 		0-91610-510-0 01 1 0606- ● ●
58 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9704- ● ●
59 PIN; SNAP,STAY
L=32.6 		8-94202-777-0 01 1 9704-1110 ● ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 1111- ● ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9704- ● ●
62 BOLT; STAY
M/T MXA5R(RMT) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9704-0307 ● ●
62 BOLT; STAY
M/T MYY5T(RSM) (A) M8X12 FLANGE 		0-28080-812-0 02 1 0308- ● ●
70 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 1112- ● ●
70 STAY; RAD
M/T MXA5R(RMT) 		8-97047-899-0 01 1 9704-0307 ● ●
70 STAY; RAD
M/T MYY5T(RSM) 		8-97047-899-0 01 1 0308-1111 ● ●
70 STAY; RAD
4HF1 ENG(RLS) 		8-97047-899-0 01 1 1112- ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-94221-082-0 02 1 9704- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 9704- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M8X63 		8-94249-446-0 01 1 9704- ● ●
81 SCREW; FAN GUIDE,RAD
M/T MXA5R(RMT) 		8-97088-810-0 04 1 9704-0307 ● ●
81 SCREW; FAN GUIDE,RAD
M/T MYY5T(RSM) 		8-97088-810-0 04 1 0308- ● ●
131 CLIP; ENG SIDE TOP
ID=52 		9-09916-031-1 01 1 9704-0001 ● ●
131 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0002- ● ●
132 CLIP; HOSE,ENG SIDE BOTTOM
ID=62 		9-09915-068-1 01 1 9704-0001 ● ●
132 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0002- ● ●
240 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9704- ● ●
518 NUT
M8 FLANGE 		5-09440-005-0 02 1 9704-0805 ● ●
518 NUT
M8 FLANGE 		8-97581-233-0 02 1 0806- ● ●

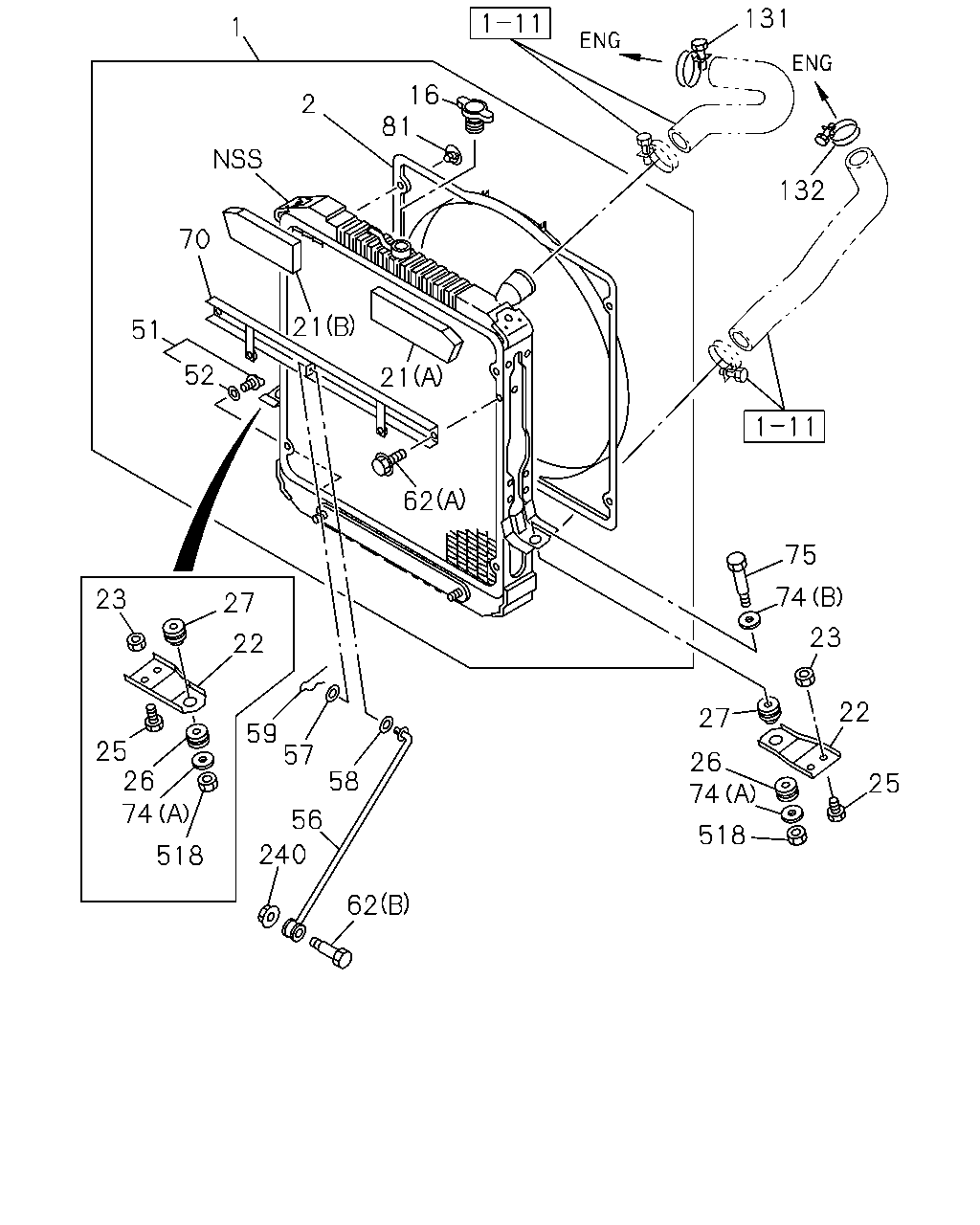

çizim 190557
131 1 16 81 2 132 70 21 51 52 21 62 75 74 23 27 23 22 22 27 59 57 25 26 74 26 74 58 25 56 518 240 518 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 1112- ● ●
1 RADIATOR ASM
M/T MXA5R(RMT) 		8-97146-211-1 01 1 9704-0307 ● ●
1 RADIATOR ASM
M/T MYY5T(RSM) 		8-97146-211-1 01 1 0308-1111 ● ●
1 RADIATOR ASM
4HF1 ENG(RLS) 		8-97146-211-1 01 1 1112- ● ●
2 GUIDE; FAN
M/T MXA5R(RMT) 		8-97066-016-0 01 1 9704-0307 ● ●
2 GUIDE; FAN
M/T MYY5T(RSM) 		8-97066-016-0 01 1 0308- ● ●
16 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 1112- ● ●
16 CAP; RAD
M/T MXA5R(RMT) 		8-97177-872-0 01 1 9704-0307 ● ●
16 CAP; RAD
M/T MYY5T(RSM) 		8-97177-872-0 01 1 0308-1111 ● ●
16 CAP; RAD
4HF1 ENG(RLS) 		8-97177-872-0 01 1 1112- ● ●
21 SEAL; RAD
4HG1-T ENG(RDP) (A) L=240 		8-97190-922-0 01 1 1112- ● ●
21 SEAL; RAD
4HG1-T ENG(RDP) (B) L=205 		8-97190-923-0 01 1 1112- ● ●
22 BRACKET; RAD MTG
4HG1-T ENG(RDP) 		8-94175-416-0 02 1 1112- ● ●
22 BRACKET; RAD MTG 8-94101-621-1 02 1 9704-1111 ● ●
22 BRACKET; RAD MTG
4HF1 ENG(RLS) 		8-94101-621-1 02 1 1112- ● ●
23 NUT; RAD MTG
M10 FLANGE 		5-09440-006-0 04 1 9704- ● ●
25 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9704-0512 ● ●
25 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 04 1 0601- ● ●
26 BUFFER; RAD,LWR 8-94249-347-0 02 1 9704- ● ●
27 BUFFER; RAD,UPR 8-94249-346-0 02 1 9704- ● ●
51 PLUG; DRAIN
M/T MXA5R(RMT) W/GASKET 		8-94321-236-0 01 1 9704-0307 ● ●
51 PLUG; DRAIN
M/T MYY5T(RSM) W/GASKET 		8-94321-236-0 01 1 0308- ● ●
52 GASKET; DRAIN PLUG
M/T MXA5R(RMT) ID=10 		9-09720-557-0 01 1 9704-0307 ● ●
52 GASKET; DRAIN PLUG
M/T MYY5T(RSM) ID=10 		9-09720-557-0 01 1 0308- ● ●
56 STAY; RAD
4HG1-T ENG(RDP) 		8-97330-456-0 01 1 1112- ● ●
56 STAY; RAD 8-97032-798-2 01 1 9704-0307 ● ●
56 STAY; RAD 8-97350-324-0 01 1 0308-1111 ● ●
56 STAY; RAD
4HF1 ENG(RLS) 		8-97350-324-0 01 1 1112- ● ●
57 WASHER; PL,STAY
ID=10.5 OD=18 		9-09160-510-0 01 1 9704-0605 ● ●
57 WASHER; PL,STAY
ID=10.5 		0-91610-510-0 01 1 0606- ● ●
58 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9704- ● ●
59 PIN; SNAP,STAY
L=32.6 		8-94202-777-0 01 1 9704-1110 ● ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 1111- ● ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9704- ● ●
62 BOLT; STAY
M/T MXA5R(RMT) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9704-0307 ● ●
62 BOLT; STAY
M/T MYY5T(RSM) (A) M8X12 FLANGE 		0-28080-812-0 02 1 0308- ● ●
70 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 1112- ● ●
70 STAY; RAD
M/T MXA5R(RMT) 		8-97047-899-0 01 1 9704-0307 ● ●
70 STAY; RAD
M/T MYY5T(RSM) 		8-97047-899-0 01 1 0308-1111 ● ●
70 STAY; RAD
4HF1 ENG(RLS) 		8-97047-899-0 01 1 1112- ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-94221-082-0 02 1 9704- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 9704- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M8X63 		8-94249-446-0 01 1 9704- ● ●
81 SCREW; FAN GUIDE,RAD
M/T MXA5R(RMT) 		8-97088-810-0 04 1 9704-0307 ● ●
81 SCREW; FAN GUIDE,RAD
M/T MYY5T(RSM) 		8-97088-810-0 04 1 0308- ● ●
131 CLIP; ENG SIDE TOP
ID=52 		9-09916-031-1 01 1 9704-0001 ● ●
131 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0002- ● ●
132 CLIP; HOSE,ENG SIDE BOTTOM
ID=62 		9-09915-068-1 01 1 9704-0001 ● ●
132 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0002- ● ●
240 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9704- ● ●
518 NUT
M8 FLANGE 		5-09440-005-0 02 1 9704-0805 ● ●
518 NUT
M8 FLANGE 		8-97581-233-0 02 1 0806- ● ●
