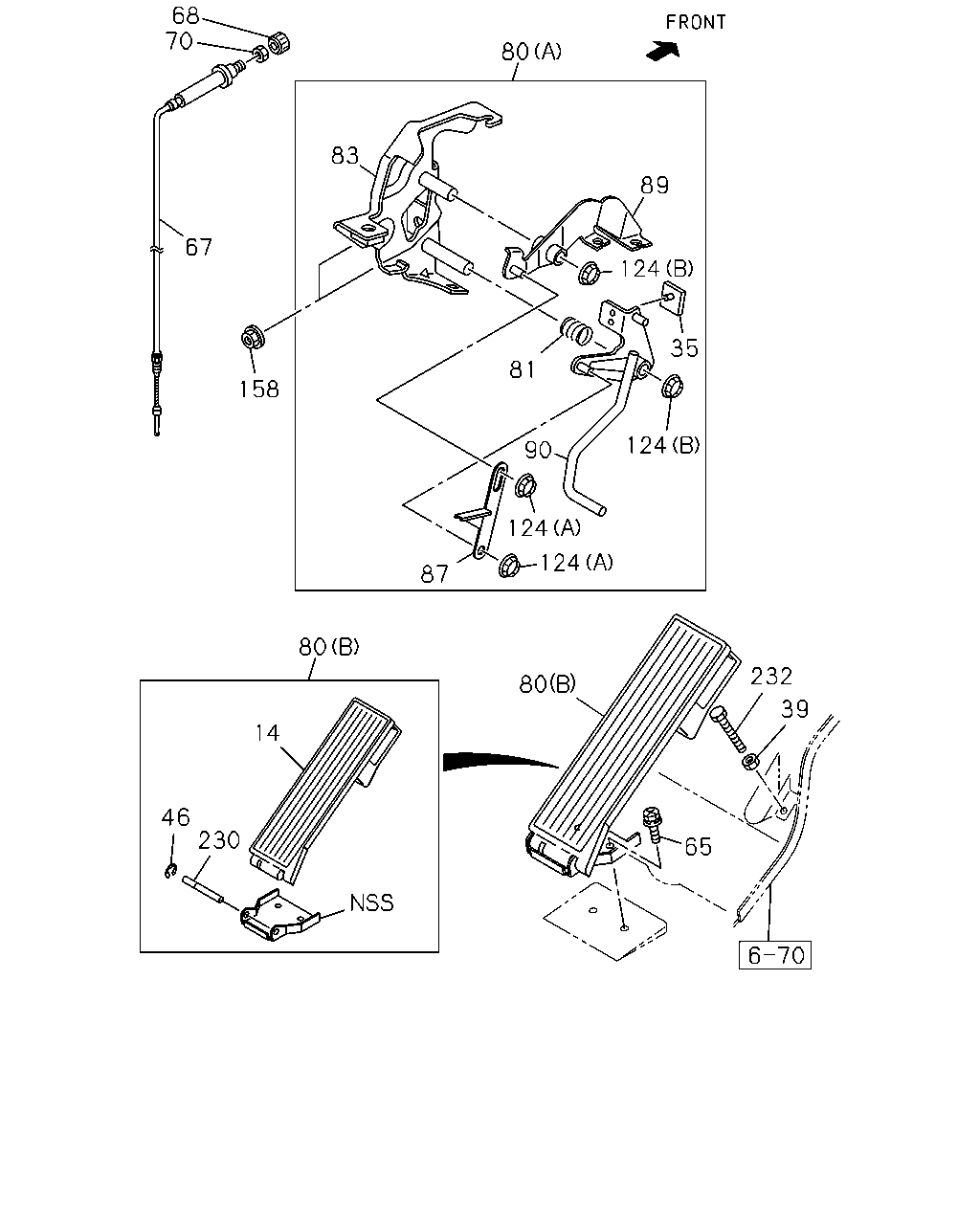

1-01 — ACCELERATOR PEDAL AND CONTROL (#73434) — 68 parça

68 70 80 83 89 67 124 35 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9704-	●	●
35	STOPPER; ACCEL PEDAL M/T MXA5R(RMT)	8-97857-401-1	01	1	9704-0012	●	●
35	STOPPER; ACCEL PEDAL M/T MXA5R(RMT)	8-97302-305-0	01	1	0101-0307	●	●
35	STOPPER; ACCEL PEDAL M/T MYY5T(RSM)	8-97302-305-0	01	1	0308-	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	9704-0512	●	●
39	NUT; ACCEL PEDAL STOPPER M8	0-91110-508-0	01	1	0601-	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	9704-0604	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9704-	●	●
67	CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9704-	●	●
68	KNOB; IDLE CONT	8-97853-765-1	01	1	9704-	●	●
70	NUT; CONT CABLE M18	8-97853-233-0	01	1	9704-	●	●
80	LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9704-	●	●
80	LINK ASM; ENG CONT M/T MXA5R(RMT) (A)	8-97853-057-9	01	1	9704-0307	●	●
80	LINK ASM; ENG CONT M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0308-	●	●
81	SPRING; RETURN,ENG CONT LEVER M/T MXA5R(RMT)	8-97853-205-1	01	1	9704-0307	●	●
81	SPRING; RETURN,ENG CONT LEVER M/T MYY5T(RSM)	8-97853-205-1	01	1	0308-	●	●
83	BRACKET; CONT LINK M/T MXA5R(RMT)	8-97853-201-4	01	1	9704-0307	●	●
83	BRACKET; CONT LINK M/T MYY5T(RSM)	8-97853-201-4	01	1	0308-	●	●
87	LINK; ENG CONT M/T MXA5R(RMT)	8-97853-204-1	01	1	9704-0307	●	●
87	LINK; ENG CONT M/T MYY5T(RSM)	8-97853-204-1	01	1	0308-	●	●
89	LEVER; RELAY M/T MXA5R(RMT)	8-97868-042-0	01	1	9704-0307	●	●
89	LEVER; RELAY M/T MYY5T(RSM)	8-97868-042-0	01	1	0308-	●	●
90	LEVER; RELAY,ENG CONT M/T MXA5R(RMT)	8-97868-039-0	01	1	9704-0307	●	●
90	LEVER; RELAY,ENG CONT M/T MYY5T(RSM)	8-97868-039-0	01	1	0308-	●	●
124	NUT; LEVER M/T MXA5R(RMT) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9704-0307	●	●
124	NUT; LEVER M/T MYY5T(RSM) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0308-	●	●
124	NUT; LEVER M/T MXA5R(RMT) (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9704-0307	●	●
124	NUT; LEVER M/T MYY5T(RSM) (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0308-	●	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	9704-	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9704-	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X65	0-20800-865-0	01	1	9704-0404	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-	●	●

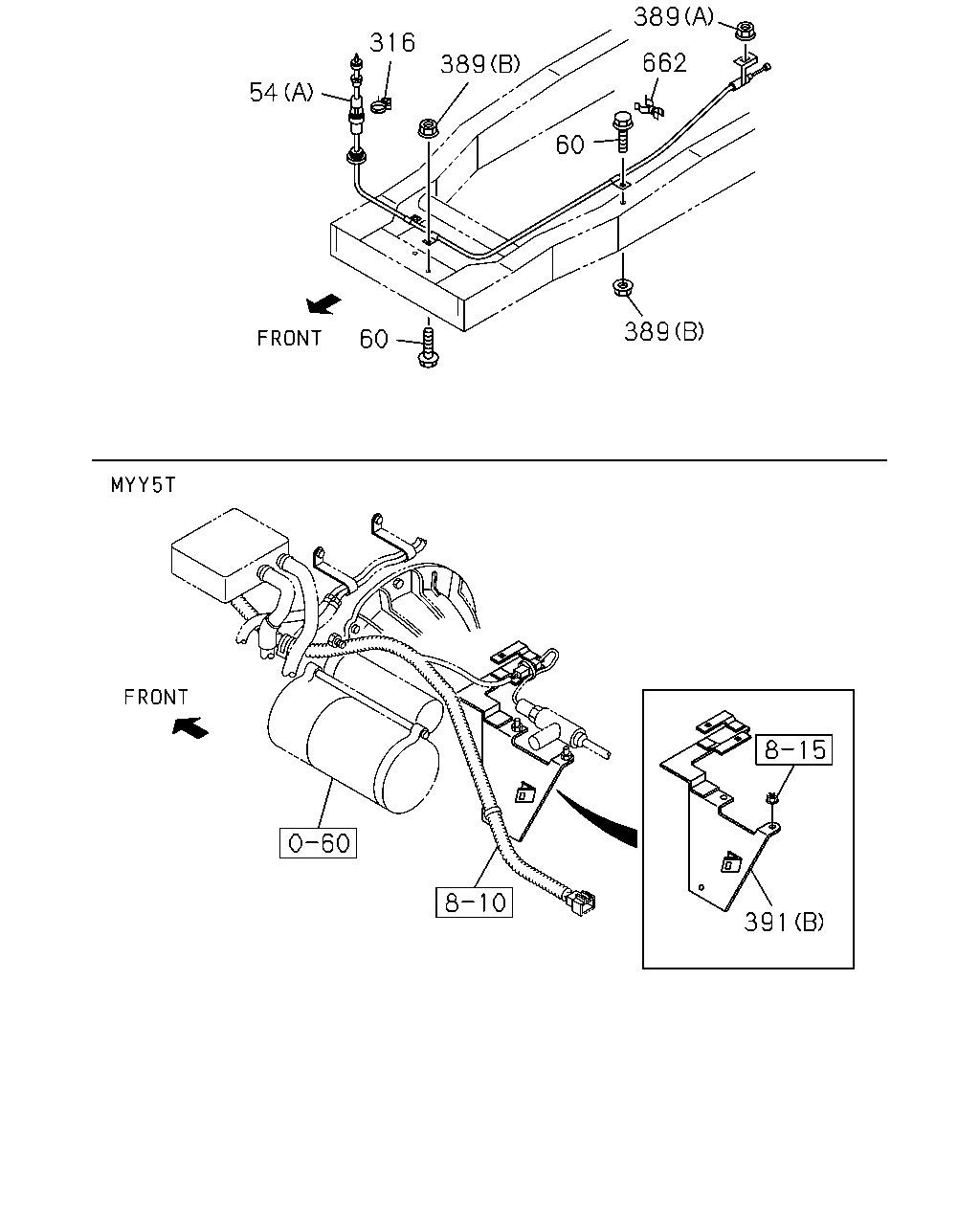

54 99 54 99 100 101 108 729 218 101 104 391 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	9704-	●	●
54	CABLE; ENG CONT (A) L=2898	8-97167-702-1	01	1	9704-	●	●
99	BRACKET ASM; ENG CONT,INL MANIF	8-97118-729-0	01	1	9704-	●	●
100	SHAFT ASM; ENG CONT	8-97118-737-0	01	1	9704-	●	●
101	WASHER; ENG CONT	8-94142-117-0	02	1	9704-	●	●
104	NUT; ENG CONT M8 FLANGE	0-91150-108-0	01	1	9704-0602	●	●
104	NUT; ENG CONT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
108	BUSHING; ENG CONT	8-97120-004-0	01	1	9704-	●	●
110	BOLT; BRKT TO HANGER M8X14 FLANGE	0-28080-814-0	03	1	9704-0307	●	●
110	BOLT; BRKT TO HANGER M8X16 FLANGE	0-28080-816-0	03	1	0308-0512	●	●
110	BOLT; BRKT TO HANGER M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
218	NUT; BRKT M8 FLANGE	0-91150-208-0	01	1	9704-0307	●	●
218	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
218	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
391	BRACKET; ENG CONT (A)	8-97088-278-0	01	1	9704-0307	●	●
391	BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0308-	●	●
391	BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0308-	●	●
729	COLLAR; JOINT	8-97118-760-0	01	1	9704-	●	●

389 316 662 389 54 60 389 60 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	9704-	●	●
54	CABLE; ENG CONT (A) L=2898	8-97167-702-1	01	1	9704-	●	●
60	BOLT; CABLE M8X25 FLANGE	0-28480-825-0	01	1	9704-0512	●	●
60	BOLT; CABLE M8X25 FLANGE	0-28450-825-0	01	1	0601-	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	02	1	9704-0512	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
316	CLIP; LAMP BRKT ID=9	5-09707-027-0	01	1	9704-	●	●
389	NUT; ACCEL CONT CABLE FIX (A) M6 FLANGE	0-91150-106-0	01	1	9704-0602	●	●
389	NUT; ACCEL CONT CABLE FIX (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
389	NUT; ACCEL CONT CABLE FIX (B) M8 FLANGE	8-94279-517-0	03	1	9704-9802	●	●
389	NUT; ACCEL CONT CABLE FIX (B) M8 W/LK WASHER	8-94327-073-0	03	1	9803-0805	●	●
389	NUT; ACCEL CONT CABLE FIX (B) M8 W/LK WASHER	8-97581-234-0	03	1	0806-	●	●
391	BRACKET; ENG CONT (A)	8-97088-278-0	01	1	9704-0307	●	●
391	BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0308-	●	●
391	BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0308-	●	●
662	CLIP; ACCEL CONT CABLE ID=6 & 6	8-94400-853-0	01	1	9704-0307	●	●
662	CLIP; ACCEL CONT CABLE ID=6 & 6	1-09709-217-0	01	1	0308-	●	●
