◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-86 - MISCELLANEOUS PARTS; INJECTION PUMP ▶
0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#73433) — 17 parça

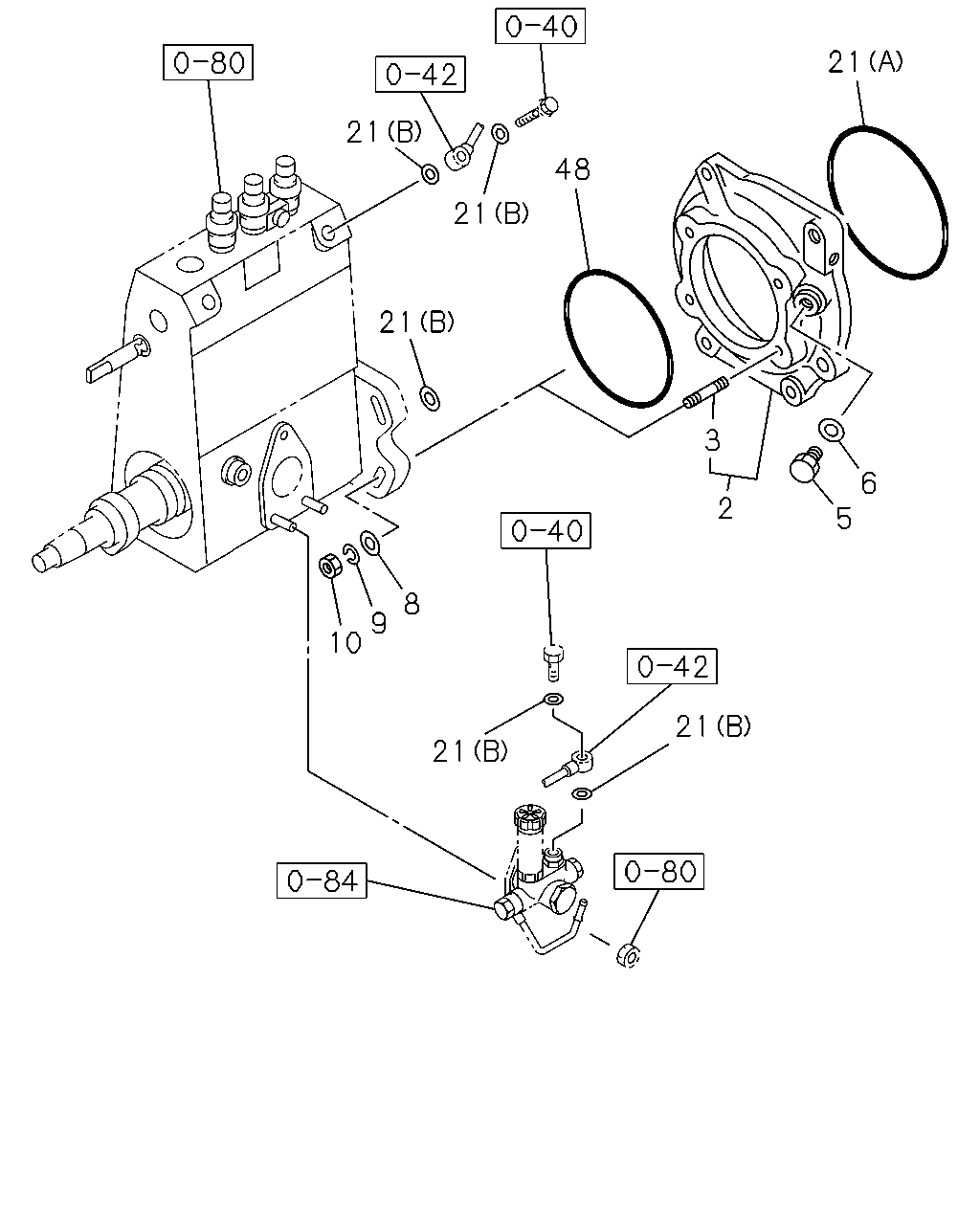

çizim 84943
21 21 48 21 21 3 6 5 2 8 9 10 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; HSG & TIMER,INJ PUMP 8-97121-616-0 01 1 9704- ●
2 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 1112- ●
3 STUD; HSG BRKT,INJ PUMP
M10X30 L=45 		9-04101-030-0 04 1 9704- ●
5 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 9704-1111 ●
5 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 1112- ● ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15729-787-0 01 1 9704-1111 ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15729-787-0 01 1 1112- ● ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 9704-1111 ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 1112- ● ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-610-0 04 1 1112- ●
10 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9704-1111 ●
10 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 1112- ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 1112- ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9704-1111 ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 1112- ● ●
21 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9704- ●
48 GASKET; PIPE ADAPTER,INJ PUMP 8-97026-918-0 01 1 9704-9811 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
