0-84 — FEED PUMP; INJECTION PUMP (#73431) — 56 parça

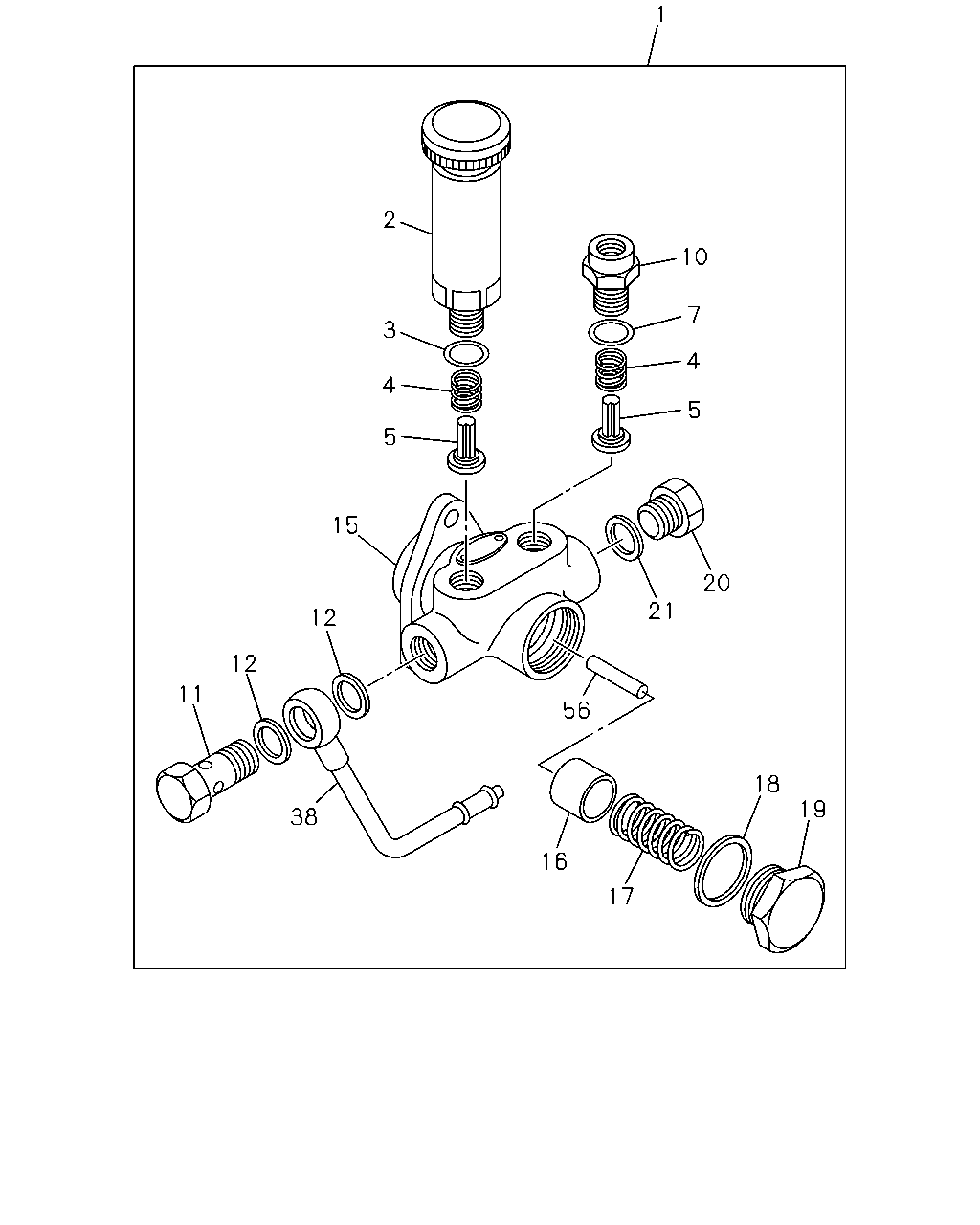

1 2 10 7 3 4 4 5 5 15 20 21 12 12 11 56 18 19 38 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97146-784-0	8-97114-351-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-533-1	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97203-384-0	8-97223-289-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81351-702-0	04	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15755-002-0	04	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-19623-016-0	04	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-19623-016-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97146-784-0	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 8-97146-784-0	1-09630-085-0	02	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15751-043-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	8-97214-466-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15759-007-0	01	1	-
38	PIPE; FEED PUMP ASM PART: A = 8-97146-784-0	8-97093-411-0	01	1	-
56	PUSH ROD ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97115-991-0	01	1	-

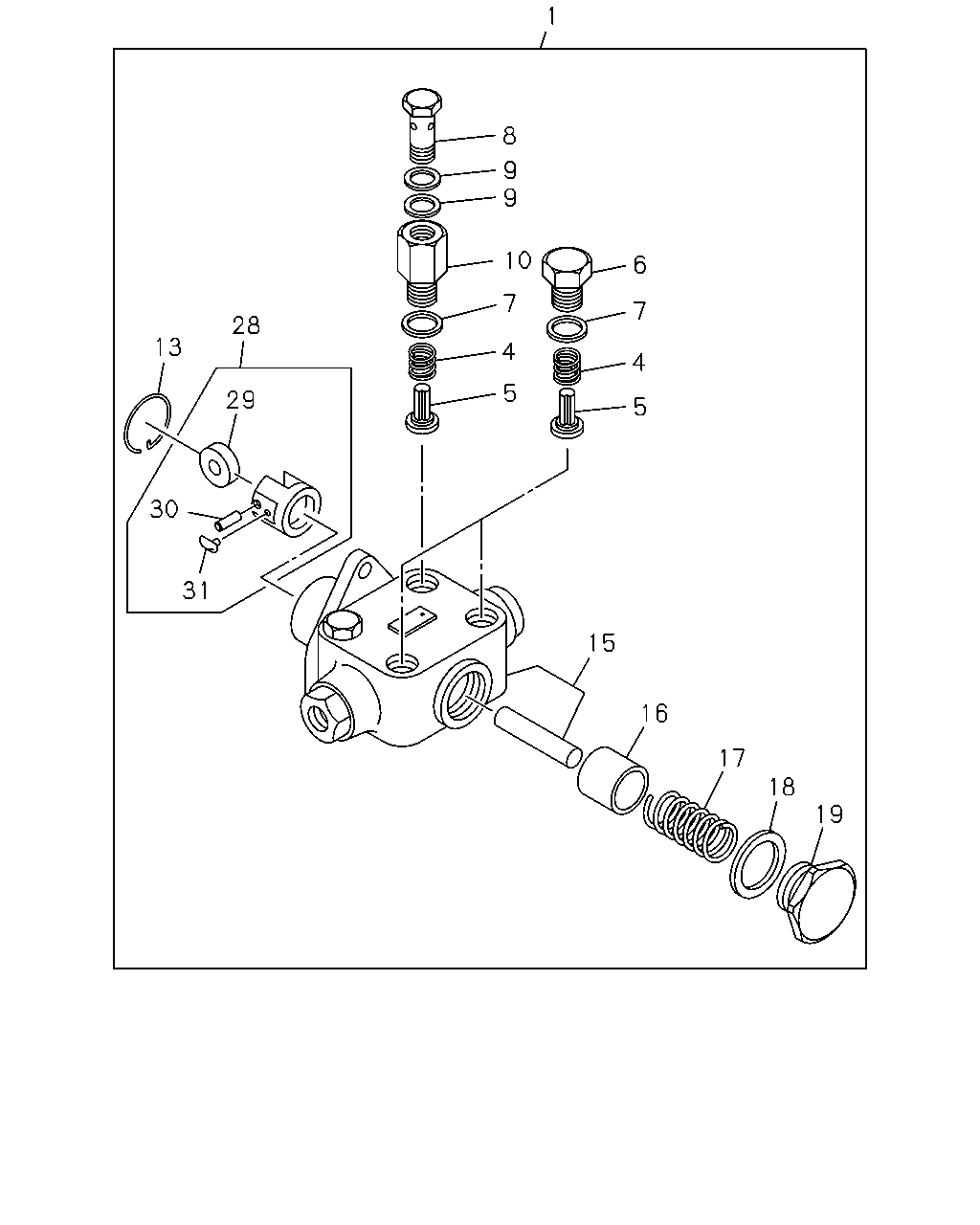

1 8 9 9 10 6 7 7 28 13 4 4 5 29 5 30 31 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97146-784-0	8-97114-351-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-533-1	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97203-384-0	8-97223-289-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81351-702-0	04	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15755-002-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15759-066-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-19623-016-0	04	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: B = 8-97178-485-5	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: B = 8-97178-485-5	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15759-067-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15751-043-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	8-97214-466-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15754-002-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	1-15759-043-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: B = 8-97178-485-5	9-81351-416-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
