Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#73429) — 391 parça

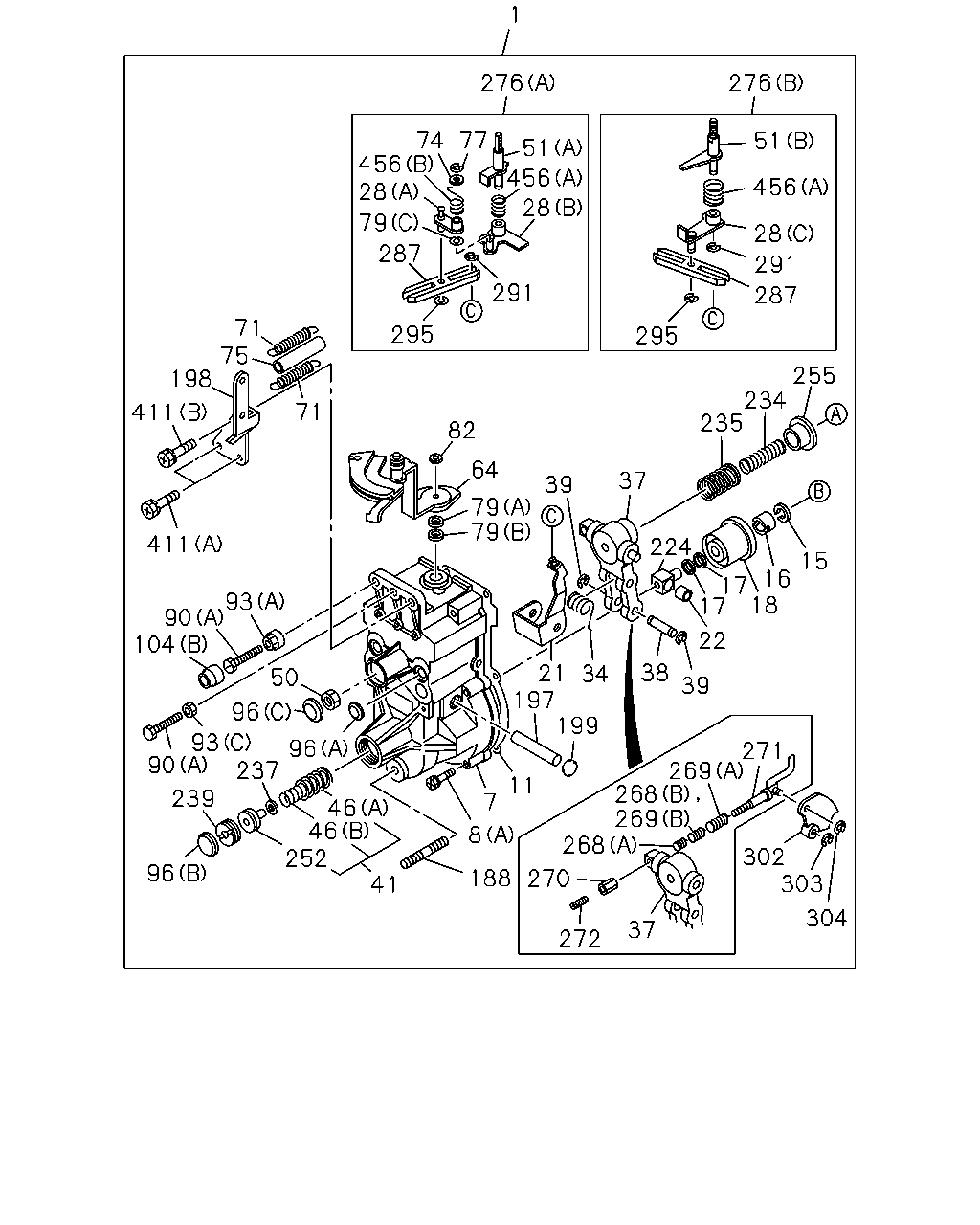

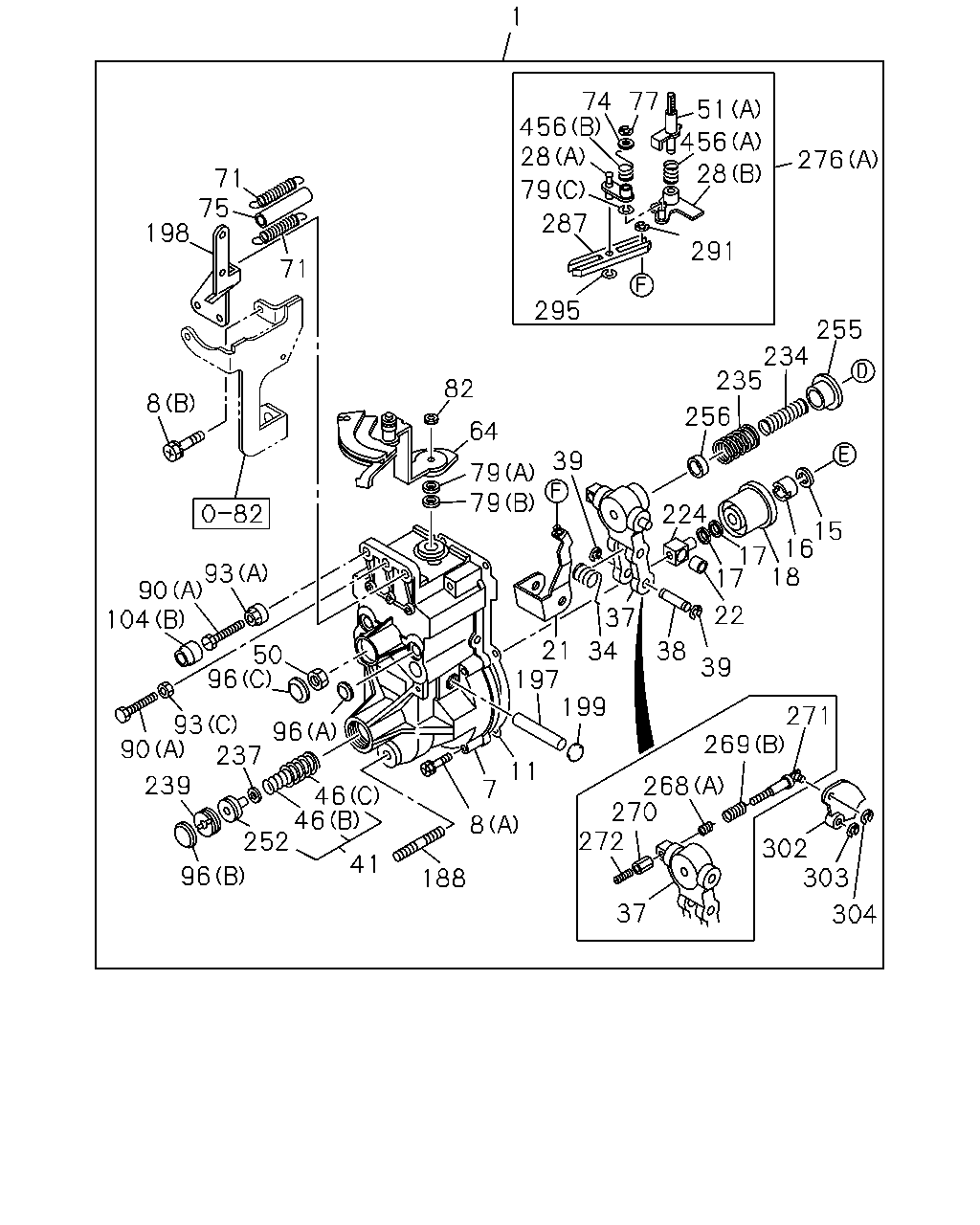

1 276 276 74 456 28 77 51 51 456 456 28 79 28 287 291 291 287 71 75 198 295 295 255 234 235 71 411 82 64 37 39 79 79 411 224 15 16 17 17 18 93 90 104 22 21 197 199 38 34 50 39 96 93 90 237 96 271 269 268 269 268 11 239 7 46 46 252 8 302 303 96 188 270 41 304 37 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97146-784-0	8-97145-142-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97203-384-0	8-97224-391-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97142-961-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97178-485-5	8-97142-962-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 8-97178-485-5	1-15729-535-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15729-033-0	07	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97178-485-5	5-15729-033-0	05	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15779-107-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94339-977-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: B = 8-97178-485-5	8-97223-398-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94368-298-1	01	1	-
28	LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15725-472-0	01	1	-
28	LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15725-485-0	01	1	-
28	LEVER; SUPPORTING,GOV (C) ASM PART: C = 8-97203-384-0	8-94171-152-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-97146-784-0	8-94339-965-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 8-97203-384-0	8-94339-976-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 8-97178-485-5	8-97214-455-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97026-922-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-97178-485-5	8-97085-009-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (C) ASM PART: B = 8-97178-485-5	8-97115-983-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97115-984-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15729-876-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV (B) ASM PART: C = 8-97203-384-0	8-94325-501-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-934-1	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-929-0	02	1	-
74	WASHER; LEVER SPR ID=6.4 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	9-09160-506-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-963-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	9-88410-201-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15729-517-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97066-844-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15729-761-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: B = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-843-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-924-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-148-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-022-0	01	1	-
188	STUD; COVER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-790-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15725-008-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97026-928-0	01	1	-
198	BRACKET; COVER ASM PART: B = 8-97178-485-5	8-97085-014-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94368-299-1	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-457-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15723-094-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-456-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15779-003-1	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-173-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15723-056-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 8-97146-784-0	5-15723-070-1	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (B) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	5-15723-070-1	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (A) ASM PART: A = 8-97146-784-0	5-15723-290-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-97146-784-0	1-15729-810-2	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15725-534-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV (B) ASM PART: C = 8-97203-384-0	8-94325-500-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97142-964-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 8-97178-485-5	8-97214-458-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-09185-404-0	01	1	-
411	BOLT; BRKT (A) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15719-005-0	02	1	-
411	BOLT; BRKT (B) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15729-304-0	01	1	-
456	SPRING; LEVER,GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15723-295-0	01	1	-
456	SPRING; LEVER,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94413-728-0	01	1	-

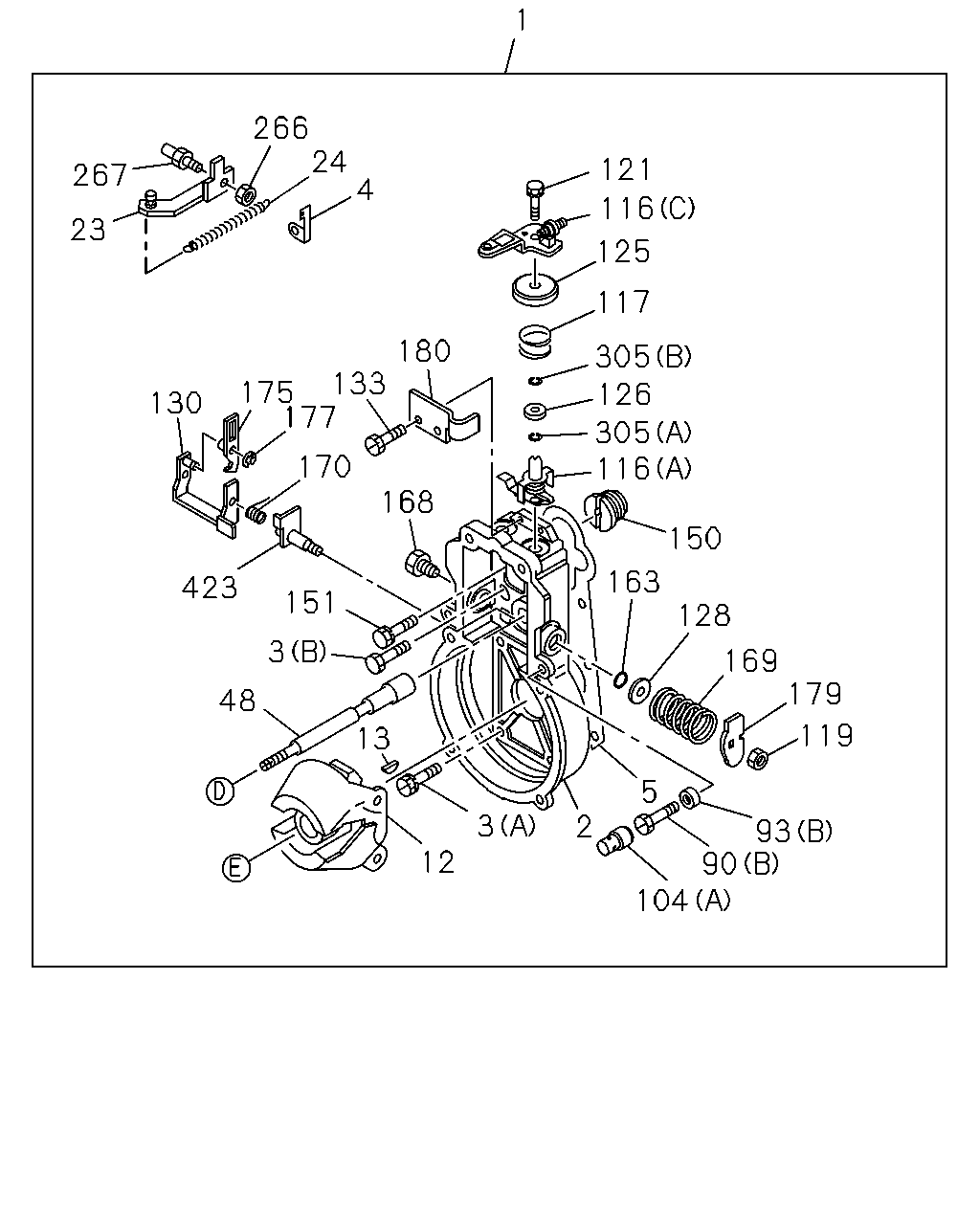

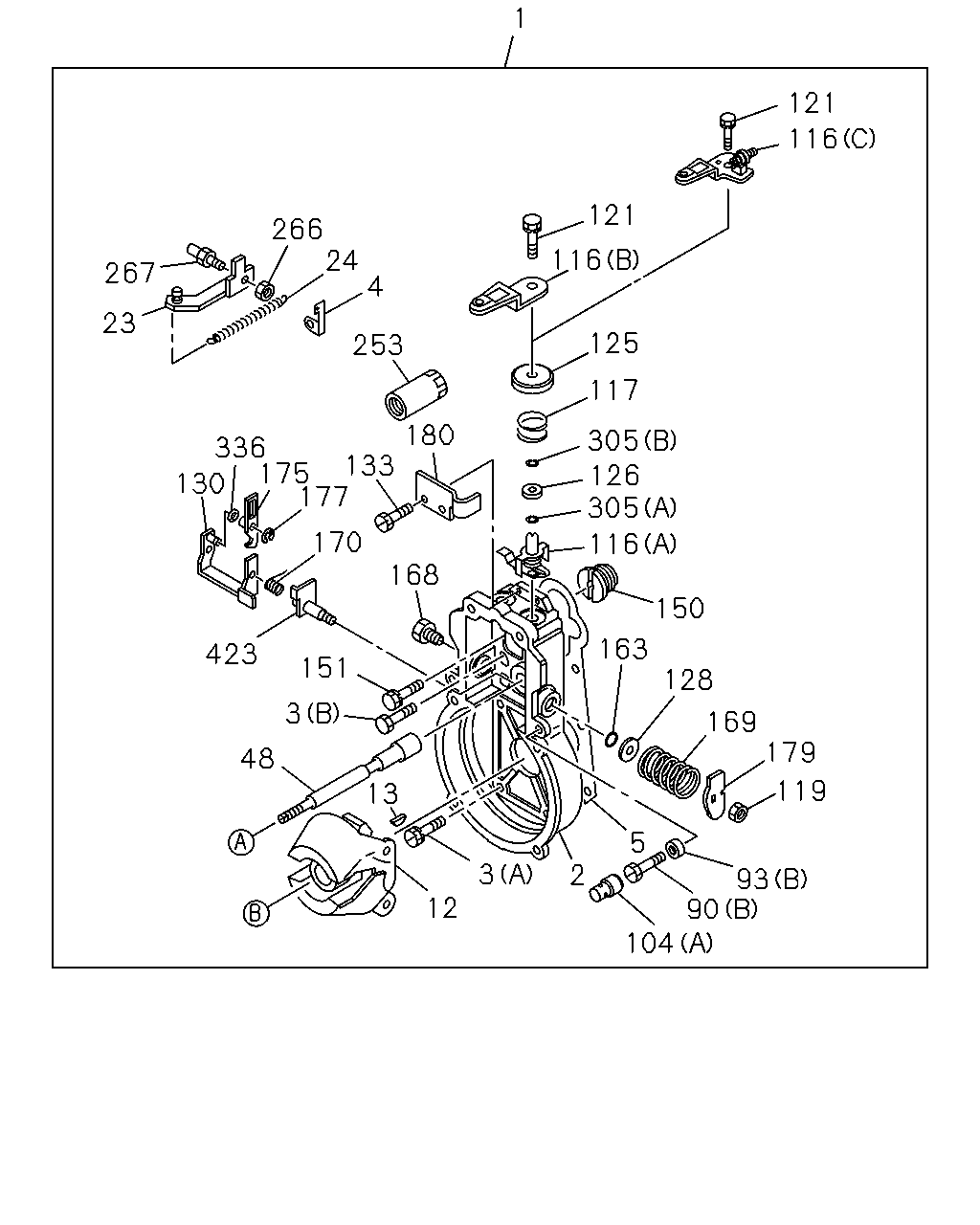

1 121 116 121 266 24 4 116 267 23 125 253 117 180 305 126 305 336 133 175 177 130 170 116 168 150 163 423 151 128 3 169 179 48 119 13 5 3 2 93 90 104 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97146-784-0	8-97145-142-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97203-384-0	8-97224-391-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 8-97203-384-0	1-15721-209-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 8-97178-485-5	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-97146-784-0	8-97024-866-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-97146-784-0	1-15729-795-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15779-591-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15779-093-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 8-97178-485-5	1-15779-106-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15722-017-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-19619-049-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15725-928-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97146-784-0	8-97085-010-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	5-15723-035-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97146-784-0	8-94344-426-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-146-1	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15729-761-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: B = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-843-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-924-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97146-784-0	8-97026-920-1	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97146-784-0	8-97115-979-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-97121-631-0	01	1	-
116	LEVER; ENG STOP,GOV (C) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-97121-632-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94336-925-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X12 W/LK WASHER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-01910-612-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-94171-168-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97146-784-0	8-94336-926-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-853-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: B = 8-97178-485-5	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15725-527-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15729-834-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15629-859-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-796-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97176-488-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-132-0	01	1	-
180	PLATE; GOV COVER ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-97121-643-0	01	1	-
253	LIMITTER; GOV CONT ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94167-792-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97146-784-0	8-97085-011-0	01	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.00 ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	9-81325-553-0	01	1	-
336	COLLAR; LEVER ASM PART: A = 8-97146-784-0	5-15729-181-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-820-0	01	1	-

1 266 24 4 121 267 116 23 125 117 180 305 126 133 175 177 130 305 116 170 168 150 163 423 151 128 3 169 179 48 119 13 5 3 2 93 90 104 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97146-784-0	8-97145-142-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97203-384-0	8-97224-391-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 8-97203-384-0	1-15721-209-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 8-97178-485-5	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-97146-784-0	8-97024-866-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-97146-784-0	1-15729-795-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15779-591-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15779-093-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 8-97178-485-5	1-15779-106-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15722-017-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-19619-049-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15725-928-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97146-784-0	8-97085-010-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	5-15723-035-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97146-784-0	8-94344-426-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-146-1	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15729-761-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: B = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-843-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-924-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97146-784-0	8-97026-920-1	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97146-784-0	8-97115-979-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-97121-631-0	01	1	-
116	LEVER; ENG STOP,GOV (C) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-97121-632-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94336-925-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X12 W/LK WASHER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-01910-612-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-94171-168-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97146-784-0	8-94336-926-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-853-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: B = 8-97178-485-5	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15725-527-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15729-834-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15629-859-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-796-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97176-488-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-132-0	01	1	-
180	PLATE; GOV COVER ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	8-97121-643-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97146-784-0	8-97085-011-0	01	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.00 ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	9-81325-553-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-820-0	01	1	-

1 74 456 28 77 51 456 276 28 71 75 198 79 287 291 71 295 255 234 235 82 8 256 64 39 79 79 224 15 16 17 17 18 93 90 104 22 37 21 197 199 38 34 50 96 39 271 269 93 237 96 90 11 239 268 270 272 7 46 46 252 8 302 303 41 96 188 37 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97146-784-0	8-97145-142-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97203-384-0	8-97224-391-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97142-961-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97178-485-5	8-97142-962-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 8-97178-485-5	1-15729-535-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15729-033-0	07	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97178-485-5	5-15729-033-0	05	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15779-107-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94339-977-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: B = 8-97178-485-5	8-97223-398-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94368-298-1	01	1	-
28	LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15725-472-0	01	1	-
28	LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15725-485-0	01	1	-
28	LEVER; SUPPORTING,GOV (C) ASM PART: C = 8-97203-384-0	8-94171-152-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-97146-784-0	8-94339-965-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 8-97203-384-0	8-94339-976-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 8-97178-485-5	8-97214-455-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97026-922-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-97178-485-5	8-97085-009-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (C) ASM PART: B = 8-97178-485-5	8-97115-983-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97115-984-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15729-876-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV (B) ASM PART: C = 8-97203-384-0	8-94325-501-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-934-1	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-929-0	02	1	-
74	WASHER; LEVER SPR ID=6.4 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	9-09160-506-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-963-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	9-88410-201-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15729-517-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97066-844-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15729-761-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: B = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-843-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97026-924-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-148-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-97085-022-0	01	1	-
188	STUD; COVER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-790-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15725-008-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97026-928-0	01	1	-
198	BRACKET; COVER ASM PART: B = 8-97178-485-5	8-97085-014-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94368-299-1	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-457-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15723-094-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-456-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15779-003-1	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-173-0	01	1	-
256	SEAT; GOV SPRING ASM PART: B = 8-97178-485-5	1-15779-214-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15723-056-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 8-97146-784-0	5-15723-070-1	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (B) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	5-15723-070-1	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV (A) ASM PART: A = 8-97146-784-0	5-15723-290-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-97146-784-0	1-15729-810-2	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15725-534-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV (B) ASM PART: C = 8-97203-384-0	8-94325-500-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97142-964-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 8-97178-485-5	8-97214-458-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-09185-404-0	01	1	-
456	SPRING; LEVER,GOV (B) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5	1-15723-295-0	01	1	-
456	SPRING; LEVER,GOV (A) ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94413-728-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
