Sayfa 0-80 - Isuzu EPC

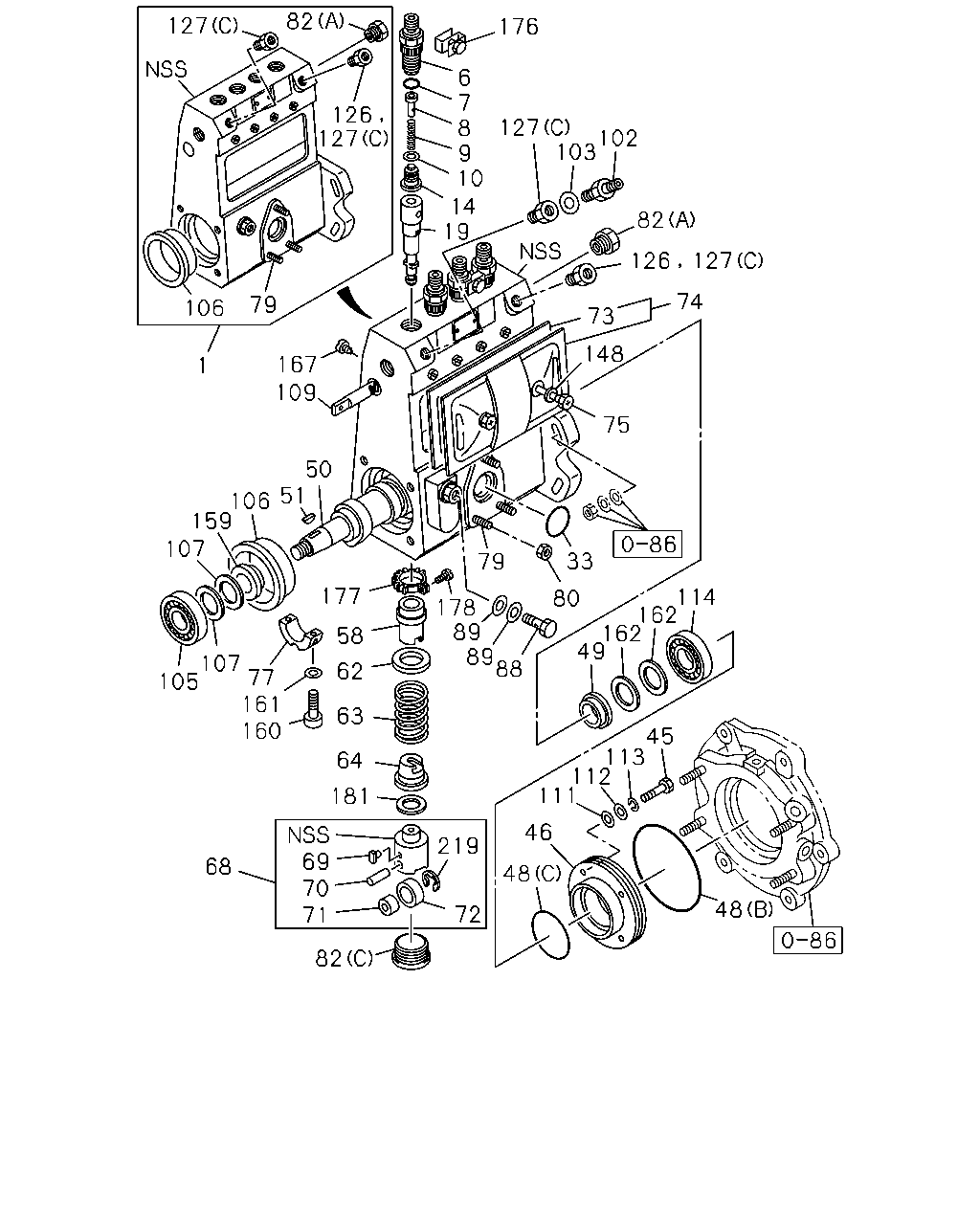

0-80 — INJECTION PUMP (#73428) — 317 parça

82 126 6 176 127 7 8 155 103 102 9 127 10 82 126 14 127 155 19 74 73 79 167 109 148 1 75 50 159 107 107 105 33 79 80 89 178 89 177 114 162 49 162 51 88 58 62 77 63 48 161 64 45 68 160 181 46 69 70 71 47 72 82 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97137-799-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-97178-485-5	8-97214-452-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15644-017-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97354-038-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-09623-052-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-97178-485-5	8-97354-039-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97083-335-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97084-987-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15643-003-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97178-485-5	1-15643-012-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15649-001-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97178-485-5	9-81245-018-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97178-485-5	1-15619-406-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94362-694-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97083-334-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-453-0	04	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15629-058-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15619-282-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 8-97178-485-5	8-97085-000-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-047-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-97178-485-5	8-97084-999-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97083-337-0	01	1	-
48	GASKET; FRT COVER TO HSG (C) ASM PART: B = 8-97178-485-5	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG (A) ASM PART: C = 8-97203-384-0	8-97026-918-0	01	1	-
48	GASKET; FRT COVER TO HSG (B) ASM PART: B = 8-97178-485-5	8-97085-113-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 8-97178-485-5	8-97084-990-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97026-916-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-454-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94239-370-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-058-0	04	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-97178-485-5	9-81231-523-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97178-485-5	1-15639-022-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81235-015-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15634-007-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94387-977-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-125-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81235-021-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 8-97178-485-5	1-15612-080-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15622-009-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-018-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15619-041-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-123-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15622-006-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-001-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-122-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15622-003-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-121-0	04	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94386-596-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-109-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15619-264-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-014-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97178-485-5	1-15619-160-0	04	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15619-136-0	04	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-13260-001-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97178-485-5	1-15619-290-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-97178-485-5	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: B = 8-97178-485-5	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-00090-677-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-97178-485-5	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-97178-485-5	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-97178-485-5	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-97178-485-5	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-97178-485-5	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-97178-485-5	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-97178-485-5	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-97178-485-5	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-97178-485-5	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15637-002-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97178-485-5	8-97121-614-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 8-97178-485-5	8-97084-989-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 8-97146-784-0	1-15619-073-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: B = 8-97178-485-5	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE (A) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15619-035-0	01	1	-
127	ADAPTER; FUEL PIPE (C) ASM PART: B = 8-97178-485-5	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE (B) ASM PART: C = 8-97203-384-0	1-15629-057-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81215-144-0	02	1	-
155	BOLT; AIR BLEED,INJ PUMP ASM PART: A = 8-97146-784-0	1-15629-057-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-047-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-017-0	04	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-88410-066-0	04	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81225-043-0	04	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-97178-485-5	8-97084-991-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-97178-485-5	8-97084-992-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-97178-485-5	8-97084-993-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-97178-485-5	8-97084-994-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-97178-485-5	8-97084-995-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-97178-485-5	8-97084-996-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-97178-485-5	8-97084-997-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-97178-485-5	8-97084-998-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: B = 8-97178-485-5	8-97121-620-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-97178-485-5	1-15649-034-0	02	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15625-001-0	02	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81225-057-0	04	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-003-0	04	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-045-0	AR	1	-

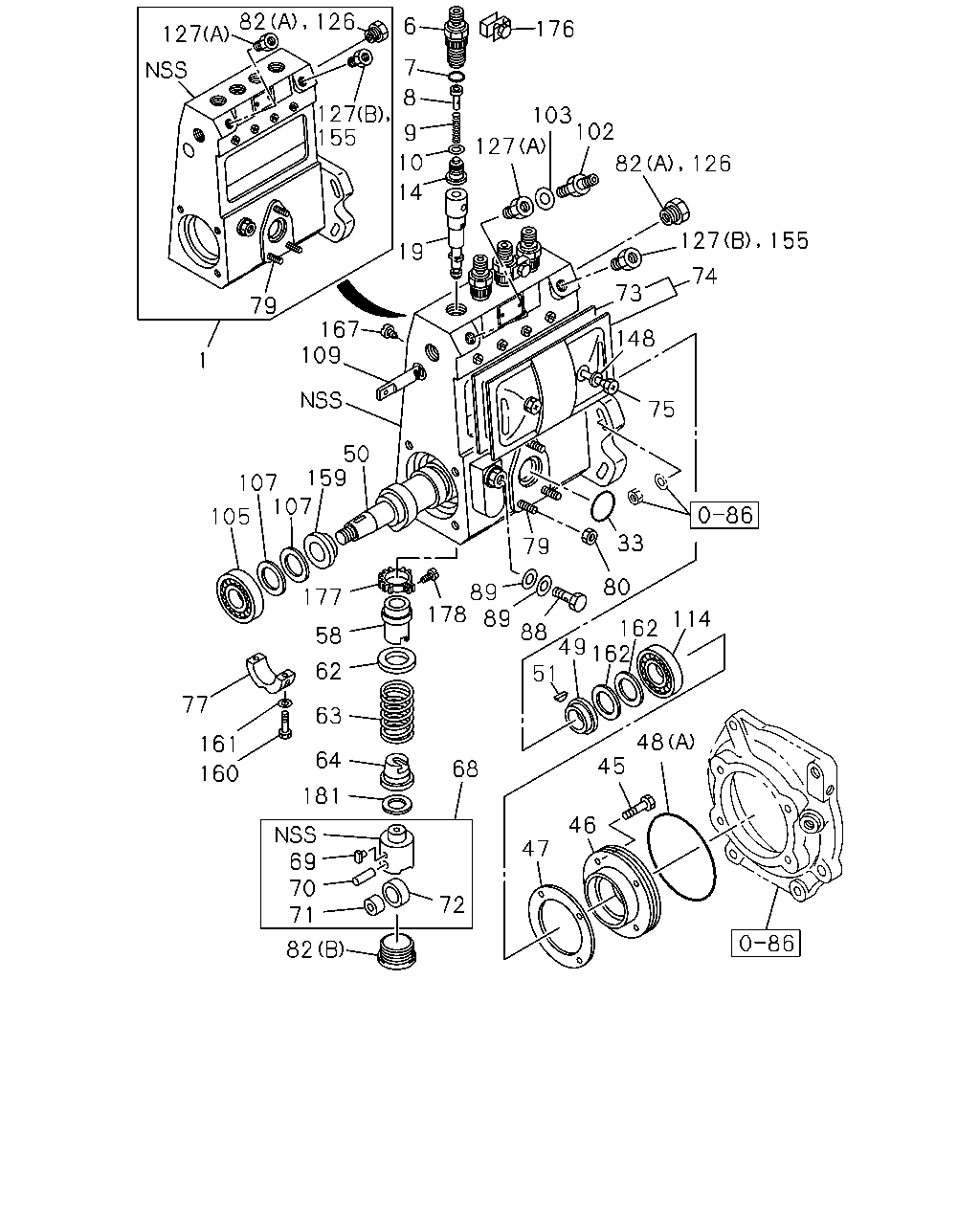

82 127 176 6 7 8 9 10 126 127 127 102 103 14 19 82 126 127 74 79 106 73 148 167 109 1 75 50 51 106 159 107 33 79 177 114 162 162 49 80 178 89 89 88 58 107 77 105 161 160 62 63 45 113 112 111 64 181 46 69 70 71 219 68 48 48 72 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97137-799-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-97178-485-5	8-97214-452-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15644-017-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97354-038-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-09623-052-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-97178-485-5	8-97354-039-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97083-335-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97178-485-5	8-97084-987-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15643-003-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97178-485-5	1-15643-012-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15649-001-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97178-485-5	9-81245-018-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97178-485-5	1-15619-406-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94362-694-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97083-334-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-453-0	04	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15629-058-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15619-282-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 8-97178-485-5	8-97085-000-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-047-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-97178-485-5	8-97084-999-0	01	1	-
48	GASKET; FRT COVER TO HSG (C) ASM PART: B = 8-97178-485-5	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG (A) ASM PART: C = 8-97203-384-0	8-97026-918-0	01	1	-
48	GASKET; FRT COVER TO HSG (B) ASM PART: B = 8-97178-485-5	8-97085-113-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 8-97178-485-5	8-97084-990-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-97026-916-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-97178-485-5	8-97214-454-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94239-370-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-058-0	04	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-97178-485-5	9-81231-523-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97178-485-5	1-15639-022-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81235-015-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15634-007-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	8-94387-977-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-125-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81235-021-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 8-97178-485-5	1-15612-080-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15622-009-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-018-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15619-041-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-123-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15622-006-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-001-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-122-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15622-003-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-121-0	04	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94386-596-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-109-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-97178-485-5	1-15619-264-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-014-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: B = 8-97178-485-5, C = 8-97203-384-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97178-485-5	1-15619-160-0	04	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15619-136-0	04	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-13260-001-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97178-485-5	1-15619-290-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-97178-485-5	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: B = 8-97178-485-5	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-00090-677-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: B = 8-97178-485-5	1-15619-159-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-97178-485-5	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-97178-485-5	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-97178-485-5	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-97178-485-5	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-97178-485-5	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-97178-485-5	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-97178-485-5	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-97178-485-5	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-97178-485-5	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15637-002-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97178-485-5	8-97121-614-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: B = 8-97178-485-5	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: B = 8-97178-485-5	8-97085-001-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: B = 8-97178-485-5	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 8-97178-485-5	8-97084-989-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 8-97146-784-0	1-15619-073-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: B = 8-97178-485-5	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE (A) ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15619-035-0	01	1	-
127	ADAPTER; FUEL PIPE (C) ASM PART: B = 8-97178-485-5	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE (B) ASM PART: C = 8-97203-384-0	1-15629-057-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-047-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-97178-485-5	1-15629-017-0	04	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-88410-066-0	04	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81225-043-0	04	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-97178-485-5	8-97084-991-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-97178-485-5	8-97084-992-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-97178-485-5	8-97084-993-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-97178-485-5	8-97084-994-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-97178-485-5	8-97084-995-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-97178-485-5	8-97084-996-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-97178-485-5	8-97084-997-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-97178-485-5	8-97084-998-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: B = 8-97178-485-5	8-97121-620-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-97178-485-5	1-15649-034-0	02	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97146-784-0, C = 8-97203-384-0	5-15625-001-0	02	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81225-057-0	04	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-003-0	04	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97146-784-0, B = 8-97178-485-5, C = 8-97203-384-0	9-81235-045-0	AR	1	-
219	RING; SNAP,ROLLER ASM PART: B = 8-97178-485-5	1-15629-124-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
