0-66 — GENERATOR (#73427) — 168 parça

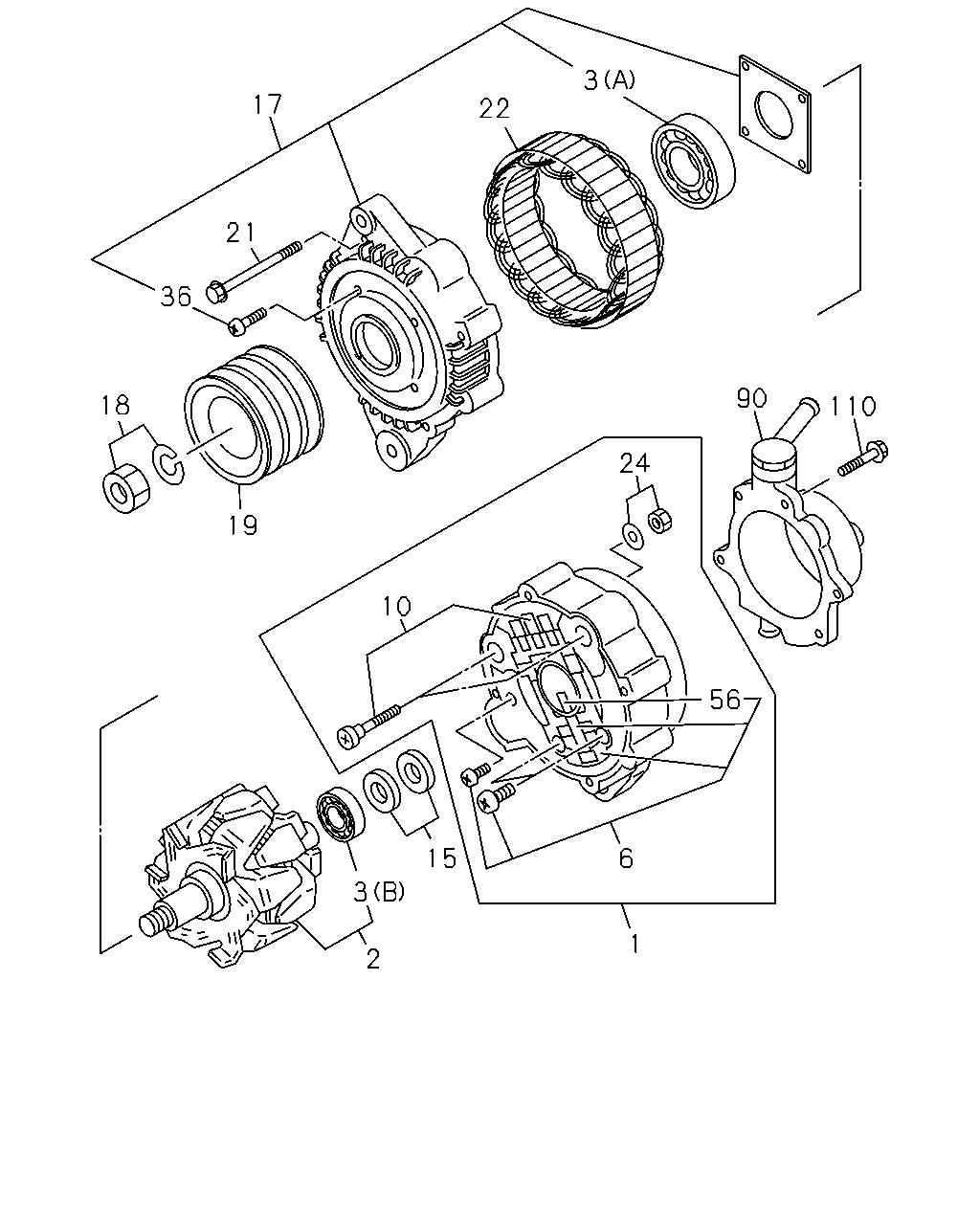

3 17 22 21 36 90 18 110 24 19 10 56 15 6 3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-141-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-97351-572-1	8-97253-370-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: D = 8-97351-572-1	8-98230-320-0	01	1	1209-
2	ROTOR; GEN ASM PART: A = 8-97115-044-0	8-97128-039-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-138-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97351-572-1	8-97351-705-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 8-97115-044-0	1-81229-466-1	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-97351-572-1	8-97062-744-0	01	1	1209-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-137-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-139-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-97351-572-1	8-97248-128-0	01	1	-1208
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-97351-572-1	8-98159-457-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97115-044-0	8-97128-032-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-144-0	01	1	-
10	RECTIFIER; GEN LOWER ASM PART: A = 8-97115-044-0	8-97128-042-0	01	1	-
10	RECTIFIER; GEN UPPER ASM PART: A = 8-97115-044-0	8-97128-043-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-142-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97351-572-1	8-97253-577-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: D = 8-97351-572-1	8-98230-330-0	01	1	1209-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97115-044-0	8-97128-038-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-148-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97115-044-0	8-97128-037-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-135-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-97351-572-1	8-97351-706-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97115-044-0	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-134-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97115-044-0	8-97128-036-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-97351-572-1	8-97148-113-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-149-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-97115-044-0	5-81229-106-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97145-328-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97115-044-0	8-97128-048-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-140-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97351-572-1	8-97192-850-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97115-044-0	1-81229-419-0	03	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-97351-572-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-143-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-97115-044-0	1-81229-406-0	03	1	-
36	SCREW; FRT COVER ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-136-0	01	1	-
56	BRUSH ASM; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-145-0	02	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97115-044-0	8-97128-033-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97176-981-0	8-97178-146-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97183-882-0	8-97183-848-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97351-572-1	8-97351-707-0	01	1	-
110	BOLT; THROUGH ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-147-0	01	1	-

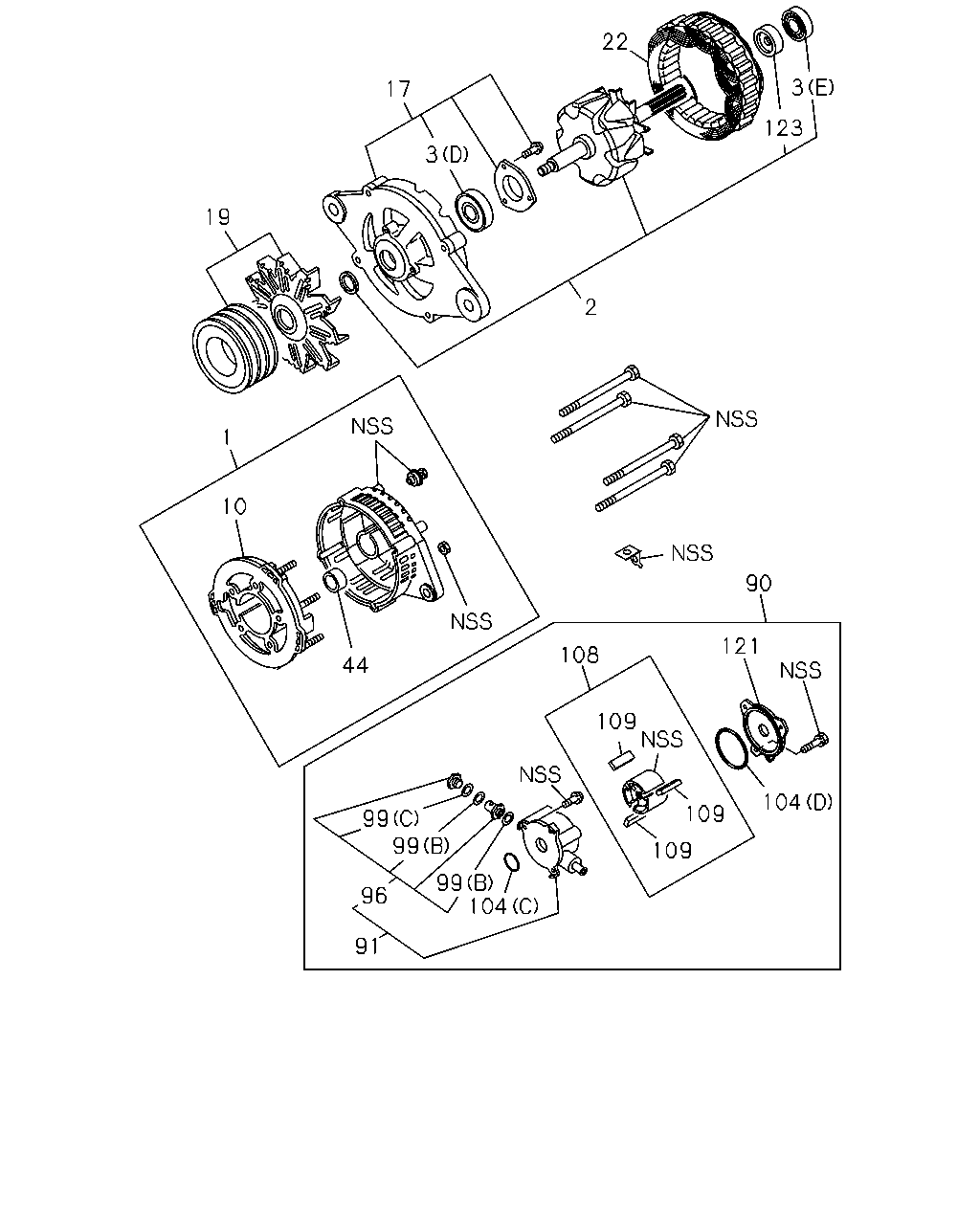

22 3 17 123 3 19 2 1 10 90 121 108 44 109 104 109 99 99 109 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-141-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-97351-572-1	8-97253-370-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: D = 8-97351-572-1	8-98230-320-0	01	1	1209-
2	ROTOR; GEN ASM PART: A = 8-97115-044-0	8-97128-039-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-138-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97351-572-1	8-97351-705-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 8-97115-044-0	1-81229-466-1	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-97351-572-1	8-97062-744-0	01	1	1209-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-137-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-139-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-97351-572-1	8-97248-128-0	01	1	-1208
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-97351-572-1	8-98159-457-0	01	1	-
10	RECTIFIER; GEN LOWER ASM PART: A = 8-97115-044-0	8-97128-042-0	01	1	-
10	RECTIFIER; GEN UPPER ASM PART: A = 8-97115-044-0	8-97128-043-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-142-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97351-572-1	8-97253-577-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: D = 8-97351-572-1	8-98230-330-0	01	1	1209-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97115-044-0	8-97128-037-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-135-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-97351-572-1	8-97351-706-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97115-044-0	8-97128-036-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-97351-572-1	8-97148-113-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-149-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97115-044-0	8-97128-048-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-140-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97351-572-1	8-97192-850-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: D = 8-97351-572-1	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97115-044-0	8-97128-033-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97176-981-0	8-97178-146-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97183-882-0	8-97183-848-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97351-572-1	8-97351-707-0	01	1	-
91	BODY; VAC PUMP ASM PART: D = 8-97351-572-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: D = 8-97351-572-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (B), ID=18 OD=24 ASM PART: D = 8-97351-572-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (C), ID=12 OD=24 ASM PART: D = 8-97351-572-1	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (A) ASM PART: A = 8-97115-044-0	9-88130-126-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97115-044-0	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: D = 8-97351-572-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97115-044-0	8-94456-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (D) ASM PART: D = 8-97351-572-1	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: D = 8-97351-572-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: D = 8-97351-572-1	8-97083-298-0	03	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97115-044-0	8-97128-034-0	04	1	-
121	COVER; RR,VAC PUMP ASM PART: D = 8-97351-572-1	8-97148-116-0	01	1	-
123	GUIDE; BRUSH ASM PART: D = 8-97351-572-1	8-97062-644-0	01	1	-

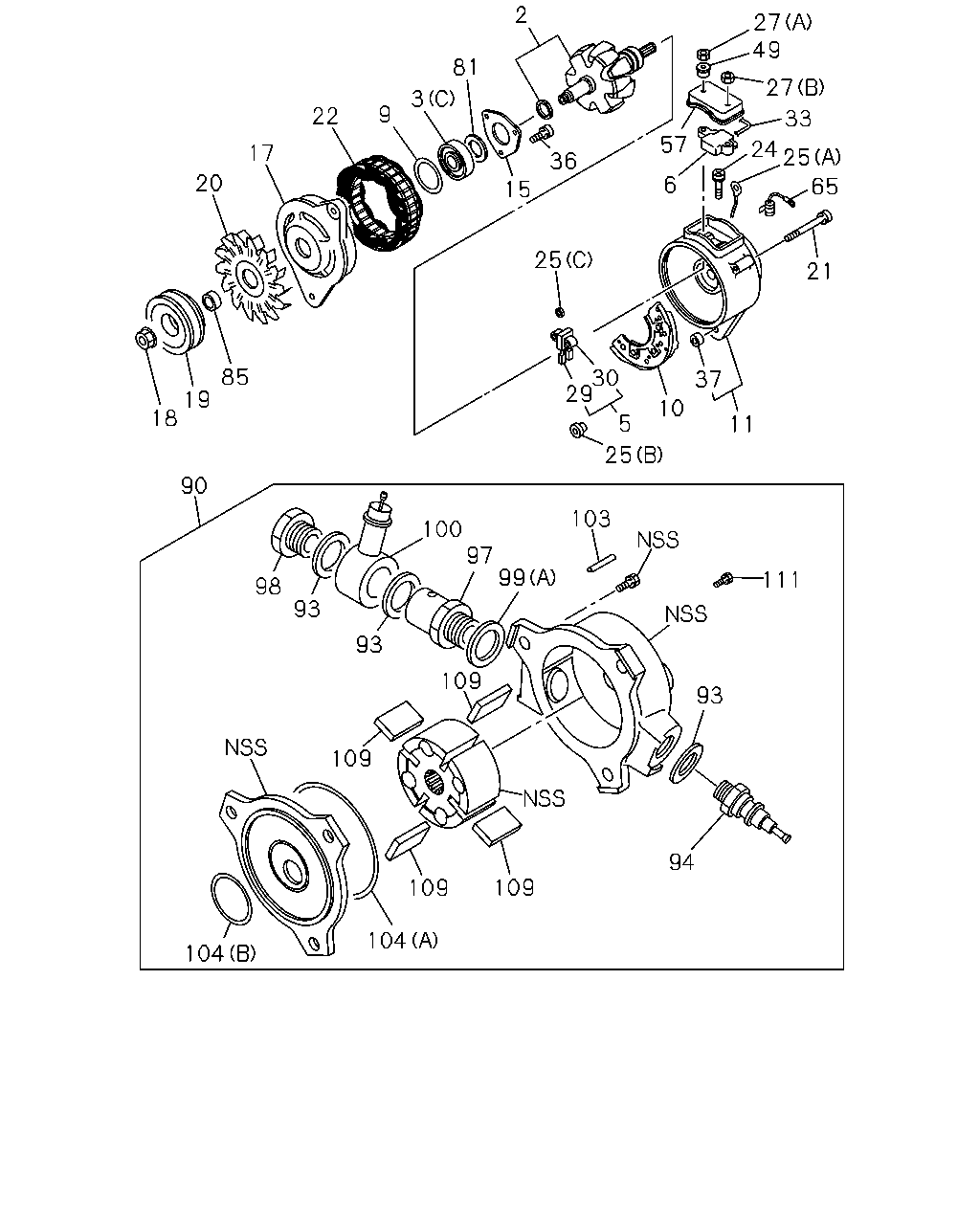

2 27 49 81 27 3 9 22 33 57 24 25 17 36 20 6 65 15 25 21 85 30 29 37 19 18 10 5 11 25 90 103 100 97 99 111 98 93 93 109 93 109 94 109 109 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN ASM PART: A = 8-97115-044-0	8-97128-039-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-138-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97351-572-1	8-97351-705-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 8-97115-044-0	1-81229-466-1	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-97351-572-1	8-97062-744-0	01	1	1209-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-137-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-139-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-97351-572-1	8-97248-128-0	01	1	-1208
3	BEARING; ROTOR,GEN (D) ASM PART: D = 8-97351-572-1	8-98159-457-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97115-044-0	8-97128-045-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97115-044-0	8-97128-032-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-144-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-97115-044-0	1-81214-102-0	01	1	-
10	RECTIFIER; GEN LOWER ASM PART: A = 8-97115-044-0	8-97128-042-0	01	1	-
10	RECTIFIER; GEN UPPER ASM PART: A = 8-97115-044-0	8-97128-043-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-142-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97351-572-1	8-97253-577-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: D = 8-97351-572-1	8-98230-330-0	01	1	1209-
11	COVER; RR,GEN ASM PART: A = 8-97115-044-0	8-97128-040-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97115-044-0	8-97128-038-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-148-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97115-044-0	8-97128-037-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-135-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-97351-572-1	8-97351-706-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97115-044-0	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-134-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97115-044-0	8-97128-036-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-97351-572-1	8-97148-113-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-149-0	01	1	-
20	FAN; GEN ASM PART: A = 8-97115-044-0	1-81223-008-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-97115-044-0	5-81229-106-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97145-328-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97115-044-0	8-97128-048-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-140-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97351-572-1	8-97192-850-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97115-044-0	1-81229-419-0	03	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-97351-572-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-143-0	01	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: A = 8-97115-044-0	1-81229-410-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B) LOWER ASM PART: A = 8-97115-044-0	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (B) UPPER ASM PART: A = 8-97115-044-0	5-81229-105-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C) ASM PART: A = 8-97115-044-0	8-97128-044-0	01	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 8-97115-044-0	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 8-97115-044-0	8-94206-188-0	06	1	-
29	BRUSH; GEN ASM PART: A = 8-97115-044-0	8-97128-046-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-97115-044-0	5-81216-002-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-97115-044-0	8-97128-049-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-97115-044-0	1-81229-406-0	03	1	-
36	SCREW; FRT COVER ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-136-0	01	1	-
37	BUSHING; RR COVER,GEN ASM PART: A = 8-97115-044-0	8-97128-041-0	01	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: A = 8-97115-044-0	1-81229-413-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 8-97115-044-0	8-97128-047-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-97115-044-0	8-97128-050-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 8-97115-044-0	1-81229-403-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 8-97115-044-0	1-81229-415-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97115-044-0	8-97128-033-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97176-981-0	8-97178-146-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97183-882-0	8-97183-848-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97351-572-1	8-97351-707-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: A = 8-97115-044-0	9-88130-081-0	03	1	-
94	CONNECTOR; VAC PUMP ASM PART: A = 8-97115-044-0	8-97128-031-0	01	1	-
97	VALVE; VAC PUMP ASM PART: A = 8-97115-044-0	8-94456-612-0	01	1	-
98	BOLT; VAC PUMP ASM PART: A = 8-97115-044-0	5-09000-134-0	01	1	-
99	GASKET; VAC PUMP (B), ID=18 OD=24 ASM PART: D = 8-97351-572-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (C), ID=12 OD=24 ASM PART: D = 8-97351-572-1	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (A) ASM PART: A = 8-97115-044-0	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97115-044-0	8-97128-030-0	01	1	-
103	PIN; VAC PUMP ASM PART: A = 8-97115-044-0	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97115-044-0	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: D = 8-97351-572-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97115-044-0	8-94456-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (D) ASM PART: D = 8-97351-572-1	8-97083-304-0	01	1	-
109	VANE; VAC PUMP ASM PART: D = 8-97351-572-1	8-97083-298-0	03	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97115-044-0	8-97128-034-0	04	1	-
111	BOLT; VAC PUMP ASM PART: A = 8-97115-044-0	8-94456-611-0	03	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97115-044-0	1-81229-419-0	03	1	-
24	SCREW; RECTIFIER,GEN ASM PART: D = 8-97351-572-1	8-97131-532-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97176-981-0, C = 8-97183-882-0	8-97178-143-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
