Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#73426) — 443 parça

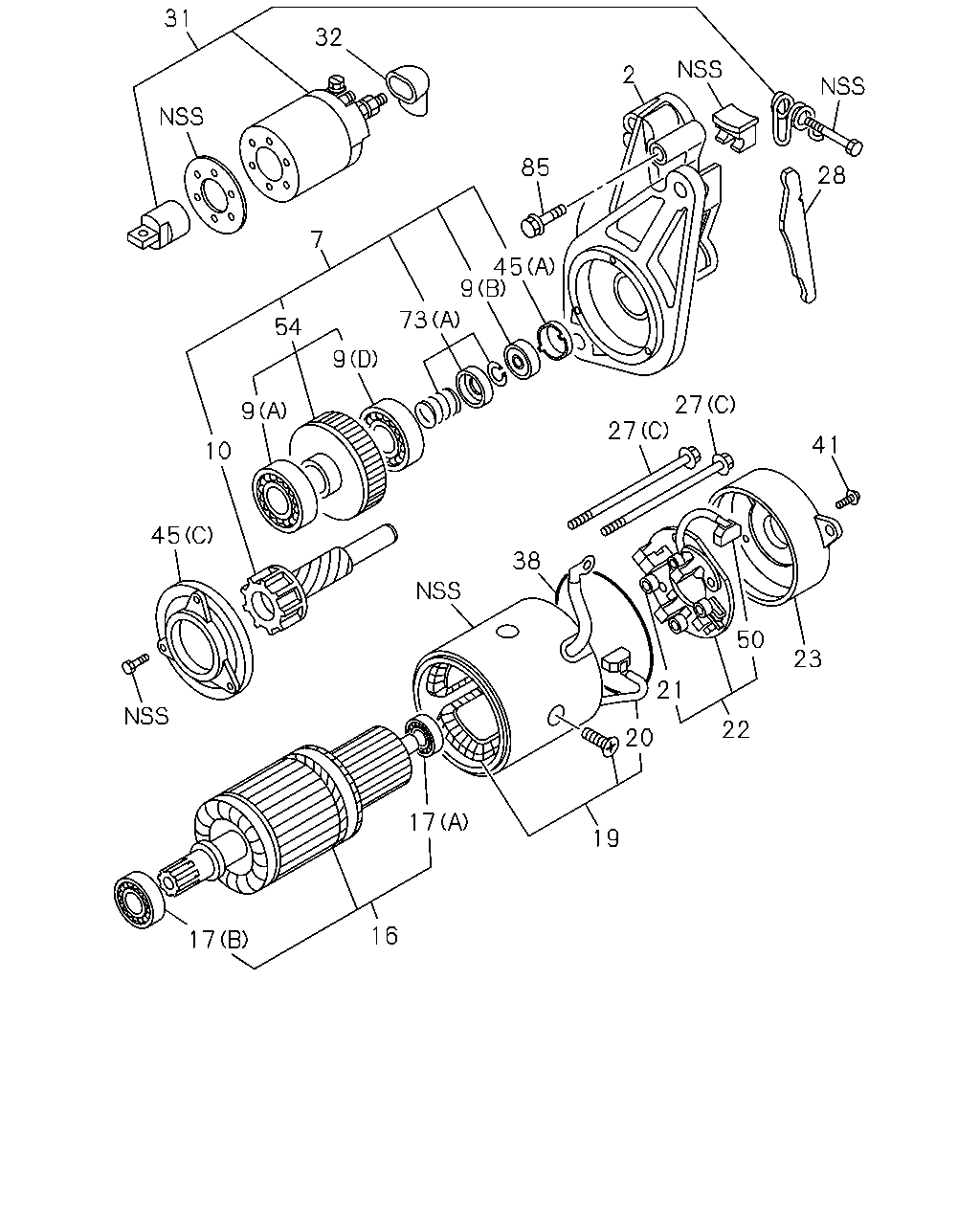

28 32 31 2 85 7 45 9 73 54 9 9 10 27 27 41 7 73 45 55 50 23 21 22 38 20 14 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97030-400-0	01	1	-0309
2	CASE; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-150-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-98222-019-0	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97329-348-0	01	1	0310-
2	CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-786-1	01	1	-
2	CASE; PINION,STARTER ASM PART: I = 8-98245-259-1	8-98251-559-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97115-815-0	01	1	-9908
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97100-926-2	8-97115-815-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-151-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97230-564-0	01	1	-1008
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97226-787-1	8-97230-564-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97232-475-0	01	1	9909-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-98159-731-0	01	1	1009-
7	CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-100-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-104-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (D) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: E = 8-97323-935-4	8-97025-676-0	01	1	-1008
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-97025-676-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-481-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-97030-395-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97176-980-0	8-97178-152-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-98159-734-0	01	1	1009-
10	SHAFT; GEAR STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-734-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: E = 8-97323-935-4	8-97377-691-0	01	1	0406-
14	GASKET; YOKE,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-97377-691-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97176-980-0	8-97116-508-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-491-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97100-926-2	8-97078-461-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-97216-186-1	8-97217-567-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-97226-787-1	8-97230-558-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97323-935-4	8-97230-558-0	01	1	-0405
19	COIL; FIELD,STARTER ASM PART: E = 8-97323-935-4	8-97377-688-0	01	1	0406-
19	COIL; FIELD,STARTER ASM PART: H = 8-98222-019-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-295-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: I = 8-98245-259-1	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-462-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-560-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97176-980-0	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97176-980-0	8-97116-511-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97176-980-0	8-97178-159-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97216-186-1	8-97217-568-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-98055-279-1	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-97227-901-0	01	1	-1306
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97230-561-0	01	1	-0405
23	COVER; RR COVER STARTER ASM PART: D = 8-97226-787-1	8-97230-561-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: H = 8-98222-019-0	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97377-689-0	01	1	0406-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-98246-185-0	01	1	1307-
23	COVER; RR COVER STARTER ASM PART: I = 8-98245-259-1	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97176-980-0	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97176-980-0	8-97116-514-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-97030-402-0	01	1	-0912
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97176-980-0	8-97178-155-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-776-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-98159-690-0	01	1	1001-
28	LEVER; SHIFT,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-690-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: F = 8-98055-279-1	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97176-980-0	8-97178-157-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-98245-259-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-98322-549-0	01	1	1508-
32	COVER; RUBBER,STARTER ASM PART: A = 8-97100-926-2, F = 8-98055-279-1, G = 8-98222-018-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: I = 8-98245-259-1	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97115-763-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: E = 8-97323-935-4	8-94435-567-0	01	1	-1008
45	RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: I = 8-98245-259-1	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-464-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-563-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: F = 8-98055-279-1	8-98055-296-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: G = 8-98222-018-2	8-98055-297-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-154-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-101-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-106-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97100-926-2	8-97030-397-0	01	1	-
55	PINION; CLU,STARTER ASM PART: C = 8-97216-186-1	8-97030-397-0	01	1	-9908
55	PINION; CLU,STARTER ASM PART: B = 8-97176-980-0	8-97178-156-0	01	1	-
55	PINION; CLU,STARTER ASM PART: D = 8-97226-787-1	8-97230-569-0	01	1	-
55	PINION; CLU,STARTER ASM PART: E = 8-97323-935-4	8-97230-569-0	01	1	-1008
55	PINION; CLU,STARTER ASM PART: C = 8-97216-186-1	8-97232-458-0	01	1	9909-
73	STOPPER SET; PINION (C) ASM PART: B = 8-97176-980-0	8-94475-688-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: E = 8-97323-935-4	8-97030-396-0	01	1	-1008
73	STOPPER SET; PINION (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-398-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: E = 8-97323-935-4	8-97030-398-0	01	1	-1008
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94408-500-0	02	1	-

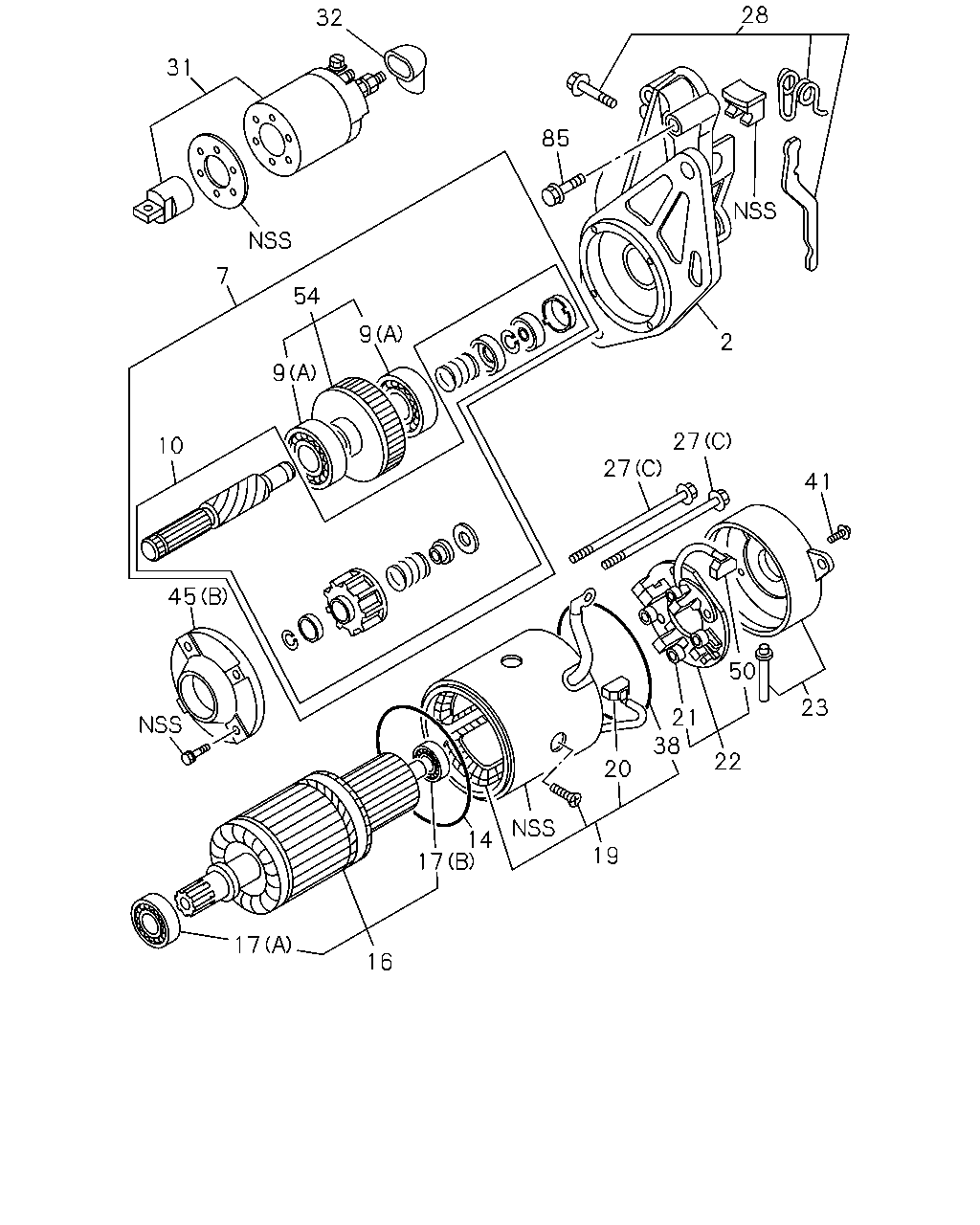

28 32 31 85 7 54 9 2 9 27 10 27 41 45 50 23 21 38 22 20 14 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97030-400-0	01	1	-0309
2	CASE; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-150-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-98222-019-0	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97329-348-0	01	1	0310-
2	CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-786-1	01	1	-
2	CASE; PINION,STARTER ASM PART: I = 8-98245-259-1	8-98251-559-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97115-815-0	01	1	-9908
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97100-926-2	8-97115-815-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-151-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97230-564-0	01	1	-1008
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97226-787-1	8-97230-564-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97232-475-0	01	1	9909-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-98159-731-0	01	1	1009-
7	CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-100-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-104-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (D) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: E = 8-97323-935-4	8-97025-676-0	01	1	-1008
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-97025-676-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-481-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-97030-395-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97176-980-0	8-97178-152-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-98159-734-0	01	1	1009-
10	SHAFT; GEAR STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-734-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: E = 8-97323-935-4	8-97377-691-0	01	1	0406-
14	GASKET; YOKE,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-97377-691-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97176-980-0	8-97116-508-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-491-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97100-926-2	8-97078-461-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-97216-186-1	8-97217-567-0	01	1	-

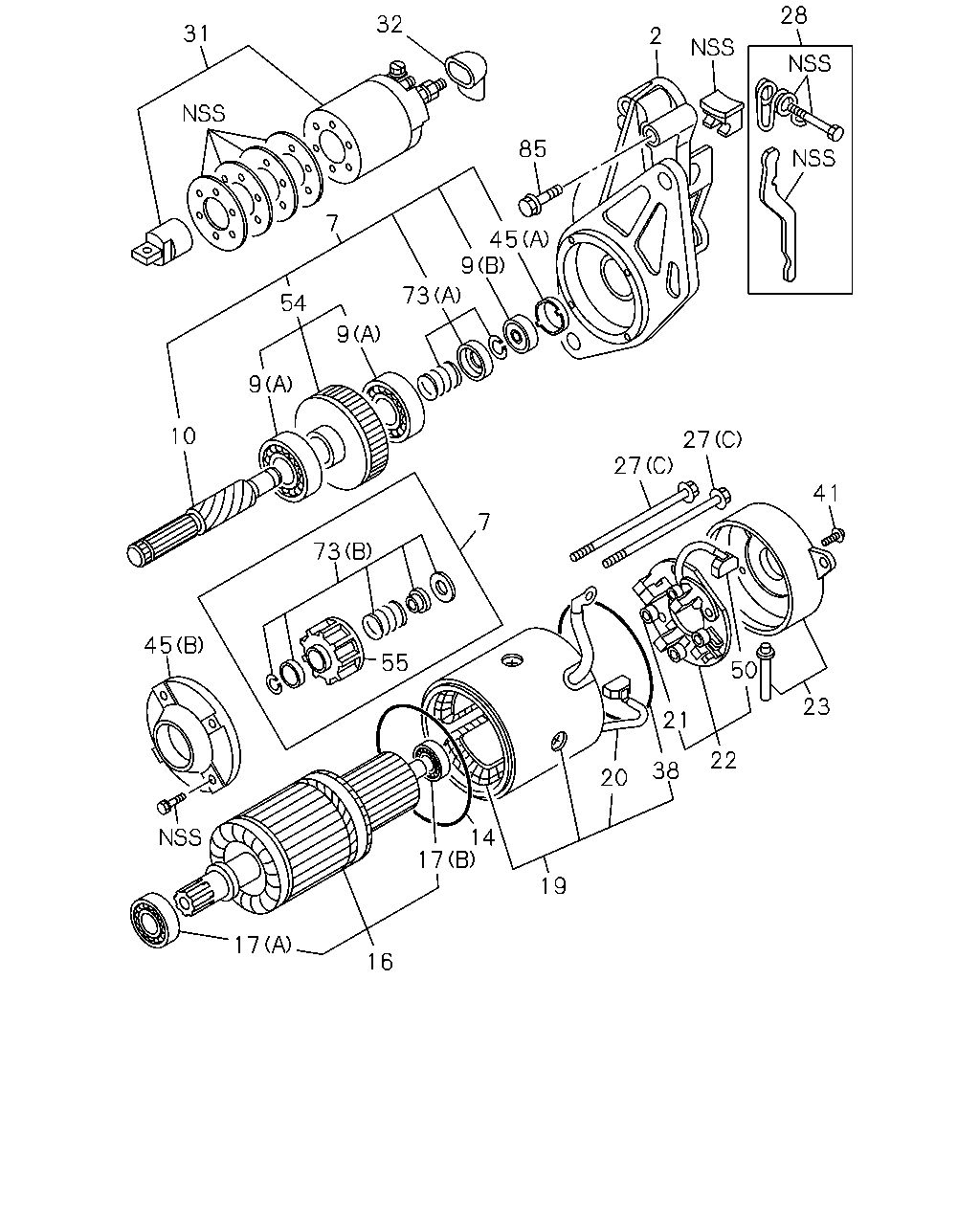

19	COIL; FIELD,STARTER ASM PART: D = 8-97226-787-1	8-97230-558-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97323-935-4	8-97230-558-0	01	1	-0405
19	COIL; FIELD,STARTER ASM PART: E = 8-97323-935-4	8-97377-688-0	01	1	0406-
19	COIL; FIELD,STARTER ASM PART: H = 8-98222-019-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-295-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: I = 8-98245-259-1	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-462-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-560-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97176-980-0	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97176-980-0	8-97116-511-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97176-980-0	8-97178-159-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97216-186-1	8-97217-568-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-98055-279-1	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-97227-901-0	01	1	-1306
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97230-561-0	01	1	-0405
23	COVER; RR COVER STARTER ASM PART: D = 8-97226-787-1	8-97230-561-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: H = 8-98222-019-0	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97377-689-0	01	1	0406-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-98246-185-0	01	1	1307-
23	COVER; RR COVER STARTER ASM PART: I = 8-98245-259-1	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97176-980-0	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97176-980-0	8-97116-514-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-97030-402-0	01	1	-0912
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97176-980-0	8-97178-155-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-776-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-98159-690-0	01	1	1001-
28	LEVER; SHIFT,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-690-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: F = 8-98055-279-1	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97176-980-0	8-97178-157-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-98245-259-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-98322-549-0	01	1	1508-
32	COVER; RUBBER,STARTER ASM PART: A = 8-97100-926-2, F = 8-98055-279-1, G = 8-98222-018-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: I = 8-98245-259-1	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97115-763-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: E = 8-97323-935-4	8-94435-567-0	01	1	-1008
45	RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: I = 8-98245-259-1	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-464-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-563-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: F = 8-98055-279-1	8-98055-296-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: G = 8-98222-018-2	8-98055-297-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-154-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-101-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-106-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94408-500-0	02	1	-

31 28 11 7 2 9 54 27 55 13 106 95 73 18 46 10 27 27 27 27 8 23 21 17 48 22 16

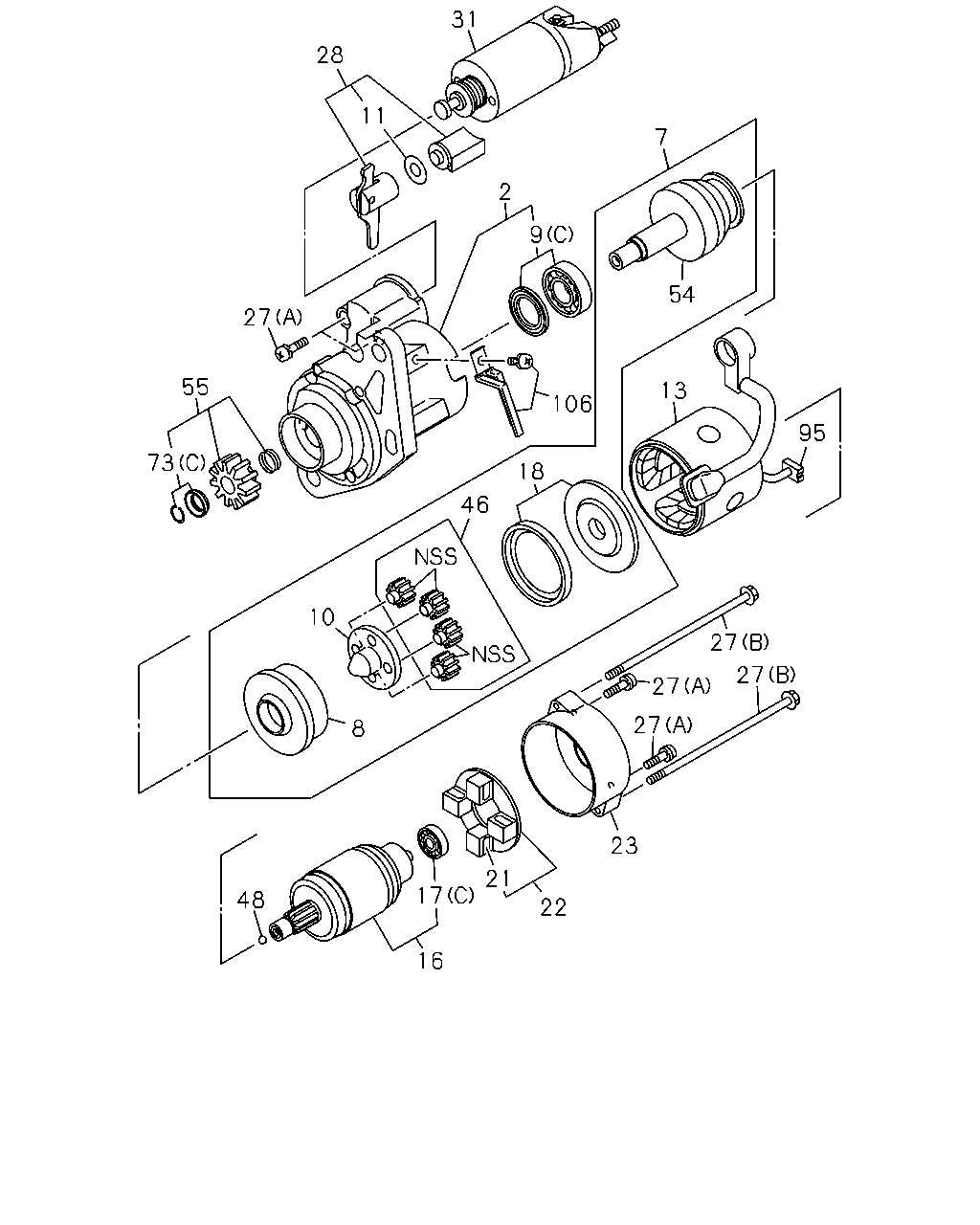

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97030-400-0	01	1	-0309
2	CASE; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-150-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-98222-019-0	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97329-348-0	01	1	0310-
2	CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-786-1	01	1	-
2	CASE; PINION,STARTER ASM PART: I = 8-98245-259-1	8-98251-559-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97115-815-0	01	1	-9908
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97100-926-2	8-97115-815-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-151-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97230-564-0	01	1	-1008
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97226-787-1	8-97230-564-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97232-475-0	01	1	9909-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-98159-731-0	01	1	1009-
7	CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-100-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-104-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: B = 8-97176-980-0	8-97178-153-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (D) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: E = 8-97323-935-4	8-97025-676-0	01	1	-1008
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-97025-676-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-481-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-97030-395-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97176-980-0	8-97178-152-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-98159-734-0	01	1	1009-
10	SHAFT; GEAR STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-734-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: B = 8-97176-980-0	8-97116-484-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97176-980-0	8-97178-158-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97176-980-0	8-97116-508-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-491-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: B = 8-97176-980-0	8-97116-489-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97176-980-0	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97176-980-0	8-97116-511-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97176-980-0	8-97178-159-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97216-186-1	8-97217-568-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-98055-279-1	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-97227-901-0	01	1	-1306
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97230-561-0	01	1	-0405
23	COVER; RR COVER STARTER ASM PART: D = 8-97226-787-1	8-97230-561-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: H = 8-98222-019-0	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97377-689-0	01	1	0406-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-98246-185-0	01	1	1307-
23	COVER; RR COVER STARTER ASM PART: I = 8-98245-259-1	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97176-980-0	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97176-980-0	8-97116-514-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-97030-402-0	01	1	-0912
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97176-980-0	8-97178-155-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-776-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-98159-690-0	01	1	1001-
28	LEVER; SHIFT,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-690-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: F = 8-98055-279-1	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97176-980-0	8-97178-157-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-98245-259-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-98322-549-0	01	1	1508-
46	GEAR; CLU STARTER ASM PART: B = 8-97176-980-0	8-97116-490-0	04	1	-
48	BALL; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-154-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-101-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-106-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97100-926-2	8-97030-397-0	01	1	-
55	PINION; CLU,STARTER ASM PART: C = 8-97216-186-1	8-97030-397-0	01	1	-9908
55	PINION; CLU,STARTER ASM PART: B = 8-97176-980-0	8-97178-156-0	01	1	-
55	PINION; CLU,STARTER ASM PART: D = 8-97226-787-1	8-97230-569-0	01	1	-
55	PINION; CLU,STARTER ASM PART: E = 8-97323-935-4	8-97230-569-0	01	1	-1008
55	PINION; CLU,STARTER ASM PART: C = 8-97216-186-1	8-97232-458-0	01	1	9909-
73	STOPPER SET; PINION (C) ASM PART: B = 8-97176-980-0	8-94475-688-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: E = 8-97323-935-4	8-97030-396-0	01	1	-1008
73	STOPPER SET; PINION (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-398-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: E = 8-97323-935-4	8-97030-398-0	01	1	-1008
95	BRUSH ASM; STARTER ASM PART: B = 8-97176-980-0	8-97116-510-0	02	1	-
106	CLAMP; ENGAGE SW ASM PART: B = 8-97176-980-0	8-97178-160-0	01	1	-

31 32 2 85 28 7 45 9 73 54 9 27 27 9 41 10 45 38 50 23 21 22 20 17 19 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-400-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97030-400-0	01	1	-0309
2	CASE; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-150-0	01	1	-
2	CASE; PINION,STARTER ASM PART: H = 8-98222-019-0	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97329-348-0	01	1	0310-
2	CASE; PINION,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-786-1	01	1	-
2	CASE; PINION,STARTER ASM PART: I = 8-98245-259-1	8-98251-559-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97115-815-0	01	1	-9908
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97100-926-2	8-97115-815-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-151-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-770-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-97230-564-0	01	1	-1008
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97226-787-1	8-97230-564-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97216-186-1	8-97232-475-0	01	1	9909-
7	CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97323-935-4	8-98159-731-0	01	1	1009-
7	CLUTCH ASM; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-100-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-104-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (D) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: E = 8-97323-935-4	8-97025-676-0	01	1	-1008
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-97025-676-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-481-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-97030-395-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-395-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97176-980-0	8-97178-152-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: E = 8-97323-935-4	8-98159-734-0	01	1	1009-
10	SHAFT; GEAR STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-734-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97025-667-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97176-980-0	8-97116-508-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81129-113-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 8-97176-980-0	8-97116-491-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97100-926-2	8-97078-461-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-97216-186-1	8-97217-567-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-97226-787-1	8-97230-558-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: E = 8-97323-935-4	8-97230-558-0	01	1	-0405
19	COIL; FIELD,STARTER ASM PART: E = 8-97323-935-4	8-97377-688-0	01	1	0406-
19	COIL; FIELD,STARTER ASM PART: H = 8-98222-019-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-295-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: I = 8-98245-259-1	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-462-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-560-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	5-81117-012-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97176-980-0	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-463-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97176-980-0	8-97116-511-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97100-926-2	8-97030-390-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97176-980-0	8-97178-159-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97216-186-1	8-97217-568-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-98055-279-1	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-97227-901-0	01	1	-1306
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97230-561-0	01	1	-0405
23	COVER; RR COVER STARTER ASM PART: D = 8-97226-787-1	8-97230-561-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: H = 8-98222-019-0	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: E = 8-97323-935-4	8-97377-689-0	01	1	0406-
23	COVER; RR COVER STARTER ASM PART: G = 8-98222-018-2	8-98246-185-0	01	1	1307-
23	COVER; RR COVER STARTER ASM PART: I = 8-98245-259-1	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97030-404-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97176-980-0	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97176-980-0	8-97116-514-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-97030-402-0	01	1	-0912
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-402-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97176-980-0	8-97178-155-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-776-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: E = 8-97323-935-4	8-98159-690-0	01	1	1001-
28	LEVER; SHIFT,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98159-690-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97100-926-2	8-97065-602-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: F = 8-98055-279-1	8-97161-789-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97176-980-0	8-97178-157-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: I = 8-98245-259-1	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-98222-018-2	8-98322-549-0	01	1	1508-
32	COVER; RUBBER,STARTER ASM PART: A = 8-97100-926-2, F = 8-98055-279-1, G = 8-98222-018-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: I = 8-98245-259-1	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97115-763-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A) ASM PART: E = 8-97323-935-4	8-94435-567-0	01	1	-1008
45	RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: I = 8-98245-259-1	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1	8-97078-464-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-97226-787-1, E = 8-97323-935-4, H = 8-98222-019-0, I = 8-98245-259-1	8-97230-563-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: F = 8-98055-279-1	8-98055-296-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: G = 8-98222-018-2	8-98055-297-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97176-980-0	8-97178-154-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: F = 8-98055-279-1	8-97179-771-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-98222-018-2	8-98222-101-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-98222-106-0	01	1	-
73	STOPPER SET; PINION (C) ASM PART: B = 8-97176-980-0	8-94475-688-0	01	1	-
73	STOPPER SET; PINION (A) ASM PART: E = 8-97323-935-4	8-97030-396-0	01	1	-1008
73	STOPPER SET; PINION (A) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, F = 8-98055-279-1, G = 8-98222-018-2	8-97030-396-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-398-0	01	1	-
73	STOPPER SET; PINION (B) ASM PART: E = 8-97323-935-4	8-97030-398-0	01	1	-1008
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1, E = 8-97323-935-4, F = 8-98055-279-1, G = 8-98222-018-2, H = 8-98222-019-0, I = 8-98245-259-1	8-94408-500-0	02	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

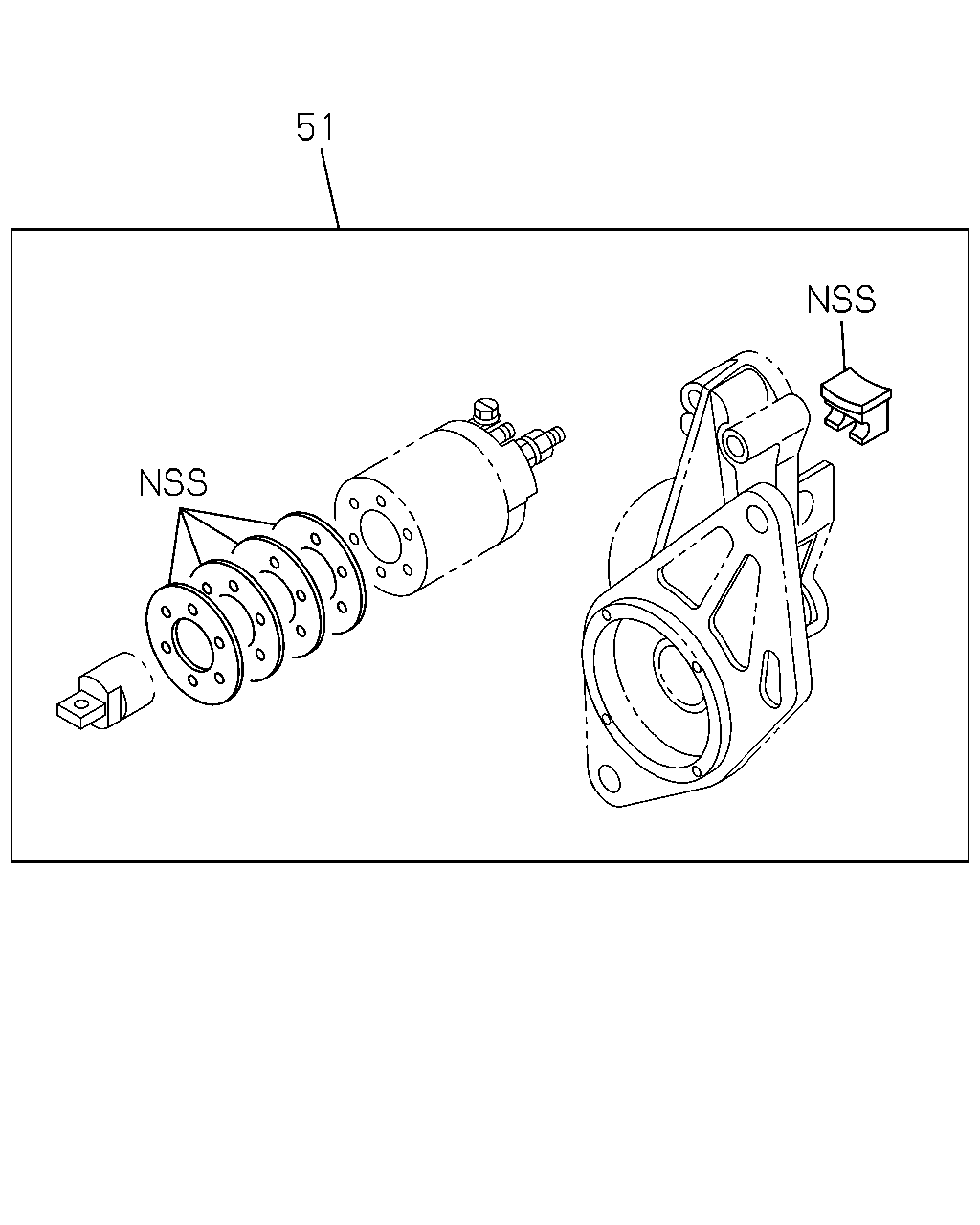

51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-403-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97323-935-4	8-97030-403-0	01	1	-0405
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97323-935-4	8-97377-690-0	01	1	0406-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-97377-690-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-403-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97323-935-4	8-97030-403-0	01	1	-0405
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97323-935-4	8-97377-690-0	01	1	0406-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-97377-690-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97100-926-2, C = 8-97216-186-1, D = 8-97226-787-1	8-97030-403-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97323-935-4	8-97030-403-0	01	1	-0405
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: F = 8-98055-279-1, G = 8-98222-018-2	8-97179-778-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: E = 8-97323-935-4	8-97377-690-0	01	1	0406-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: H = 8-98222-019-0, I = 8-98245-259-1	8-97377-690-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
