0-60 — ENGINE ELECTRICAL CONTROL PARTS (#73424) — 101 parça

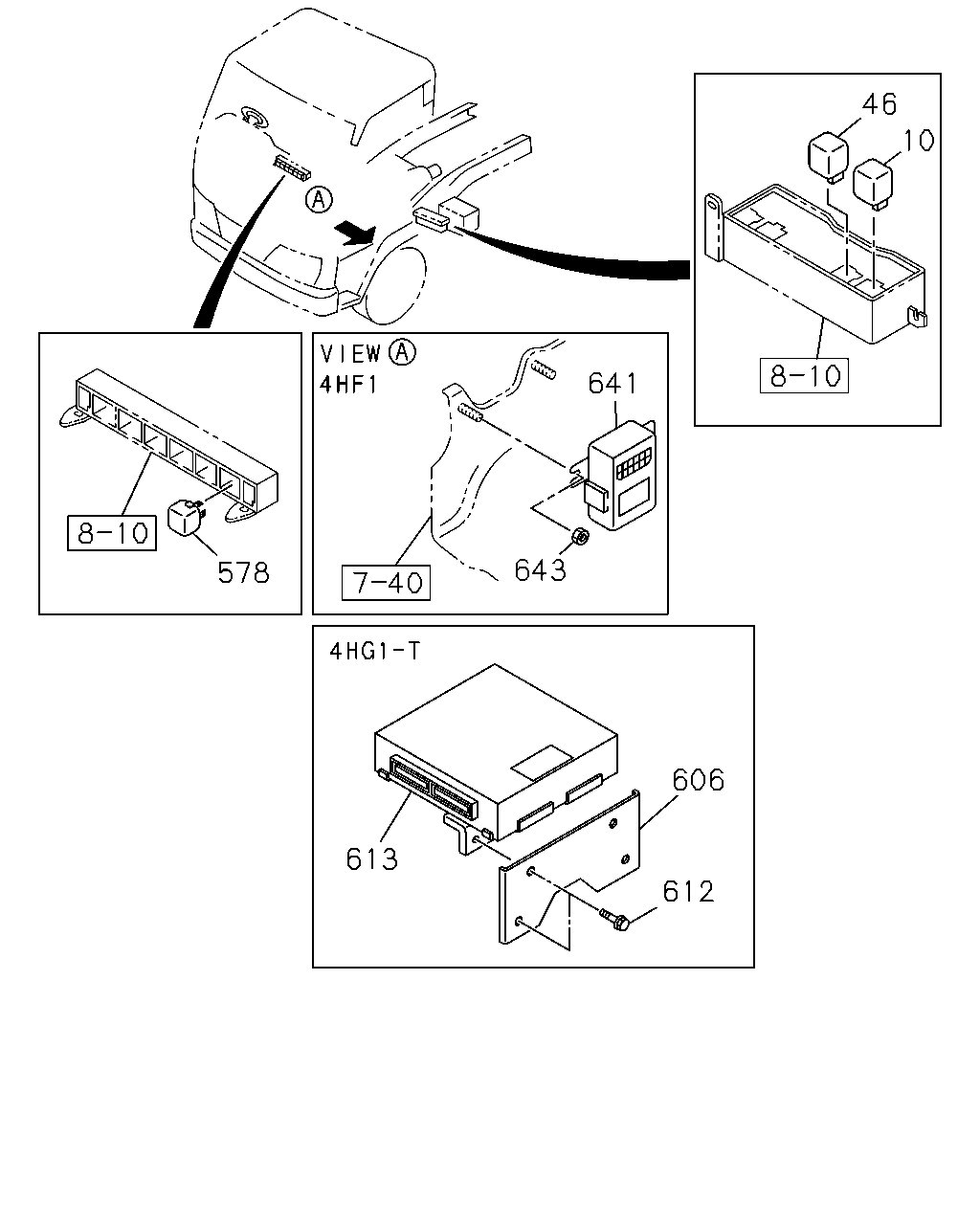

46 10 641 643 578 606 613 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER	8-97036-359-1	01	1	9704-9704	●
10	RELAY; STARTER 24V 50A	8-97173-947-0	01	1	9705-	●
46	RELAY; GLOW PLUG	8-97036-359-1	01	1	9704-9704	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	9705-	●
578	RELAY; CHARGE WARNING	8-97063-440-2	01	1	9704-	●
578	RELAY; CHARGE WARNING 24V 10A PANASONIC	8-97173-035-1	01	1	1112-		●
606	BRACKET; CONT UNIT	8-97187-422-1	01	1	1112-		●
612	BOLT; BRKT M8X20	1-09981-468-0	01	1	9704-1111	●
612	BOLT; BRKT M8X20	1-09981-468-0	01	1	1112-	●	●
612	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	1112-		●
613	CONTROL UNIT; ENG	8-97187-466-7	01	1	1112-		●
641	TIMER; QOS	8-97047-028-0	01	1	9704-9809	●
641	TIMER; QOS	8-97215-648-0	01	1	9810-0301	●
641	TIMER; QOS	8-97361-318-0	01	1	0302-0307	●
641	TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97361-318-3	01	1	0308-	●
643	NUT; TIMER,QOS M6 FLANGE	0-91150-106-0	02	1	9704-0307	●
643	NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> M6 FLANGE	0-91150-106-0	02	1	0308-0602	●
643	NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> M6 FLANGE	0-91180-106-0	02	1	0603-	●

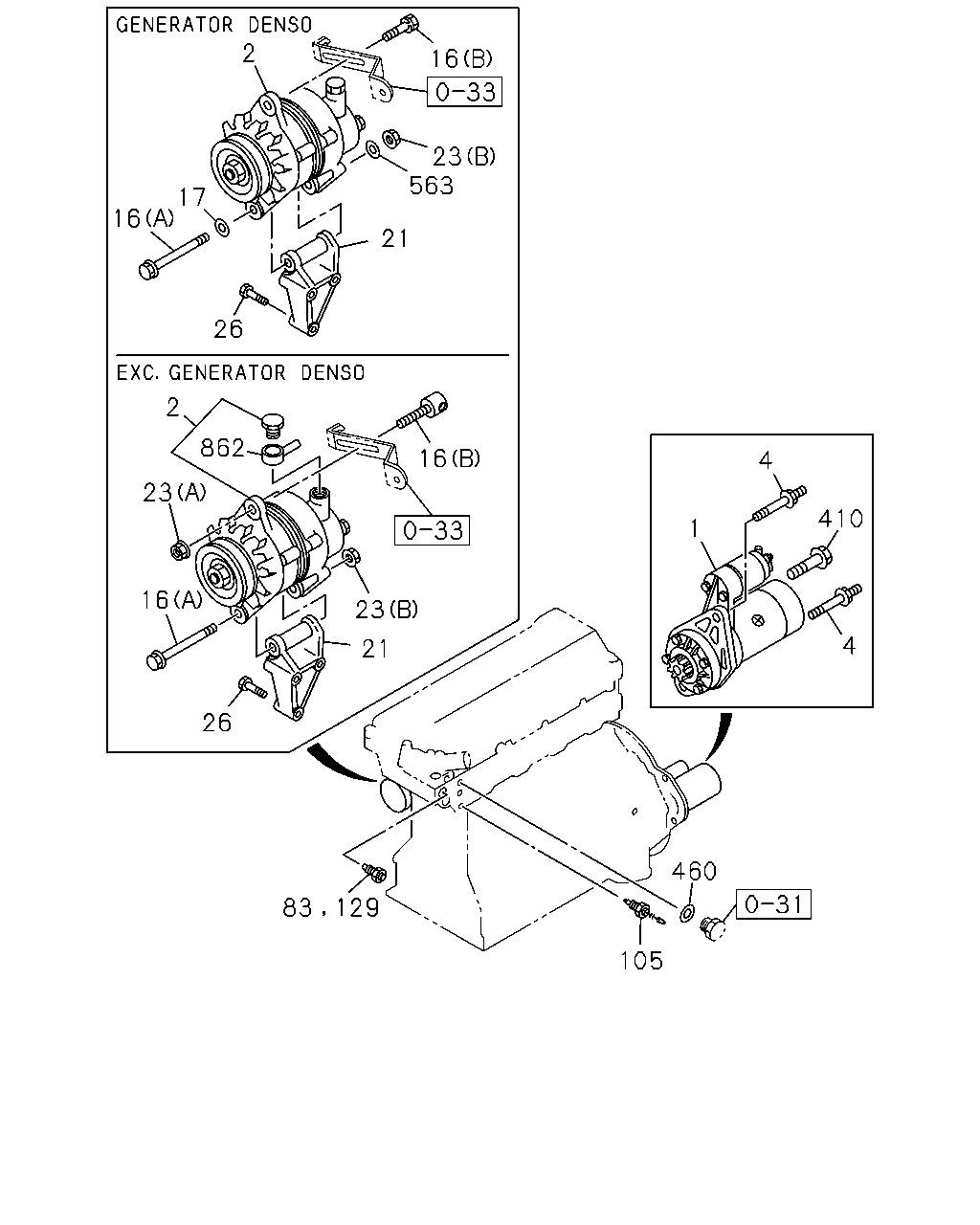

2 16 23 563 17 16 21 26 2 862 16 4 23 410 1 16 23 4 21 26 460 83 129 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-2	01	1	9704-9810	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97216-186-1	01	1	9811-0002	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97226-787-1	01	1	0003-0109	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-4	01	1	0110-1207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98222-019-0	01	1	1208-1311	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98245-259-1	01	1	1312-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW MITSUBISHI	8-97176-980-0	01	1	9704-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI	8-98055-279-1	01	1	1112-1207		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI	8-98222-018-2	01	1	1208-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A	8-97115-044-0	01	1	9704-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A	8-97176-981-0	01	1	9704-9706	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A	8-97183-882-0	01	1	9707-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A HITACHI	8-97351-572-1	01	1	1112-		●
4	BOLT; STARTER M10X15,M14X75 L=103	8-97072-825-1	02	1	9704-9808	●
4	BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	9809-1111	●
4	BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	1112-	●	●
16	BOLT; GEN GENERATOR DENSO(7KH) (A) M10X120 FLANGE	0-28086-012-0	01	1	9704-0512	●
16	BOLT; GEN GENERATOR DENSO(7KH) (A) M10X120 FLANGE	0-28056-012-0	01	1	0601-	●
16	BOLT; GEN GENERATOR DENSO(7KH) (B) M8X30 W/LK WASHER	0-50040-830-0	01	1	9704-0307	●
16	BOLT; GEN GENERATOR DENSO(7KH) (B) M8X35 FLANGE	0-28080-835-0	01	1	0308-0512	●
16	BOLT; GEN GENERATOR DENSO(7KH) (B) M8X35 FLANGE	0-28050-835-0	01	1	0601-	●
16	BOLT; GEN EXC. GENERATOR DENSO(7KH) (B) M8X40 W/WASHER	8-97011-792-4	01	1	9704-1111	●
16	BOLT; GEN EXC. GENERATOR DENSO(7KH) (B) M8X40 W/WASHER	8-97011-792-4	01	1	1112-	●	●
16	BOLT; GEN EXC. GENERATOR DENSO(7KH) (A) M10X133	8-97146-998-0	01	1	9704-1111	●
16	BOLT; GEN EXC. GENERATOR DENSO(7KH) (A) M10X133	8-97146-998-0	01	1	1112-	●	●
17	WASHER; PL,GEN GENERATOR DENSO(7KH) ID=10.5 OD=18	9-09160-510-0	01	1	9704-0307	●
17	WASHER; PL,GEN GENERATOR DENSO(7KH) ID=8.4 OD=18	9-09160-608-0	01	1	9704-0605	●
17	WASHER; PL,GEN GENERATOR DENSO(7KH) ID=8.4 OD=18	0-91610-608-0	01	1	0606-	●
21	BRACKET; GEN	8-97075-884-2	01	1	9704-1111	●
21	BRACKET; GEN	8-97075-884-2	01	1	1112-	●	●
23	NUT; GEN (B) M10 FLANGE	0-91150-210-0	01	1	9704-0602	●
23	NUT; GEN (B) M10 FLANGE	0-91180-210-0	01	1	0603-1111	●
23	NUT; GEN (B) M10 FLANGE	0-91180-210-0	01	1	1112-	●	●
23	NUT; GEN EXC. GENERATOR DENSO(7KH) (A) M8 FLANGE	0-91150-108-0	01	1	9704-0602	●
23	NUT; GEN EXC. GENERATOR DENSO(7KH) (A) M8 FLANGE	0-91180-108-0	01	1	0603-1111	●
23	NUT; GEN EXC. GENERATOR DENSO(7KH) (A) M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
26	BOLT; GEN BRKT M10X50 FLANGE	0-28181-050-0	01	1	9704-0512	●
26	BOLT; GEN BRKT M10X50 FLANGE	0-28151-050-0	01	1	0601-1111	●
26	BOLT; GEN BRKT M10X50 FLANGE	0-28151-050-0	01	1	1112-	●	●
26	BOLT; GEN BRKT M10X70 FLANGE	0-28181-070-0	02	1	9704-0512	●
26	BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	0601-1111	●
26	BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	1112-	●	●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9704-	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9704-	●
105	SWITCH; THERMO,QOS	8-94121-152-1	01	1	9704-	●
129	SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	1112-		●
129	SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT	8-98023-717-0	01	1	1112-		●
410	BOLT; BRKT,GRAND M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9704-0307	●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1112-		●
563	WASHER; SPRING GENERATOR DENSO(7KH) ID=10.2	9-09150-510-0	01	1	9704-0307	●
862	CONNECTOR; GEN	8-97351-626-0	01	1	1112-		●

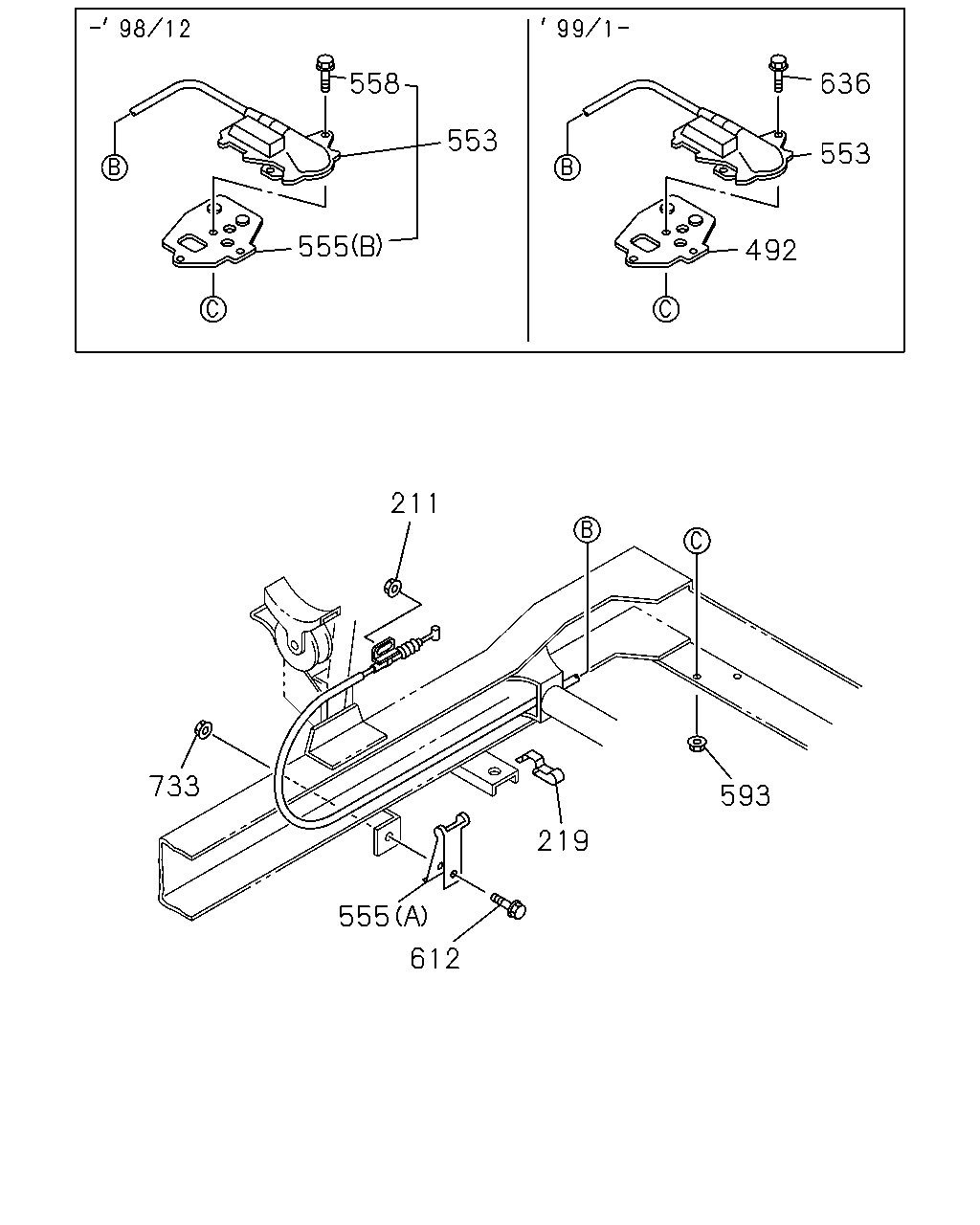

558 636 553 553 555 492 211 733 593 219 555 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
211	NUT; CABLE FIX M6 FLANGE	0-91150-106-0	01	1	9704-0602	●
211	NUT; CABLE FIX M6 FLANGE	0-91180-106-0	01	1	0603-1111	●
211	NUT; CABLE FIX M6 FLANGE	0-91180-106-0	01	1	1112-	●	●
219	CLIP; ENG STOP CABLE T=4.5 & 9	5-09709-023-0	01	1	9704-1111	●
219	CLIP; ENG STOP CABLE T=4.5 & 9	5-09709-023-0	01	1	1112-	●	●
219	CLIP; ENG STOP CABLE T=9 & 10.5	8-97041-091-0	01	1	9704-1111	●
219	CLIP; ENG STOP CABLE T=9 & 10.5	8-97041-091-0	01	1	1112-	●	●
492	BRACKET; ENG STOPPER	8-97113-497-1	01	1	9901-1111	●
492	BRACKET; ENG STOPPER	8-97113-497-1	01	1	1112-	●	●
553	MOTOR ASM; ENG STOP	8-97119-552-0	01	1	9704-9806	●
553	MOTOR ASM; ENG STOP	8-97189-550-0	01	1	9807-9812	●
553	MOTOR ASM; ENG STOP	8-97217-565-0	01	1	9901-9910	●
553	MOTOR ASM; ENG STOP	8-97231-001-0	01	1	9911-0004	●
553	MOTOR ASM; ENG STOP	8-97255-068-1	01	1	0005-1111	●
553	MOTOR ASM; ENG STOP	8-97255-068-1	01	1	1112-	●	●
555	BRACKET; ENG STOP (B)	8-97113-497-1	01	1	9704-9812	●
555	BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9704-1111	●
555	BRACKET; ENG STOP (A)	8-97119-039-2	01	1	1112-	●	●
558	SCREW; BRKT TO MOTOR M8X20 FLANGE	0-28680-820-0	02	1	9807-9812	●
593	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9704-0602	●
593	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0603-1111	●
593	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1112-	●	●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1112-		●
612	BOLT; BRKT M8X20	1-09981-468-0	01	1	9704-1111	●
612	BOLT; BRKT M8X20	1-09981-468-0	01	1	1112-	●	●
612	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	1112-		●
636	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9901-0512	●
636	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-1111	●
636	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1112-	●	●
733	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9704-0602	●
733	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-1111	●
733	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1112-	●	●
