◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#73423) — 26 parça

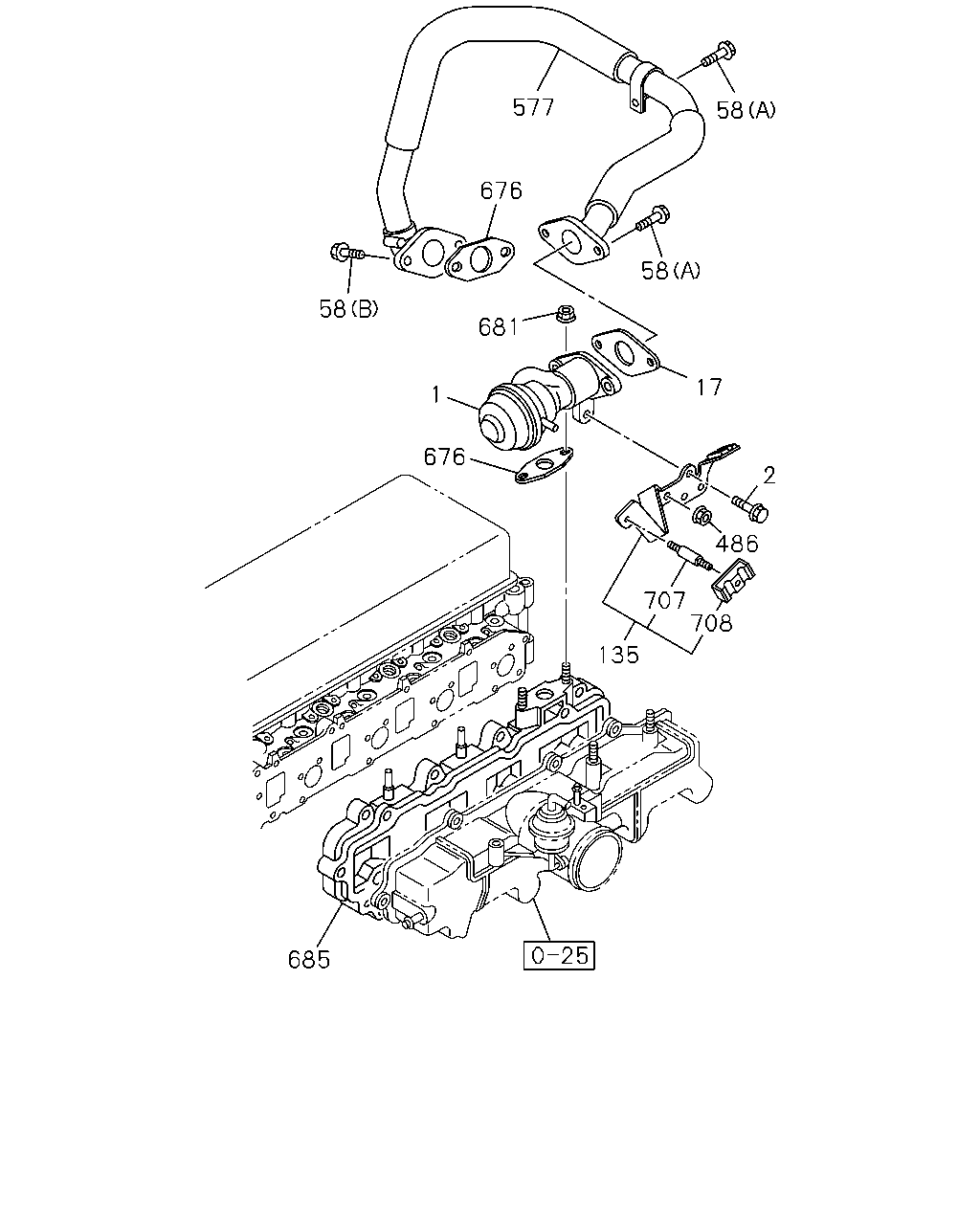

çizim 72579
577 58 676 58 58 681 17 1 676 2 486 707 708 135 685
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-97115-533-3 01 1 1112- ●
2 BOLT; EGR VLV
M8X20 FLANGE 		0-28650-820-0 01 1 1112- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97113-023-0 01 1 1112- ●
58 BOLT; PIPE
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1112- ●
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-97378-077-0 02 1 1112- ●
135 BRACKET; EGR 8-97221-358-1 01 1 1112- ●
486 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112- ●
577 PIPE; AIR,EGR 8-97200-643-2 01 1 1112- ●
676 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-683-0 02 1 1112- ●
681 NUT; EGR PIPE
M8 FLANGE 		0-91180-108-0 02 1 1112- ●
685 CASE; INLET,EGR 8-97146-873-1 01 1 9704- ●
685 CASE; INLET,EGR 8-97146-872-1 01 1 1112- ●
707 STUD; CLIP,INJ PIPE
M6X25 L=36 		8-97214-234-1 01 1 1112- ●
708 CLIP; PIPE,INJ 8-97213-481-0 01 1 1112- ●

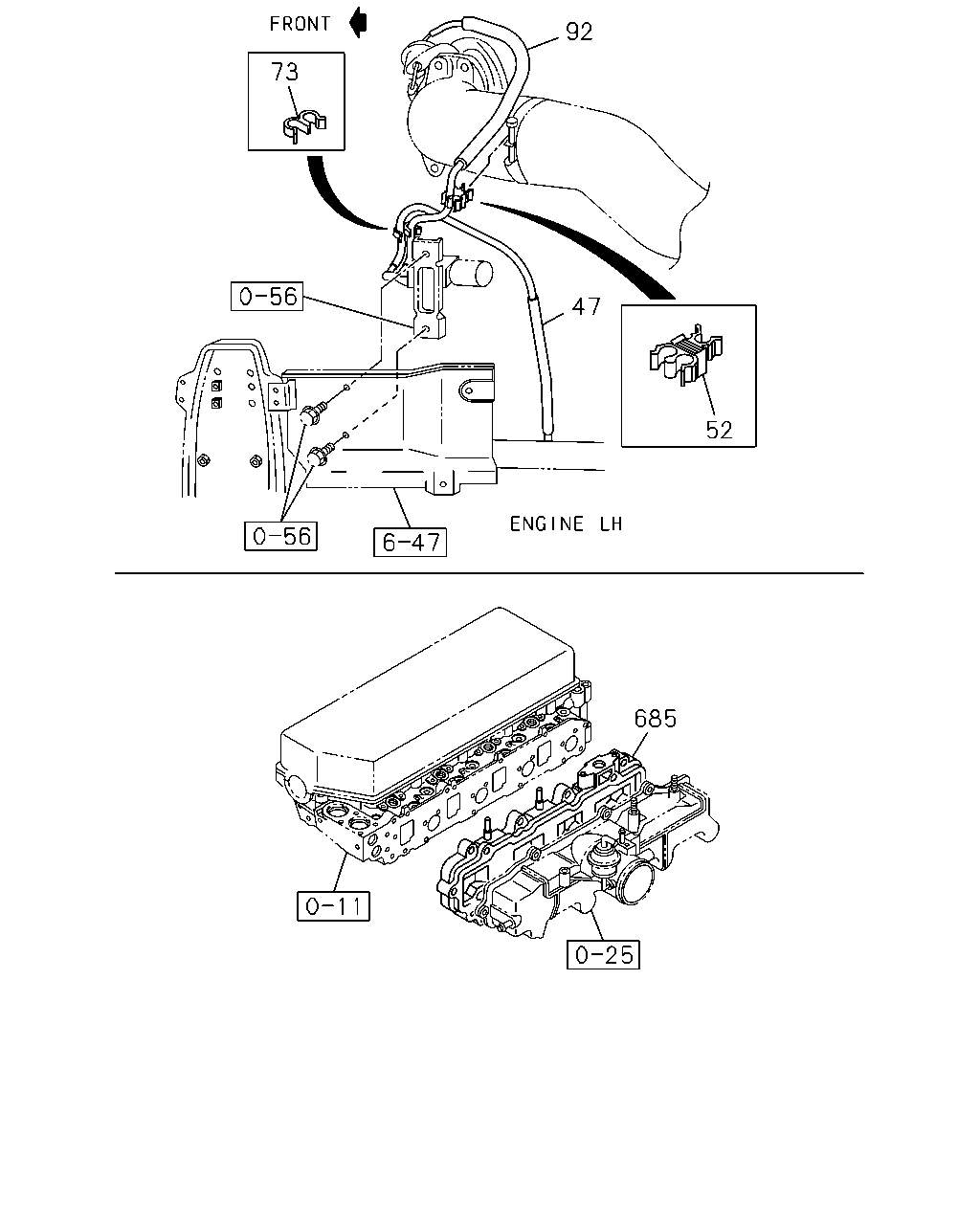

çizim 190476
92 73 47 52 685
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; VAC,VSV
L=310 		8-97037-962-2 01 1 9704- ●
52 CLIP; VSV HOSE
ID=7.5 & 7.5 		8-97019-084-0 01 1 9704- ●
73 CLIP; VAC HOSE
ID=6.8X2 		8-94126-636-0 01 1 9704- ●
92 HOSE; VAC,THROTTLE BODY 8-97106-645-3 01 1 9704- ●
685 CASE; INLET,EGR 8-97146-873-1 01 1 9704- ●
685 CASE; INLET,EGR 8-97146-872-1 01 1 1112- ●

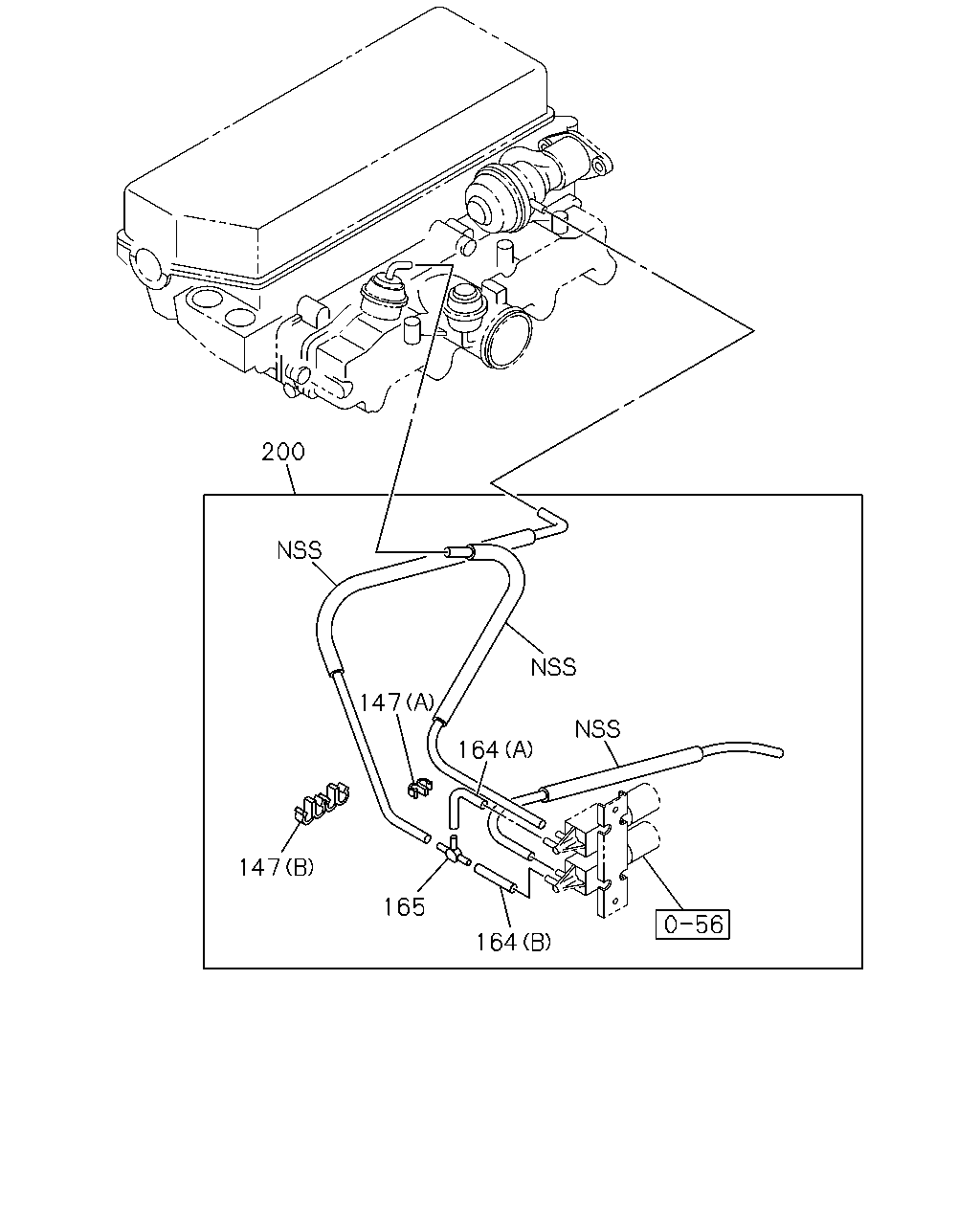

çizim 190550
200 147 164 147 165 164
BalonParca AdiParca NoAdetTipApplied Date A B
147 CLIP; RUBBER HOSE
(A) ID=6.8X2 		8-94126-636-0 03 1 1112- ●
147 CLIP; RUBBER HOSE
(B) 4XID=6.8 		8-94132-799-0 01 1 1112- ●
164 HOSE; RUBBER
(A) L=65 SERVICED BY L=3000 		0-04730-300-0 01 1 1112- ●
164 HOSE; RUBBER
(B) L=40 SERVICED BY L=3000 		0-04730-300-0 01 1 1112- ●
165 JOINT; HOSE
3WAY 		8-94208-695-0 01 1 1112- ●
200 HOSE; VAC 8-97207-666-2 01 1 1112- ●
