Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#73421) — 54 parça

89 86 89 340 202 202 65 27 202 202 83 202 65 202 65 202 83 53 202 65 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

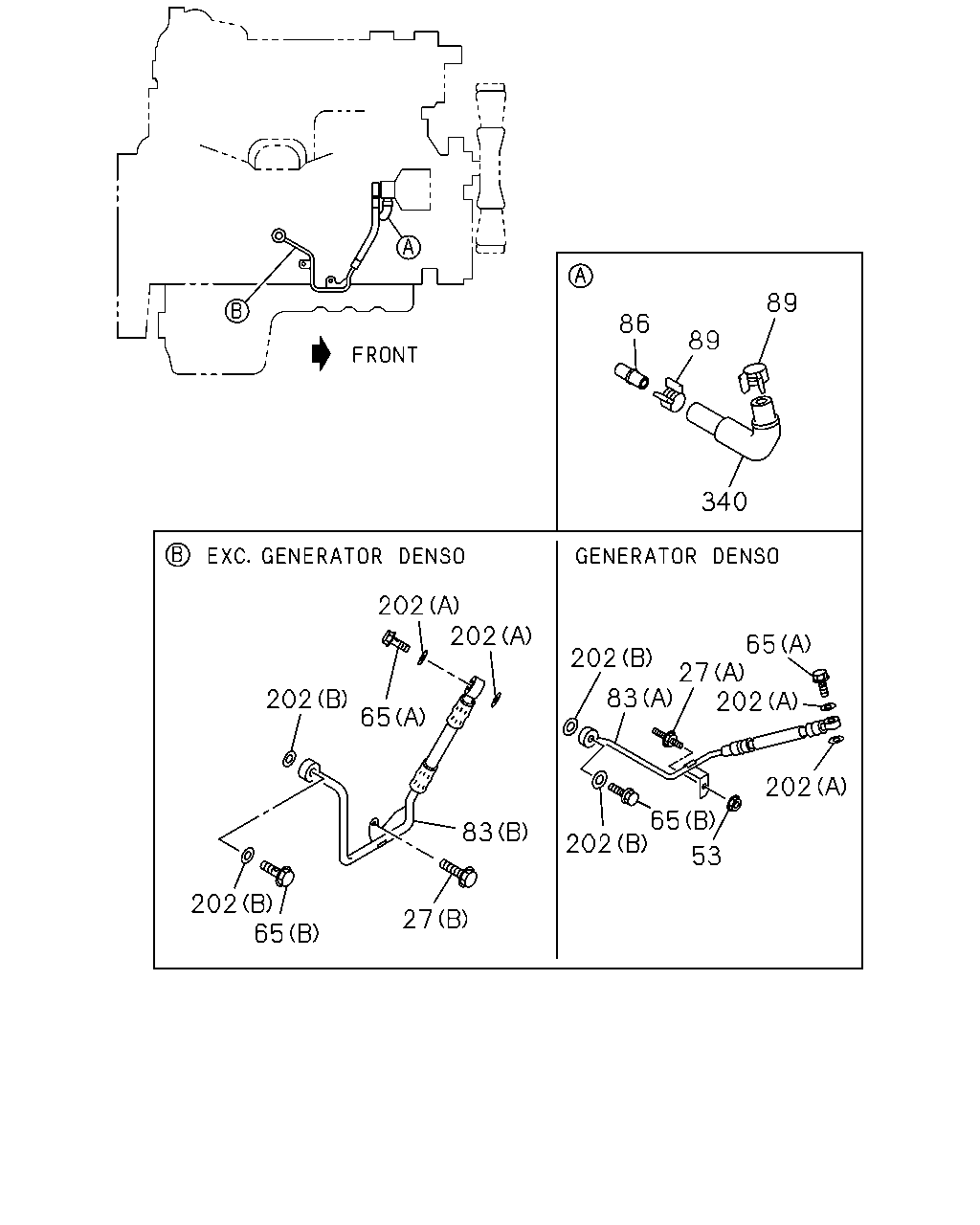

27	BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) (A) M8X12,M10X20 L=42	8-97118-911-0	01	1	9704-	●
27	BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) (B) M8X16 FLANGE	0-28080-816-0	02	1	9704-9805	●
27	BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-0512	●
27	BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-1111	●
27	BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) (B) M8X16 FLANGE	0-28050-816-0	01	1	1112-	●	●
53	NUT; OIL PIPE GENERATOR DENSO(7KH) M8 FLANGE	0-91150-108-0	01	1	9704-0602	●
53	NUT; OIL PIPE GENERATOR DENSO(7KH) M8 FLANGE	0-91180-108-0	01	1	0603-	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9704-0805	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-1111	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	1112-	●	●
65	BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9704-9805	●
65	BOLT; JOINT,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	9806-1111	●
65	BOLT; JOINT,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1112-	●	●
83	PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) (A)	8-97117-095-0	01	1	9704-	●
83	PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97139-538-0	01	1	9704-9910	●
83	PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97228-670-0	01	1	9911-0306	●
83	PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97228-671-0	01	1	0307-1111	●
83	PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97228-671-0	01	1	1112-	●	●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	9704-1111	●
86	PIPE; OIL,VAC PUMP RETURN	8-94455-311-1	01	1	1112-	●	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	9704-1111	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	9704-1111	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	1112-	●	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	1112-	●	●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9704-1111	●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1112-	●	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9704-1111	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1112-1312	●	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
340	HOSE; VAC PUMP,RETURN GENERATOR DENSO(7KH)	8-97117-121-0	01	1	9704-	●
340	HOSE; VAC PUMP,RETURN EXC. GENERATOR DENSO(7KH)	8-94339-073-3	01	1	9704-1111	●
340	HOSE; VAC PUMP,RETURN EXC. GENERATOR DENSO(7KH)	8-94339-073-3	01	1	1112-	●	●

3 3 2 3 1 3 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

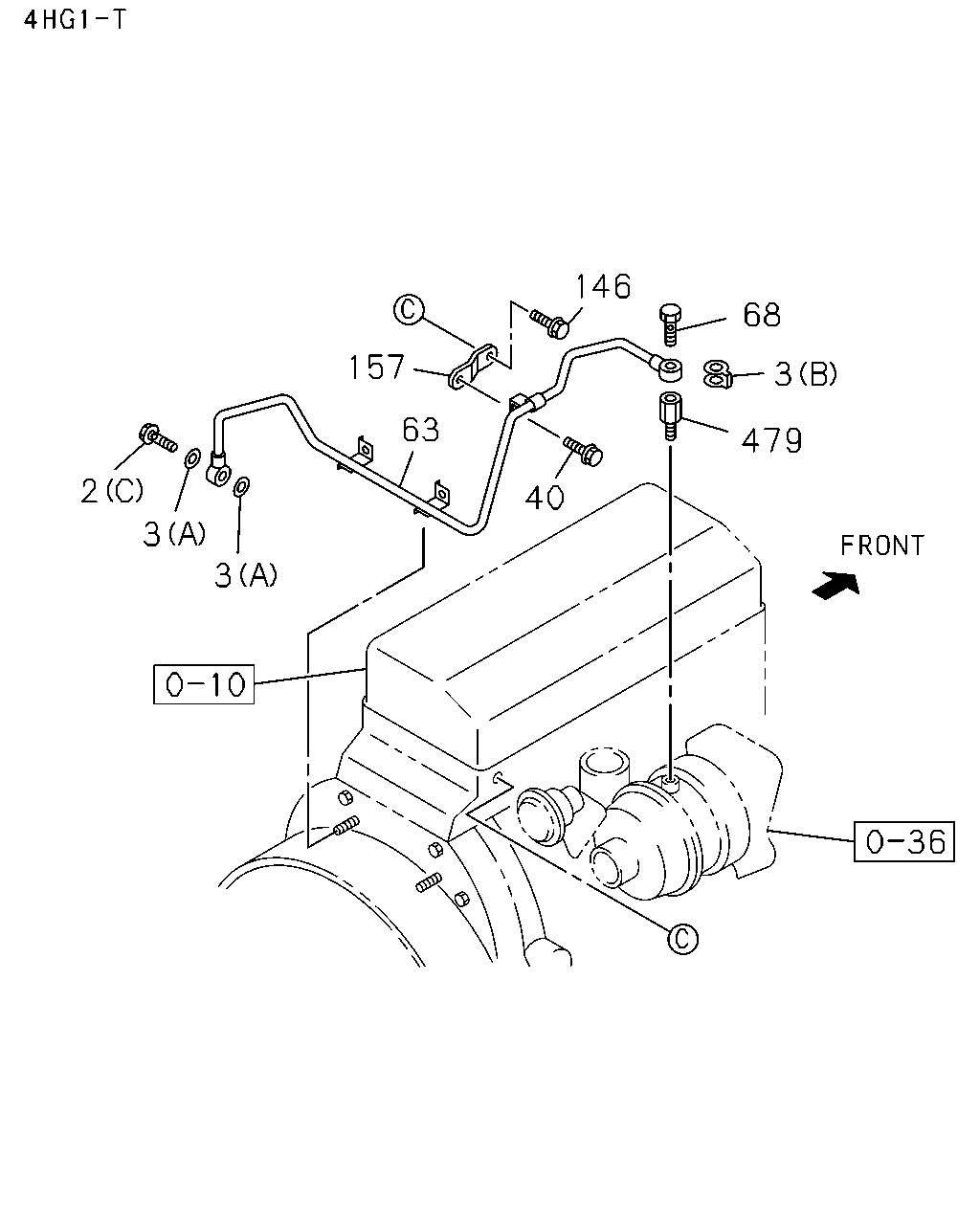

1	PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	9704-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-4	01	1	1112-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9704-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE (C) M10X40 FLANGE	8-97182-847-0	01	1	1112-		●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	1112-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9704-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1112-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1112-		●

146 68 157 3 63 479 2 40 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9704-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE (C) M10X40 FLANGE	8-97182-847-0	01	1	1112-		●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	1112-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9704-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	1112-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1112-		●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28050-812-0	01	1	1112-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	1112-		●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	1112-		●
146	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1112-		●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	1112-		●
479	ADAPTER	8-94436-891-0	01	1	1112-		●
