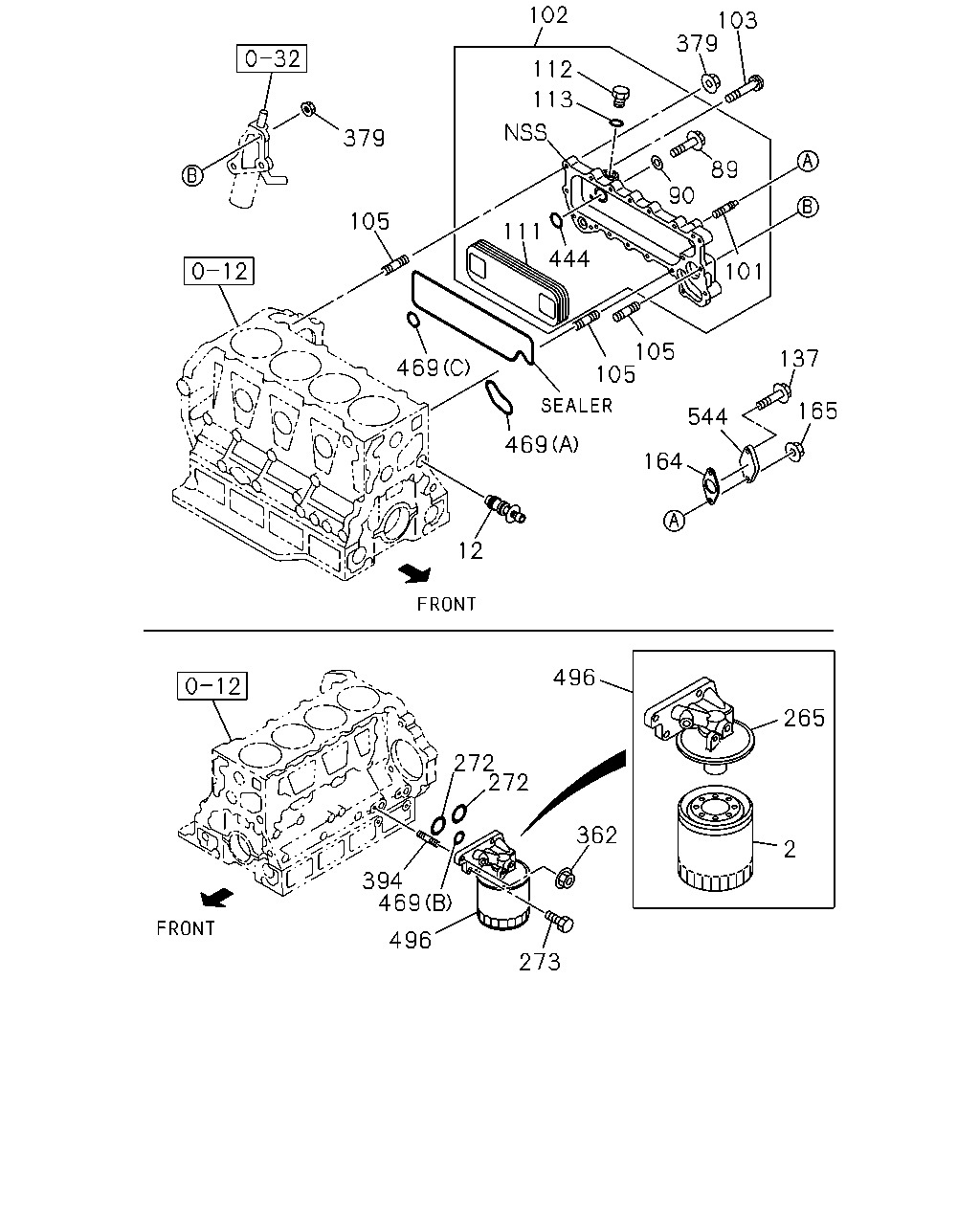

0-50 — OIL COOLER AND OIL FILTER (#73419) — 79 parça

102 103 379 112 113 379 89 90 105 111 444 101 105 105 137 469 165 544 469 164 12 496 265 272 272 362 2 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	9704-1111	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1112-1509	●	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	9704-1111	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1112-1509	●	●
12	VALVE ASM; BYPASS	8-97075-754-0	01	1	9704-0107	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	0108-1111	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1112-	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	02	1	9704-9708	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	9709-1111	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28080-816-0	04	1	1112-1211	●	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1212-	●	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	9704-1111	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1112-	●	●
101	STUD; OIL COOLER TO PIPE	0-49540-822-0	02	1	9704-9708	●
101	STUD; OIL COOLER TO PIPE M8X20 L=38	0-49740-820-0	01	1	9709-0206	●
102	COOLER ASM; OIL	8-97027-982-2	01	1	9704-9708	●
102	COOLER ASM; OIL	8-97178-779-1	01	1	9709-9908	●
102	COOLER ASM; OIL	8-97212-334-0	01	1	9909-0206	●
102	COOLER ASM; OIL	8-97333-783-0	01	1	0207-0406	●
102	COOLER ASM; OIL	8-97385-200-2	01	1	0407-1111	●
102	COOLER ASM; OIL	8-97385-200-6	01	1	1112-	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	14	1	9704-9708	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	07	1	9709-0512	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	07	1	0601-1111	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	07	1	1112-	●	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28080-820-0	07	1	9709-0512	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28050-820-0	07	1	0601-1111	●
103	BOLT; OIL COOLER M8X20 FLANGE	0-28050-820-0	07	1	1112-	●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9704-1111	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1112-	●	●
111	CORE; OIL COOLER	8-97028-739-0	01	1	9704-9908	●
111	CORE; OIL COOLER	8-97222-512-0	01	1	9909-0206	●
111	CORE; OIL COOLER	8-97334-101-1	01	1	0207-1111	●
111	CORE; OIL COOLER	8-97334-101-1	01	1	1112-	●	●
112	PLUG; OIL COOLER CASE M18X12	9-99202-318-0	01	1	9704-9908	●
113	GASKET; PLUG,OIL COOLER CASE ID=18.2 OD=26.0	9-09571-418-0	01	1	9704-9908	●
137	BOLT M8X20 FLANGE	0-28680-820-0	01	1	9711-0206	●
137	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0207-0512	●
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	0601-1111	●
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1112-	●	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	9704-1111	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1112-	●	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	02	1	9704-9710	●
165	NUT; HTR PIPE M8 FLANGE	0-91150-108-0	01	1	9711-0206	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	9704-1111	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1112-	●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9704-0211	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-1111	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1112-	●	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28781-030-0	02	1	9704-0512	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28751-030-0	02	1	0601-1111	●
273	BOLT; OIL FILTER M10X30 FLANGE	0-28751-030-0	02	1	1112-	●	●
362	NUT; OIL FILTER M10 FLANGE	0-91150-110-0	02	1	9704-0602	●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	02	1	0603-1111	●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	02	1	1112-	●	●
379	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	03	1	9704-0602	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	0603-1111	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1112-	●	●
394	STUD; OIL FILTER M10X25 L=40	0-49841-025-0	02	1	9704-0512	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-1111	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	1112-	●	●
444	GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9704-0406	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-1111	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1112-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9704-1111	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1112-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9704-0211	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0212-1111	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1112-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9704-0211	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-0606	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-1111	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1112-	●	●
496	FILTER ASM; OIL	8-97148-268-3	01	1	9704-1111	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1112-1509	●	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●	●
544	COVER; HEATER	8-97147-028-0	01	1	9704-1111	●
544	COVER; HEATER	8-97147-028-0	01	1	1112-	●	●
