Sayfa 0-40 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶

0-40 — FUEL INJECTION SYSTEM (#73416) — 189 parça

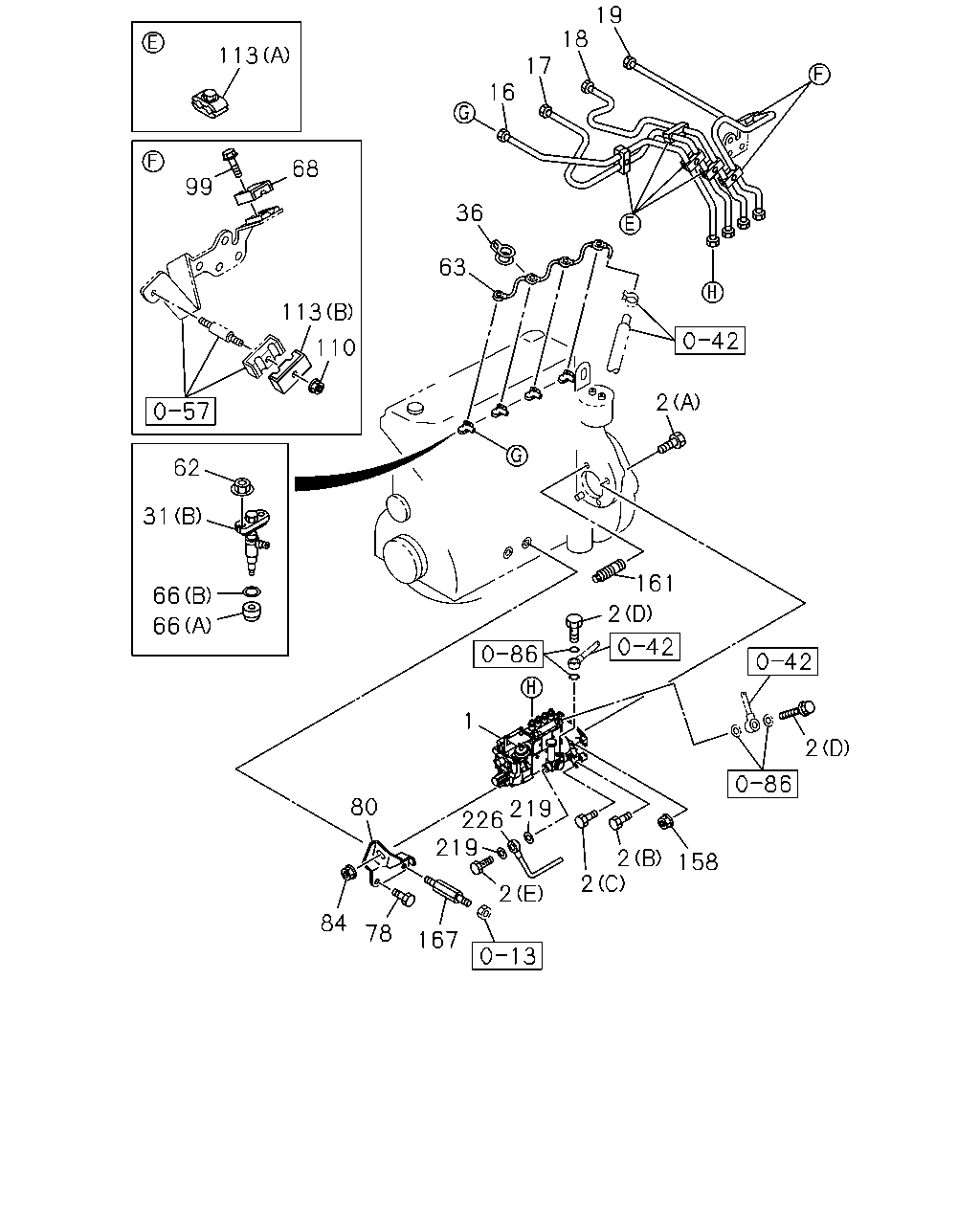

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-784-0	01	1	9704-9811	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97203-384-0	01	1	9812-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	1112-		●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	9704-0512	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-1111	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	1112-	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9704-0512	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-1111	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	1112-	●	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	9704-1111	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	1112-	●	●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9704-9809	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-0512	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-1111	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	1112-	●	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	9812-1111	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	1112-	●	●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9704-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	1112-		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9704-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	1112-		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9704-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	1112-		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9704-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	1112-		●
31	NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9704-	●
31	NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	1112-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9704-1111	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	1112-1312	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9704-0602	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	08	1	0603-1111	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	08	1	1112-	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	1112-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9704-1111	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	1112-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	1112-		●
68	CLIP; INJ PIPE	1-09701-091-0	01	1	1112-		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-0512	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28751-020-0	02	1	0601-	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28751-020-0	01	1	1112-		●
80	BRACKET; PUMP	8-97136-677-0	01	1	9704-1111	●
80	BRACKET; PUMP	8-97136-677-0	01	1	1112-	●	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9704-0602	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91180-210-0	01	1	0603-1111	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91180-210-0	01	1	1112-	●	●
99	BOLT; CLIP,INJ,PIPE M6X25 FLANGE	0-28650-625-0	01	1	1112-		●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1112-		●
113	CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9704-9804	●
113	CLIP; INJ PIPE (A)	8-97191-409-0	04	1	9805-9810	●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	9811-1111	●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	1112-	●	●
113	CLIP; INJ PIPE (B)	8-97213-481-0	01	1	1112-		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9704-0602	●
158	NUT; INJ PUMP M10 FLANGE	0-91180-110-0	02	1	0603-1111	●
158	NUT; INJ PUMP M10 FLANGE	0-91180-110-0	02	1	1112-	●	●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9704-9905	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	9906-0212	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0910	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-1111	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	1112-	●	●
167	SPACER; GUIDE TUBE	8-97065-515-2	01	1	1112-		●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-1111	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	1112-1312	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
226	PIPE; FUEL	8-97203-567-0	01	1	9812-1111	●
226	PIPE; FUEL	8-97203-567-0	01	1	1112-	●	●

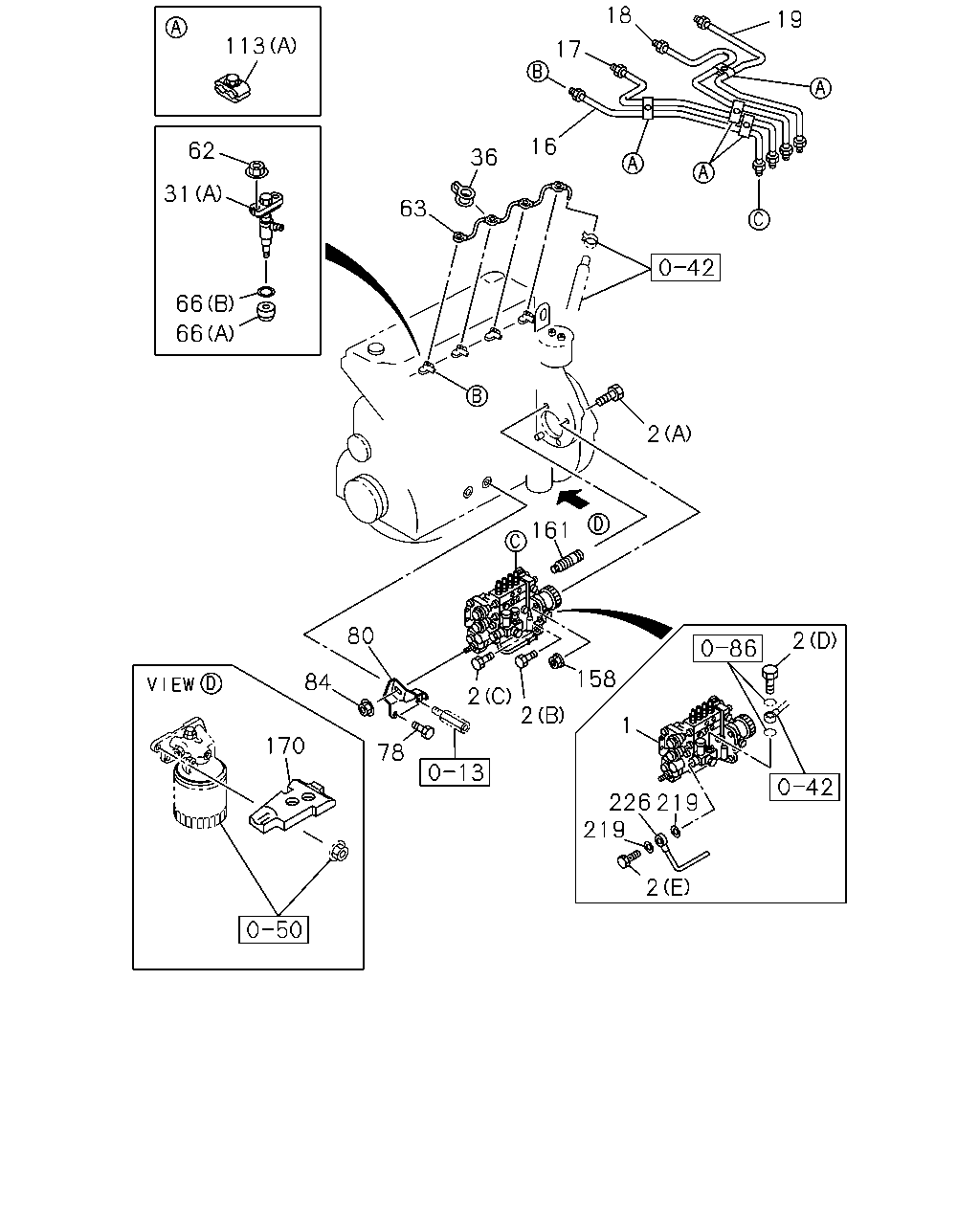

18 19 113 17 16 62 36 31 63 66 66 2 161 80 2 158 84 2 2 1 170 78 219 2 226 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-784-0	01	1	9704-9811	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97203-384-0	01	1	9812-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	1112-		●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28181-070-0	01	1	9704-0512	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-1111	●
2	BOLT; INJ PUMP (C) M10X70 FLANGE	0-28151-070-0	01	1	1112-	●	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9704-0512	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-1111	●
2	BOLT; INJ PUMP (B) M12X70 FLANGE	0-28151-270-0	01	1	1112-	●	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	9704-1111	●
2	BOLT; INJ PUMP (D) M14X27 FLANGE	1-09675-086-0	02	1	1112-	●	●
2	BOLT; INJ PUMP (A) M12X88.5	8-94312-794-1	01	1	9704-9809	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-0512	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-1111	●
2	BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	1112-	●	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	9812-1111	●
2	BOLT; INJ PUMP (E) M14X30	8-97203-957-0	01	1	1112-	●	●
16	PIPE; INJ NO.1	8-97123-374-0	01	1	9704-	●
16	PIPE; INJ NO.1	8-97209-493-1	01	1	1112-		●
17	PIPE; INJ NO.2	8-97123-375-0	01	1	9704-	●
17	PIPE; INJ NO.2	8-97209-494-1	01	1	1112-		●
18	PIPE; INJ NO.3	8-97123-376-0	01	1	9704-	●
18	PIPE; INJ NO.3	8-97209-495-1	01	1	1112-		●
19	PIPE; INJ NO.4	8-97123-377-1	01	1	9704-	●
19	PIPE; INJ NO.4	8-97209-496-1	01	1	1112-		●
31	NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9704-	●
31	NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	1112-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	9704-1111	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	1112-1312	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	08	1	9704-0602	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	08	1	0603-1111	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	08	1	1112-	●	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9704-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	1112-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	9704-1111	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	1112-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97171-332-0	04	1	1112-		●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28781-020-0	02	1	9704-0512	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28751-020-0	02	1	0601-	●
78	BOLT; BRKT TO C/BL M10X20 FLANGE	0-28751-020-0	01	1	1112-		●
80	BRACKET; PUMP	8-97136-677-0	01	1	9704-1111	●
80	BRACKET; PUMP	8-97136-677-0	01	1	1112-	●	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91150-210-0	01	1	9704-0602	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91180-210-0	01	1	0603-1111	●
84	NUT; BRKT TO BRKT M10 FLANGE	0-91180-210-0	01	1	1112-	●	●
113	CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9704-9804	●
113	CLIP; INJ PIPE (A)	8-97191-409-0	04	1	9805-9810	●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	9811-1111	●
113	CLIP; INJ PIPE (A)	8-97213-050-0	04	1	1112-	●	●
113	CLIP; INJ PIPE (B)	8-97213-481-0	01	1	1112-		●
158	NUT; INJ PUMP M10 FLANGE	0-91150-110-0	02	1	9704-0602	●
158	NUT; INJ PUMP M10 FLANGE	0-91180-110-0	02	1	0603-1111	●
158	NUT; INJ PUMP M10 FLANGE	0-91180-110-0	02	1	1112-	●	●
161	STUD; INJ PUMP M10X36.5 L=48.5	8-94396-145-0	02	1	9704-9905	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	9906-0212	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0910	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-1111	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	1112-	●	●
170	INSULATOR; INJ PUMP	8-97130-296-0	01	1	9704-0307	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-1111	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	1112-1312	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
226	PIPE; FUEL	8-97203-567-0	01	1	9812-1111	●
226	PIPE; FUEL	8-97203-567-0	01	1	1112-	●	●

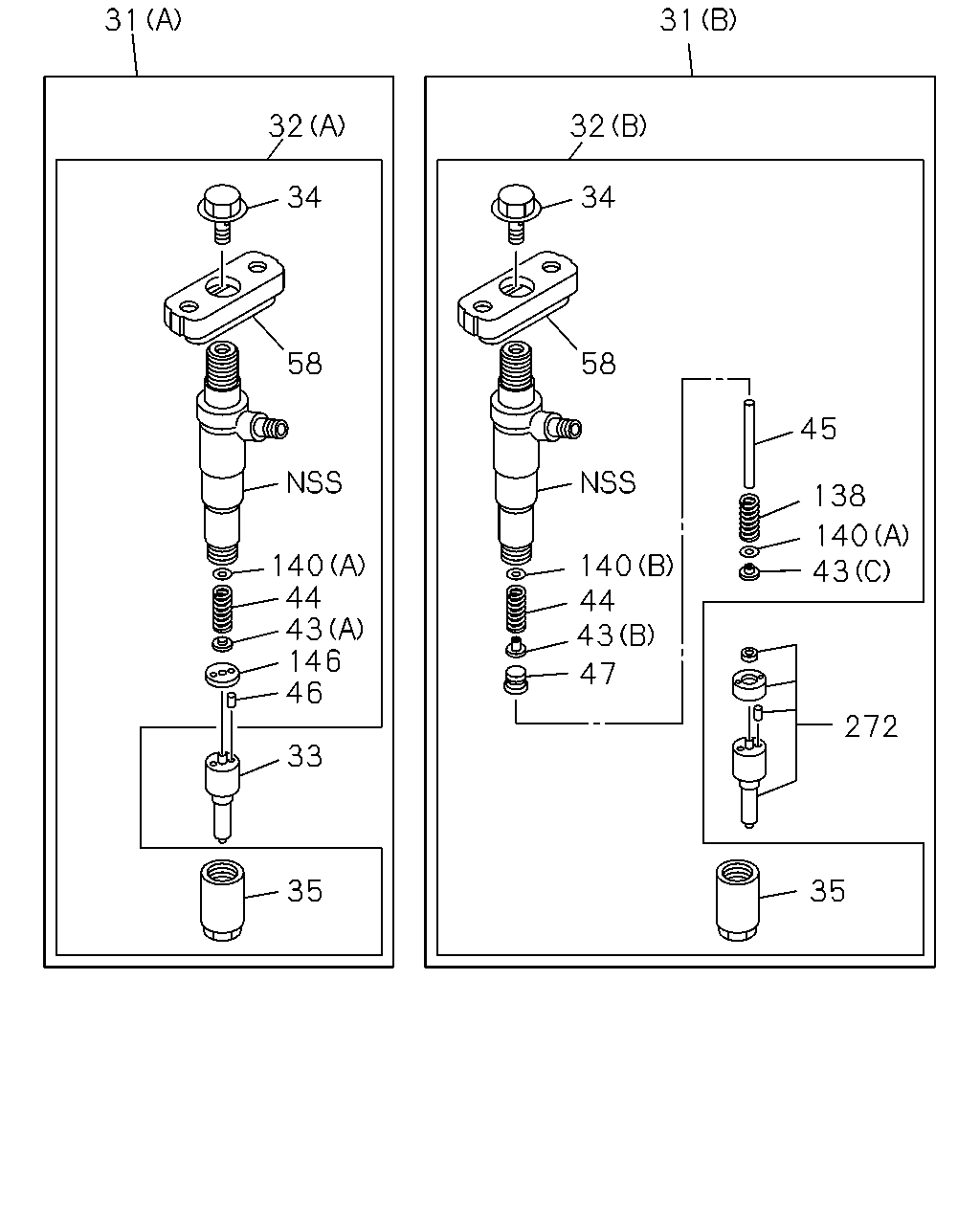

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9704-	●
31	NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	1112-		●
32	HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	9704-	●
32	HOLDER ASM; NOZZLE (B)	8-97078-783-1	04	1	1112-		●
33	NOZZLE; INJ	8-97119-810-0	04	1	9704-	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9704-	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE-BOLT	1-09675-037-1	04	1	1112-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9704-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1112-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	8-94329-555-0	04	1	9704-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	8-97223-339-0	04	1	1112-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (C)	8-97349-452-0	04	1	1112-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9704-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1112-		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	1112-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9704-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-97223-340-0	04	1	1112-		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9704-1111	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	1112-	●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.10	8-97027-432-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.20	8-97027-433-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.30	8-97027-434-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	8-97027-435-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	8-97027-436-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	8-97027-437-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	8-97027-438-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	8-97027-439-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	8-97027-440-0	AR	1	9704-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=1.20	1-15349-004-0	04	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-042-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-043-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-044-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-045-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-046-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-047-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-048-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-049-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.10	8-97116-029-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.20	8-97116-032-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.30	8-97116-033-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	8-97116-034-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	8-97116-035-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.51	8-97116-036-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	8-97116-037-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.53	8-97116-038-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	8-97116-039-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.55	8-97116-040-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	8-97116-041-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.57	8-97116-042-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	8-97116-043-0	AR	1	1112-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.59	8-97116-044-0	AR	1	1112-		●
146	SPACER; NOZZLE	8-94344-439-0	04	1	9704-	●
272	NOZZLE KIT; INJ	8-97352-267-0	04	1	1112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
