◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#73415) — 8 parça

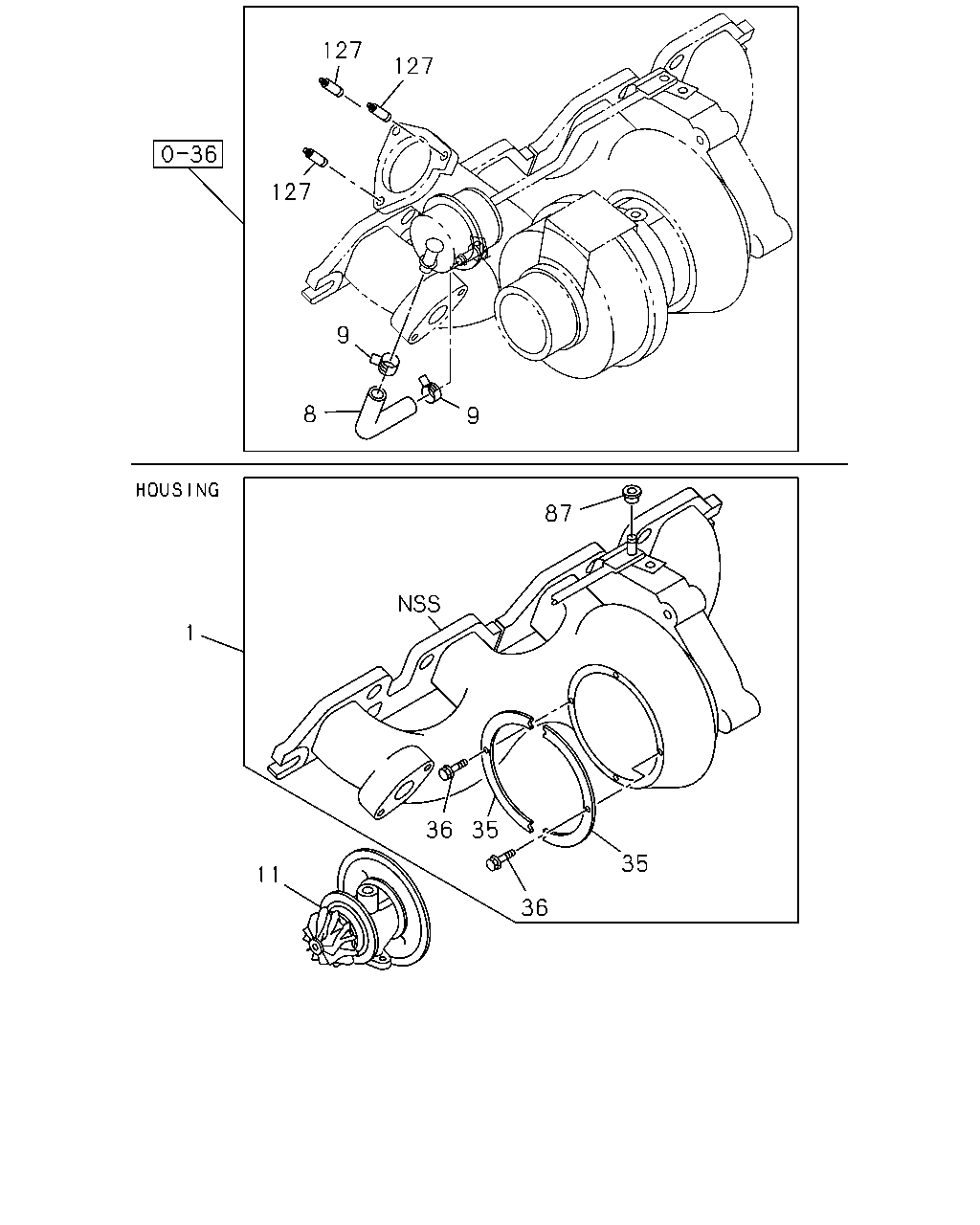

çizim 62381
127 127 127 9 8 9 87 1 36 35 35 11 36
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-97326-752-1 		8-97223-905-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97326-752-1 		8-97213-591-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97326-752-1 		8-97213-592-0 02 1 -
11 HOUSING ASM; TURBOCHARGER
ASM PART: A = 8-97326-752-1 		8-97326-280-0 01 1 -
35 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-97326-752-1 		8-97213-590-0 02 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 8-97326-752-1 		8-97213-579-0 04 1 -
87 RING; ACTUATOR,TURBOCHARGER
ASM PART: A = 8-97326-752-1 		8-97213-588-0 01 1 -
127 STUD; TURBOCHARGER
ASM PART: A = 8-97326-752-1 		8-97213-578-0 03 1 -
