Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

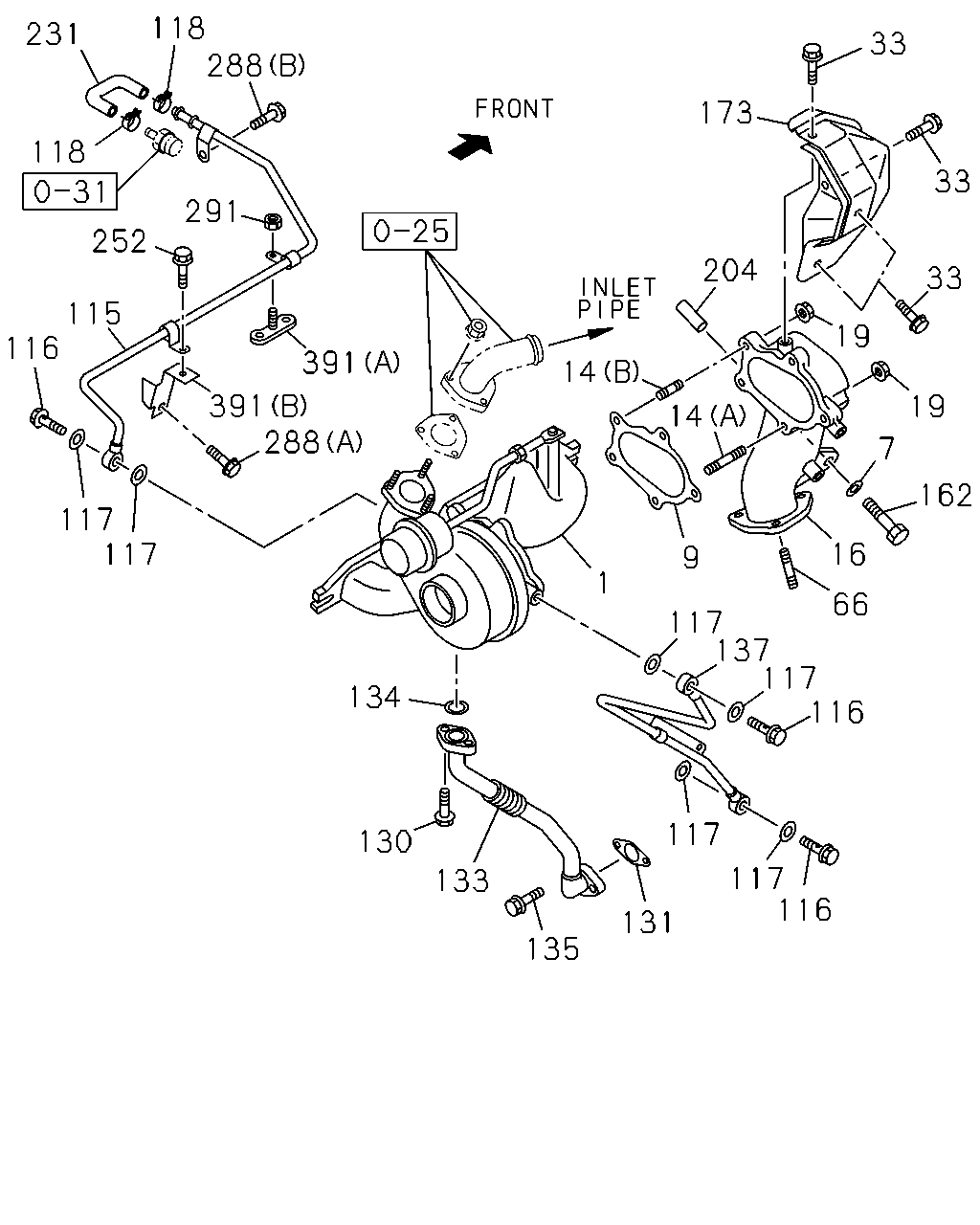

0-36 — TURBOCHARGER SYSTEM
(#73414) — 31 parça
118
288
231
33
173
118
33
291
252
204
33
115
116
19
391
14
391
288
19
14
7
162
117
117
16
9
1
66
117
137
117
116
134
117
130
117
116
133
131
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97326-752-1
01
1
1112-
7
WASHER; PL,BRKT
ID=8 OD=18 T=3
8-94174-537-0
01
1
1112-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97039-777-1
01
1
1112-
14
STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108
8-97019-477-0
02
1
1112-
14
STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63
8-97019-478-0
03
1
1112-
16
ADAPTER; EXH PIPE
8-97178-487-3
01
1
1112-
19
NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE
8-94170-486-0
05
1
1112-
33
BOLT; HEAT PROTECTOR
M6X12 FLANGE
8-97108-669-0
04
1
1112-
66
STUD; EXH PIPE
M10X25 L=40
0-44011-025-0
03
1
1112-
115
PIPE; WATER,TURBOCHARGER OUT
8-97210-077-2
01
1
1112-
116
BOLT; WATER PIPE
M14X30 EYE-BOLT
8-94455-144-0
03
1
1112-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
04
1
1112-1312
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0
9-09571-414-0
02
1
1112-
118
CLIP; WATER HOSE
ID=15.5
8-94221-519-0
02
1
1112-
130
BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER
0-50540-620-0
02
1
1112-
131
GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30
8-94394-671-0
01
1
1112-
133
PIPE; OIL DRAIN,TURBOCHARGER
8-98172-659-0
01
1
1112-
134
GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8
1-09623-462-0
01
1
1112-
135
BOLT; OIL PIPE TO C/BL
M8X20 FLANGE
0-28050-820-0
02
1
1112-
137
PIPE; WATER,TURBOCHARGER IN
8-97229-036-0
01
1
1112-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
01
1
1112-
173
PROTECTOR; HEAT,FUEL PIPE
8-97178-497-2
01
1
1112-
204
COLLAR; PIPE ADAPTER
8-97214-384-1
01
1
1112-
231
HOSE; RUBBER,TURBOCHARGER OUT
8-97209-950-0
01
1
1112-
252
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
01
1
1112-
288
BOLT; WATER PIPE CLIP
(A) M8X12 FLANGE
0-28050-812-0
02
1
1112-
288
BOLT; WATER PIPE CLIP
(B) M10X16 FLANGE
0-28151-016-0
01
1
1112-
291
NUT; PIPE TO BRKT
M8 FLANGE
0-91180-108-0
01
1
1112-
391
BRACKET; WATER PIPE
(A)
8-97210-078-0
01
1
1112-
391
BRACKET; WATER PIPE
(B)
8-97221-061-0
01
1
1112-
