Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

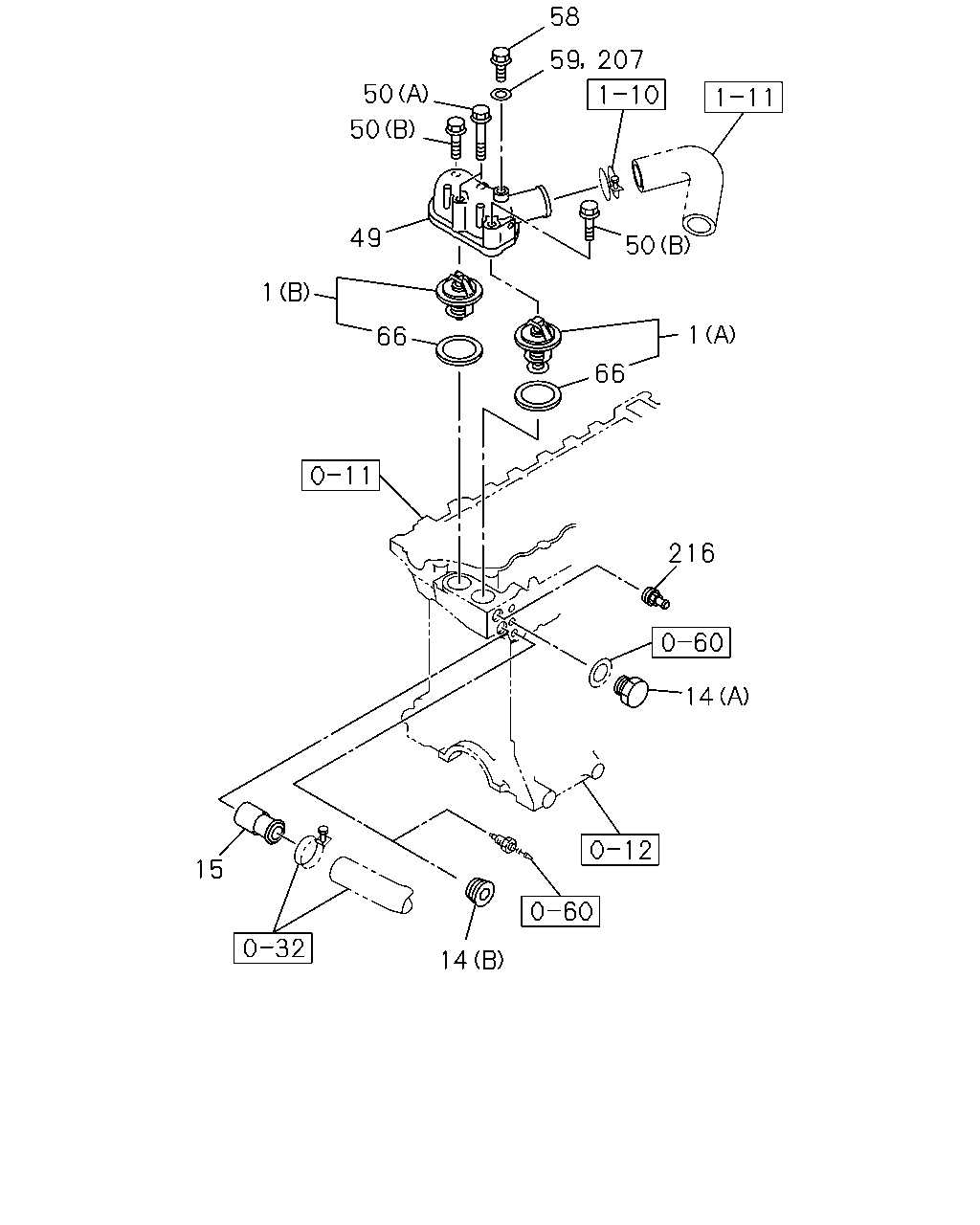

0-31 — THERMOSTAT AND HOUSING
(#73411) — 36 parça
Tümü
A - 4HF1 ENG
B - 4HG1-T ENG
14
15
14
216
1
66
50
66
1
49
50
50
59
58
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
(B) 85 CELSIUS
8-97167-496-0
01
1
9704-9907
●
1
THERMOSTAT
(B) 85 CELSIUS
8-97231-888-0
01
1
9908-0008
●
1
THERMOSTAT
(B) 85 CELSIUS
8-97263-192-0
01
1
0009-0010
●
1
THERMOSTAT
(B) 85 CELSIUS
8-97300-792-1
01
1
0011-1111
●
1
THERMOSTAT
(B) 85 CELSIUS
8-97300-792-2
01
1
1112-
●
●
1
THERMOSTAT
(A) 82 CELSIUS
8-97167-497-0
01
1
9704-9907
●
1
THERMOSTAT
(A) 82 CELSIUS
8-97231-889-0
01
1
9908-9911
●
1
THERMOSTAT
(A) 82 CELSIUS
8-97233-417-0
01
1
9912-0008
●
1
THERMOSTAT
(A) 82 CELSIUS
8-97263-193-0
01
1
0009-0010
●
1
THERMOSTAT
(A) 82 CELSIUS
8-97300-789-2
01
1
0011-1111
●
1
THERMOSTAT
(A) 82 CELSIUS
8-97300-789-3
01
1
1112-
●
●
14
PLUG; SW
(B) PT3/8
5-09605-005-0
01
1
1112-
●
14
PLUG; SW
(A) M16X8 PLUG
9-09661-005-0
01
1
1112-
●
15
PIPE; BYPASS
8-94342-574-0
01
1
9704-1111
●
15
PIPE; BYPASS
8-94342-574-0
01
1
1112-
●
●
49
PIPE; WATER OUTLET
8-97145-919-0
01
1
9704-9805
●
49
PIPE; WATER OUTLET
8-97200-620-0
01
1
9806-0407
●
49
PIPE; WATER OUTLET
8-97372-769-0
01
1
0408-1111
●
49
PIPE; WATER OUTLET
8-97372-769-1
01
1
1112-
●
●
50
BOLT; OUTLET PIPE
(B) M8X50 FLANGE
0-28080-850-0
02
1
9704-9805
●
50
BOLT; OUTLET PIPE
(B) M8X25 FLANGE
0-28680-825-0
02
1
9806-0512
●
50
BOLT; OUTLET PIPE
(B) M8X25 FLANGE
0-28650-825-0
02
1
0601-1111
●
50
BOLT; OUTLET PIPE
(B) M8X25 FLANGE
0-28650-825-0
02
1
1112-
●
●
50
BOLT; OUTLET PIPE
(A) M8X65 FLANGE
1-09044-072-1
02
1
9704-1111
●
50
BOLT; OUTLET PIPE
(A) M8X65 FLANGE
1-09044-072-1
02
1
1112-
●
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
9704-1111
●
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
1112-
●
●
59
GASKET; PLUG
ID=8.2 OD=13.2
1-09630-082-0
01
1
9704-0307
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97167-477-0
02
1
9704-9907
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97231-848-0
02
1
9908-0010
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0011-1111
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
1112-1501
●
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0308-1111
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
1112-
●
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
8-97358-699-0
01
1
1112-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
