Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

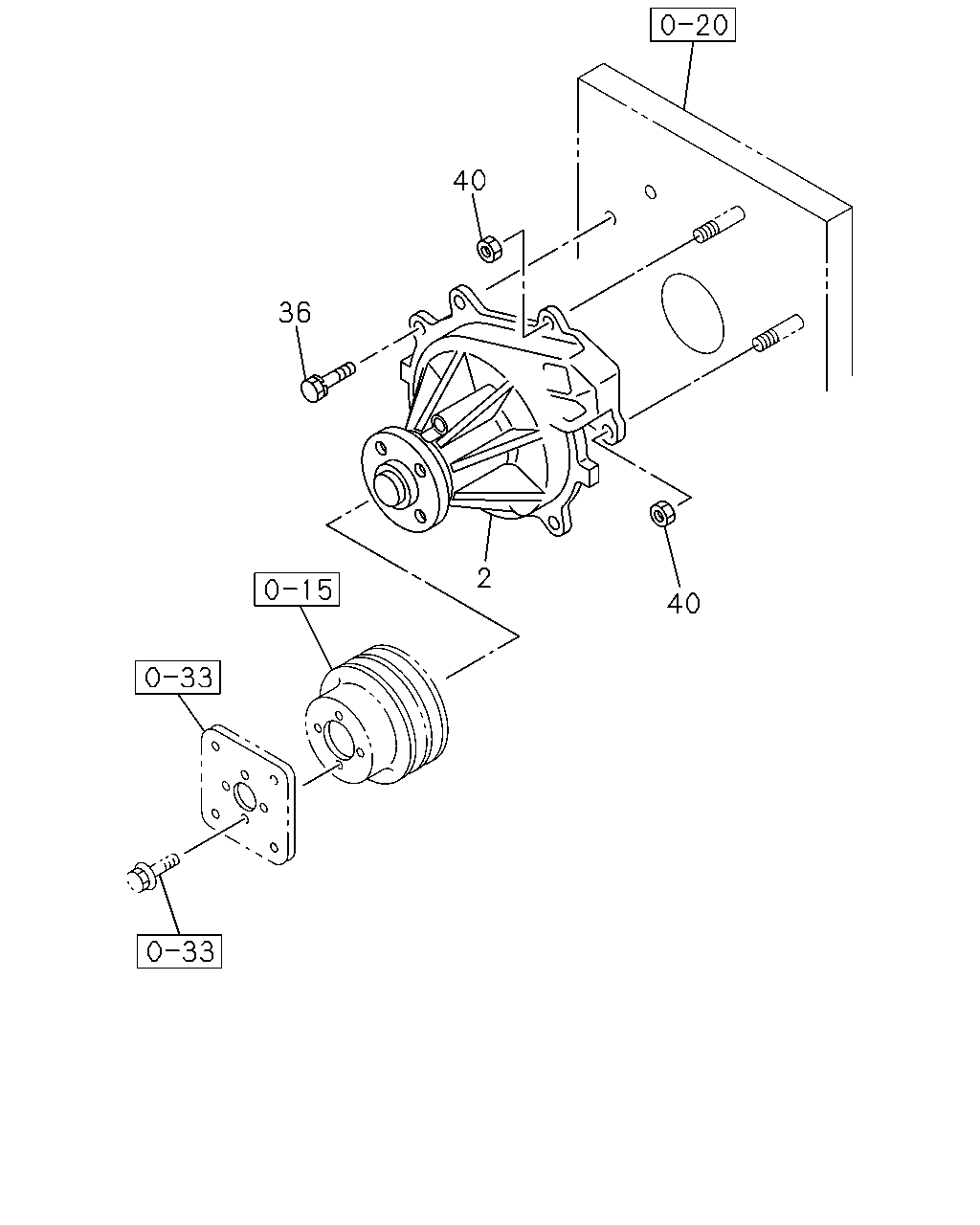

0-30 — WATER PUMP AND CORROSION RESISTOR
(#73410) — 14 parça
Tümü
A - 4HF1 ENG
B - 4HG1-T ENG
40
36
2
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
PUMP ASM; WATER
8-97109-676-1
01
1
9704-0104
●
2
PUMP ASM; WATER
8-97313-904-0
01
1
0105-0202
●
2
PUMP ASM; WATER
8-97333-361-1
01
1
0203-1111
●
2
PUMP ASM; WATER
8-97333-361-1
01
1
1112-1510
●
2
PUMP ASM; WATER
EXC. ANTI EROSION SPEC<7XK>
8-97333-361-1
01
1
1112-1510
●
2
PUMP ASM; WATER
8-98329-116-0
01
1
1511-
●
2
PUMP ASM; WATER
EXC. ANTI EROSION SPEC<7XK>
8-98329-116-0
01
1
1511-
●
2
PUMP ASM; WATER
ANTI EROSION SPEC<7XK>
8-97212-675-2
01
1
1112-
●
36
BOLT; WATER PUMP TO C/BL
M8X40 FLANGE
0-28680-840-0
06
1
9704-0512
●
36
BOLT; WATER PUMP TO C/BL
M8X40 FLANGE
0-28650-840-0
06
1
0601-1111
●
36
BOLT; WATER PUMP TO C/BL
M8X40 FLANGE
0-28650-840-0
06
1
1112-
●
●
40
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
02
1
9704-0602
●
40
NUT; WATER PUMP
M8 FLANGE
0-91180-108-0
02
1
0603-1111
●
40
NUT; WATER PUMP
M8 FLANGE
0-91180-108-0
02
1
1112-
●
●
