0-25 — INLET MANIFOLD (#73407) — 88 parça

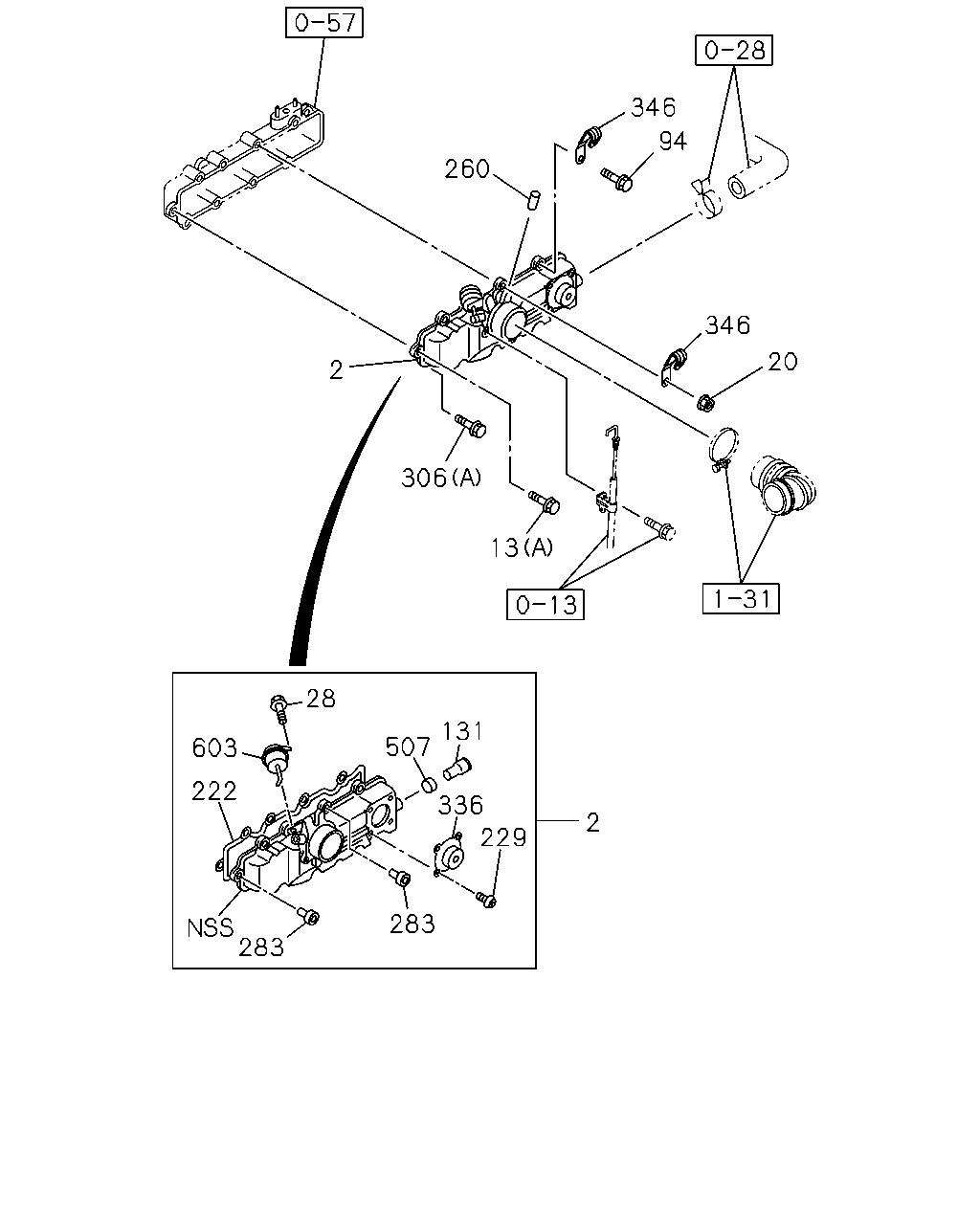

346 94 260 346 20 2 306 13 28 131 507 603 222 336 2 229 283 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL	8-97146-864-2	01	1	9704-1310	●
2	COVER; INL	8-98245-382-0	01	1	1311-	●
2	COVER; INL	8-97212-454-3	01	1	1112-		●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9704-0512	●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-	●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	07	1	1112-		●
13	BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1112-		●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9704-0602	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	0603-1111	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
28	BOLT; CHAMBER M6X12 FLANGE	0-28080-612-0	02	1	9803-0512	●
28	BOLT; CHAMBER M6X12 FLANGE	0-28050-612-0	02	1	0601-1111	●
28	BOLT; CHAMBER M6X12 FLANGE	0-28050-612-0	02	1	1112-	●	●
94	BOLT M8X30 FLANGE	0-28050-830-0	01	1	1112-		●
94	BOLT M8X30 FLANGE	0-28080-830-0	02	1	9704-0512	●
94	BOLT M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
131	PIPE; PCV,INL	8-97102-601-0	01	1	9704-	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9704-1111	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1112-	●	●
229	SCREW; VENTILATION VLV M4X8 W/LK WASHER	9-03910-408-0	04	1	9704-0604	●
229	SCREW; VENTILATION VLV M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-	●
260	CAP; RUBBER ID=4	8-94217-809-0	01	1	9704-	●
283	RUBBER OD=23	8-97105-689-6	10	1	9704-	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28080-845-0	05	1	9704-0512	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-1111	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28050-845-0	05	1	1112-	●	●
306	BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1112-		●
336	VALVE; VENTILATION	8-97119-887-0	01	1	9704-1310	●
336	VALVE; VENTILATION	8-98245-399-0	01	1	1311-	●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9704-0801	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-1111	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1112-	●	●
507	ORIFICE	8-97088-649-0	01	1	9704-	●
603	CHAMBER; THROTTLE	8-97204-780-0	01	1	9803-1111	●
603	CHAMBER; THROTTLE	8-97204-780-0	01	1	1112-	●	●

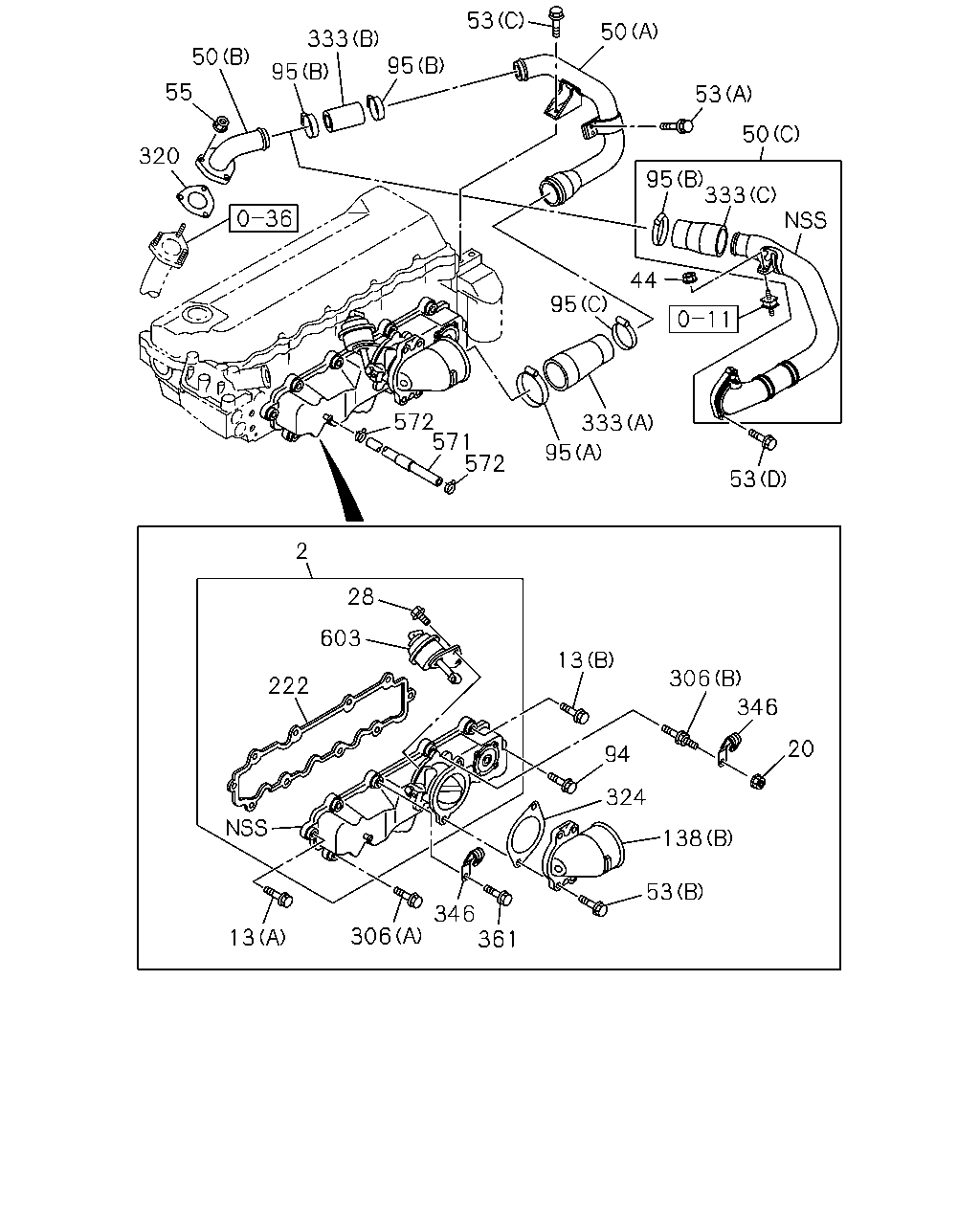

50 55 320 333 95 95 53 50 53 95 44 95 333 333 95 53 572 571 572 2 13 94 324 138 53 361 346 306 13 222 603 28 306 346 20 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL	8-97146-864-2	01	1	9704-1310	●
2	COVER; INL	8-98245-382-0	01	1	1311-	●
2	COVER; INL	8-97212-454-3	01	1	1112-		●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9704-0512	●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-	●
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	07	1	1112-		●
13	BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1112-		●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	02	1	9704-0602	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	0603-1111	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
28	BOLT; CHAMBER M6X12 FLANGE	0-28080-612-0	02	1	9803-0512	●
28	BOLT; CHAMBER M6X12 FLANGE	0-28050-612-0	02	1	0601-1111	●
28	BOLT; CHAMBER M6X12 FLANGE	0-28050-612-0	02	1	1112-	●	●
44	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	01	1	1406-		●
50	PIPE; INL (A)	8-97178-735-5	01	1	1112-1405		●
50	PIPE; INL (C)	8-98254-369-0	01	1	1406-		●
50	PIPE; INL (B)	8-97202-327-2	01	1	1112-		●
53	BOLT; INL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1112-1405		●
53	BOLT; INL PIPE (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-		●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1112-1405		●
53	BOLT; INL PIPE (C) M10X25 FLANGE	0-28651-025-0	02	1	1112-1405		●
55	NUT; INL PIPE M6 FLANGE	0-91180-206-0	03	1	1112-		●
94	BOLT M8X30 FLANGE	0-28050-830-0	01	1	1112-		●
94	BOLT M8X30 FLANGE	0-28080-830-0	02	1	9704-0512	●
94	BOLT M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
95	CLIP; RUBBER HOSE (A) ID=77-95	1-09707-114-0	01	1	1112-1405		●
95	CLIP; RUBBER HOSE (B) ID=50-69	8-94316-991-0	02	1	1112-		●
95	CLIP; RUBBER HOSE (C) ID=68-85	8-94320-428-0	01	1	1112-1405		●
95	CLIP; RUBBER HOSE (B) ID=50-69	8-94316-991-0	01	1	1406-		●
138	PIPE; INL (A)	8-97180-566-2	01	1	1112-1405		●
138	PIPE; INL (B)	8-97178-748-3	01	1	1112-		●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9704-1111	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1112-	●	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28080-845-0	05	1	9704-0512	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-1111	●
306	BOLT; VLV (A) M8X45 FLANGE	0-28050-845-0	05	1	1112-	●	●
306	BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1112-		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=47	8-97202-328-1	01	1	1112-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	1112-1405		●
333	HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	1112-1405		●
333	HOSE; RUBBER,INL PIPE (A)	8-98219-796-0	01	1	1406-		●
333	HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1112-1405		●
333	HOSE; RUBBER,INL PIPE (C)	8-98219-785-0	01	1	1406-		●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9704-0801	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-1111	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1112-	●	●
361	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1112-		●
571	HOSE; AIR BOOST L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1112-		●
572	CLIP; BOOST HOSE ID=8	8-94107-762-0	02	1	1112-		●
603	CHAMBER; THROTTLE	8-97204-780-0	01	1	9803-1111	●
603	CHAMBER; THROTTLE	8-97204-780-0	01	1	1112-	●	●

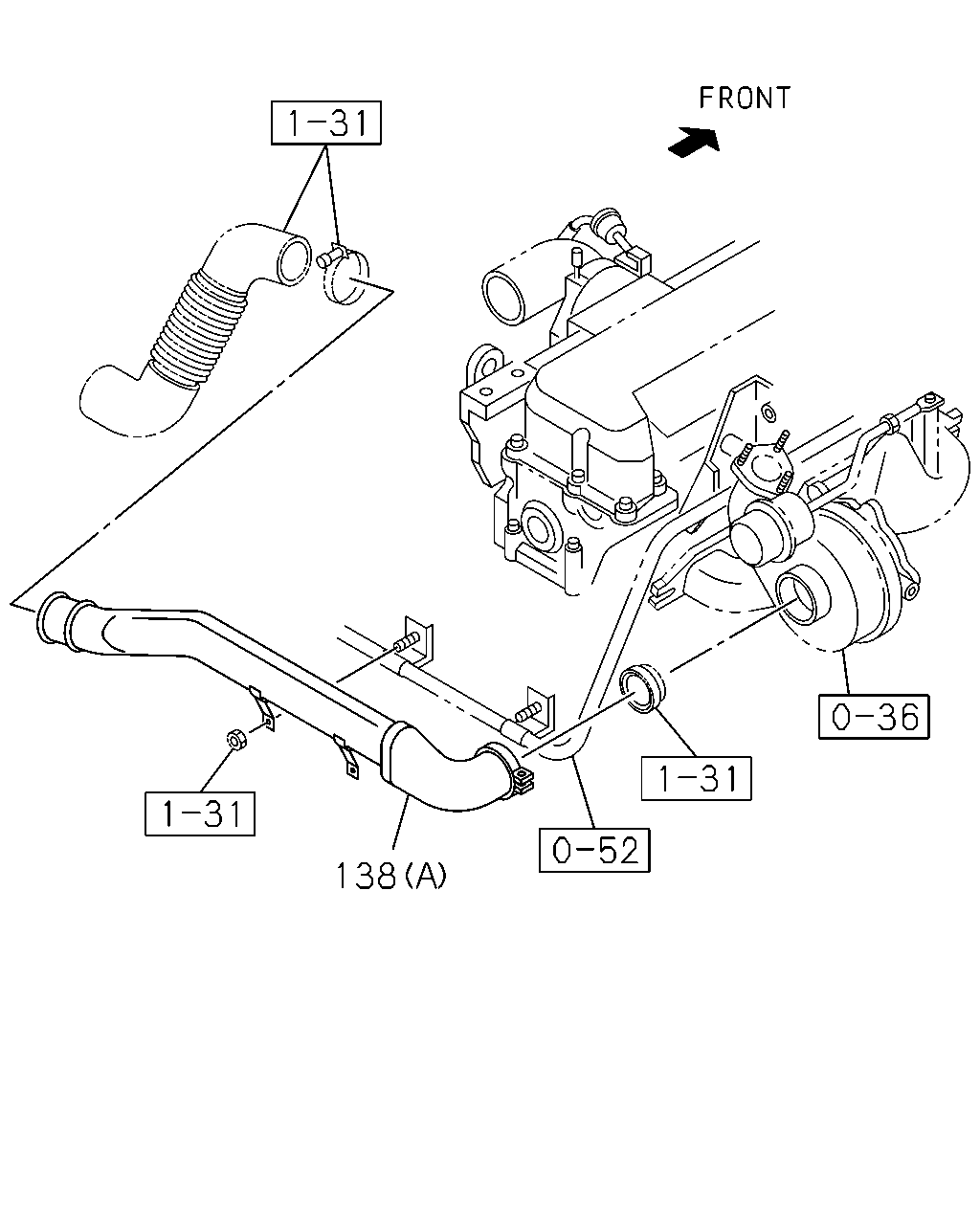

138

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	138	PIPE; INL (A)	8-97180-566-2	01	1	1112-1405		●
	138	PIPE; INL (B)	8-97178-748-3	01	1	1112-		●
