0-22 — ENGINE MOUNTING (#73406) — 103 parça

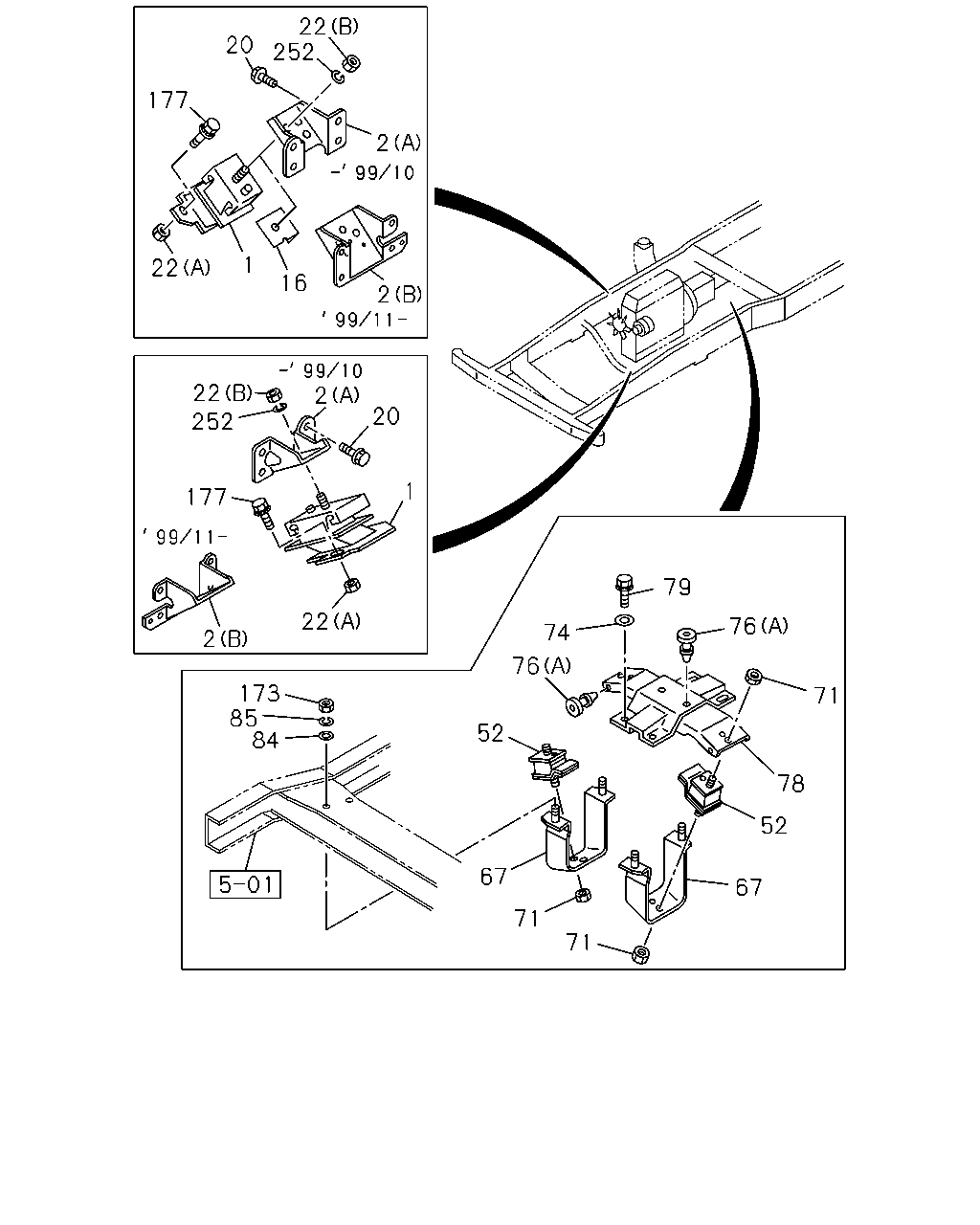

çizim 38413
79 76 71 78 52 67 71 71 67 52 76 74 173 85 84 22 2 1 20 2 22 252 22 1 2 2 252 22 20 177 16 177
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97120-497-1 01 1 9704-1111 ●
1 RUBBER; ENG FOOT,FRT 8-97120-497-1 01 1 1112- ● ●
1 RUBBER; ENG FOOT,FRT 8-97120-498-1 01 1 9704-1111 ●
1 RUBBER; ENG FOOT,FRT 8-97120-498-1 01 1 1112- ● ●
2 FOOT; ENG
(A) 		8-97145-013-0 02 1 9704-9907 ●
2 FOOT; ENG
(A) 		8-97228-330-0 02 1 9908-9910 ●
2 FOOT; ENG
(B) 		8-97228-669-2 02 1 9911-1111 ●
2 FOOT; ENG
(B) 		8-97228-669-2 02 1 1112- ● ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-94365-486-0 01 1 9704-9910 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9704-0512 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601-1111 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 1112- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 9704-0512 ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		0-91110-512-0 02 1 0601-1111 ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		0-91110-512-0 02 1 1112- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9704-0307 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-1111 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1112- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9704-0307 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-1 02 1 0308- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94384-214-0 01 1 9704-0307 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97371-918-1 01 1 0308- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94384-213-0 01 1 9704-0307 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-567-1 01 1 0308- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9704-0307 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM) M10 FLANGE 		0-91150-110-0 04 1 0308-0602 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM) M10 FLANGE 		0-91180-110-0 04 1 0603- ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 9704-0307 ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (B) 		8-97039-947-1 04 1 1404- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 04 1 9704-0203 ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 0204-0307 ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (A) 		8-94111-904-0 06 1 0308-1403 ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (A) 		8-94111-904-0 02 1 1404- ●
78 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 9704-0307 ●
78 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-562-1 01 1 0308- ●
78 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-563-1 01 1 0308- ●
79 BOLT; SUPPORT RUBBER TO TRANS
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9704-0307 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9704-0605 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606-1111 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1112- ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 9704-0603 ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-1111 ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 1112- ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9704-0512 ●
173 NUT; ENG MTG RR TO FRAME
M10 		0-91110-510-0 04 1 0601-1111 ●
173 NUT; ENG MTG RR TO FRAME
M10 		0-91110-510-0 04 1 1112- ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9704-1111 ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1112- ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9704-0603 ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-1111 ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 1112- ● ●

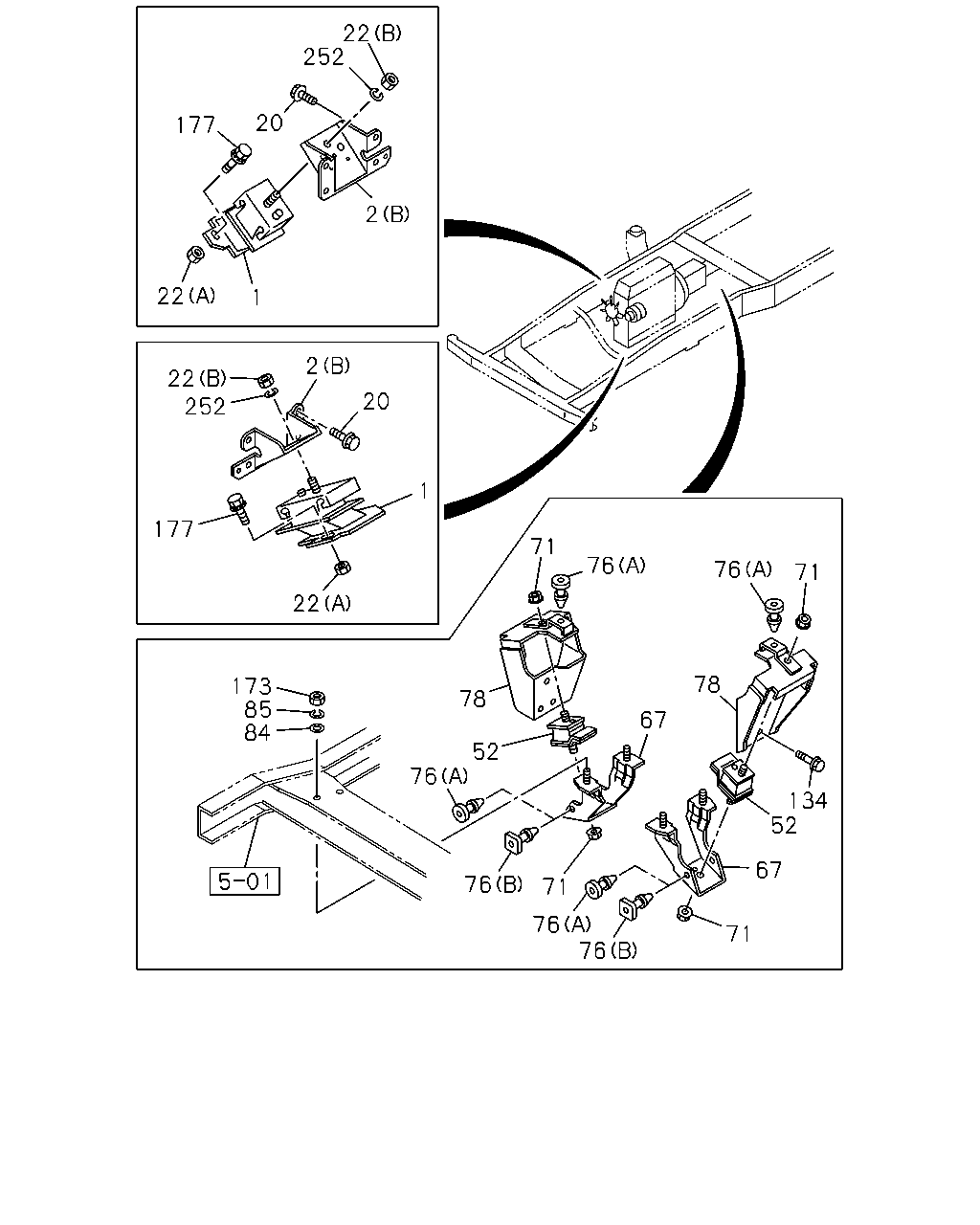

çizim 38992
22 252 20 177 22 2 1 22 2 252 177 1 22 20 173 85 84 78 71 76 76 71 78 67 52 76 76 76 76 71 71 67 52 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97120-497-1 01 1 9704-1111 ●
1 RUBBER; ENG FOOT,FRT 8-97120-497-1 01 1 1112- ● ●
1 RUBBER; ENG FOOT,FRT 8-97120-498-1 01 1 9704-1111 ●
1 RUBBER; ENG FOOT,FRT 8-97120-498-1 01 1 1112- ● ●
2 FOOT; ENG
(A) 		8-97145-013-0 02 1 9704-9907 ●
2 FOOT; ENG
(A) 		8-97228-330-0 02 1 9908-9910 ●
2 FOOT; ENG
(B) 		8-97228-669-2 02 1 9911-1111 ●
2 FOOT; ENG
(B) 		8-97228-669-2 02 1 1112- ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 9704-0512 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601-1111 ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 1112- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 9704-0512 ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		0-91110-512-0 02 1 0601-1111 ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		0-91110-512-0 02 1 1112- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9704-0307 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-1111 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1112- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9704-0307 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-1 02 1 0308- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94384-214-0 01 1 9704-0307 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97371-918-1 01 1 0308- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94384-213-0 01 1 9704-0307 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-567-1 01 1 0308- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9704-0307 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM) M10 FLANGE 		0-91150-110-0 04 1 0308-0602 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM) M10 FLANGE 		0-91180-110-0 04 1 0603- ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (B) 		8-97039-947-1 04 1 1404- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 04 1 9704-0203 ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 0204-0307 ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (A) 		8-94111-904-0 06 1 0308-1403 ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (A) 		8-94111-904-0 02 1 1404- ●
78 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 9704-0307 ●
78 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-562-1 01 1 0308- ●
78 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-563-1 01 1 0308- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 9704-0605 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606-1111 ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1112- ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 9704-0603 ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-1111 ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 1112- ● ●
134 BOLT; SUPPORT BRKT
M12X25 		0-28781-225-0 06 1 0308-0512 ●
134 BOLT; SUPPORT BRKT
M12X25 FLANGE 		0-28751-225-0 06 1 0601- ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 9704-0512 ●
173 NUT; ENG MTG RR TO FRAME
M10 		0-91110-510-0 04 1 0601-1111 ●
173 NUT; ENG MTG RR TO FRAME
M10 		0-91110-510-0 04 1 1112- ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9704-1111 ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1112- ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 9704-0603 ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-1111 ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 1112- ● ●
