0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#73405) — 75 parça

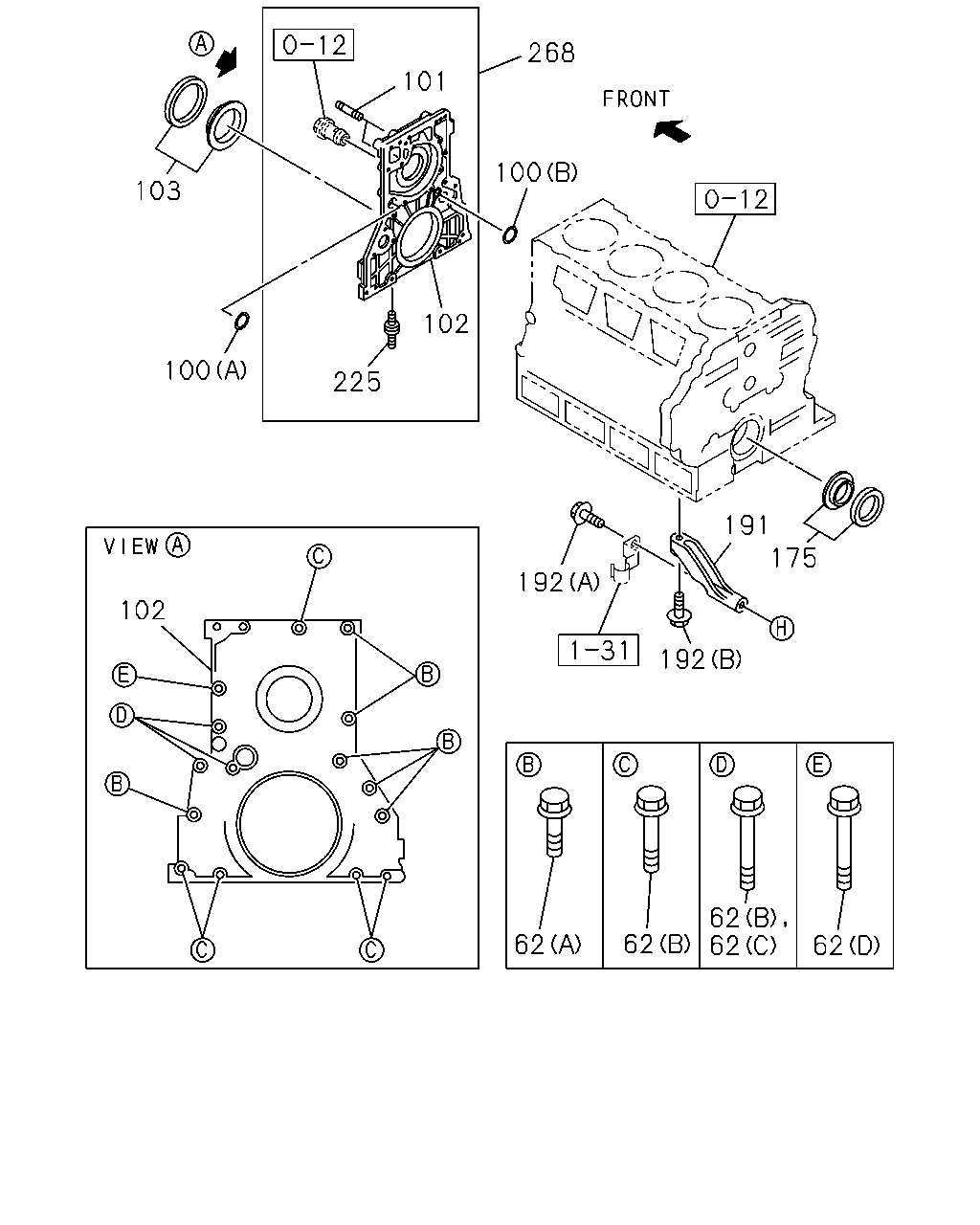

çizim 38215
268 101 100 103 102 100 225 191 175 192 102 192 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 BOLT; COVER
ISUZU BRAND<7WL> (D) M8X30 FLANGE 		0-28650-830-0 01 1 1006-1111 ●
62 BOLT; COVER
ISUZU BRAND<7WL> (D) M8X30 FLANGE 		0-28650-830-0 01 1 1112- ●
62 BOLT; COVER
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1112- ●
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 06 1 9704-0512 ●
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-1111 ●
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 06 1 1112- ● ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28680-835-0 05 1 9704-0512 ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-0706 ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 06 1 0707-1111 ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 06 1 1112- ● ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 03 1 9704-0706 ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 02 1 0707-1111 ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 02 1 1112- ● ●
62 BOLT; COVER
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0404 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 9704-1111 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1112- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 9704-1111 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1112- ● ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 01 1 9704-1111 ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 01 1 1112- ● ●
101 STUD; WATER PUMP
M8X18 L=30 		9-04110-818-0 01 1 9704-0604 ●
101 STUD; WATER PUMP
M8X18 L=30 		0-41010-818-0 01 1 0605-1111 ●
101 STUD; WATER PUMP
M8X18 L=30 		0-41010-818-0 01 1 1112- ● ●
102 RETAINER; FRT 8-97094-943-3 01 1 9704-0706 ●
102 RETAINER; FRT 8-98039-932-1 01 1 0707-1111 ●
102 RETAINER; FRT 8-98039-932-2 01 1 1112- ●
102 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1112- ●
102 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1112- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-94369-518-0 01 1 9704-0205 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0206-1111 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1112- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-94370-637-0 01 1 9704-0205 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0206-1111 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1112- ● ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1112- ●
192 BOLT; STAY TO HSG
(A) M12X100 FLANGE 		0-28151-200-0 01 1 1112- ●
192 BOLT; STAY TO HSG
(B) M12X50 FLANGE 		0-28151-250-0 01 1 1112- ●
225 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9704-0005 ●
225 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 03 1 0006-0012 ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0101-1111 ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1112- ● ●
268 COVER; FRT 8-97074-859-3 01 1 9704-0005 ●
268 COVER; FRT 8-97259-417-0 01 1 0006-0012 ●
268 COVER; FRT 8-97259-416-0 01 1 0101-0706 ●
268 COVER; FRT 8-98039-931-1 01 1 0707-1111 ●
268 COVER; FRT 8-98039-931-2 01 1 1112- ●
268 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1112- ●
268 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1112- ●

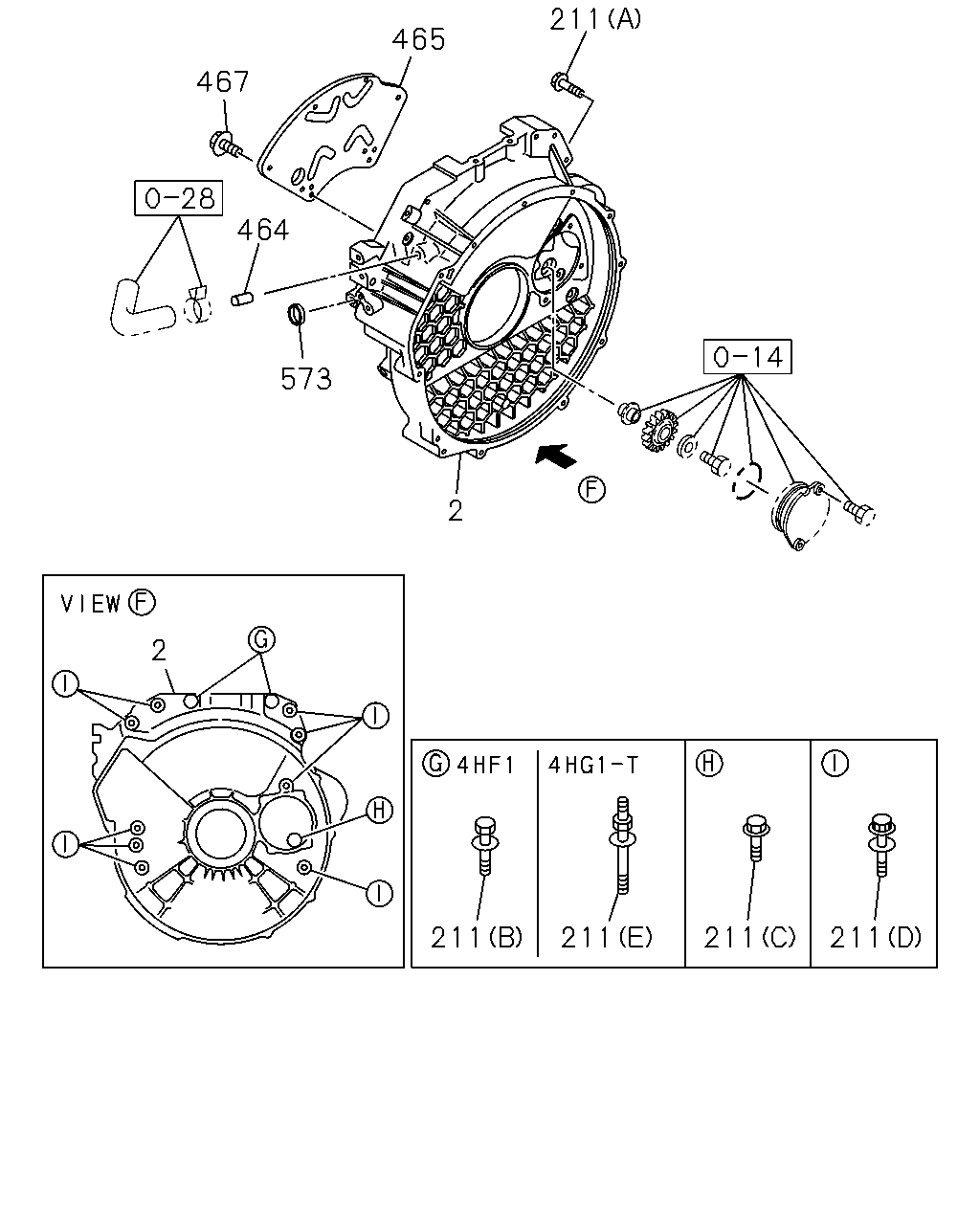

çizim 190472
211 465 467 464 573 2 2 211 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97112-139-5 01 1 9704-9902 ●
2 HOUSING; FLYWHEEL 8-97223-971-0 01 1 9903-9904 ●
2 HOUSING; FLYWHEEL 8-97223-737-2 01 1 9905-0006 ●
2 HOUSING; FLYWHEEL 8-97241-584-0 01 1 0007-0308 ●
2 HOUSING; FLYWHEEL 8-97364-899-4 01 1 0309-1111 ●
2 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1112- ● ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 9704-0512 ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 0601-1111 ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 1112- ● ●
211 BOLT; HSG
(B) M8X65 W/PL WASHER 		8-94388-781-0 02 1 9704- ●
211 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 9704-1102 ●
211 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103-1111 ●
211 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1112- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 9704-1111 ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 1112- ● ●
211 BOLT; HSG
(E) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1112- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 9704-1111 ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1112- ● ●
465 PLATE; FLYWHEEL HSG 8-94370-384-3 01 1 9704-0308 ●
465 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0309-1111 ●
465 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1112- ● ●
467 BOLT; PLATE
M6X10 FLANGE 		0-28080-610-0 06 1 9704-0507 ●
467 BOLT; PLATE
M6X10 		0-20800-610-0 06 1 0508-0805 ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 0806-1111 ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 1112- ● ●
573 CUP; SEALING
OD=19 		8-94150-231-0 01 1 9905-1111 ●
573 CUP; SEALING
OD=19 		8-94150-231-0 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
