◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#73404) — 83 parça

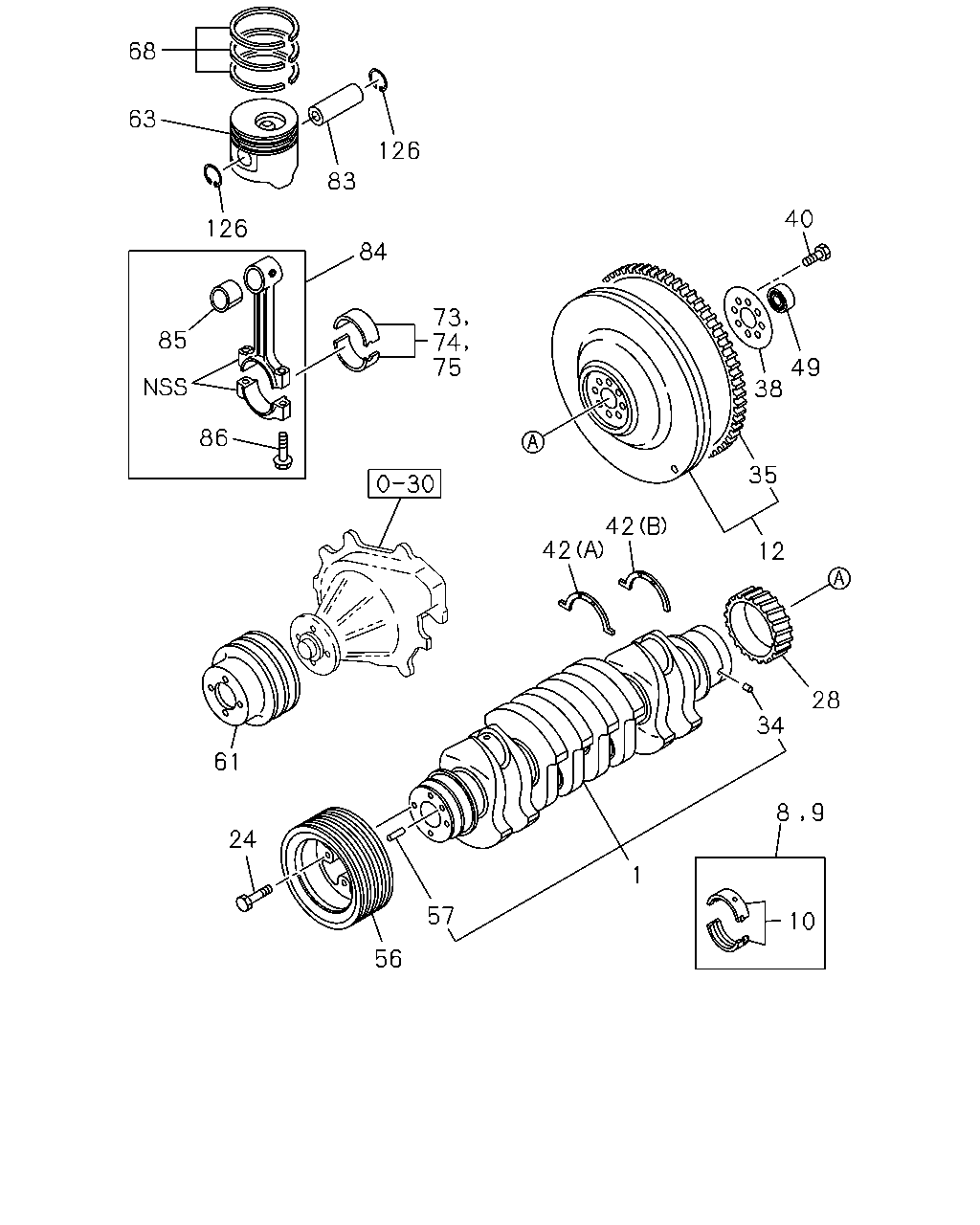

çizim 37581
68 63 126 83 40 126 84 73 74 75 85 49 38 86 35 42 42 12 28 34 61 8 9 24 1 57 10 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-97112-981-3 01 1 9704-1111 ●
1 CRANKSHAFT 8-97112-981-3 01 1 1112- ● ●
8 METAL KIT; CRANKSHAFT,U/S=0.25 8-97174-988-0 01 1 9704-9904 ●
9 METAL KIT; CRANKSHAFT,U/S=0.50 8-97174-989-0 01 1 9704-9904 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9704-9904 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 9905-0303 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0304-1111 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 1112- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9704-9904 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 9905-0303 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0304-1111 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 1112- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9704-9904 ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 9905-0303 ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0304-1111 ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 1112- ● ●
12 FLYWHEEL 8-97169-129-2 01 1 9704-9903 ●
12 FLYWHEEL 8-97115-782-0 01 1 9904-0307 ●
12 FLYWHEEL 8-97330-892-1 01 1 0308-1111 ●
12 FLYWHEEL 8-97330-892-1 01 1 1112- ● ●
24 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 9704-1111 ●
24 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 1112- ● ●
28 GEAR; CR/SHF
Z=42 		8-97110-040-4 01 1 9704-9902 ●
28 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 9903-1111 ●
28 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 1112- ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9704-1111 ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 1112- ● ●
35 GEAR; RING
Z=138 		8-97169-134-0 01 1 9704-9903 ●
35 GEAR; RING
Z=138 		8-97046-366-1 01 1 9904-1111 ●
35 GEAR; RING
Z=138 		8-97046-366-1 01 1 1112- ● ●
38 WASHER; FLYWHEEL
ID=42 OD=110 		8-94310-615-0 01 1 9704-0307 ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0308-1111 ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1112- ● ●
40 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 9704-1111 ●
40 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 1112- ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9704-0703 ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704-1111 ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 1112- ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9704-0703 ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704-1111 ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1112- ● ●
49 BEARING; PILOT 8-97031-741-0 01 1 9704-0307 ●
49 BEARING; PILOT 8-97258-239-0 01 1 0308-1111 ●
49 BEARING; PILOT 8-97258-239-0 01 1 1112- ● ●
49 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 1006-1111 ●
49 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 1112- ● ●
56 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 9704-1111 ●
56 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 1112- ● ●
57 PIN; PULLEY
OD=8 L=16 		9-08150-816-0 02 1 9704-0212 ●
57 PIN; PULLEY
OD=8 L=20 		9-08160-820-0 02 1 0301-0304 ●
57 PIN; PULLEY
OD=8 L=20 		9-08150-820-0 02 1 0305-1111 ●
57 PIN; PULLEY
OD=8 L=20 		9-08150-820-0 02 1 1112- ● ●
61 PULLEY; FAN DRIVE
2-GROOVE 		8-94389-413-1 01 1 9704-9903 ●
61 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 9904-1111 ●
61 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 1112- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-0 04 1 9704-9704 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-667-0 04 1 9705-0006 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0007- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-1 04 1 1112-1112 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-745-0 04 1 1201- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 9704- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 1112- ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9704-1111 ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 1112- ● ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9704-1111 ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 1112- ● ●
74 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 9704-1111 ●
74 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 1112- ● ●
75 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 9704-1111 ●
75 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 1112- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 9704-1111 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 1112- ● ●
84 ROD ASM; CONN 8-97135-032-5 04 1 9704-1111 ●
84 ROD ASM; CONN 8-97135-032-6 04 1 1112- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9704-0805 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98075-233-0 04 1 0806-0905 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906-1111 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 1112- ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9704-1004 ●
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005-1111 ●
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1112- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 9704-1111 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
