0-14 — CAMSHAFT AND VALVE (#73403) — 125 parça

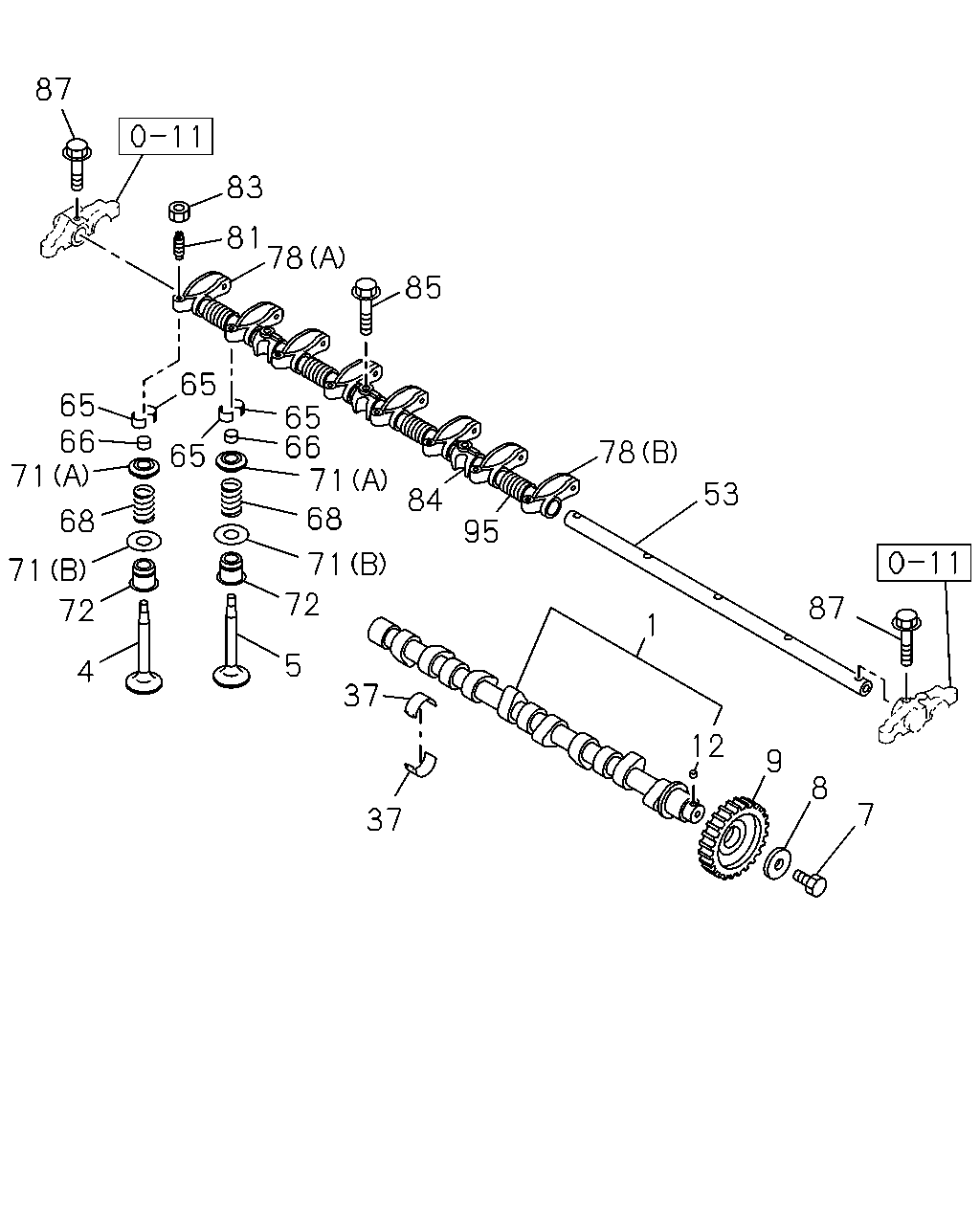

87 83 81 78 85 65 65 66 71 65 66 71 68 78 65 53 84 68 95 71 71 72 87 72 1 5 4 37 12 9 8 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97077-829-0	01	1	9704-1111	●
1	CAMSHAFT	8-97077-829-0	01	1	1112-	●	●
4	VALVE; INL	8-94394-160-1	04	1	9704-9705	●
4	VALVE; INL	8-97171-398-0	04	1	9706-1111	●
4	VALVE; INL	8-97171-398-0	04	1	1112-	●	●
5	VALVE; EXH	8-97019-337-0	04	1	9704-9705	●
5	VALVE; EXH	8-97171-399-0	04	1	9706-1111	●
5	VALVE; EXH	8-97171-399-0	04	1	1112-	●	●
7	BOLT; CM/SHF GEAR M14X40	9-92061-440-0	01	1	9704-0204	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-1111	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1112-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9704-1111	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1112-	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1112-		●
9	GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9704-	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	9704-1111	●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1112-	●	●
37	METAL; CM/SHF	8-97112-638-0	10	1	9704-0209	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-0706	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-1111	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1112-	●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9704-1111	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	1112-	●	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-1111	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	1112-	●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	9704-1111	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	1112-	●	●
66	CAP; VLV STEM END	8-97075-453-0	08	1	9704-9805	●
66	CAP; VLV STEM END	8-97188-300-0	08	1	9806-0106	●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0107-1111	●
66	CAP; VLV STEM END	8-94396-015-2	08	1	1112-	●	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	9704-1111	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	1112-	●	●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-2	08	1	9704-1111	●
71	SEAT; SPR (A) UPPER OD=38	8-94385-029-2	08	1	1112-	●	●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-1	08	1	9704-1111	●
71	SEAT; SPR (B) LOWER ID=14.3 OD=40	8-94399-526-1	08	1	1112-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9704-1111	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	1112-	●	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-2	04	1	9704-1111	●
78	ARM; ROCKER (B) EXHAUST JBK	8-97014-258-2	04	1	1112-	●	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-1	04	1	9704-1111	●
78	ARM; ROCKER (A) INLET JBK	8-97074-614-1	04	1	1112-	●	●
78	ARM; ROCKER (A) INLET KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-1111	●
78	ARM; ROCKER (A) INLET KEIHIN SEIMITSU	8-97174-562-0	04	1	1112-	●	●
78	ARM; ROCKER (B) EXHAUST KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-1111	●
78	ARM; ROCKER (B) EXHAUST KEIHIN SEIMITSU	8-97174-565-0	04	1	1112-	●	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9704-1111	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	1112-	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	9704-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-1111	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1112-	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9704-1111	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	1112-	●	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9704-1111	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	1112-	●	●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9704-1111	●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	1112-	●	●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9704-1111	●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	1112-	●	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	9704-0512	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28050-835-0	02	1	0601-1111	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28050-835-0	02	1	1112-	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9704-1111	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1112-	●	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9704-1111	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1112-	●	●

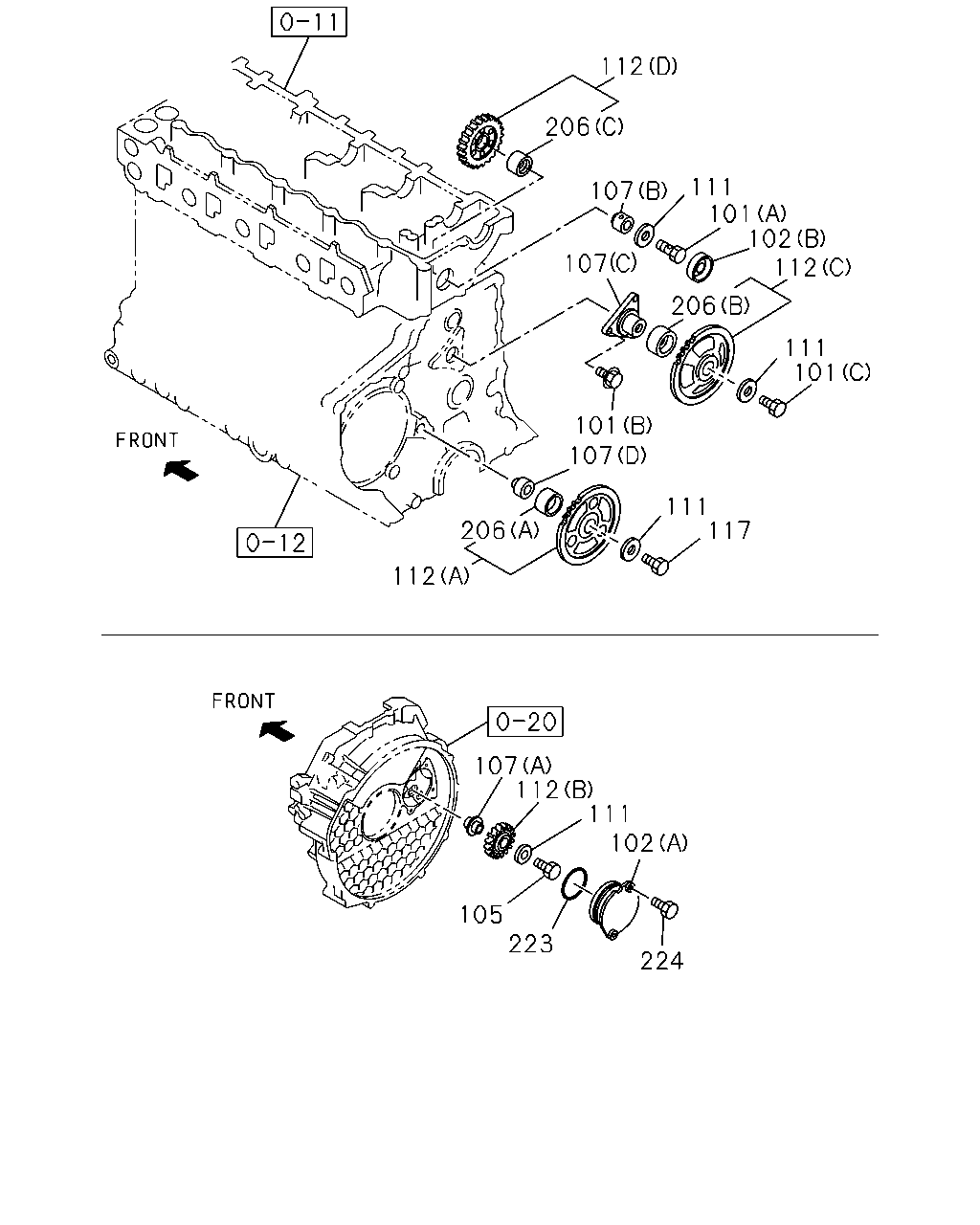

112 206 111 101 102 112 107 107 206 111 101 101 107 111 117 206 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9704-1111	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1112-	●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9704-0203	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-0512	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-1111	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1112-	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9704-9711	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-1111	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1112-1310	●	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9704-1111	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1112-	●	●
102	COVER; IDLE GEAR (B) OD=51	8-94396-229-0	01	1	9704-9710	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9711-1111	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1112-	●	●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	9704-0512	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0601-1111	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1112-	●	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9704-1111	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1112-	●	●
107	SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9704-9711	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	9712-1111	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	1112-	●	●
107	SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9704-9711	●
107	SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-0203	●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-1111	●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	1112-	●	●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9704-0609	●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-1111	●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1112-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	04	1	9704-9807	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	9808-1111	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1112-	●	●
112	GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	9704-	●
112	GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	9704-	●
112	GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9704-9902	●
112	GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	9903-	●
112	GEAR; IDLE (B) Z=34	8-97120-005-1	01	1	9704-1111	●
112	GEAR; IDLE (B) Z=34	8-97120-005-1	01	1	1112-	●	●
112	GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	1112-		●
112	GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1112-		●
112	GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	1112-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9704-1111	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1112-	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9704-1111	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	1112-	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9704-0802	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-1111	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1112-	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9704-0809	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-1111	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1112-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9704-0211	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-1111	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1112-	●	●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	9704-0512	●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0601-1111	●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1112-	●	●
