0-13 — OIL PAN AND LEVEL GAUGE (#73402) — 54 parça

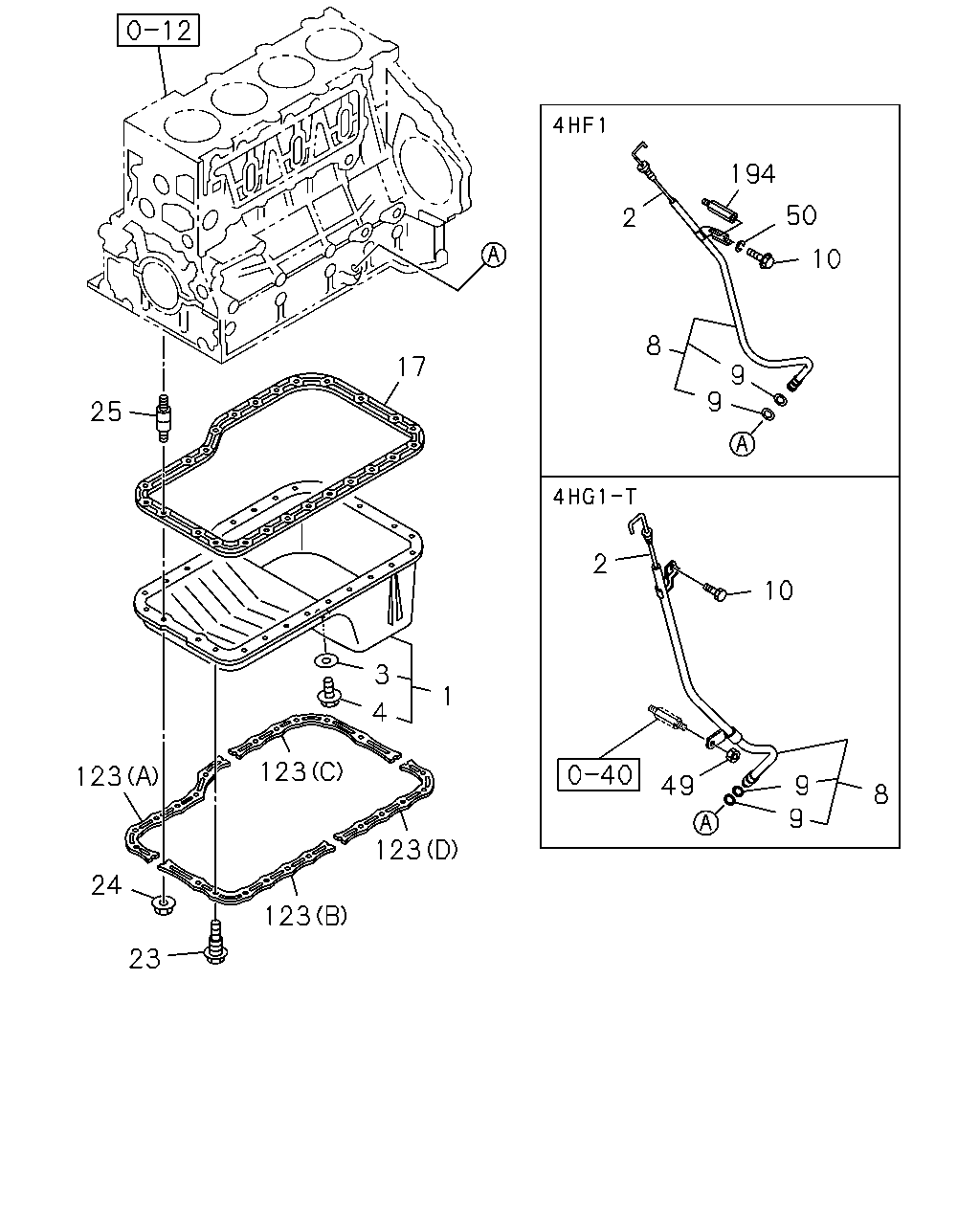

çizim 33442
25 123 24 23 123 123 123 4 3 1 17 2 194 50 10 9 9 8 2 10 49 9 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97087-642-2 01 1 9704-0012 ●
1 PAN ASM; OIL 8-97305-077-0 01 1 0101-0405 ●
1 PAN ASM; OIL 8-97385-249-0 01 1 0406-1111 ●
1 PAN ASM; OIL 8-97385-249-0 01 1 1112-1202 ● ●
1 PAN ASM; OIL 8-98203-596-0 01 1 1203- ● ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 9704-1111 ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 1112- ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9704-1111 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1112- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9704-1111 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1112- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97101-907-1 01 1 9704- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97200-567-1 01 1 1112- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9704-1111 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 1112- ● ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE 		0-28680-820-0 01 1 9704-0512 ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
10 BOLT; GUIDE TUBE
M10X110 FLANGE 		0-28156-011-0 01 1 1112- ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-148-2 01 1 9704-0012 ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97190-191-1 01 1 0101-0402 ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0403-1111 ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 1112- ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 11 1 9704-0005 ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 13 1 0006-0012 ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0101-1111 ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1112- ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-208-0 15 1 9704-9801 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 15 1 9802-0005 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 13 1 0006-0602 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 13 1 0603-1111 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 13 1 1112- ● ●
25 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 10 1 9704-0005 ●
25 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 09 1 0006-0012 ●
25 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0101-1111 ●
25 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 1112- ● ●
25 STUD; OIL PAN
M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 01 1 9704-0012 ●
25 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0101-1111 ●
25 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 1112- ● ●
49 NUT; GUIDE TUBE
M10 FLANGE 		0-91180-110-0 01 1 1112- ●
50 WASHER; PL,GUIDE TUBE
ID=10.5 OD=22 		9-09164-610-0 01 1 9704-0605 ●
50 WASHER; PL,GUIDE TUBE
ID=10.5 OD=22 		0-91614-610-0 01 1 0606- ●
123 RUBBER; SEAL OIL
(A) 		8-97087-619-2 01 1 9704-0012 ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0101-1111 ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 1112- ● ●
123 RUBBER; SEAL OIL
(B) 		8-97087-622-2 01 1 9704-0012 ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0101-1111 ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 1112- ● ●
123 RUBBER; SEAL OIL
(C) 		8-97087-625-2 01 1 9704-0012 ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0101-1111 ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 1112- ● ●
123 RUBBER; SEAL OIL
(D) 		8-97087-628-2 01 1 9704-0012 ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0101-1111 ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 1112- ● ●
194 SPACER; GUIDE TUBE 8-97101-215-0 01 1 9704- ●
