◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#73401) — 70 parça

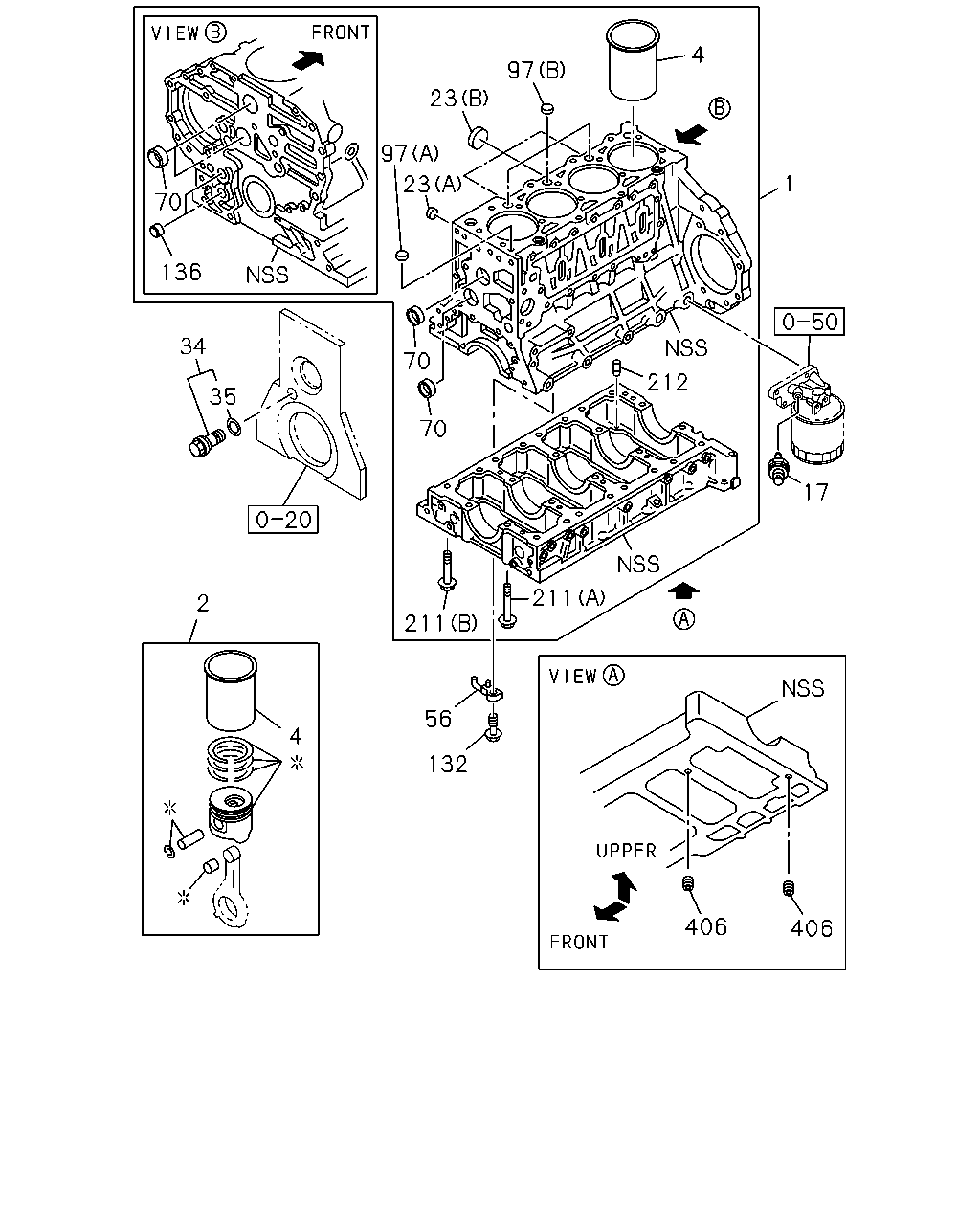

çizim 28282
132 56 211 211 406 406 17 212 1 4 97 23 97 23 70 70 35 34 136 70 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97146-438-5 01 1 9704-9711 ●
1 BLOCK ASM; CYL 8-97163-853-7 01 1 9712- ●
1 BLOCK ASM; CYL 8-98005-434-3 01 1 1112-1209 ●
1 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-336-0 04 1 9704-9704 ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-4 04 1 9705- ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-337-0 04 1 9704-9704 ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-4 04 1 9705- ●
2 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 1112-1112 ●
2 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 1112-1112 ●
2 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-1 04 1 9704- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-1 04 1 9704- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1112- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1112- ●
17 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 9704-0307 ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0308-1111 ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1112- ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		1-09600-005-1 03 1 9704-9810 ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 9811-1111 ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1112- ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 9704-1111 ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 1112- ● ●
34 VALVE; OIL RELIEF 8-94386-047-1 01 1 9704-0706 ●
34 VALVE; OIL RELIEF 8-97328-859-0 01 1 0707-1111 ●
34 VALVE; OIL RELIEF 8-97328-859-0 01 1 1112- ● ●
35 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 9704-1005 ●
35 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1006-1111 ●
35 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1112- ● ●
56 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 9704- ●
56 JET; OIL,PISTON COOLING 8-97213-294-1 04 1 1112- ●
70 CUP; SEALING,FRT & RR
OD=40 		8-94399-639-0 04 1 9704-9810 ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 9811-1111 ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1112- ● ●
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 1112- ●
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 1112- ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 9704-0704 ●
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705-1111 ●
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1112- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0308-0812 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901-1111 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1112- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 9704-1111 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 1112- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 9704-1111 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 1112- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 9704-1111 ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1112- ● ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 9704-1111 ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 1112- ● ●

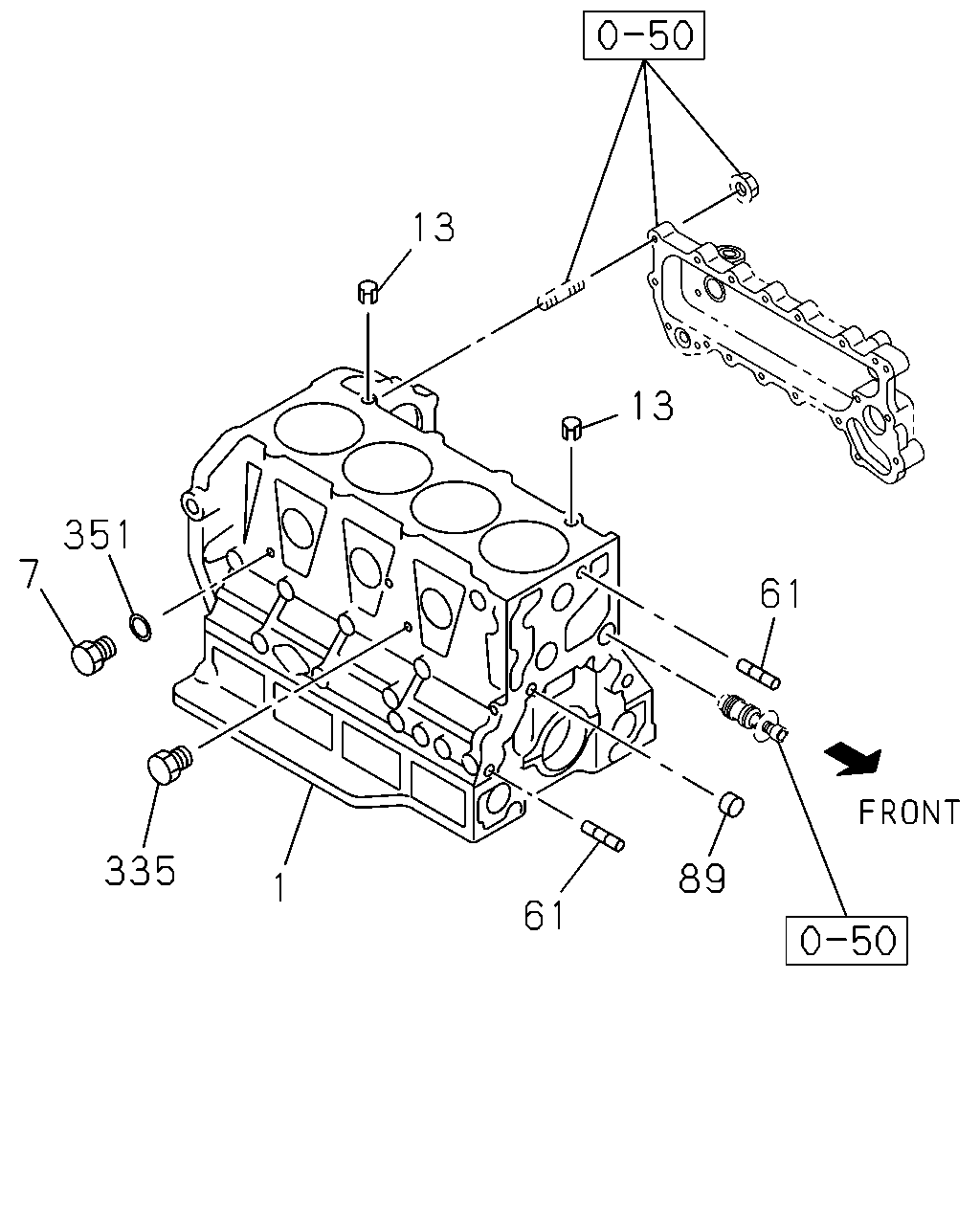

çizim 28770
13 13 351 7 61 335 89 1 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97146-438-5 01 1 9704-9711 ●
1 BLOCK ASM; CYL 8-97163-853-7 01 1 9712- ●
1 BLOCK ASM; CYL 8-98005-434-3 01 1 1112-1209 ●
1 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
7 PLUG; WATER DRAIN
M10X7 		9-09861-010-0 01 1 9704-0208 ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0209-1111 ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1112- ● ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 9704-1111 ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1112- ● ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 9704-1111 ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1112- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 9704-9907 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 9908-1111 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 1112- ● ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 9704-0712 ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 0801-1111 ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 1112- ● ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9704-1111 ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1112- ● ●
