0-11 — CYLINDER HEAD (#73400) — 82 parça

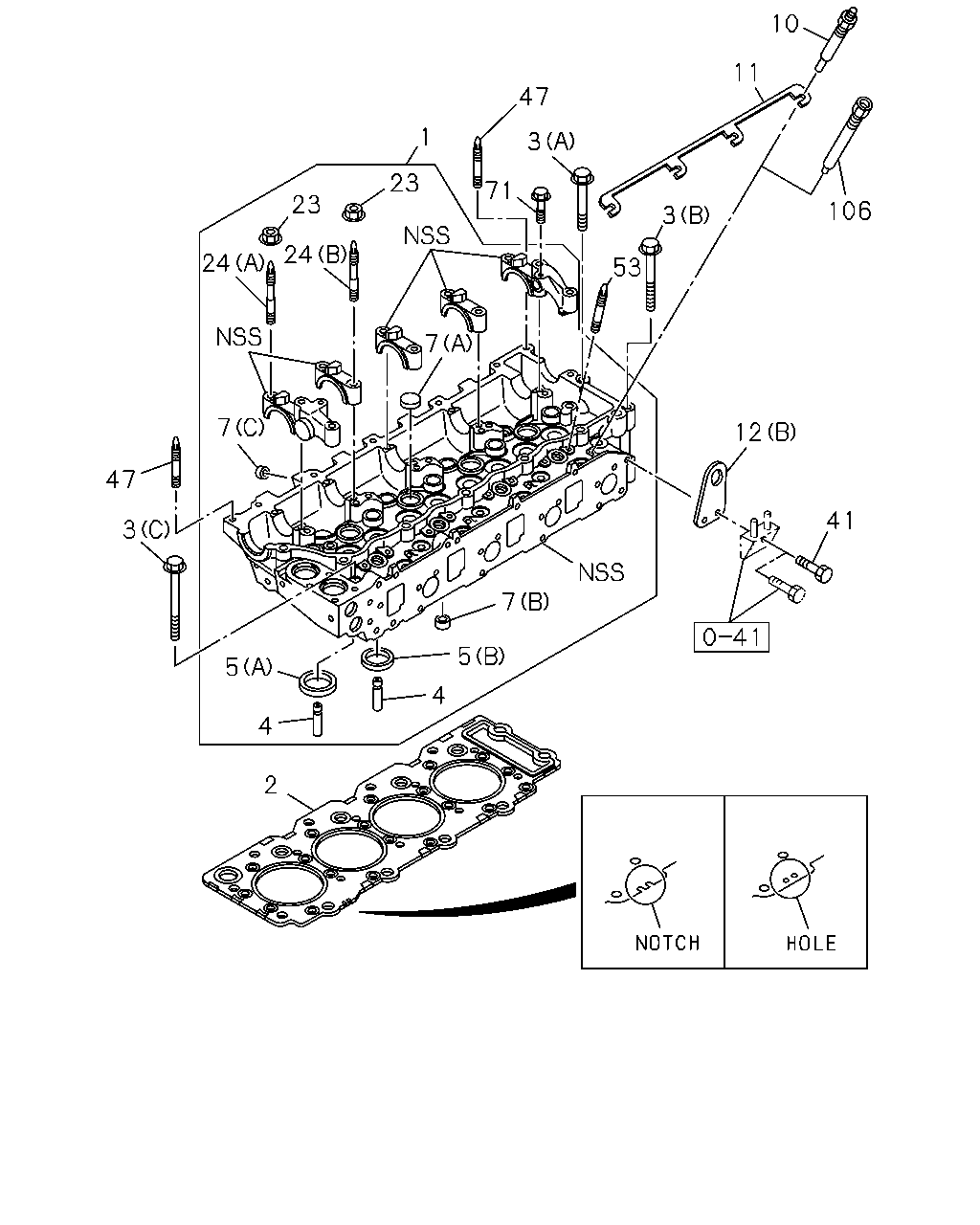

çizim 15117
47 3 71 1 23 23 24 24 7 7 47 3 5 4 2 4 5 7 12 41 106 11 10 3 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97146-520-2 01 1 9704-0006 ●
1 HEAD ASM; CYL 8-97186-589-7 01 1 0007- ●
1 HEAD ASM; CYL 8-97358-368-2 01 1 1112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9704-9904 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97223-762-1 01 1 9905-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9704-9904 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97223-763-1 01 1 9905-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9704-9904 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97223-764-1 01 1 9905-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97233-756-0 01 1 9909-0006 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-940-1 01 1 0007-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97233-757-0 01 1 9909-0006 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-941-1 01 1 0007-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-484-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97233-758-0 01 1 9909-0006 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-942-1 01 1 0007-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-485-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 1112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 1112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 1112- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9704-1111 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1112- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9704-1111 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1112- ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9704-1111 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1112-1503 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 GUIDE; VLV 8-94396-598-0 08 1 9704-1111 ●
4 GUIDE; VLV 8-94396-598-0 08 1 1112- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9704-1111 ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 1112- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9704-1111 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 1112- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-1 12 1 9704-9810 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811-1111 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 1112- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 9704-1111 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 1112- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9704-9810 ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811-1111 ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 1112- ● ●
10 PLUG; GLOW 8-94135-377-4 04 1 9704-9810 ●
10 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 9811- ●
10 PLUG; GLOW
NGK 		8-97033-761-2 04 1 9704- ●
11 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9704- ●
12 HANGER; ENG,RR
(B) 		8-97071-960-0 01 1 9704- ●
12 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 1112-1405 ●
12 HANGER; ENG,RR
(C) 		8-98219-797-0 01 1 1406- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 9704-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 0603-1111 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1112- ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9704-1111 ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1112- ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9704-1111 ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1112- ● ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28751-020-0 02 1 1112-1405 ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9704- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 1112- ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9704-1111 ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 1112- ● ●
53 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9704-9705 ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9706-1111 ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 1112- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9704-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-1111 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1112- ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 04 1 1112- ●

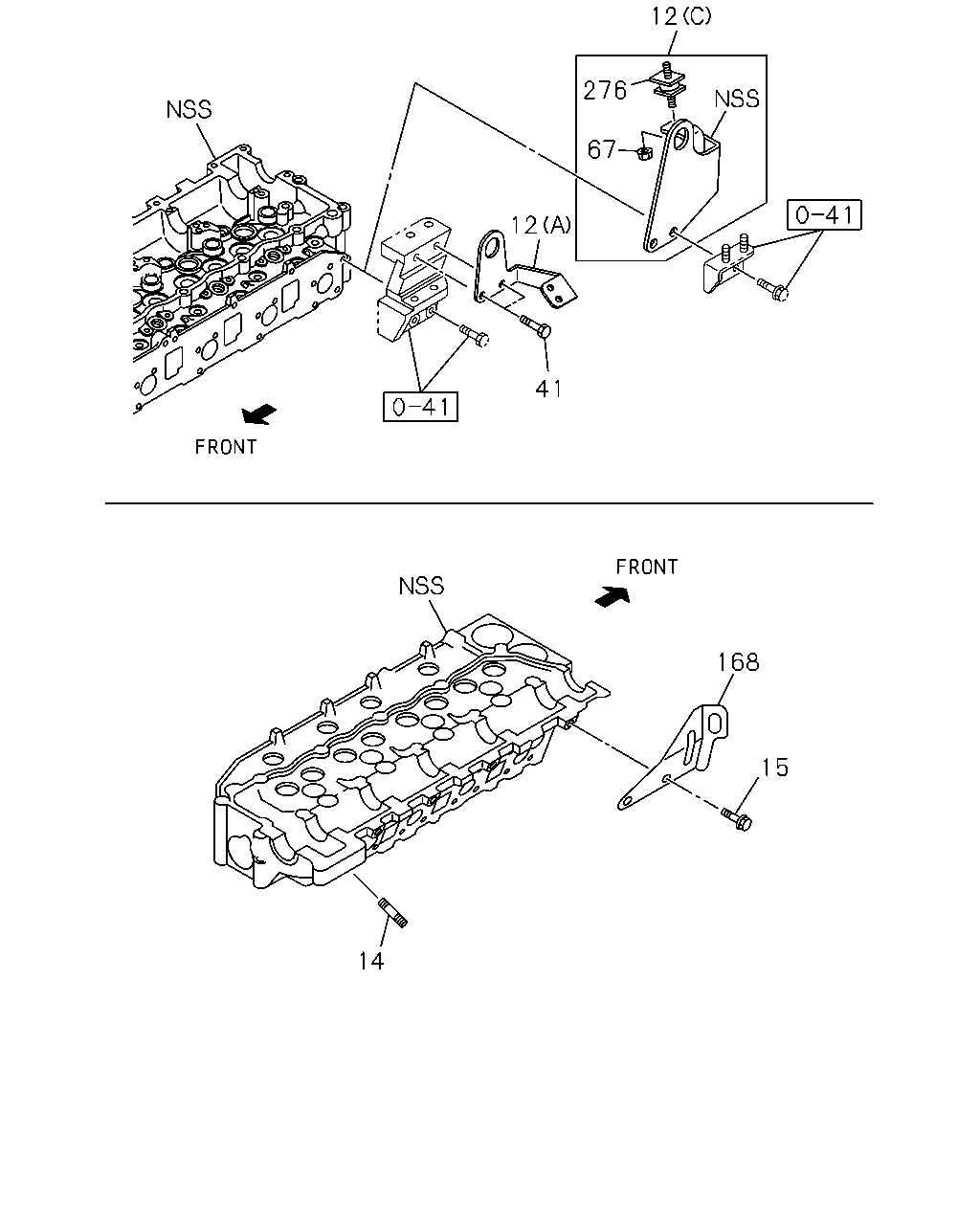

çizim 417005
12 276 67 12 41 14 168 15
BalonParca AdiParca NoAdetTipApplied Date A B
12 HANGER; ENG,RR
(B) 		8-97071-960-0 01 1 9704- ●
12 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 1112-1405 ●
12 HANGER; ENG,RR
(C) 		8-98219-797-0 01 1 1406- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9704-1111 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1112- ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 9704-0512 ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28751-020-0 02 1 0601-1111 ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28751-020-0 02 1 1112- ● ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28751-020-0 02 1 1112-1405 ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1406- ●
168 HANGER; ENG,FRT 8-97104-515-1 01 1 9704-0001 ●
168 HANGER; ENG,FRT 8-97127-373-0 01 1 0002- ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 1112- ●
276 RUBBER; MTG 8-98219-799-0 01 1 1406- ●
