◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#7340) — 143 parça

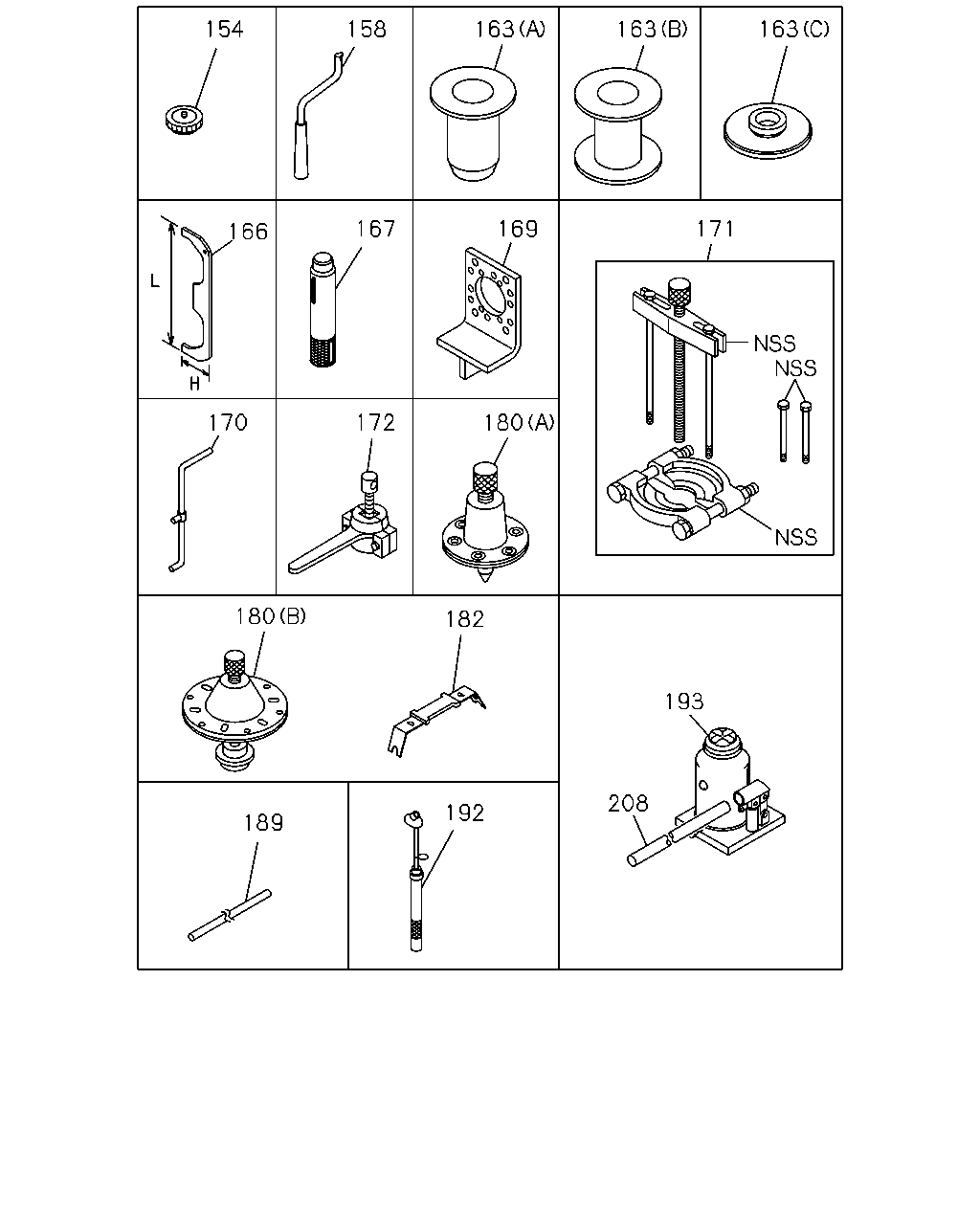

çizim 6718
154 158 163 163 163 167 169 171 166 170 172 180 180 182 193 208 192 189
BalonParca AdiParca NoAdetTipApplied Date
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9906-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (C) OD=150 		1-85221-167-0 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (D) L=150 		9-85221-248-0 01 1 9906-
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5 		1-85253-015-0 01 1 9906-
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 9906-
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9906-
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9906-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 9906-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 9906-
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 9906-
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 9906-
182 REMOVER ASM 1-85239-008-0 01 1 9906-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9906-
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9906-9908
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-001-0 01 1 9906-9908
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9906-9908
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9909-9912
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-001-0 01 1 9909-9912
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0001-
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-002-0 01 1 0001-
193 JACK ASM
15TON 		1-85510-019-1 01 1 9906-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9906-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-

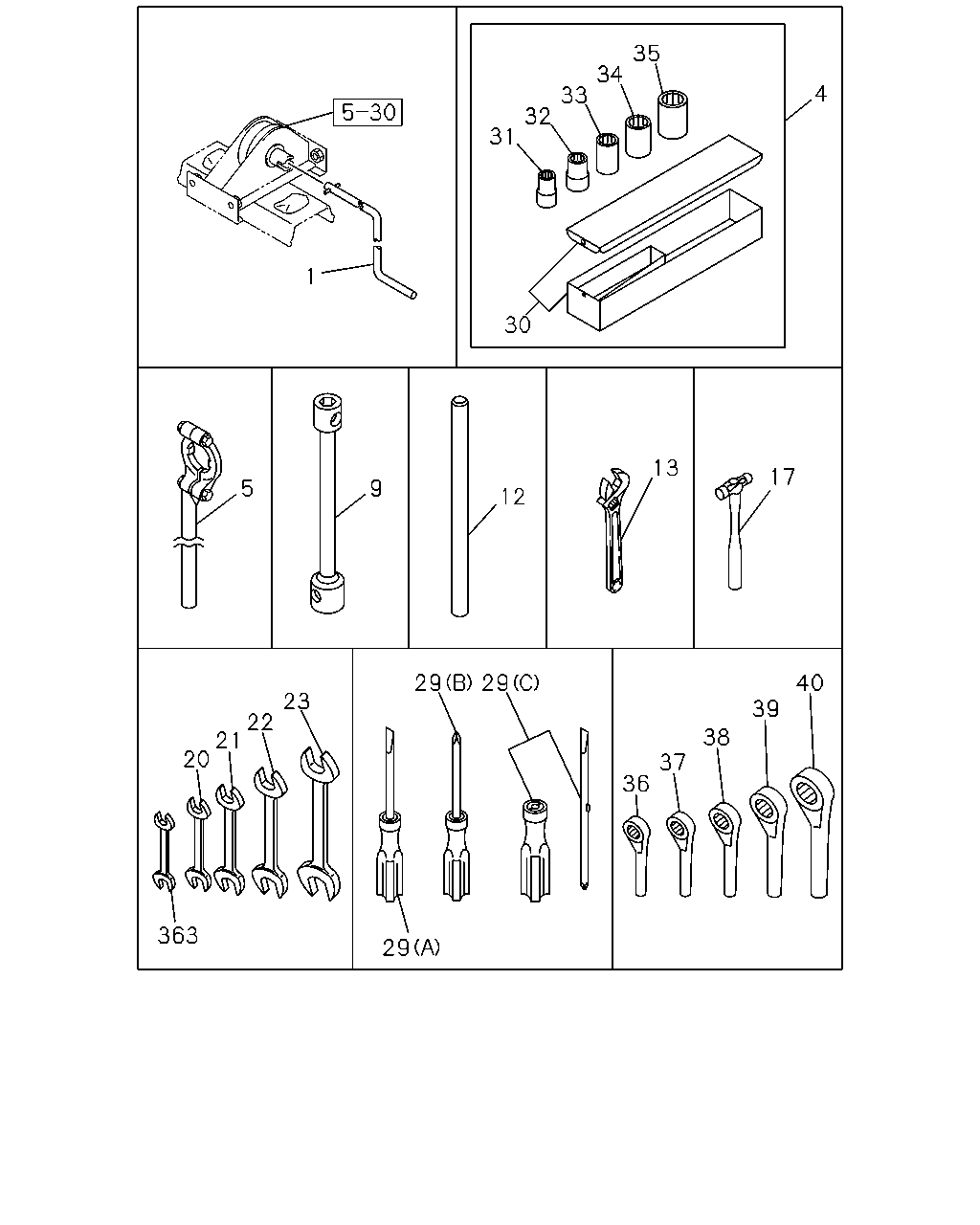

çizim 43521
35 34 33 32 4 31 1 30 13 17 5 9 12 40 23 22 21 20 39 38 37 36 363 29 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9906-
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 9906-
5 WRENCH ASM; NUT,MAINSHAFT
ISUZU M/T<X9A> 		1-85110-010-0 01 1 9906-
9 WRENCH; WHEEL PIN
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) B=41X21 L=440 		1-85113-015-1 01 1 9906-
9 WRENCH; WHEEL PIN
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) B=33X30 L=450 		1-85111-033-1 01 1 9906-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9906-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9906-
17 HAMMER 9-85121-406-0 01 1 9906-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9906-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9906-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9906-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9906-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 9906-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9906-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 9906-
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 9906-
31 WRENCH; 12 9-09590-012-0 01 1 9906-
32 WRENCH; 14 9-09590-014-0 01 1 9906-
33 WRENCH; 17 9-09590-017-0 01 1 9906-
34 WRENCH; 19 9-09590-019-0 01 1 9906-
35 WRENCH; 22 9-09590-022-0 01 1 9906-
36 WRENCH; 24 9-85111-377-0 01 1 9906-
37 WRENCH; 27 9-85111-375-0 01 1 9906-
38 WRENCH; 32 9-85111-358-0 01 1 9906-
39 WRENCH; 36 9-85111-374-0 01 1 9906-
40 WRENCH; 41 9-85111-356-0 01 1 9906-
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 9906-

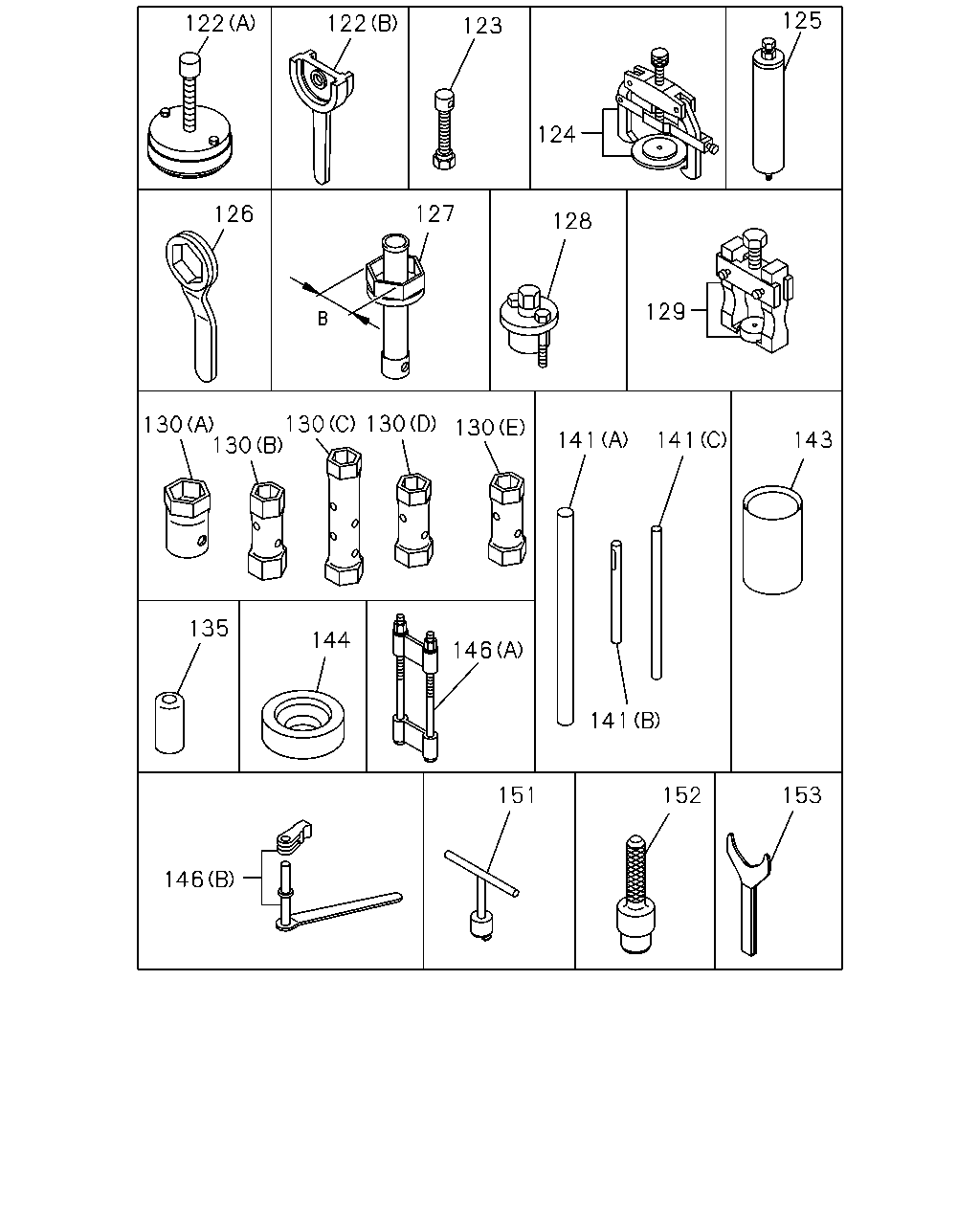

çizim 43522
125 122 122 123 124 127 126 128 129 130 130 130 130 130 141 143 141 135 144 146 141 151 152 153 146
BalonParca AdiParca NoAdetTipApplied Date
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> (A) 		1-85210-010-0 01 1 9906-
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> (B) 		9-85210-129-1 01 1 9906-
123 PULLER; SPEEDOMETER BUSHING
ISUZU M/T<X9A> 		9-85210-091-0 01 1 9906-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 9906-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9906-
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9906-
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 9906-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 9906-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 9906-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9906-
130 WRENCH; BOX
(E) B=63 		9-85111-368-0 01 1 9906-
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9906-
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9906-
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9906-
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 9906-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 9906-
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9906-
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 9906-
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 9906-
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 9906-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 9906-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 9906-
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-017-0 01 1 9906-
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 9906-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 9906-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9906-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9906-

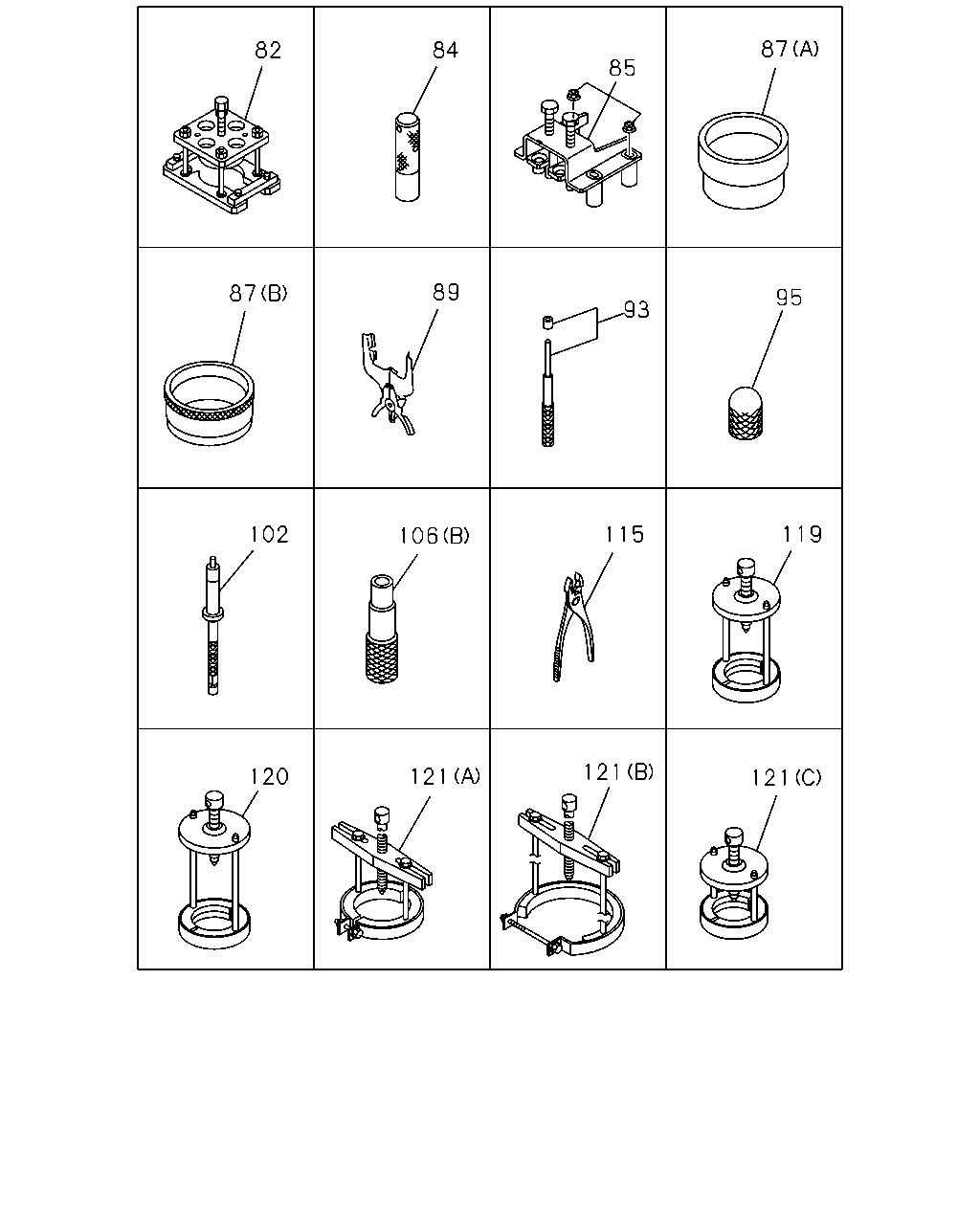

çizim 43529
87 82 84 85 89 87 95 93 102 115 119 106 121 120 121 121
BalonParca AdiParca NoAdetTipApplied Date
82 PULLER ASM; CR/SHF GEAR 1-85210-064-0 01 1 9906-
84 REPLACER; VALVE SEAL
EXHAUST 		1-85221-184-0 01 1 9906-
84 REPLACER; VALVE SEAL
INLET 		1-85221-187-0 01 1 9906-
85 REPLACER ASM; VALVE SPR 1-85235-013-0 01 1 9906-
87 TOOL; PISTON
6WA1 TC-C(55L),6WA1 TC-S(56L) (A) 		1-85220-046-0 01 1 9906-9906
87 TOOL; PISTON
6WA1 TC-C(55L) (A) 		1-85220-046-0 01 1 9907-
87 TOOL; PISTON
6WG1 TC-N(71L) (B) 		1-85220-059-0 01 1 9906-
89 TOOL; PISTON RING
6WA1 TC-C(55L),6WA1 TC-S(56L) 		1-85221-029-0 01 1 9906-9906
89 TOOL; PISTON RING
6WA1 TC-C(55L) 		1-85221-029-0 01 1 9907-
89 TOOL; PISTON RING
6WG1 TC-N(71L) 		1-85221-025-0 01 1 9906-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 9906-
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 9906-
102 ADAPTER; COMP GAGE 1-85317-019-0 01 1 9906-
106 TOOL; SETTING PILOT BRG
(B) 		1-85221-057-0 01 1 9906-
106 TOOL; SETTING PILOT BRG
ISUZU M/T<X9A> (C) 		9-85221-247-0 01 1 9906-
106 TOOL; SETTING PILOT BRG
ISUZU M/T<X9A> (A) 		9-85221-249-0 01 1 9906-
115 PLIER 5-85171-001-0 01 1 9906-
119 PULLER ASM; TOP GEAR BRG
ISUZU M/T<X9A> L=235 		9-85210-190-0 01 1 9906-
120 PULLER ASM; MAIN REAR BRG
ISUZU M/T<X9A> L=285 		9-85210-184-0 01 1 9906-
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> (B) 		1-85210-069-0 01 1 9906-
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> (A) OD=146 		1-85210-074-0 01 1 9906-
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> (C) 		9-85210-185-0 01 1 9906-
çizim 44404
43 50 51 42 52 53 54 57 59 61 61 70 73 75 75 75 106 177 56 106 163 75
BalonParca AdiParca NoAdetTipApplied Date
42 HANDLE; SLIDING 9-09590-512-0 01 1 9906-
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 9906-
50 REPLACER; NOZZLE HOLDER
L=300 		1-85230-013-0 01 1 9906-
51 PULLER ASM; WATER PUMP 1-85220-047-0 01 1 9906-
52 REMOVER; WATER PUMP 1-85210-062-0 01 1 9906-
53 PULLER; TAPER BUSHING 1-85210-063-0 01 1 9906-
54 PULLER; THERMOSTAT SEAL 1-85210-067-0 01 1 9906-
56 TOOL; SETTING TOP GEAR MAIN
ISUZU M/T<X9A> L=350 		9-85221-310-0 01 1 9906-
57 TOOL; SETTING CRANK GEAR
OD=162 		1-85220-045-0 01 1 9906-
59 PULLER ASM; TIMING GEAR
6WA1 TC-C(55L),6WA1 TC-S(56L) 		1-85210-065-0 01 1 9906-9906
59 PULLER ASM; TIMING GEAR
6WA1 TC-C(55L) 		1-85210-065-0 01 1 9907-
61 PULLER ASM; PILOT BRG
(A) 		9-85210-157-0 01 1 9906-
61 PULLER ASM; PILOT BRG
ISUZU M/T<X9A> (B) 		1-85210-050-0 01 1 9906-
70 TOOL; SETTING,OIL SEAL 1-85220-043-0 01 1 9906-
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 9906-
75 TOOL; SETTING,OIL SEAL
(C) 		1-85220-049-0 01 1 9906-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (D) 		1-85221-096-0 01 1 9906-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (A) 		1-85221-168-0 01 1 9906-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (B) 		1-85221-169-0 01 1 9906-
106 TOOL; SETTING PILOT BRG
(B) 		1-85221-057-0 01 1 9906-
106 TOOL; SETTING PILOT BRG
ISUZU M/T<X9A> (C) 		9-85221-247-0 01 1 9906-
106 TOOL; SETTING PILOT BRG
ISUZU M/T<X9A> (A) 		9-85221-249-0 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (C) OD=150 		1-85221-167-0 01 1 9906-
163 TOOL; SETTING
ISUZU M/T<X9A> (D) L=150 		9-85221-248-0 01 1 9906-
177 SETTING TOOL KIT
ISUZU M/T<X9A> 		1-85220-004-0 01 1 9906-
çizim 44664
227 230 232 237 296 408 408 245 246 248 250 246 249 250
BalonParca AdiParca NoAdetTipApplied Date
227 PUMP ASM; TIRE 9-85521-132-0 01 1 9906-
230 PUMP; GREASE 1-85556-007-2 01 1 9906-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 9906-
237 BAG; TOOL 8-97130-902-0 01 1 9906-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 01 1 9906-
246 CHAIN; TIRE,1000-20,SINGLE
(A) 10.00-20 SINGLE TYPE 		9-85591-239-0 01 1 9906-
246 CHAIN; TIRE,1000-20,SINGLE
(B) 11.00-20 SINGLE TYPE 		9-85591-259-0 01 1 9906-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 01 1 9906-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 01 1 9906-
250 CHAIN; TIRE,1000-20,TRIPLE
(A) 10.00-20 TRIPLE TYPE 		9-85591-241-0 01 1 9906-
250 CHAIN; TIRE,1000-20,TRIPLE
(B) 11.00-20 TRIPLE TYPE 		9-85591-261-0 01 1 9906-
296 REPLACER; SLINGER 1-85210-027-0 01 1 9906-
408 TOOL; SETTING,SHIFT ASSISTER
ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) 		1-85221-268-0 01 1 0006-
408 TOOL; SETTING,SHIFT ASSISTER
ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) 		1-85221-269-0 01 1 0006-
