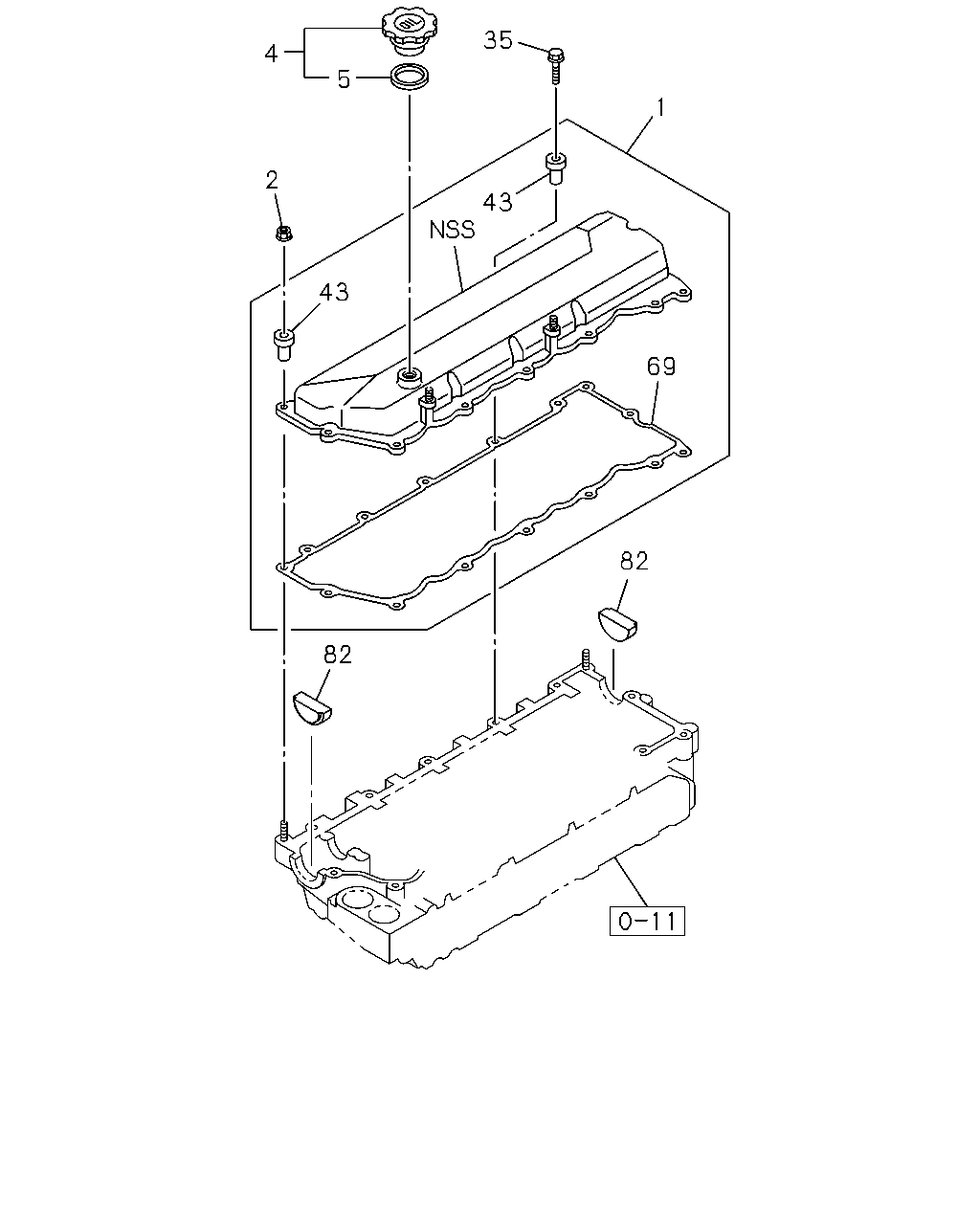

0-10 — CYLINDER HEAD COVER (#73399) — 24 parça

35 4 5 1 2 43 43 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD ISUZU BRAND<7WL>	8-97113-025-3	01	1	1006-1006	●
1	COVER; CYL HD ISUZU BRAND<7WL>	8-98171-615-0	01	1	1007-1111	●
1	COVER; CYL HD ISUZU BRAND<7WL>	8-98171-615-0	01	1	1112-	●
1	COVER; CYL HD	8-98171-615-0	01	1	1112-		●
1	COVER; CYL HD	8-97169-494-0	01	1	9704-1005	●
1	COVER; CYL HD EXC. ISUZU BRAND<7WL>	8-97169-494-0	01	1	1006-	●
2	NUT; COVER,HD M8 FLANGE	0-91150-108-0	02	1	9704-0602	●
2	NUT; COVER,HD M8 FLANGE	0-91180-108-0	02	1	0603-1111	●
2	NUT; COVER,HD M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
2	NUT; COVER,HD M8 FLANGE	0-91180-108-0	01	1	1112-		●
4	CAP; OIL FILLER	8-94133-207-5	01	1	9704-1111	●
4	CAP; OIL FILLER	8-94133-207-5	01	1	1112-	●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-94123-623-1	01	1	9704-1111	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-94123-623-1	01	1	1112-	●	●
35	BOLT; NOISE SHIELD COVER M8X30 FLANGE	0-28680-830-0	13	1	9704-0512	●
35	BOLT; NOISE SHIELD COVER M8X30 FLANGE	0-28650-830-0	13	1	0601-	●
35	BOLT; NOISE SHIELD COVER M8X30 FLANGE	0-28650-830-0	12	1	1112-		●
43	RUBBER; MTG,HD COVER,OUTER OD=23	8-97105-689-6	15	1	9704-1111	●
43	RUBBER; MTG,HD COVER,OUTER OD=23	8-97105-689-6	15	1	1112-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	9704-1111	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	1112-	●	●
82	PLUG; CYL HD COVER	8-94399-605-0	02	1	9704-1005	●
82	PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-1111	●
82	PLUG; CYL HD COVER	8-98163-813-0	02	1	1112-	●	●
