Isuzu WW
▶
SUV
▶
UBS
▶
50757 - UBS-RHD
▶
9 - Tools
▶
9-01 - TOOLS
▶

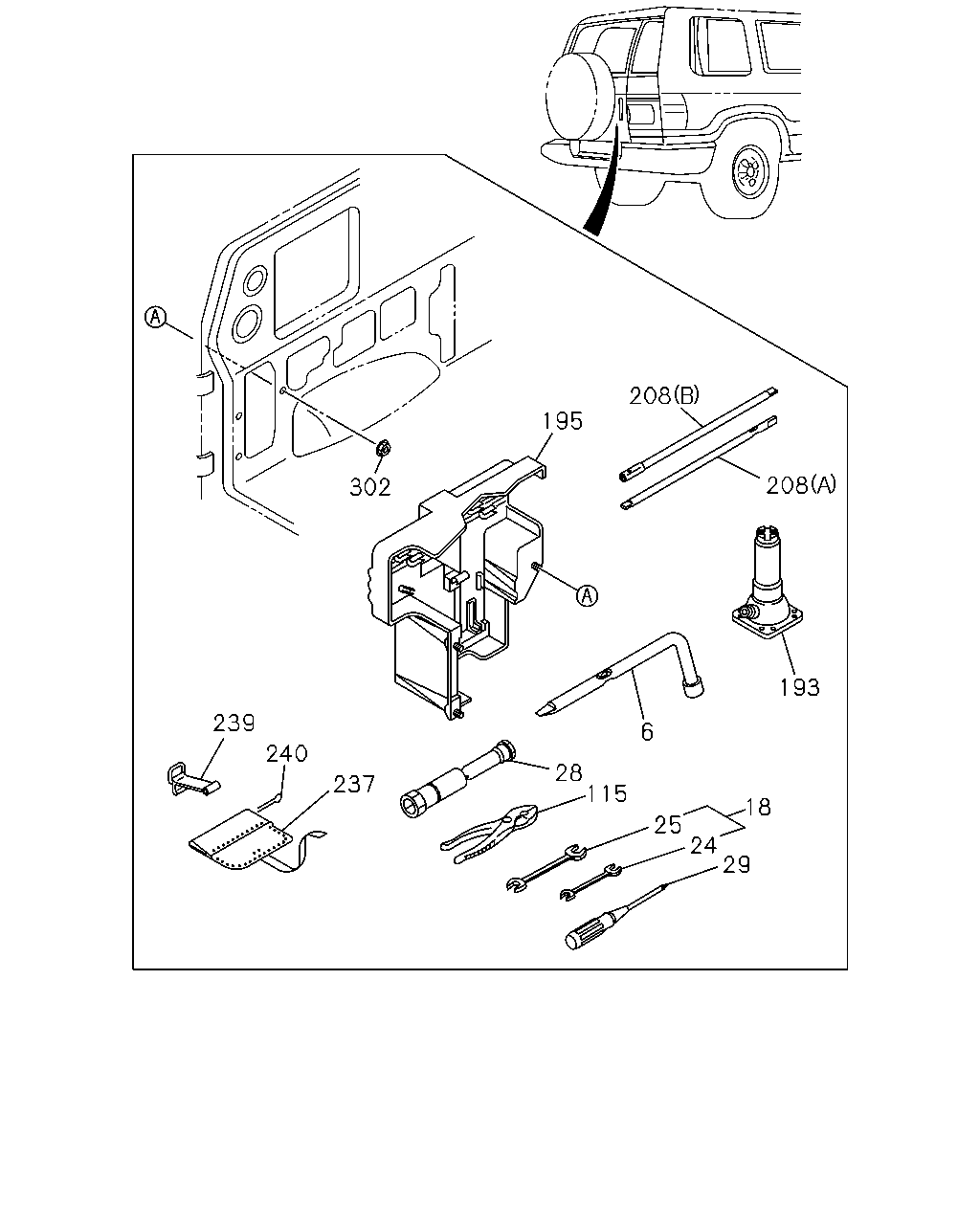

9-01 — TOOLS
(#73396) — 22 parça
Tümü
A - UBS5VC
B - UBS5VF
208
195
208
302
193
239
6
240
28
115
237
18
25
24
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
08.821 WRENCH; WHEEL
8-97092-297-3
01
1
9712-0210
●
●
6
08.821 WRENCH; WHEEL
8-94367-941-0
01
1
0211-
●
●
18
08.821 WRENCH KIT
8-97115-905-1
01
1
9712-
●
●
24
08.821 WRENCH; 8X10
8X10
9-99592-108-0
01
1
9712-
●
●
25
08.821 WRENCH; 12X14
12X14
9-09592-112-0
01
1
9712-
●
●
28
08.821 WRENCH; SPARK PLUG
6VE1 ENG(RJQ),6VD1 ENG(RLV)
8-97089-572-0
01
1
9712-
●
●
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
9712-
●
●
115
08.821 PLIER
5-85171-002-0
01
1
9712-
●
●
193
08.820 JACK ASM
AUSTRALIA EQUIPMENT(RR3)
8-97175-227-0
01
1
9712-9804
●
●
193
08.820 JACK ASM
EXC. AUSTRALIA EQUIPMENT(RR3)
8-97175-229-0
01
1
9712-9804
●
●
193
08.820 JACK ASM
8-97204-145-0
01
1
9805-9908
●
●
193
08.820 JACK ASM
M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)
8-97204-145-0
01
1
9909-0205
●
●
193
08.820 JACK ASM
A/T AISIN(RMD)
8-97204-146-0
01
1
9909-0205
●
●
193
08.820 JACK ASM
8-97330-002-0
01
1
0206-
●
●
195
08.820 BRACKET; JACK
8-97091-565-7
01
1
9712-
●
●
208
08.820 HANDLE; JACK
07.629 (A)
8-94367-915-1
01
1
9712-
●
●
208
08.820 HANDLE; JACK
07.629 (B)
8-94367-921-1
01
1
9712-
●
●
237
08.821 BAG; TOOL
8-97103-736-0
01
1
9712-0111
●
●
237
08.821 BAG; TOOL
8-97312-893-0
01
1
0112-
●
●
239
08.820 BAND; TOOL BAG
L=82
9-68399-060-0
01
1
9712-
●
●
240
08.820 PIN; SPLIT,TOOL BAG BAND
D=2.5 L=43
8-94335-692-2
01
1
9712-
●
●
302
08.820 NUT; JACK BRKT
04.594 M6 FLANGE
0-91150-106-0
03
1
9712-
●
●
