8-90 — RADIO AND TV (#73395) — 63 parça

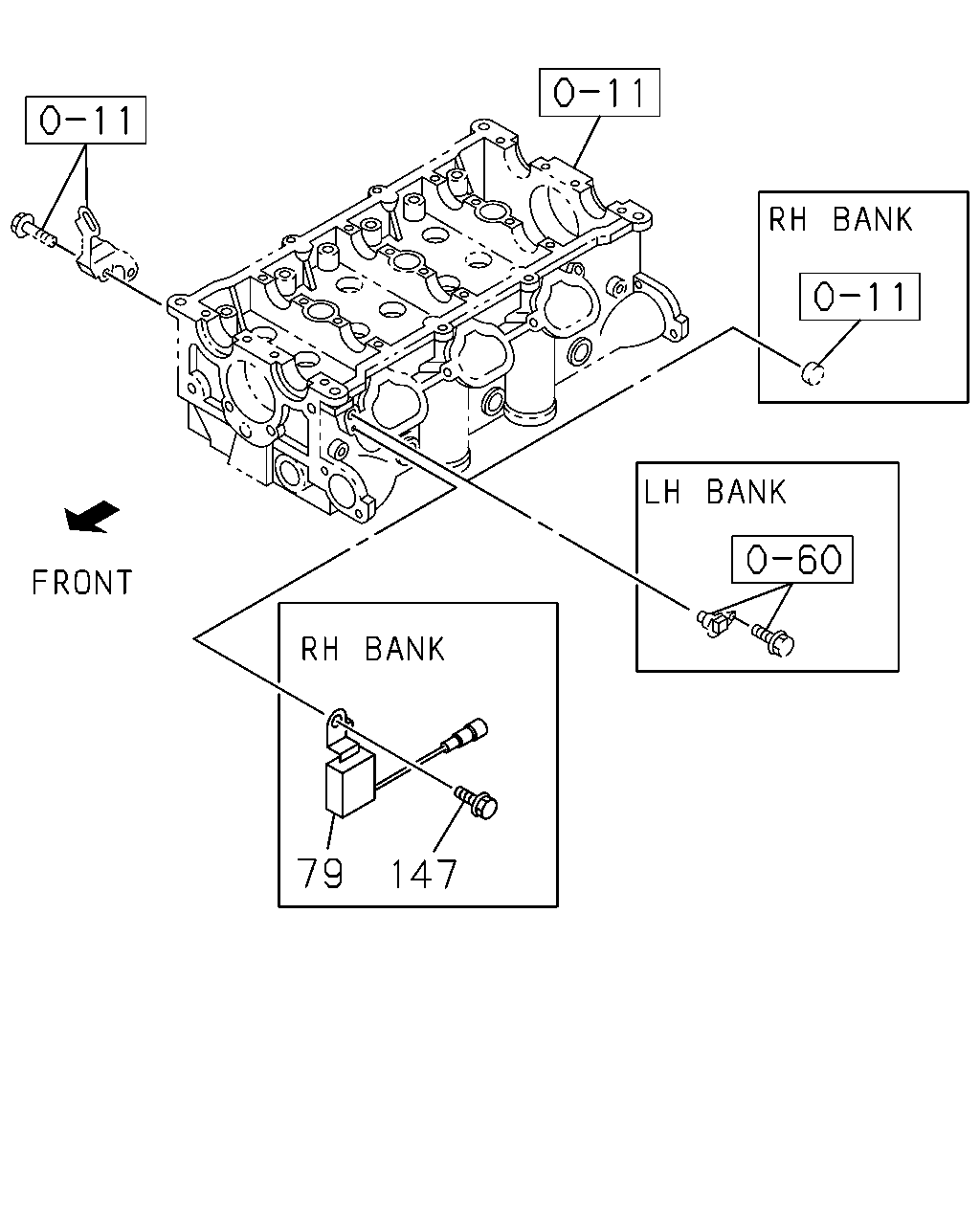

79 147

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	79	02.319 CONDENSER; RADIO 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97174-553-1	01	1	9712-	●	●
	147	09.663 BOLT; CONDENSER 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●

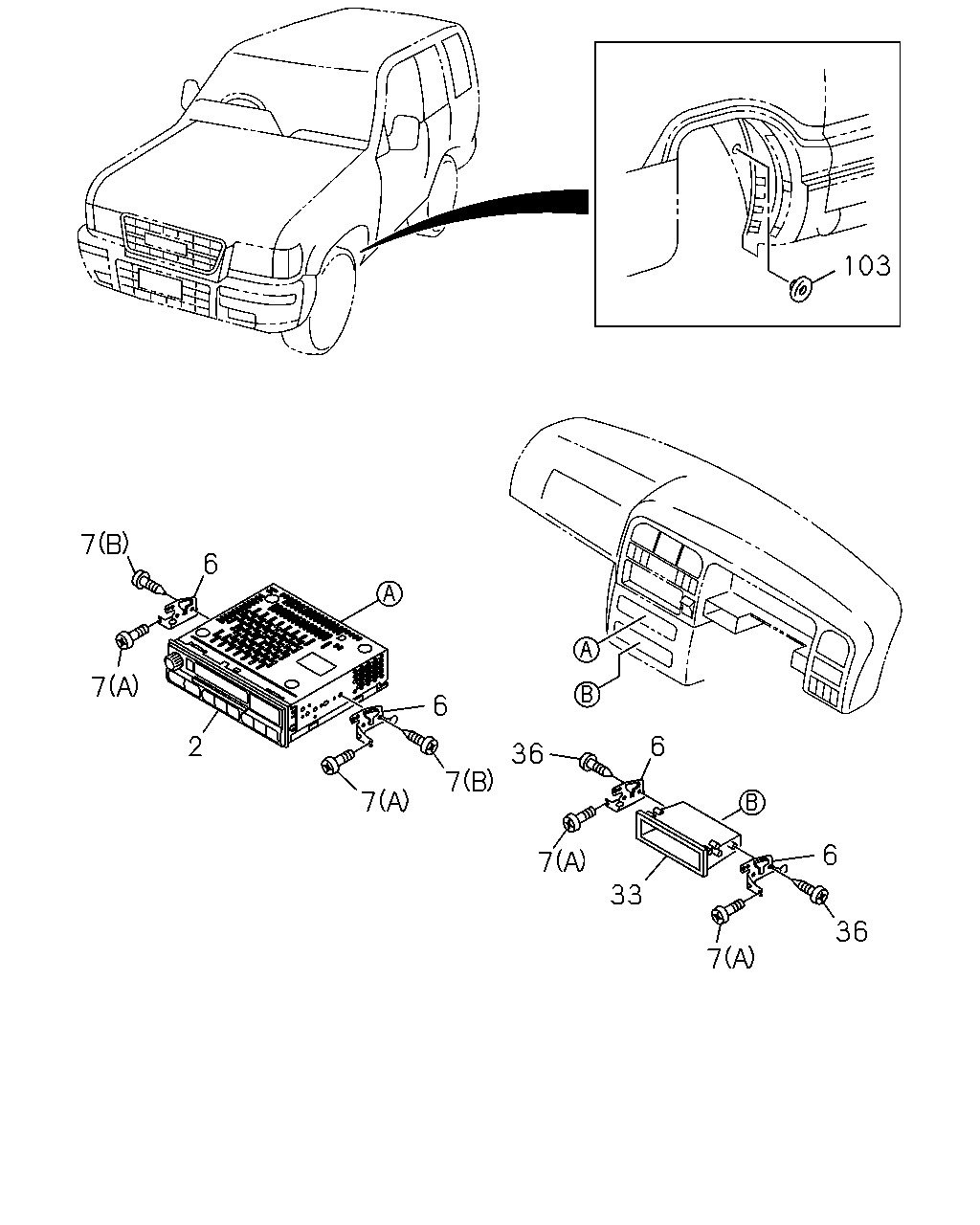

103 7 6 7 6 6 2 36 7 7 6 7 33 36 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SP CENTRAL & S/AMERICA (UX4)	8-97168-025-0	01	1	9712-	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6)	8-97168-026-0	01	1	9712-9909	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6)	8-97239-892-0	01	1	9910-	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97102-092-1	01	1	9712-	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97102-092-1	01	1	9712-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97102-092-1	01	1	9712-	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97085-169-1	01	1	9712-	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97085-169-1	01	1	9712-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97085-169-1	01	1	9712-	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL &S/AMERICA(UX4) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9712-	●	●
7	09.650 SCREW; RADIO CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9712-	●	●
7	09.650 SCREW; RADIO EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9712-	●	●
7	09.650 SCREW; RADIO 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9712-	●	●
33	09.650 COVER; RADIO EXC. AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AMERICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL & S/AMERICA(UX4),4 SPEAKERS WO/RADIO TYPE<7DX>	8-97066-253-2	01	1	9712-	●	●
33	09.650 COVER; RADIO	8-97066-253-2	01	1	9712-	●	●
36	09.779 SCREW; COVER EXC. AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AMERICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL & S/AMERICA(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> 02.689 M5X10	8-94428-816-0	04	1	9712-	●	●
36	09.779 SCREW; COVER 02.689 M5X10	8-94428-816-0	04	1	9712-	●	●
103	09.647 GROMMET; ANTENNA HOLE,FRT EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75> 09.775	8-94111-420-0	01	1	9712-	●	●

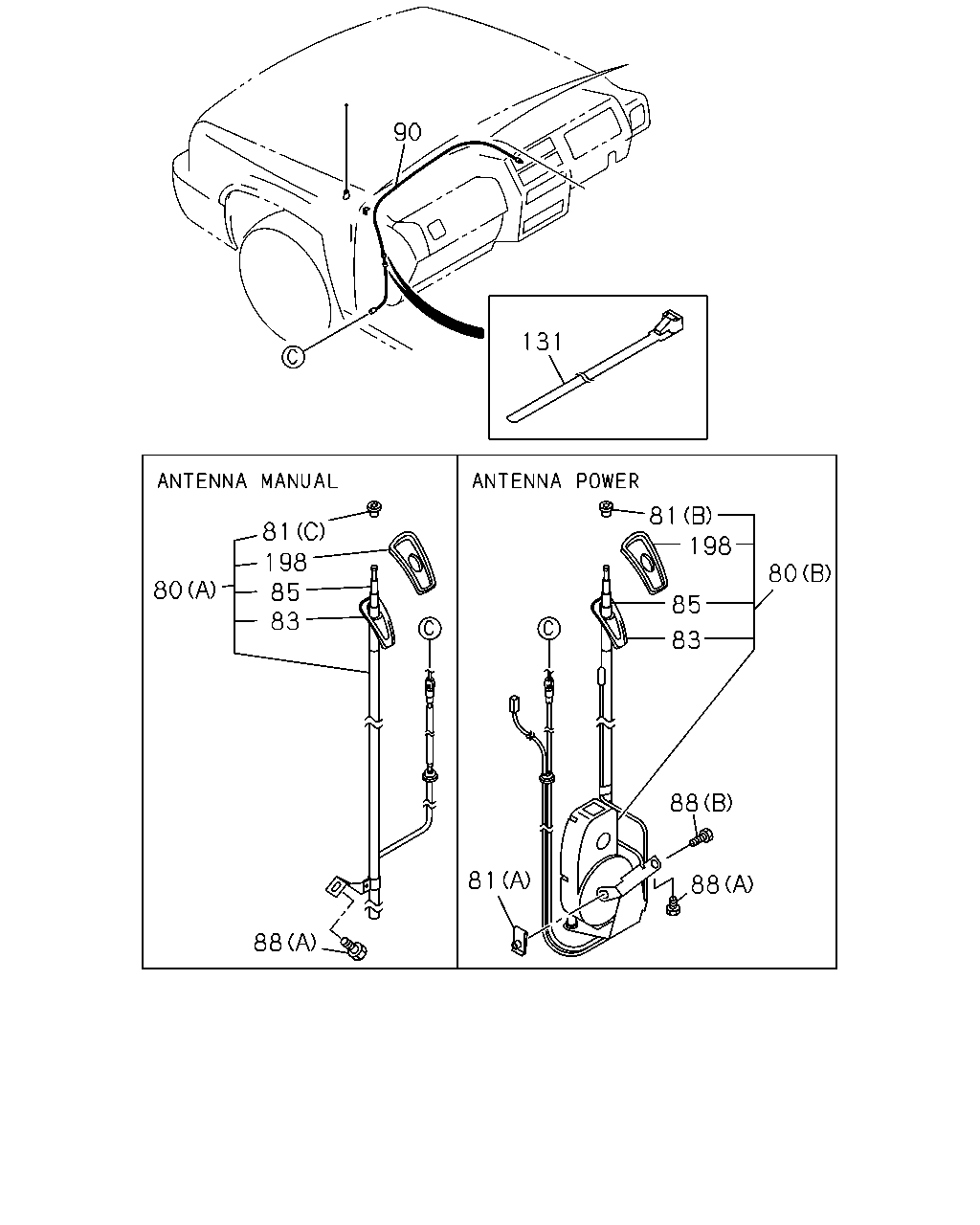

90 131 81 198 81 198 85 83 80 80 85 83 88 81 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	09.645 ANTENNA ANTENNA MANUAL<U73> (A)	8-97069-107-1	01	1	9712-	●	●
80	09.645 ANTENNA ANTENNA POWER<U75> (B)	8-97136-820-0	01	1	9712-9903	●	●
80	09.645 ANTENNA ANTENNA POWER<U75> (B)	8-97217-903-0	01	1	9904-0205	●	●
80	09.645 ANTENNA ANTENNA POWER<U75> (B)	8-97331-936-0	01	1	0206-	●	●
81	09.647 NUT; ANTENNA POLE ANTENNA MANUAL<U73> (C)	8-97072-734-0	01	1	9712-	●	●
81	09.647 NUT; ANTENNA POLE ANTENNA POWER<U75> 08.143 (A)	8-94334-769-0	01	1	9712-	●	●
81	09.647 NUT; ANTENNA POLE ANTENNA POWER<U75> (B)	8-97072-733-0	01	1	9712-	●	●
83	09.647 GROMMET; BASE,ANTENNA POLE INNER ANTENNA MANUAL<U73>,ANTENNA POWER<U75>	8-97072-729-0	01	1	9712-	●	●
85	09.645 POLE; ANTENNA ANTENNA MANUAL<U73>	8-97072-735-0	01	1	9712-9908	●	●
85	09.645 POLE; ANTENNA ANTENNA POWER<U75>	8-97087-197-0	01	1	9712-9903	●	●
85	09.645 POLE; ANTENNA ANTENNA POWER<U75>	8-97231-836-0	01	1	9904-	●	●
88	09.647 BOLT; ANTENNA EARTH ANTENNA MANUAL<U73>,ANTENNA POWER<U75> 02.559 (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9712-	●	●
88	09.647 BOLT; ANTENNA EARTH ANTENNA POWER<U75> 12.188 (B) M6X20	8-97025-797-0	01	1	9712-	●	●
90	09.647 CABLE; ANTENNA,FEEDER ANTENNA MANUAL<U73>,ANTENNA POWER<U75>	8-97126-797-2	01	1	9712-0006	●	●
90	09.647 CABLE; ANTENNA,FEEDER AUSTRALIA EQUIPMENT(RR3) EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75>,NEW ZEALAND EQUIPMENT(7AZ)	8-97126-797-2	01	1	9712-0006	●	●
90	09.647 CABLE; ANTENNA,FEEDER	8-97126-797-3	01	1	0007-	●	●
131	03.438 CLIP ANTENNA MANUAL<U73>,ANTENNA POWER<U75> 03.162 L=140	5-09707-031-0	02	1	9712-9806	●	●
131	03.438 CLIP AUSTRALIA EQUIPMENT(RR3) EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75>,NEW ZEALAND EQUIPMENT(7AZ) 03.162 L=140	5-09707-031-0	02	1	9712-9806	●	●
131	03.438 CLIP ANTENNA MANUAL<U73>,ANTENNA POWER<U75> 03.162 L=140	5-09707-031-0	07	1	9807-9808	●	●
131	03.438 CLIP AUSTRALIA EQUIPMENT(RR3) EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75>,NEW ZEALAND EQUIPMENT(7AZ) 03.162 L=140	5-09707-031-0	07	1	9807-9808	●	●
131	03.438 CLIP ANTENNA MANUAL<U73>,ANTENNA POWER<U75> 03.162 L=140	5-09707-031-1	02	1	9809-0006	●	●
131	03.438 CLIP AUSTRALIA EQUIPMENT(RR3) EXC. ANTENNA MANUAL<U73>,ANTENNA POWER<U75>,NEW ZEALAND EQUIPMENT(7AZ) 03.162 L=140	5-09707-031-1	02	1	9809-0006	●	●
131	03.438 CLIP 03.162 L=140	5-09707-031-1	02	1	0007-	●	●
198	09.647 SHEET; ANTENNA ANTENNA MANUAL<U73>,ANTENNA POWER<U75>	8-97072-732-0	01	1	9712-	●	●

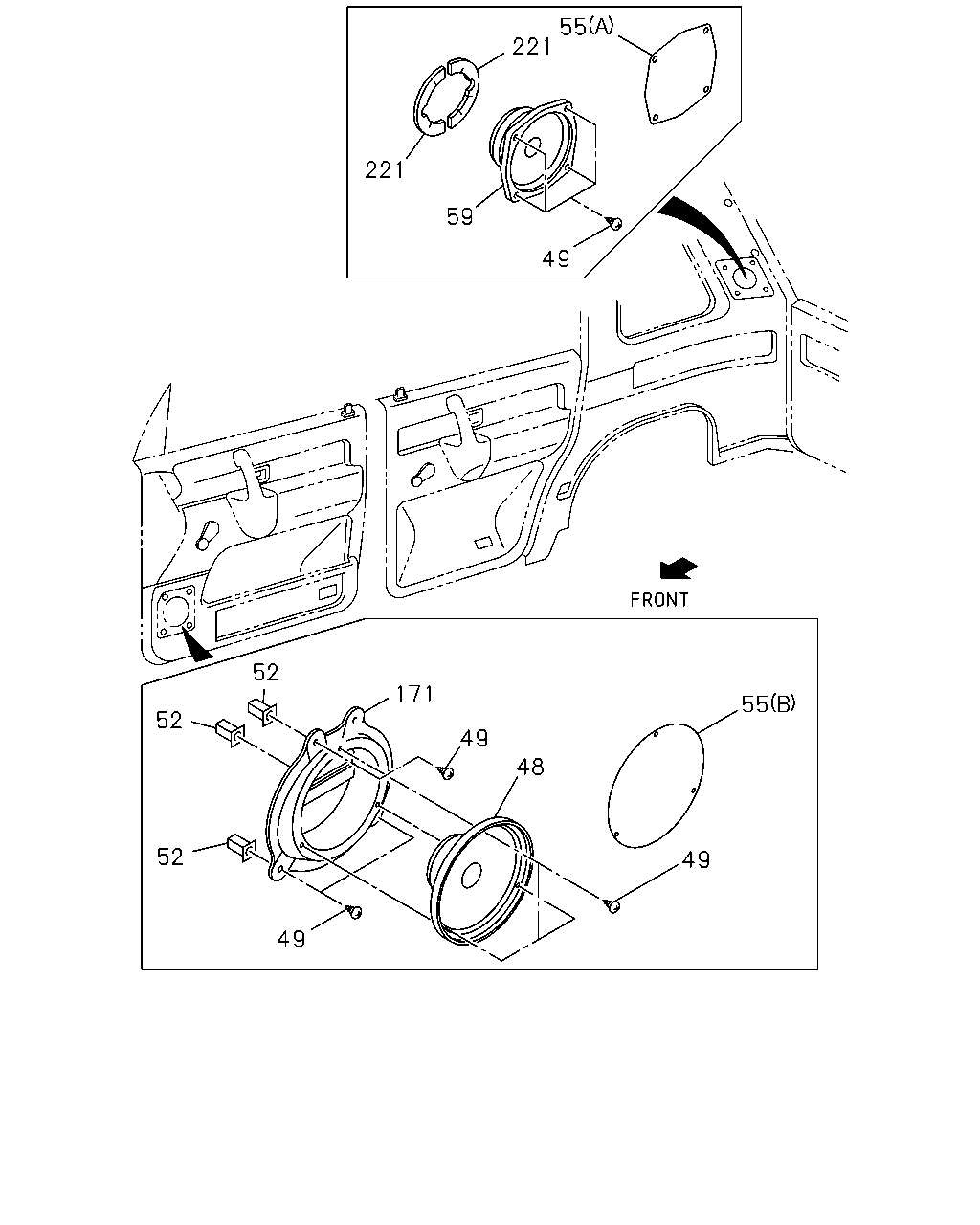

55 221 221 59 49 52 171 55 52 49 48 52 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	09.650 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL &S/AMERICA(UX4)	8-97132-159-0	02	1	9712-0109	●	●
48	09.650 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97132-159-0	02	1	9712-0109	●	●
48	09.650 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL &S/AMERICA(UX4)	8-97318-413-0	02	1	0110-0204	●	●
48	09.650 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97318-413-0	02	1	0110-0204	●	●
48	09.650 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL &S/AMERICA(UX4)	8-97233-508-0	02	1	0205-	●	●
48	09.650 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97233-508-0	02	1	0205-	●	●
49	09.655 SCREW; SPEAKER 16.085 M5X16 TAPPING	9-09829-323-1	06	1	9712-	●	●
49	09.655 SCREW; SPEAKER 16.085 M5X16 TAPPING	9-09829-323-1	14	1	9712-	●	●
52	09.655 GROMMET; SCREW,SPEAKER 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	06	1	9712-	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AMERICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL & S/AMERICA(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (A)	8-94372-840-0	02	1	9712-	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AMERICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL & S/AMERICA(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-97035-686-0	02	1	9712-	●	●
59	09.665 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL &S/AMERICA(UX4)	8-97109-484-0	02	1	9712-0109	●	●
59	09.665 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97109-484-0	02	1	9712-0109	●	●
59	09.665 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL &S/AMERICA(UX4)	8-97318-414-0	02	1	0110-0204	●	●
59	09.665 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97318-414-0	02	1	0110-0204	●	●
59	09.665 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SP EXC.CENTRAL & S/AME RICA(UM6),AM/FM W/CASSETTE 4 SP CENTRAL &S/AMERICA(UX4)	8-97233-511-0	02	1	0205-	●	●
59	09.665 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97233-511-0	02	1	0205-	●	●
171	09.650 COVER; SPEAKER	8-97130-328-0	02	1	9712-	●	●
221	16.165 SEAL; SPEAKER PANEL DUST PROTECTION PACKAGE<7HQ>	8-97811-261-0	04	1	9712-	●	●
